360A Lithium Li Ion Solar Energy Storage LiFePO4 CALB Battery Cell 3.2V 180Ah for DIY 12V 24V 48V
- Category: >>>
- Supplier: Shenzhen Herculesi Technology Co. Ltd.
Share on (60803141067):
Product Overview
Description
CALB new lifepo4 battery cells 180Ah 3.2V Prismatic Lithium Battery EV solar Storage battery
Notice : All cells are original New cells .
Product Description
| Nominal capacity @ 0.3C | 180Ah |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 180Ah |
| Internal resistance | 0.6 mΩ |
| Weight | 5.7kg |
| Cycle lifes | more than 2000 |

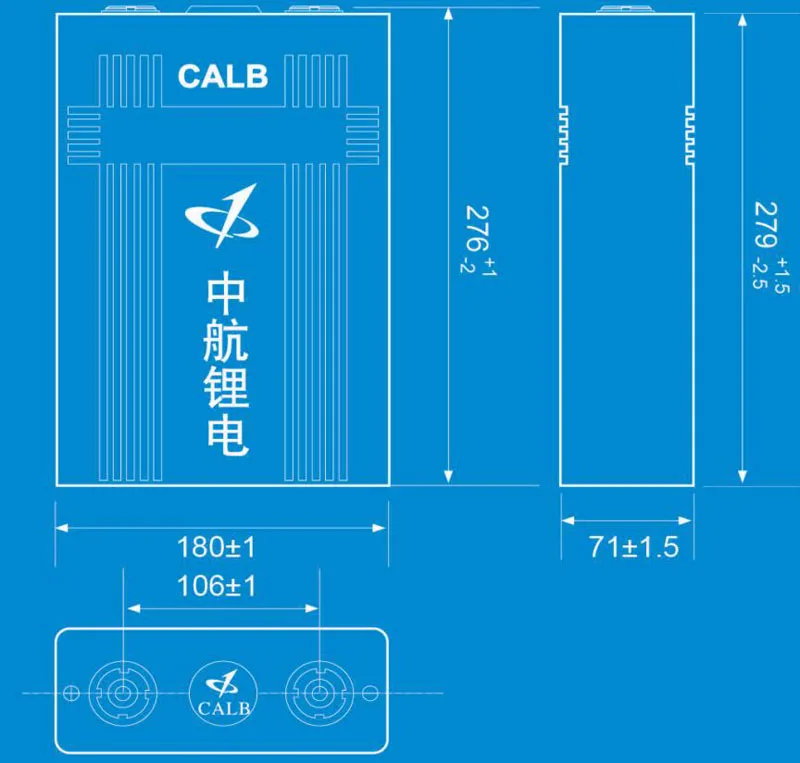

| Battery Box Size | 70*180*280mm |
| Max continuous discharge current | 360A |
| Max continuous charge current | 180A |
| SOC Usage window | 10%-90% |
| Charging temperature |
0-45C |
| Discharging temperature | -20-55C |
| Storege temperature | -20-45C |

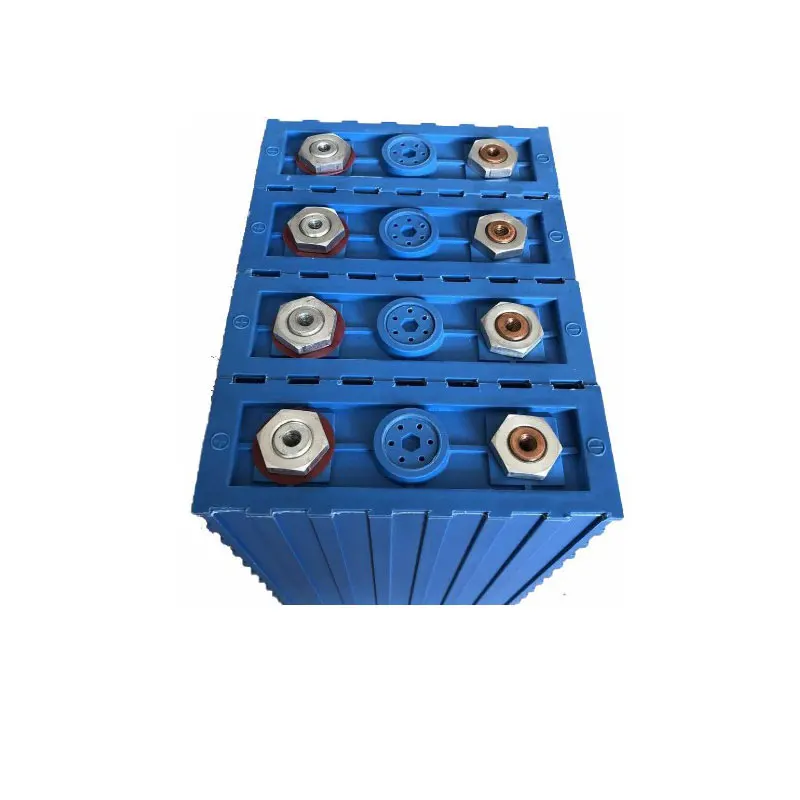

Detail picture
Applications

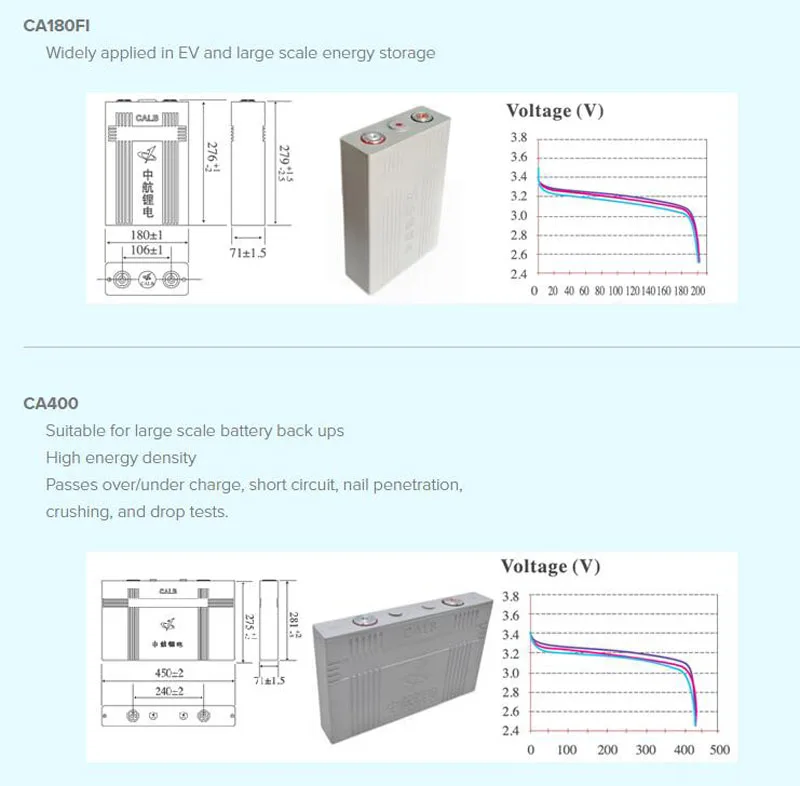

CA180

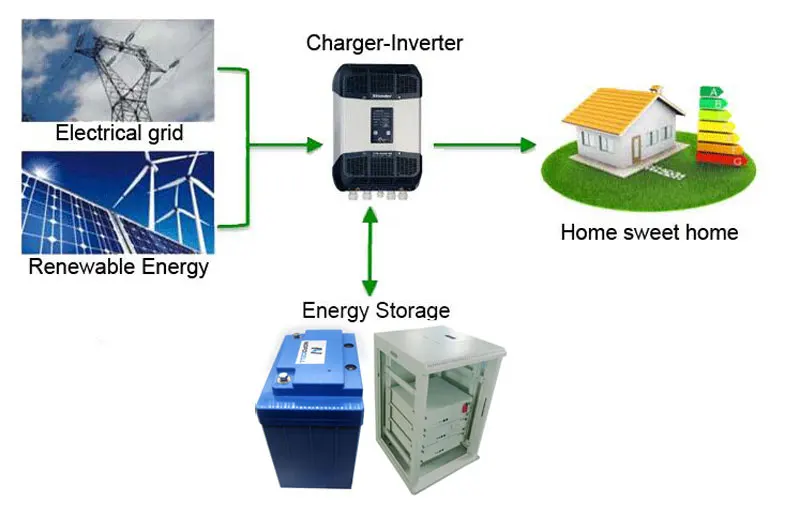

Widely applied in EV and large scale energy storage
About li ion battery

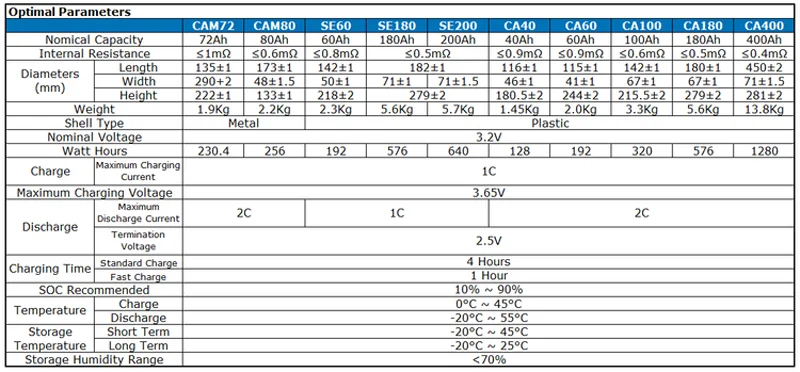

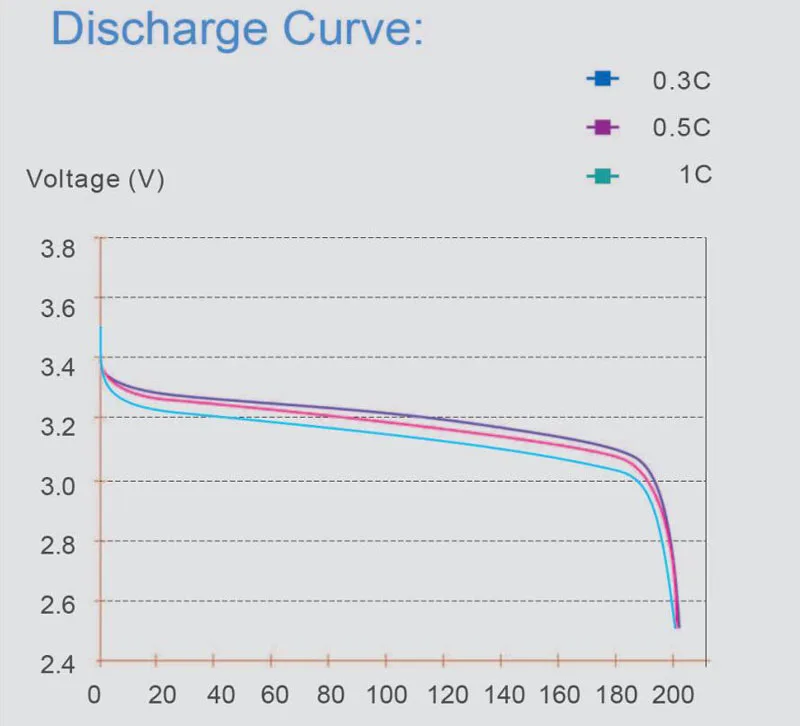

The chart below represents the prospective operating abilities of cells.
Other products

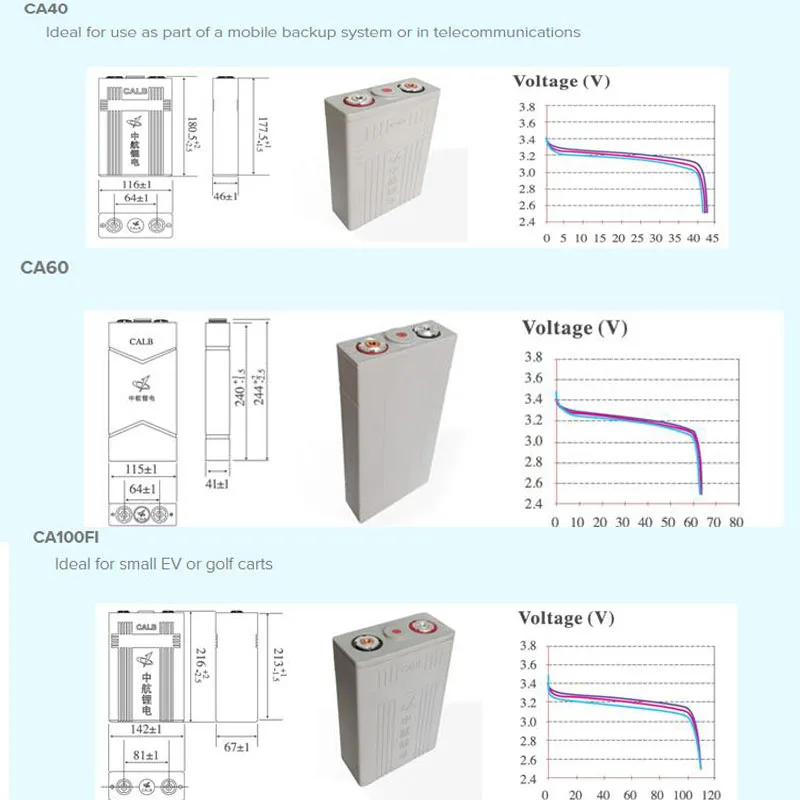

| Model | Capacity | Torque(N-m) | Torque(ft-Ibs) | Bolt | Size (mm) |
| CA40Ah | 3.2V 40Ah | 12 | 8.85 | M6 | 46x116x180 |
| CA60Ah | 3.2V 60Ah | 12 | 8.85 | M6 | 41x115x240 |
| CAM72Ah | 3.2V 72Ah | 12 | 8.85 | M6 | 29x135x216 |
| CA100Ah | 3.2V 100Ah | 14 | 10.33 | M8 | 67x142x216 |
| CA180Ah | 3.2V 180Ah | 14 | 10.33 | M8 | 71x180x279 |
| CA400Ah | 3.2V 400Ah | 24 | 17.70 | M14 | 450x71x281 |
FAQ
(1). How do we place an order?
Please kindly send us an email specifying the item, quantity, payment
or other specification to place an order.
(2). Your battery can meet CE RoHS requirements?
Our battery are with the certificate of CE/RoHS.
(3). How would the goods be shipped?
We ship via UPS,DHL ,FEDEX and sea transportation normally.
(4). What kind of guarantee you give?
Our battery the warranty time is 1year .
