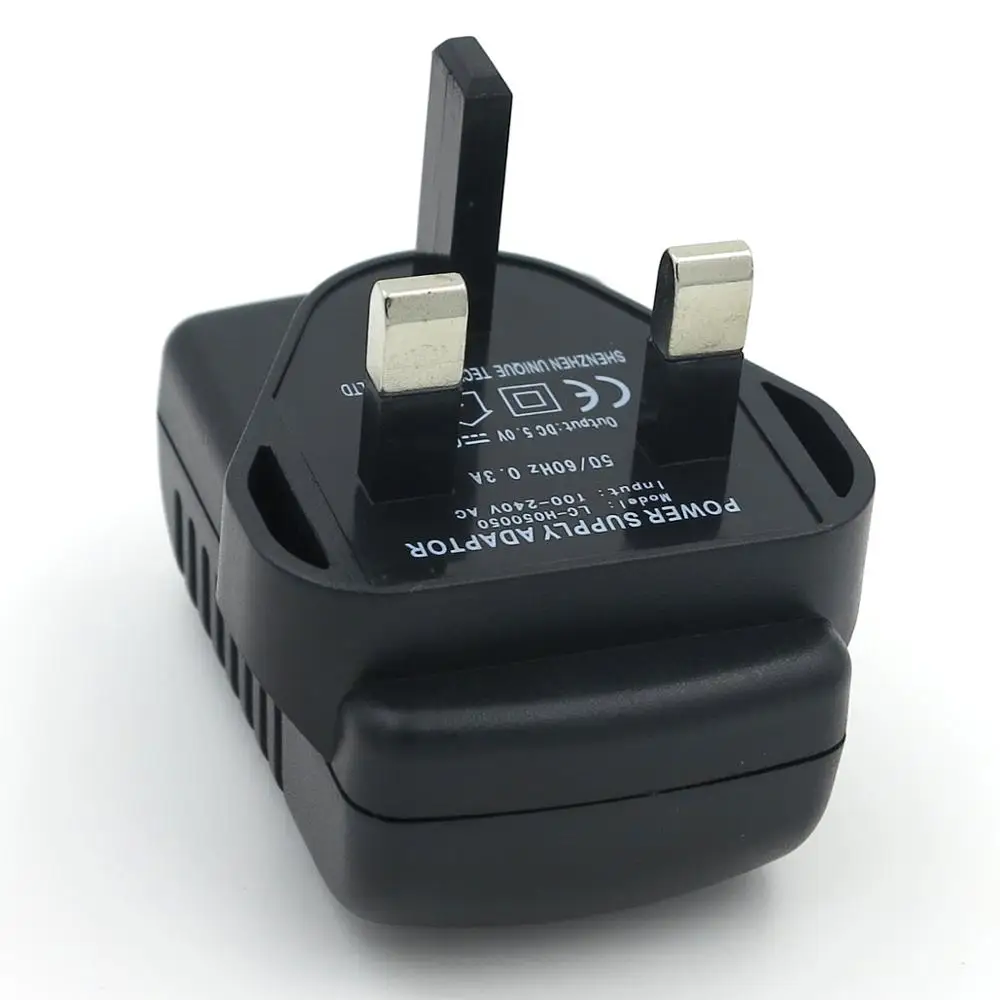

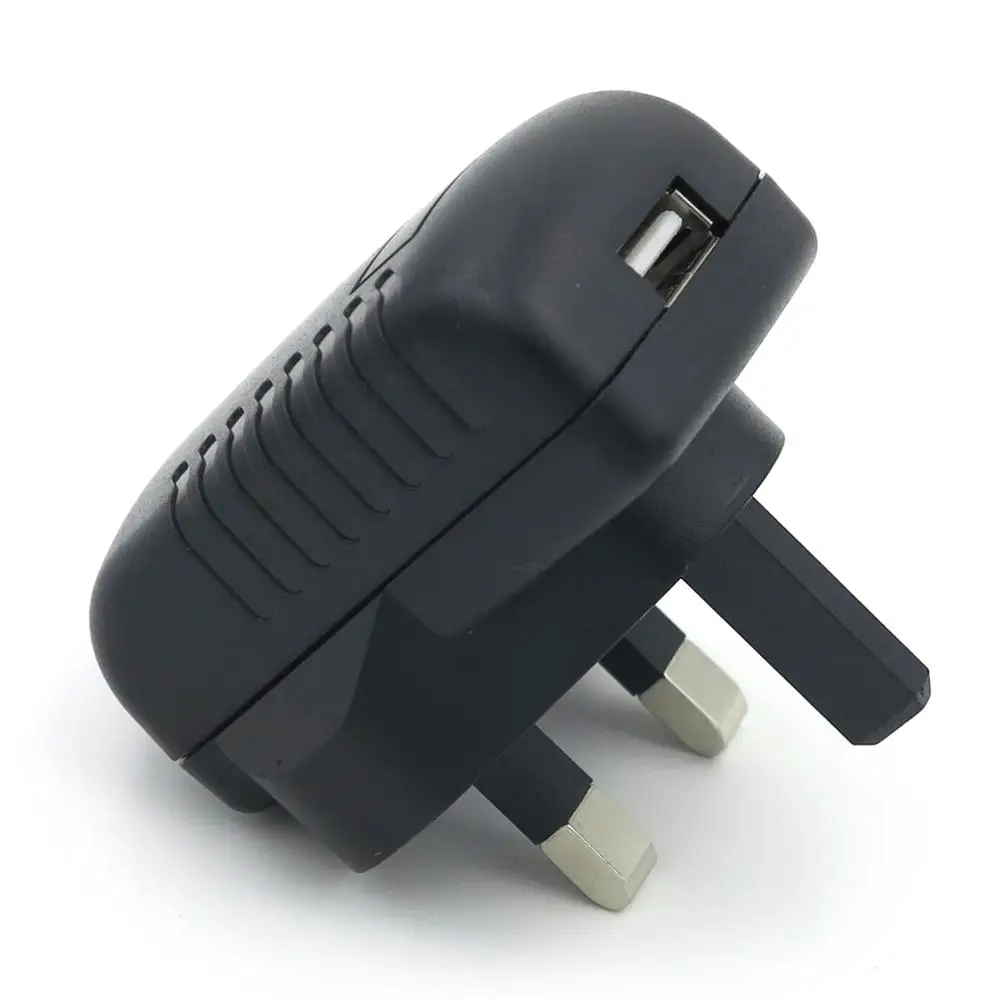

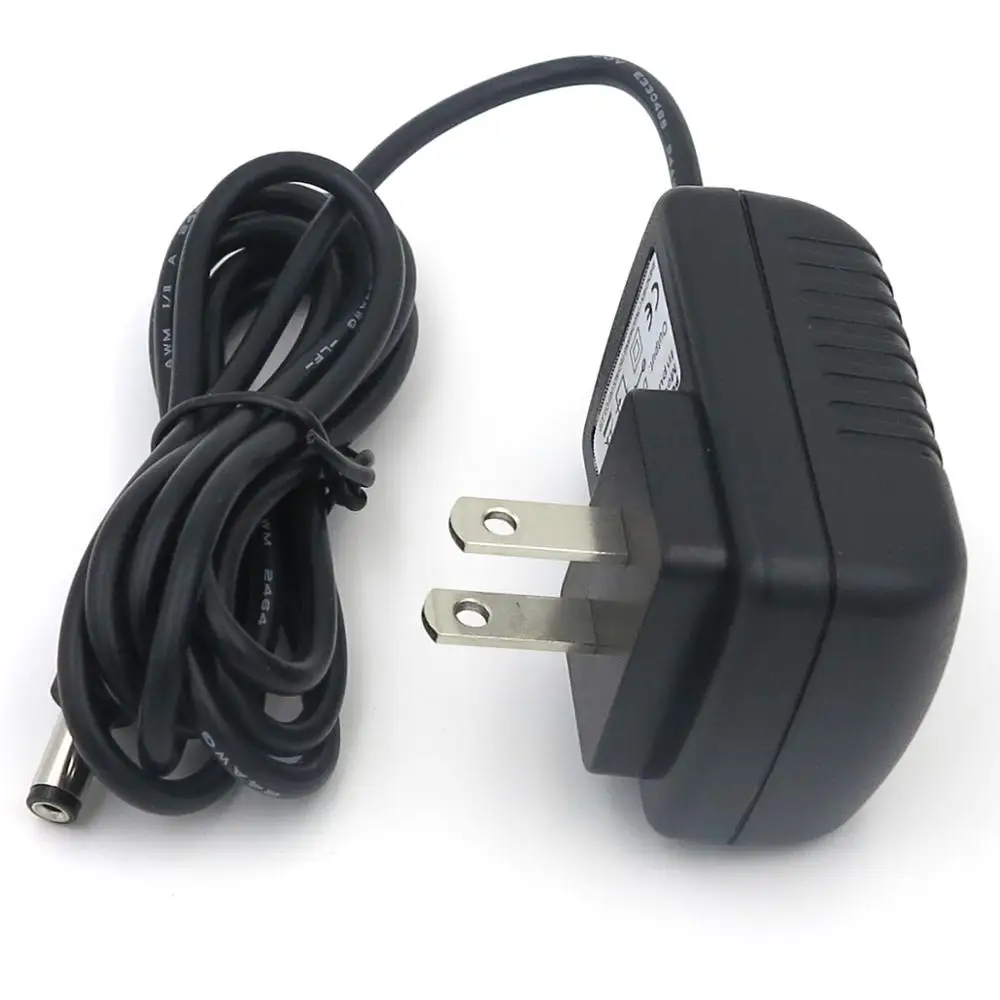

dongguan electronics input 90 240v output 5V 2A 1.5A 1A 0.5A wall charger power adapter for electronic toys/phones
- Category: >>>
- Supplier: Shenzhen Longchuang Electronic Technology Co. Ltd.
Share on (60803195199):
Product Overview
Description
high quality input 90 -240v output 5V 2A power adapter 50/60hz for electronic toys
Product Description
Specifications of output 5V2A power adapter input 90-240v universal power adapter 50/60hz for samll device | ||
Base Information | Product name | 5V 2A power adapter |
Brand | VORED | |
Model # | LC - H050200 | |
Material | ABS+PC | |
Place of Original | China (mainland) | |
Product details | AC Input voltage range | 100-240V |
AC Input current | 0. 3A | |
Inrush current | 30A max. for 110V/60Hz at cold start (25℃). | |
AC input Frequency | 50/60Hz | |
Rated output voltage | DC 5V | |
Rated output current | DC 2A | |
DC Output range | 4.7-5.2V,0-2A | |
Tolerance | ±5% | |
Efficiency | 80% | |
Plug type | UL/UK/EU/PSE/KC/CCC | |
Case outside: | 60*39*27mm | |
DC cable length | 1.2M | |
IEC connector | Optinal | |
Cable material | 18AWG/20 AWG | |
Safety Approval | UL 60950-1 2dn edition,EN60950-1 | |
Safety Protections | OCP,OVP,OLP,SCP | |
MBTF | 50000 hours | |
Standby power consumption | 10W | |
Leakage current | 5mA | |
Turn-on | 2S | |
Hold-up | 8S | |
Ripple & Noise | 100mV Max. | |
Safety | Hi-pot Test | INPUT TO OUTPUT:2000Vac,5Minute,Cut off current ≤5mA |
Burn-in Test | 40℃ Ambient,80% load,45min.ON and 15min.OFF,Burn-in 4Hrs | |
Operating Temperature | -10-40℃ | |
Relative Humidity | 10-90%RH | |
Storage Temperature | -20℃~70℃ | |
Storage Humidity | 10%-90%RH | |
Warranty | 24 months | |
Others | Sample term | we support free samples,1-3days, sample shipping cost paid by customers. |
Delivery time | 15-20 business days | |
Payment terms | T/T,L/C,Western Union,Paypal,Money Gram. | |

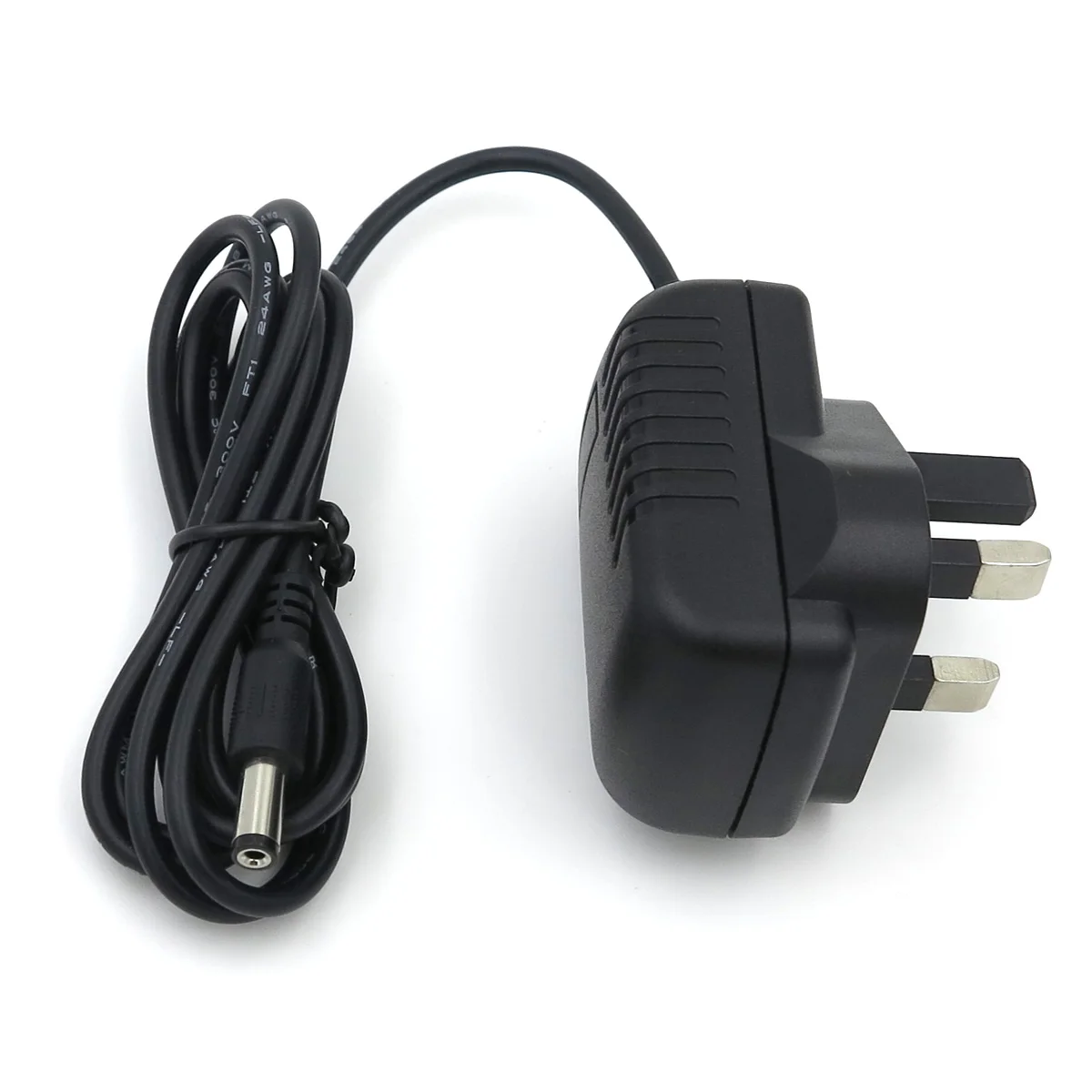

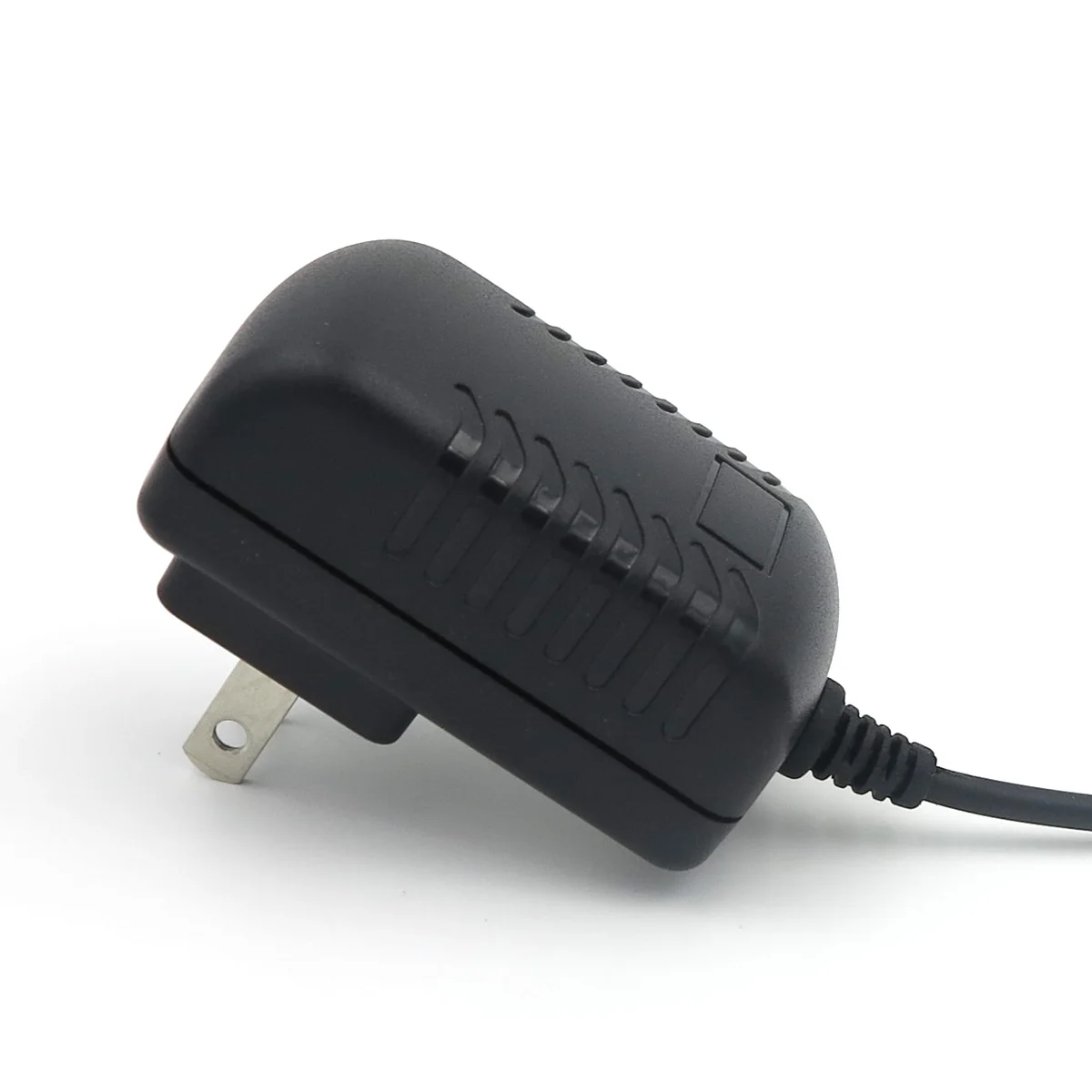

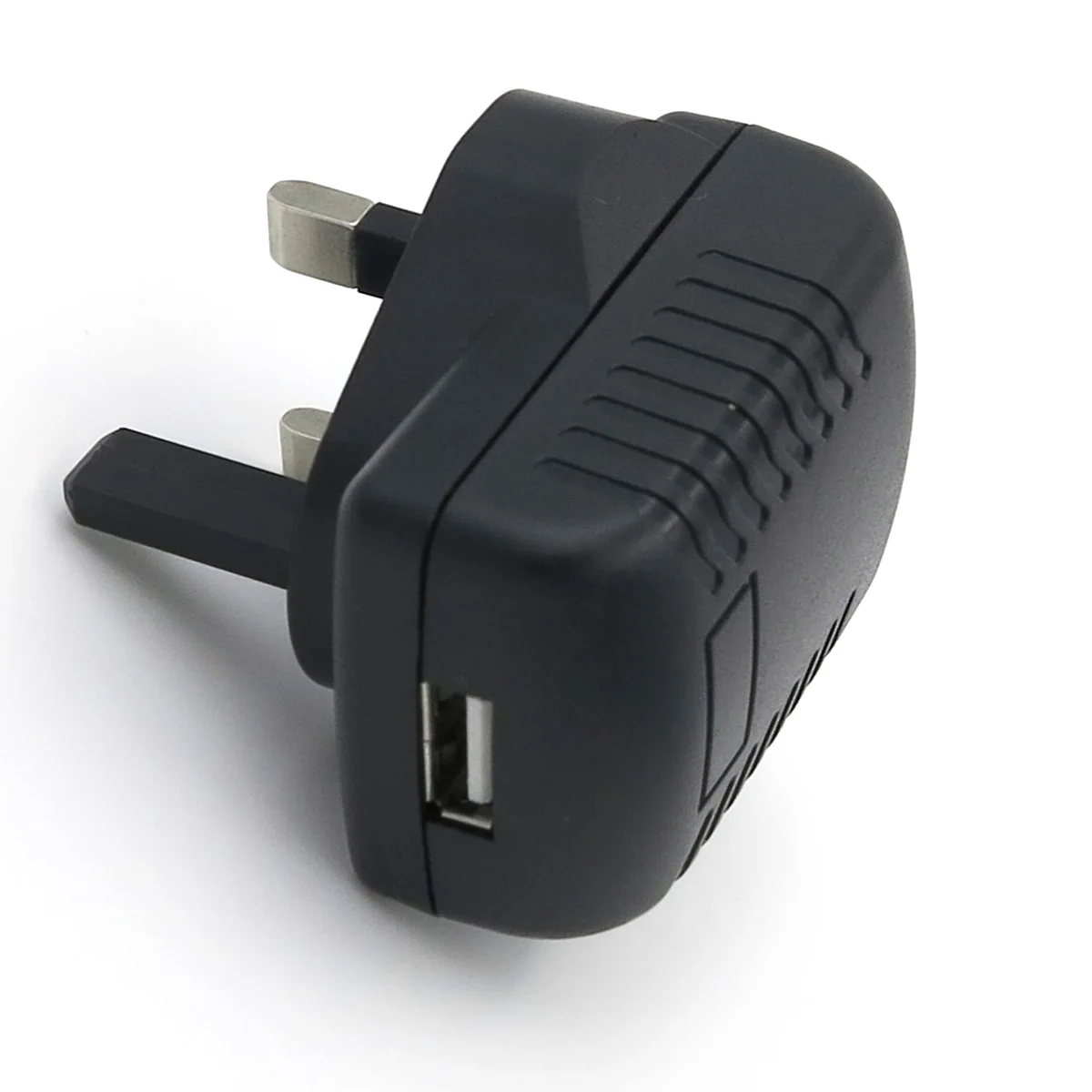

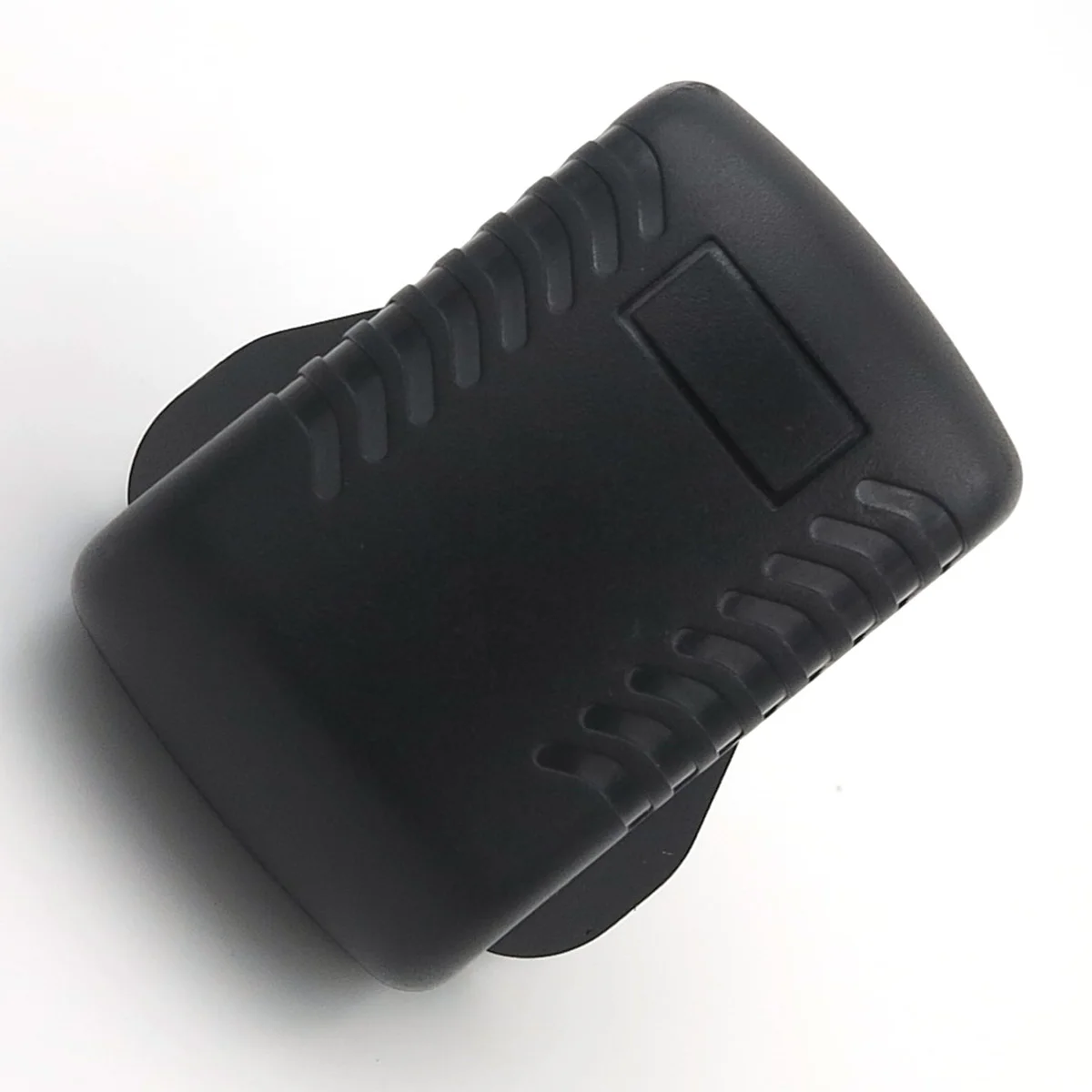

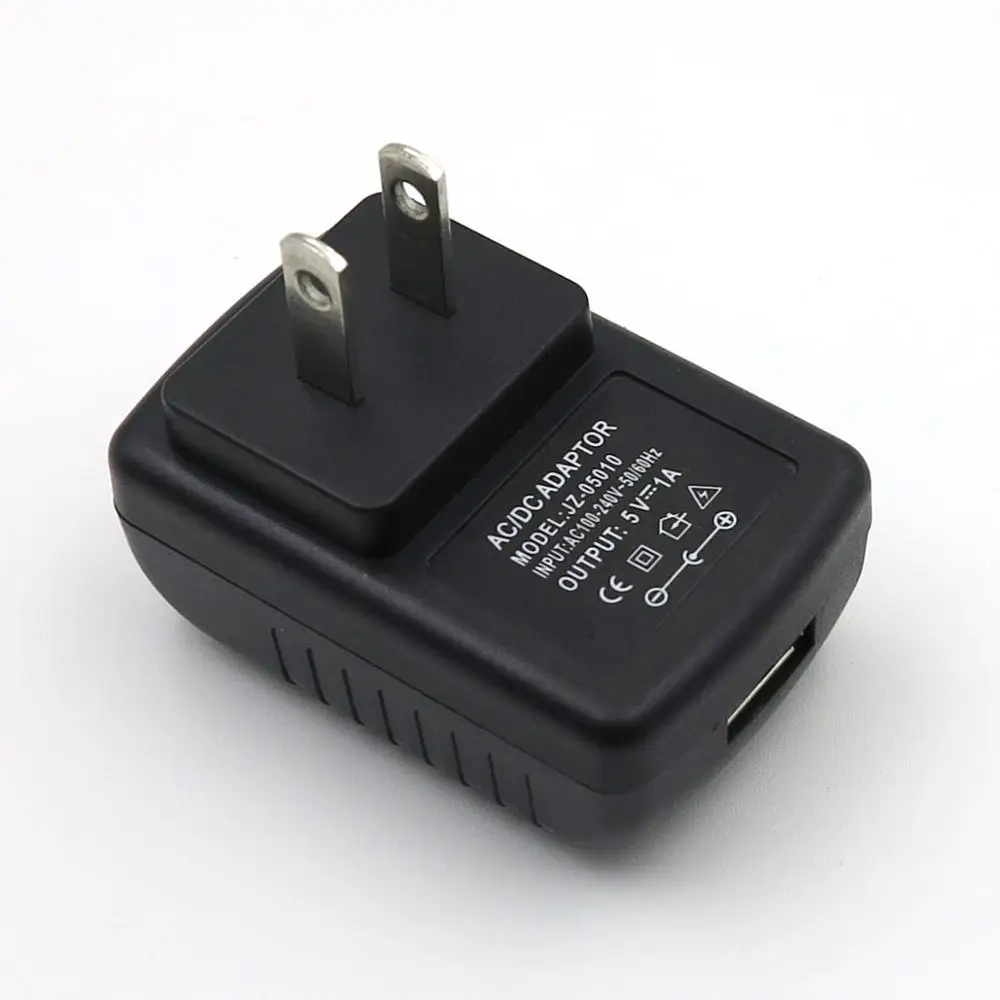

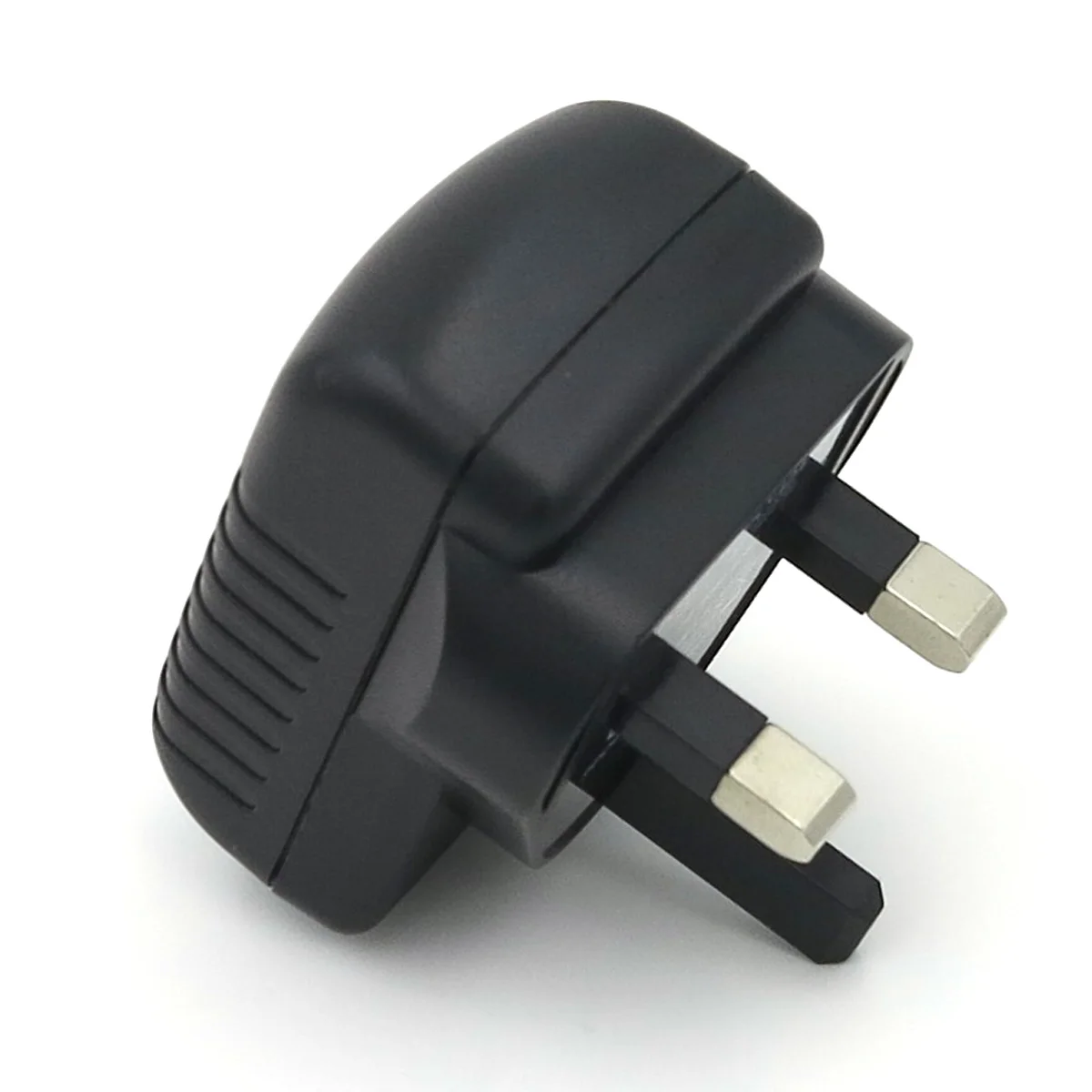

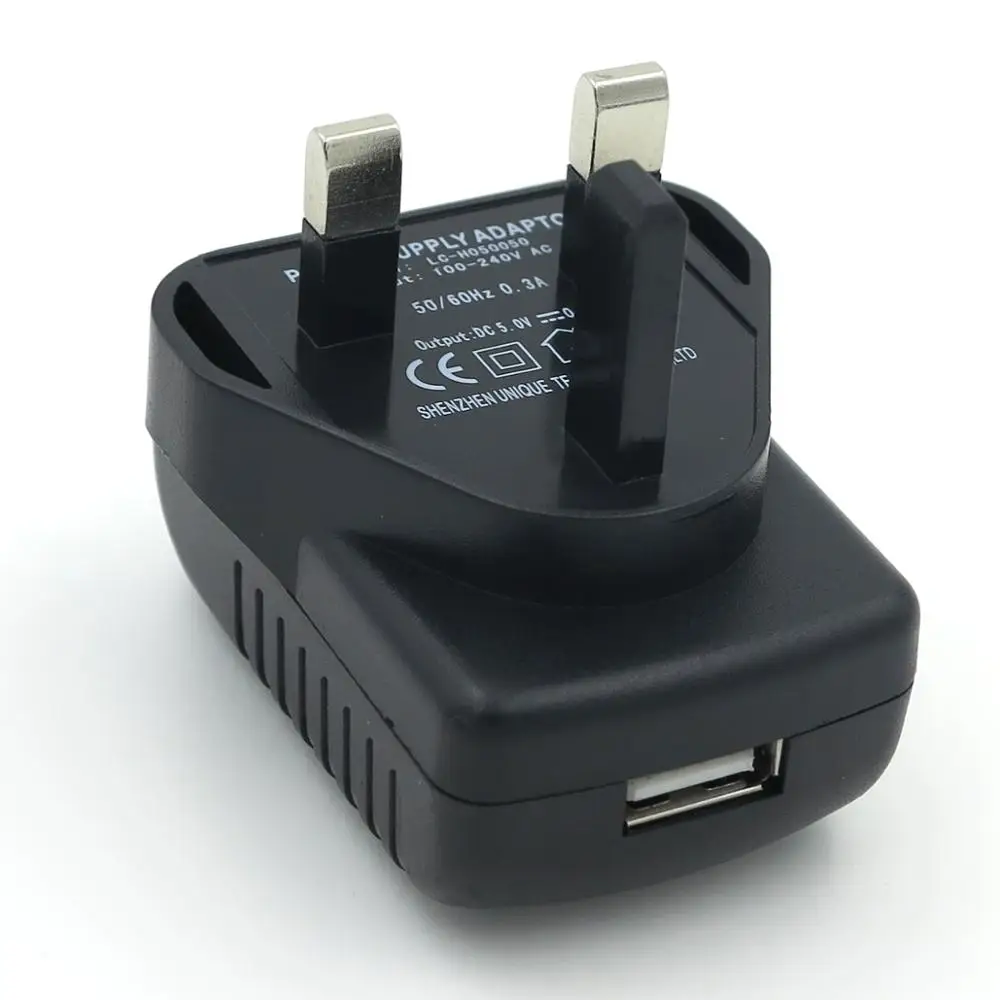

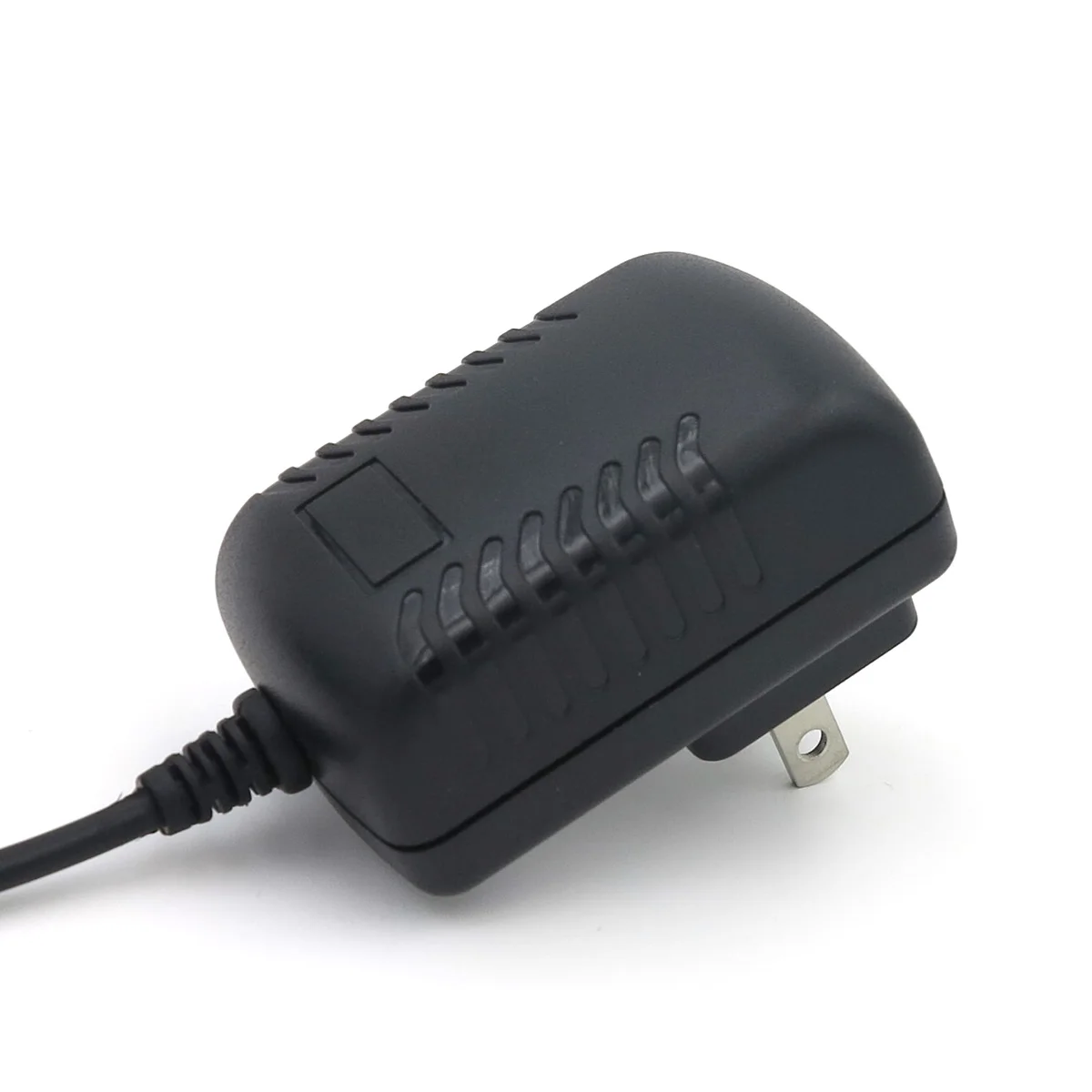

Products Picture
Packaging & Shipping
Section 1
Inside PE/PVC bag/bubble bag + export carton
Section 2
1 Unit put in 1 white box
Or color box / gift box + export carton
Section 3
Customized your own packing
Delivery Time:
Normally
1K-10K units 15-20 business days
10K-50K units 20-25 business days
50K-100K units 30-40 business days
Payment terms:
T/T, LC, Western Union, Paypal, Money Gram, Cash,or any others.
30% deposit for mass production, balance before loading.
Full deposit for goods value wnich is smaller than USD 1500
Our Services
- Your inquiry related to our products or prices will be replied in 24hrs.
- Well-trained and experienced staffs to answer all your enquires in fluent English.
- OEM&ODM, any your custo mized lightings we can help you to design and put into product.
- Distributoership are offered for your unique design and some our current models
- Protection of your sales area, ideas of design and all your private information.
FAQ
Q1 : Are you a Factory or trading company?
Answer : We are a factory which is located in dongguan City, Guangdong.
Q2 : Do you offer the samples for testing?
Answer : Yes, but customers need to pay for the express fees.
Q3 : What’s your MOQ?
Answer : We have not MOQ if stocked,1000pcs if OEM order.
Q4 : OEM and ODM are available?
Answer : Yes, we accept customized products.
Q5 : What is our warranty service?
Answer : For all products we sell have 24 months warranty.
Q6 : Do you have any certifications for your products?
Answer : Yes,we have UL, FCC, CE, RoHS, KC, PSE, SAA certifications.
Q7 : What’s your payment item?
Answer : Our standard payment is T/T in advance, Paypal and Westerm Union.

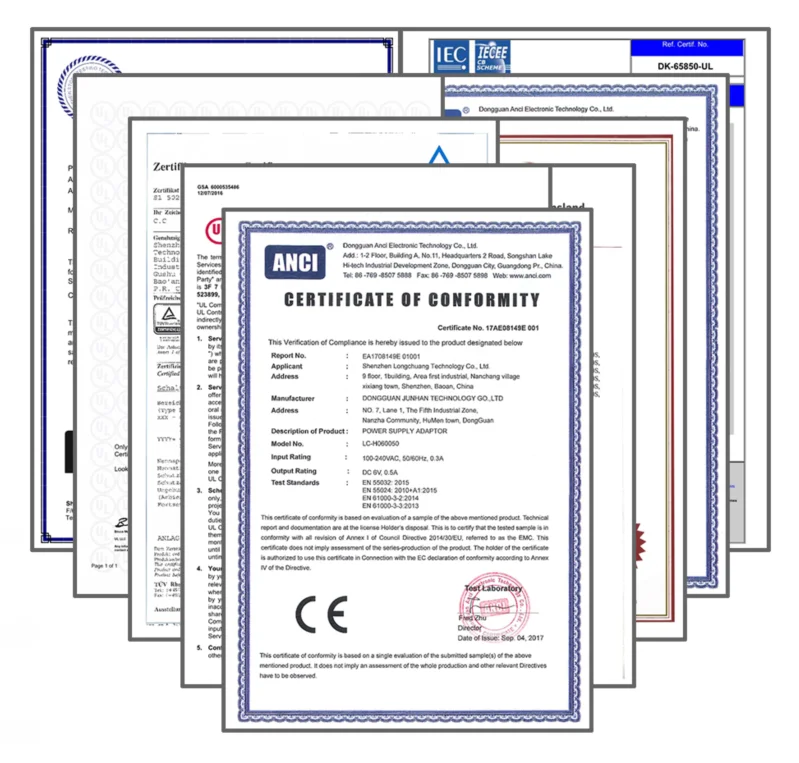

Certification

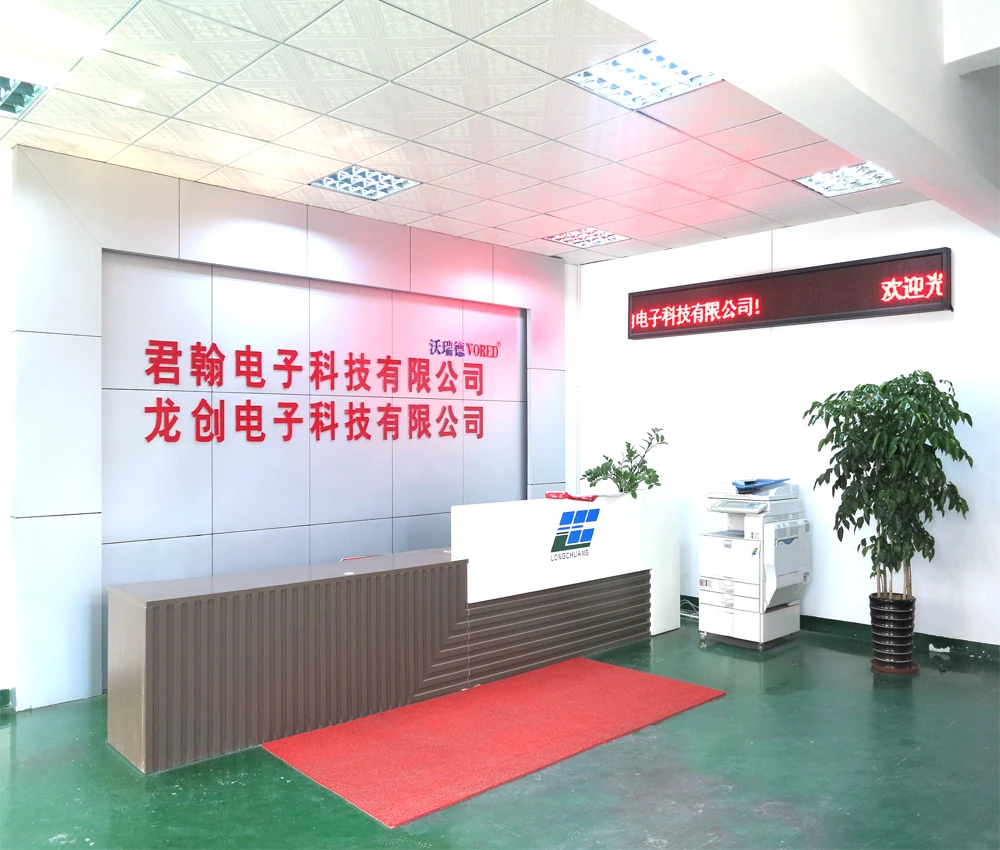

Company Information
Company name: Shenzhen Longchuang Electronic Technology Co.,Ltd.
Established Time: 2003
Product Range: Power adapter,USB charger,mobile phone adapter,data cable,LED switching power supply.
Area: 3,000 Square Meter
Employee: 100-120 people
Monthly Output: 600,000pcs
Main market: North America,South America,Europe,Asia,Middle East,Oceania.
We uphold the concept of "professional manufacturing and global service".
Welcome to cooperate with us.
