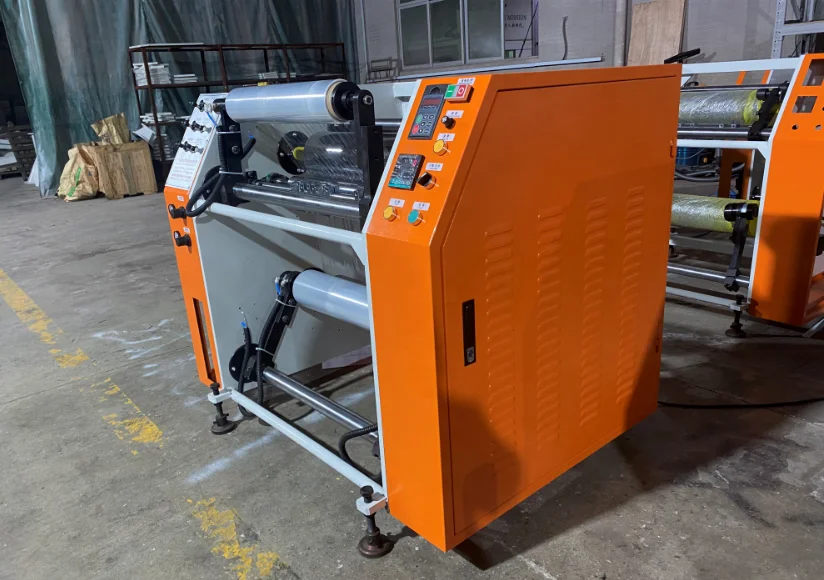

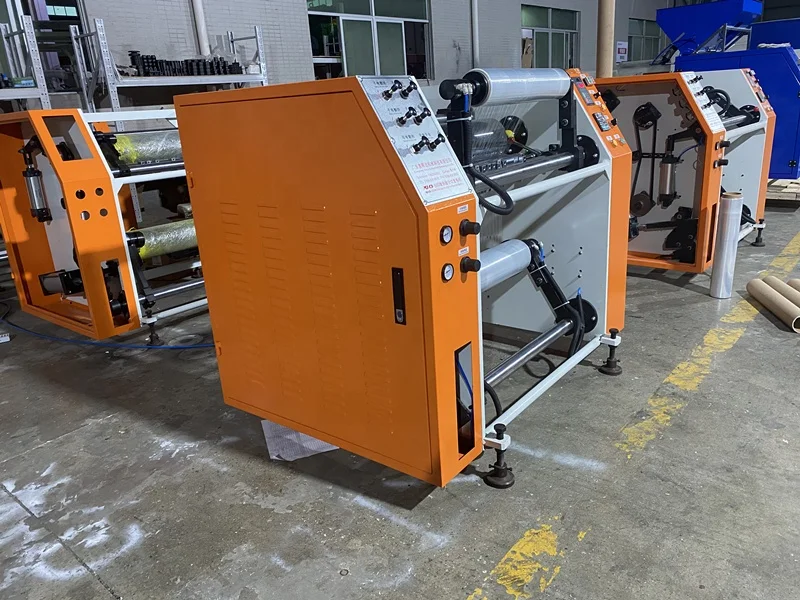

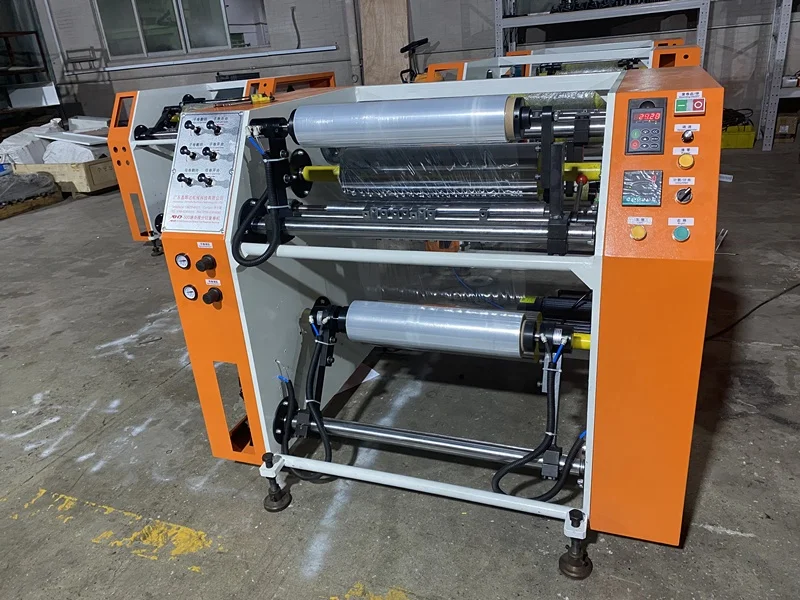

best seller XHD 500 semi automatic slitter rewinder machine
- Category: >>>
- Supplier: GUANGDONG XINHUIDA MACHINERY TECHNOLOGY GROUP CO. LTD.
Share on (60803209444):
Product Overview
Description
Product Description

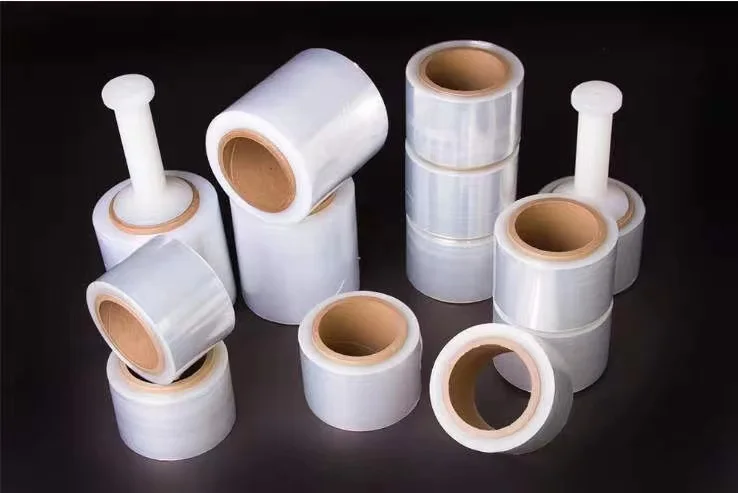

The rewinder is specially designed for rewinding master rolls with weight more than 40 KGS into small hand use stretch film rolls with 1", 1.5", 2" and 3" inner diameter paper cores. This model is very popular among our customers. A lot of our customers bought more than 3 sets, some of them even bought 10 sets. The designed speed of the rewinder is 600M/min and the maiximum production capacity is about 2 tons in 8 hours (6 tons/day).
Please check the simple information of the rewinder as below:
XHD-500 semi-automatic stretch film slitter and rewinder | |
Item | Specs |
| Power Supply | 220/440/415/380 V, 50/60 HZ, 3 phases. |
| Main motor power | 1.5 KW |
| Designed linear speed | 600 M/min |
| Maximum production capacity on theory | 330 kgs/H (film thickness=20 microns) |
| Paper core loading mode | By Manual |
| Max diameter of parent roll | 400 mm |
| Max width of parent roll | 500 mm |
| Inner diameter of parent roll | 3" |
| Stretch film cutting mode | By Knife |
| Width of sub-roll | 50 mm-500 mm |
| Max diameter of sub-roll | 400 mm |
| Inner diameter of sub-roll | 1”, 1.5", 2" & 3" |
| Machine dimensions (L×W×H) | 1.4×1.0×1.1 M |
Packaging & Shipping
The semi-automatic stretch film slitter and rewinder will be packed in plywoode case (no need to do the fumigation). Please check the packing information as below. Since we had already sold the rewinders all over the world, there are some very good logistics companies for your reference.
Kind and No. of PKG: 1 PLYWOOD CASE.
Dimensions: 1.41×1.13×1.25 M
Total Volume: 2CBM
Total G.W.: 580 KGS.
The rewinder can be ready within 2~3 weeks (depends on the voltage of the machine) after receipt of the down payment.
Customer cases
We had already started the export since the foundation of the company by the help of our friends or by ourselves. Our stretch film machine equipment are sold to more than 60 countries. Please check the list as below. Some customers are more than customers and they are our friends so they will allow our potential customers to check the machine running in their factories.
A~G
Algeria, Argentina, Armenia, Azerbaijan, Bangladesh, Bahrain, Belarus, Bolivia, Brazil, Bulgaria, Cambodia, Cameroon, Colombia, Costa Rica, Czech, Ecuador, Egypt, Ethiopia, Fiji, Ghana, Greece, Guatemala.
H~R
Honduras, Hungary, India, Indonesia, Israel, Kazakhstan, Kenya, Korea (South), Kuwait, Latvia, Malaysia, Mexico, Morocco, New Zealand, Nigeria, Pakistan, Palestine, Panama, Peru, Philippines, Poland, Qatar, Romania, Russian Federation.
S~Z
El Salvador, Saudi Arabia, Serbia, Slovakia, South Africa, Spain, Sri Lanka, Syria, Thailand, Turkey, Ukraine, United Arab Emirates, United Kingdom, United States, Uzbekistan, Vietnam, Zimbabwe.
Our Services
The sale of stretch film machine or stretch film rewinder is only the start of the cooperation. We will provide 24 hours timely technical support to our customers.
For the stretch film machine, an engineer will dispatch to the buyer's facotry for installation, debugging and training. The whole dispatch lasts for 5~7 days (2~3 days on traveling and 3~5 days on service). The traveling cost of overseas engineer service which includes the round trip air tickets from China to the destination country and the engineer's local traveling cost, food and accommodation cost shall be borne by the buyer or the end user.
For the small or auxiliary equipment (rewinders, glue pump, mixer, crusher and chiller), we will only provide technical support. Sometimes our engineer can go to the customer's factory if the engineer is nearby.
About the spare parts, we will provide some which are enough for the replacement in a short time, if the customer needs more spare parts, he needs to pay them. List of fast-wearing spare parts can be provide so the customer can choose what he needs.
Hope our timely and sincere services can make your stretch film business becomes much better and better.
Company Information
About Guangdong Xinhuida Machinery Technology Co., Ltd.
1. XHD – specialized in cast stretch film machine sinced 2006 .
2. Our factory are National High New-Tech Enterprise .

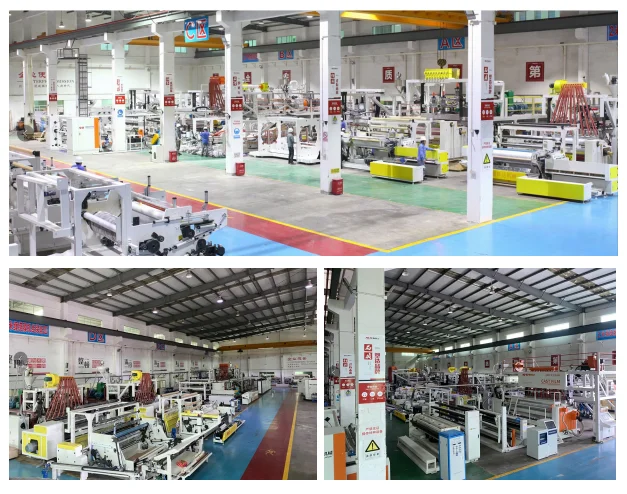

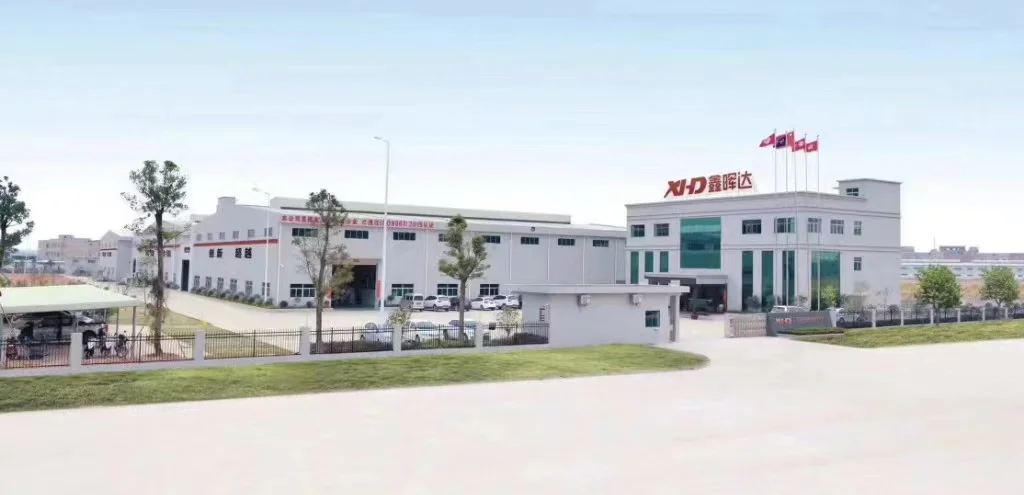

3. Modernized factory building area 50,000 squre meter , international leading CNC and processing equipments .
4. Got CE certificate of conformity and 66 leading technology patents .
5. Our machines have been exported to more than 70 different countries ( US , Mexico,Russia , Turkey, South Africa , Thailand , Vietnam , India and ect ...)
6. Set up offices at home and abroad, such as: Turkey, Russia, Peru , India , Thailand,
Shanghai , Hebei , Shangdong etc .
7. Manufactured more than 5,000 cast film equipments.
8. Manufactured more than 80 sets of 2000mm cast film / stretch film / cling film euipments during last 3 years .
9. 30% higher output , 30% higher speed , 30% lower power consuption than peers
10. Attend more than 20 exhibitions at home and overseas every year .
Except for the semi-automatic stretch film slitter and rewinder, some customers would like to use the automatic stretch film rewinder because of below advantages:
1) high speed design: up to 1000 M/min.
2) high production capacity: 8~9.5 tons per day.
3) high automation. The operator only needs to put on the paper cores into the paper core hopper, start the rewinding and pack the finished the rolls.
Photos of XHD-500 automatic stretch film rewinder.
Please check the simple information of the model as below,
XHD-500 automatic stretch film rewinder specifications | |
Item | Specs |
Width of Finished Products | 500 mm |
Power of Motor | 4 KW |
Linear Speed | 1000 M/min |
Roll Loading Mode | Automatic |
Dia of Parent Roll (Max) | 500 mm |
Width of Parent Roll (Max) | 500 mm |
Core Specs of Parent Roll | 3" |
Cutting Mode | by resistance wire |
Width of Sub-roll | 500 mm |
Dia of Sub-roll (Max) | 200 mm |
Core Specs of Sub-roll (Max) | 3", 2" |
Overall Dimensions (L×W×H) | 2.6×1.8×1.4 M |
Gross Weight | 980 Kg |
For more about PE cast stretch film machine (production line) or stretch film slitter and rewinder, please feel free to contact us.
You can send inquiry as below↓↓ : tell us your requirments for the machine so we can rcommend suitable machine for you .
