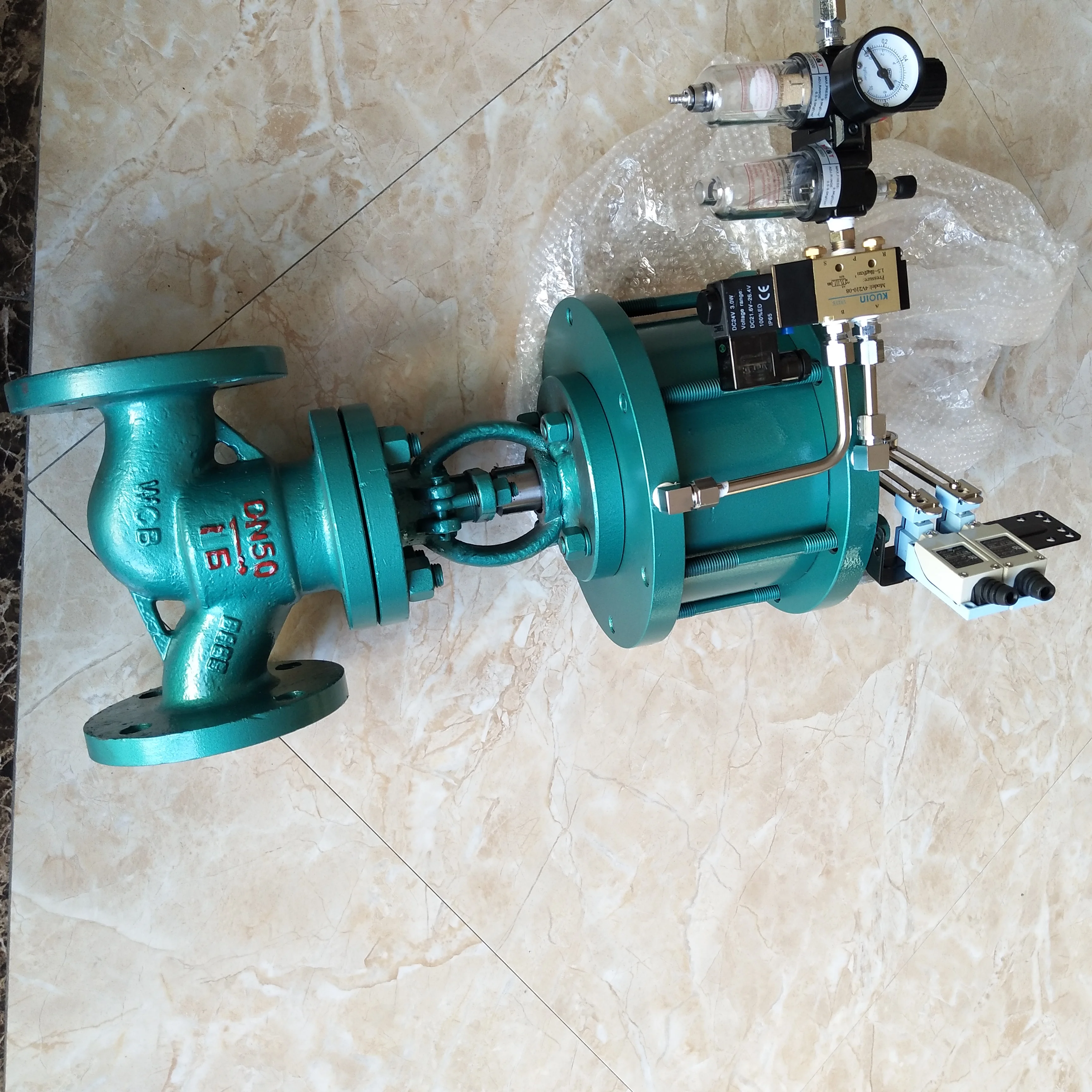

DN25 DN50 DN65 DN100 DN200 pneumatic actuator flanged PN25 globe valve with positioner single acting
- Category: >>>
- Supplier: High Mpa Valve Group Co. Ltd.
Share on (60803210019):
Product Overview
Description
Product Description
CHINA valve DN80 3inch 150LB 300LB Class Standard Stainless Steel CF8 rising stem Manual Hand Wheel running flanged Globe Valve
Cast Steel Globe Valve | ||
Design Standard | BS1873 ,ASME B16.34 | |
Pressure Rating | ASTM B16.34 | |
Temperature Rating | ASTM B16.34 | |
Face to Face | ASME B16.10 | |
Flange Ends | ASME B16.5,ASME B16.47 | |
Buttwelding Ends | ASME B16.25 | |
Inspection&Test | API598 | |
Size Rating | 2"-48" | |
Advantages of Globe valves
>> Good shutoff capability
>> Moderate to good throttling capability
>> Shorter stroke (compared to a gate valve)
>> Available in tee, wye and angle patterns,
each offering unique capabilities
>> Easy to machine or resurface the seats
>> With disc not attached to the stem, valve
can be used as a stop-check valve
Detailed Images
Globe valves usually have rising stems, and the larger sizes are of the outside screw-and-yoke construction. Components of the Globe valve are similar to those of the gate valve. This type of valve has seats in a plane parallel or inclined to the line of flow.
Part Name | Carbon Steel | Stainless Steel | Alloy Steel | ||
Body | ASTM A216 GR WCB | ASTM A351 GR CF8 | ASTM A217 GR WC6 | ||
Seat | ASTM A105 | _ | ASTM A182 GR F304 | ||
Disk | ASTM A216 GR WCB | ASTM A351 GR CF8 | ASTM A217 GR WC6 | ||
Stem | ASTM A276 Type 410 | ASTM A276 Type 304 | ASTM A182 GR WC6 | ||
Stud | ASTM A193 GR B7 | ASTM S193 GR B8 | ASTM A193 GR B16 | ||
Nut | ASTM A194 GR 2H | ASTM A194 GR 8 | ASTM A194 GR 4 | ||
Back Seat | ASTM A182 GR F6a | ASTM A182 GR F304 | ASTM A182 GR F304 | ||
Gasket | Graphite+SS304 | ||||
Packing | Graphite | ||||
Pin | ASTM A194 GR 2H | ASTM A276 Type 304 | ASTM A276 Type 410 | ||
Packing Bushing | ASTM A182 GR F6a | ASTM A182 GR F304 | ASTM A182 GR F304 | ||
Eyebolt | ASTM A193 GR B7 | ASTM A193 GR B8 | ASTM A193 GR B16 | ||
Eyebolt Nut | ASTM A194 GR 2H | ASTM A194 GR 8 | ASTM A193 GR 4 | ||
Gland | ASTM A216 GR WCB | ASTM A351 GR CF8 | ASTM A216 GR WCB | ||
Bonnet | ASTM A216 GR WCB | ASTM A351 GR CF8 | ASTM A216 GR WCB | ||
Stem Nut | ASTM B148 UNS C95200 | ASTM B148 UNS C95200 | ASTM B148 UNS C95200 | ||
Handwheel | ASTM A197 | ASTM A197 | ASTM A197 | ||
Handwheel Nut | ASTM A108 GR 1020 | ASTM A182 GR F304 | ASTM A108 GR 1020 | ||
