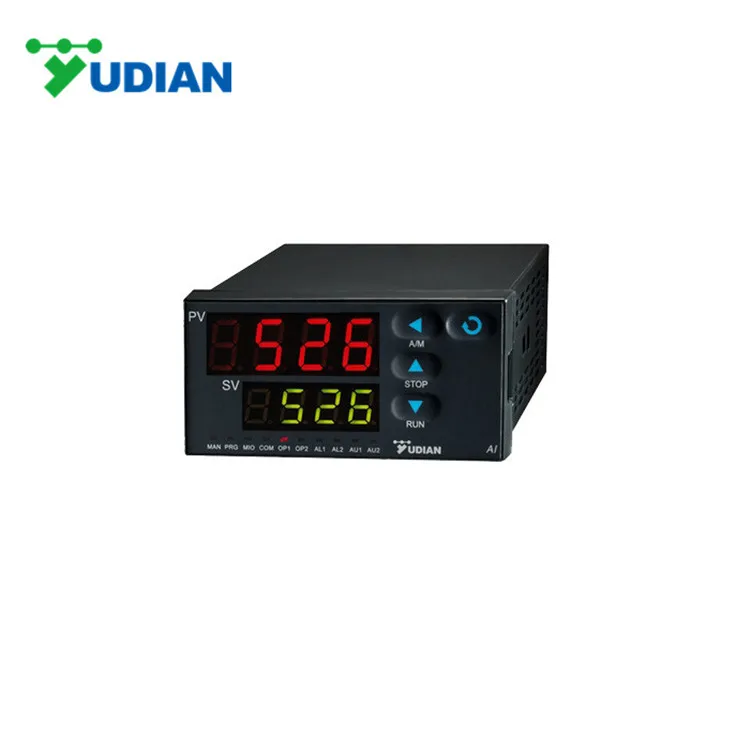

circular chart digital oven temperature controller
- Category: >>>
- Supplier: Xiamen Yudian Automation Technology Co. Ltd.
Share on (60803216394):
Product Overview
Description
Product Description
Main Features
- Use digital calibration technology for input measurement with input measurement accuracy F.S. 0.25%, support standard thwemocouple and RTDs, maximum resolution is 0.01℃
- Used advanced artificial intelligent control algorithn, no overshoot and with the function of auto tuning (AT) and self-adaptation.
- Used advanced modular structure, conveniently providing plentiful output options, able to satisfy the requirements of various applications, make quick delivery and convenience the maintenance of the instrument.
- Friendly and customized operating interface leads to quick and easy operate. Parameter can be promoted to immediate operator access in Field Parameter Table or password protected in Full Parameter Table
- With worldwide power supply of 100~240VAC or 24VDC and various installation dimensions for users to choose.
- ISO9001, CE, and UL61010-1 certified, achieving world class level of quality, anti-interference ability and safety.
Application
- Plastic Processing Machinery
- Packaging Machinery
- Furnace & Boilers
- Laboratory Testing Machinery
- Ovens & Incubators
- Food Industry
- Extrusion Machinery: Plastic/Rubber
| Power Input | 100-240VDC, -15%, +10%/50-60Hz; or 24 VDC/AC, -15%, +10%. |

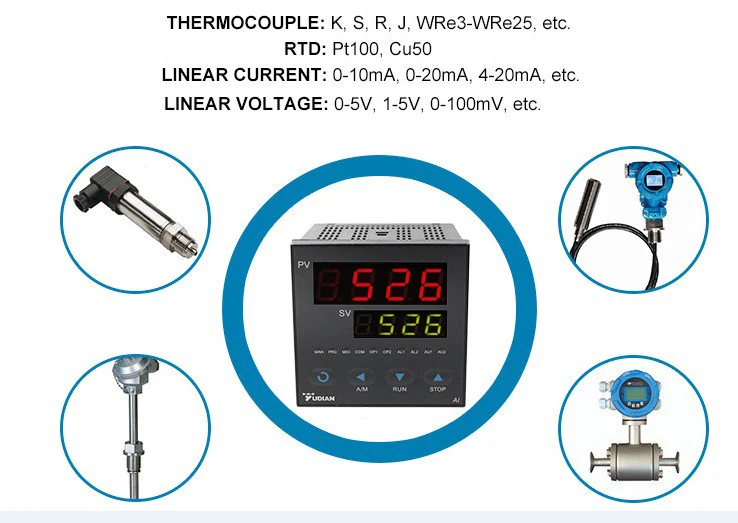

| Input type | Thermocouple: K (-100~1300℃), S (0~1700℃), R (0~1700℃), T (-200~+390℃), E (0~1000℃), J (0~1200℃), N (0~1300℃), WRe3-WRe25 (0~2300℃), WRe5-WRe26 (0~2300℃)
Resistance temperature detector: Cu50, Pt100
Linear Voltage: 0-5V, 1-5V, 0-1V, 0-100mV, 0-60mV, 0-20mV, 0-10V, ect.
Linear current: 0-20mA, 4-20mA, etc.
Linear resistance: 0-80ohm, 0-400ohm
|
| Control Outputs | relay 250VAC/2A or 30 VDC/1A
triac 100-240VAC/0.2A (continuous), 2A (20mS intantaneous, repeat period>= 5s)
ssr driver - 12VDC/30mA
thyristor zero crossing trigger output: triac 5-500A, 2 paralleled SCRs or SCR power
Linear current: 0-20mA, 4-20mA
|
| Alarm Outputs | 1 channel relay(big volume & small volume ) : 30VDC/2A, 250VAC/2A
1 channel relay(small volume) 30VDC/1A, 250VAC/1A
2 channels relay: 30VDC/2A, 250VAC/2A
|
| Communications | Modbus and AIbus RS485 |
| Power consumption | ≤ 5W |
| Operating Ambient | Temperature -10~60℃; Humidity ≤90%RH |

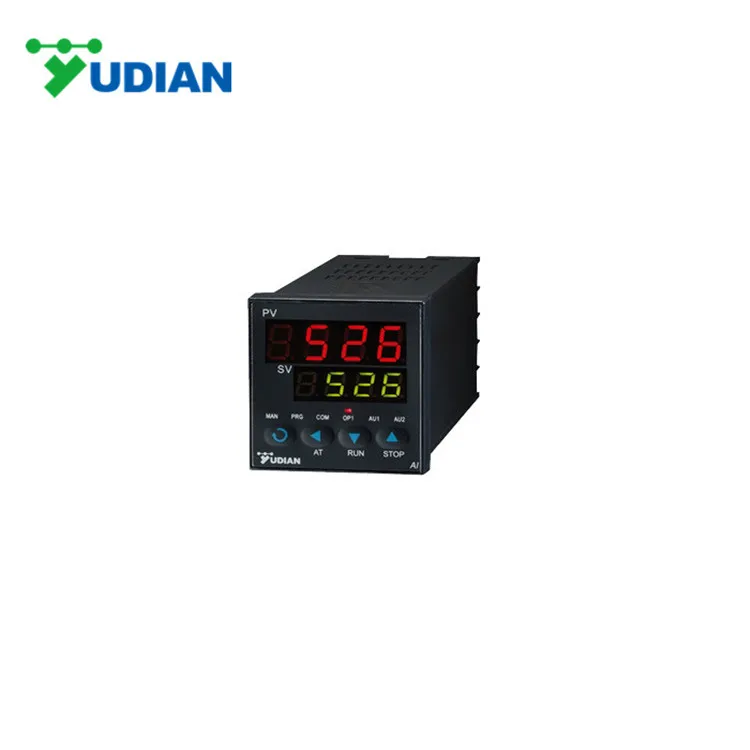

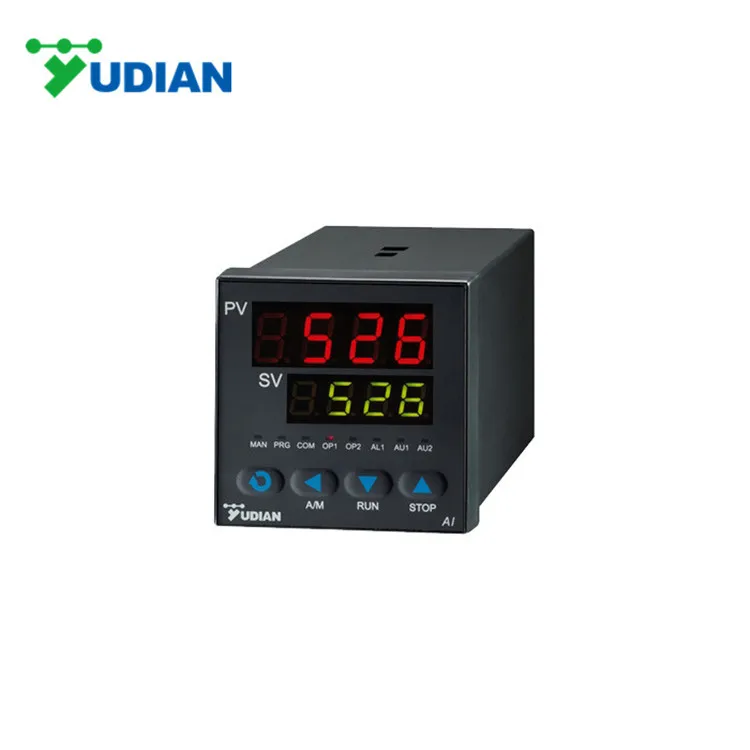

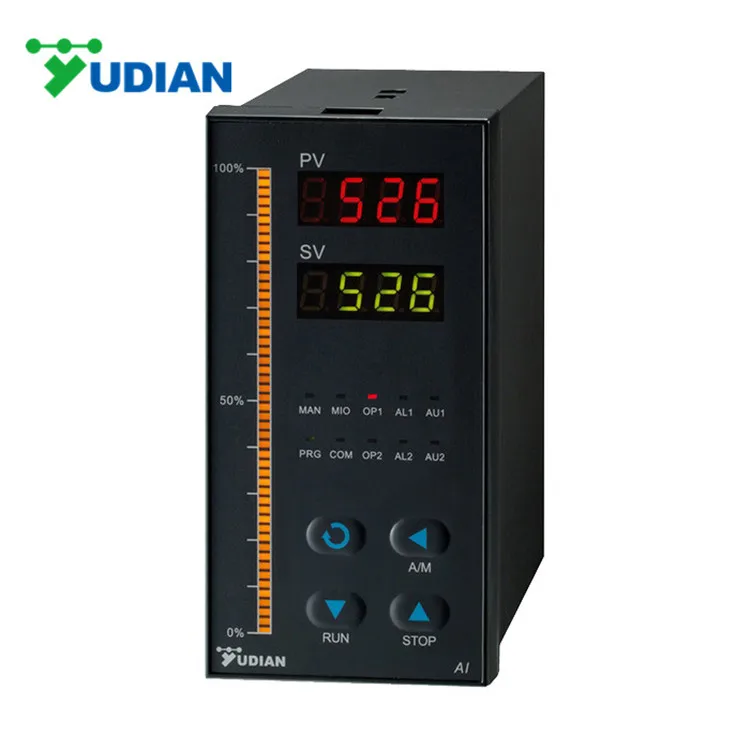

| Front Panel size | 96*96mm, 160*80mm, 80*160mm, 48*96mm, 96*48mm, 48*48mm, 72*72mm |
| Panel Cutout Dimension | 92*92mm, 152*76mm, 76*152mm, 45*92mm, 92*45mm, 45*45mm, 68*68mm. |
| Depth behind Mounting Surface | 100mm |
Packaging & Shipping
Company Profile

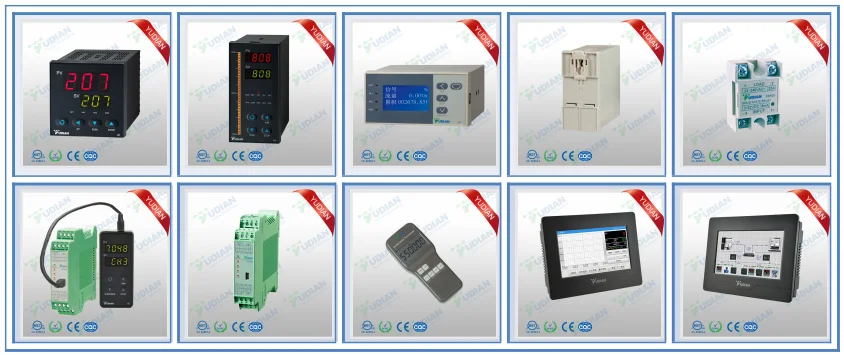

Other products
FAQ
| 1. How to Get in Contact with Us? | |
| Option One | Register on Alibaba and leave us a message or talk to us on Trading Manager at the BOTTOM of this page |
| 2. Could I get sample of thermocouple controllers? | |
Yes,we have products in stock ,so you can get the samples quickly. | |
3. How about the quality of thermocouple controllers? | |
| We have certificate of ISO, CE and ROHS, we could send the testing report to you if needed. | |
| 4. Could I visit your factory? | |
| Of course, we warmly welcome you to visit our factory. | |
| 5. If we have paid, when will you ship the products? | |
| Delivery will be within 3 working days after payment confirmed. | |
