European standard slimline wall hung concealed cistern for wall hung toilet pan
European standard slimline wall hung concealed cistern for wall hung toilet pan
European standard slimline wall hung concealed cistern for wall hung toilet pan
European standard slimline wall hung concealed cistern for wall hung toilet pan
European standard slimline wall hung concealed cistern for wall hung toilet pan
European standard slimline wall hung concealed cistern for wall hung toilet pan
European standard slimline wall hung concealed cistern for wall hung toilet pan

European standard slimline wall hung concealed cistern for wall hung toilet pan

Share on (60803221713):


Price:$60.00 - $80.00

Quantity:


Product Overview

Description


Product Description

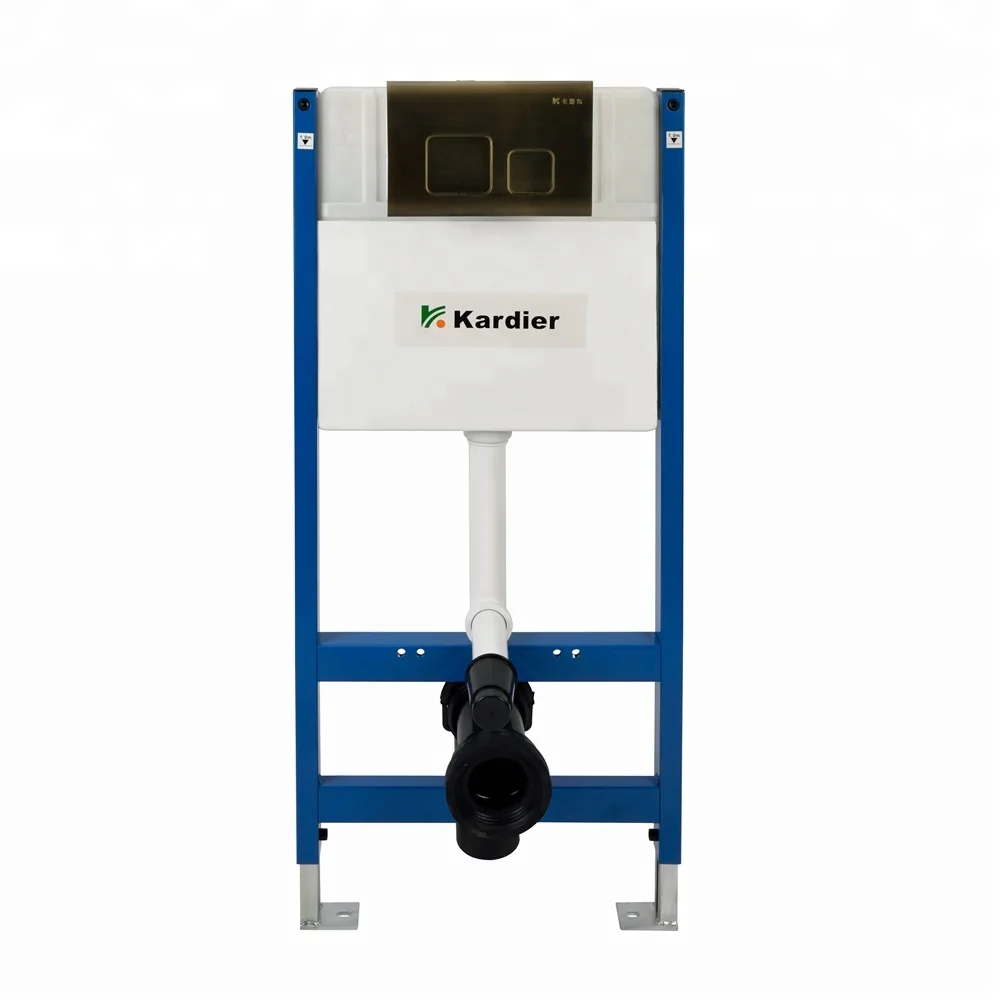

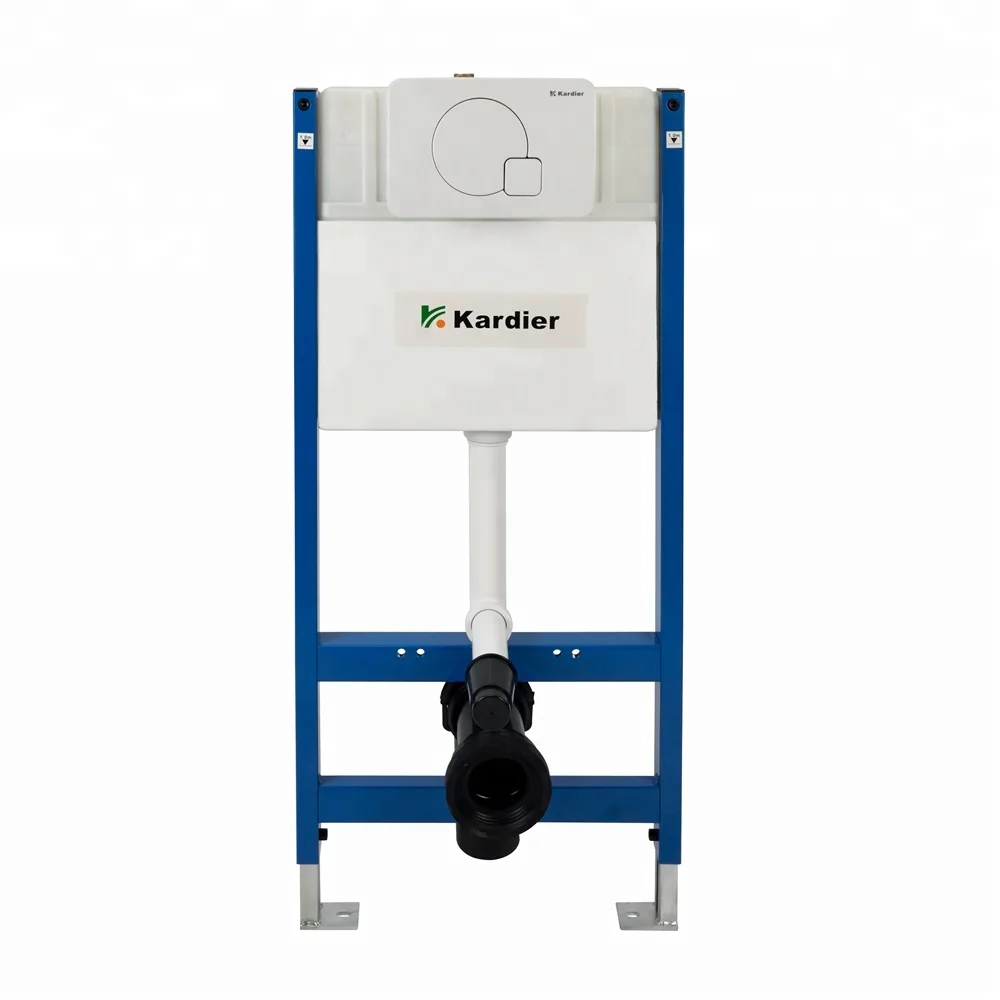

European standard slimline wall hung concealed cistern for wall hung toilet pan
\t
Speical points
\t
Super slim Standard A frame Concealed Flush Cistern with 96mm tank body thickness
\t
Model code.
\t
011A
\t
Certificate
\t
CE.WRAS.WATERMARK.WELS
\t
Dimension(mm)
\t
512x87x1027.5mm
\t
Flush pipe diameter
\t
90mm
\t
Carton Size (mm)
\t
542x105x1100 mm
\t
Suit for
\t
back to wall toilet
\t
Need wall thickness
\t
≥125mm
\t
Material
\t
HDPE + normal metal frame
\t
For wall
\t
dry wall;pre-wall;dry half wall;pre-half wall
\t
Flush volumn
\t
3L/ 6L max. 8L
\t
Panel size(mm)
\t
250x165mm
\t
Panel choices
\t
all choices except O plate
\t
Panel color
\t
white/chrome/satin/black/gold/ silver etc
\t
Flushing volumn
\t
Dual flush
\t
Frame undertake(kgs)
\t
≥400
\t
Delivery Time
\t
LCL 7-10 days ,20GP & 40HQ need 20-25days
\t
MOQ
\t
50 PCS
\t
Port of loading
\t
SHUNDE,CHINA / SHENZHEN,CHINE/ GUANGZHOU,CHINA
\t
Payment term
\t
TT and LC at sight
\t
Price term
\t
LCL:EXW SHUNDE,CHINA ;20GP and 40HQ : FOB SHUNDE,CHINA
\t
Package details
\t
Carton packing ,1set/ctn. flush pipe.flush pipe packing size : 605x430x508mm (12pcs/ctn)
\t
Loading qty
\t
cistern : 0.0632CBM/CTN Total : 0.0742CBM/SET 20GP: 350 sets 40GP: 770sets 40HQ: 890sets

Special point  :

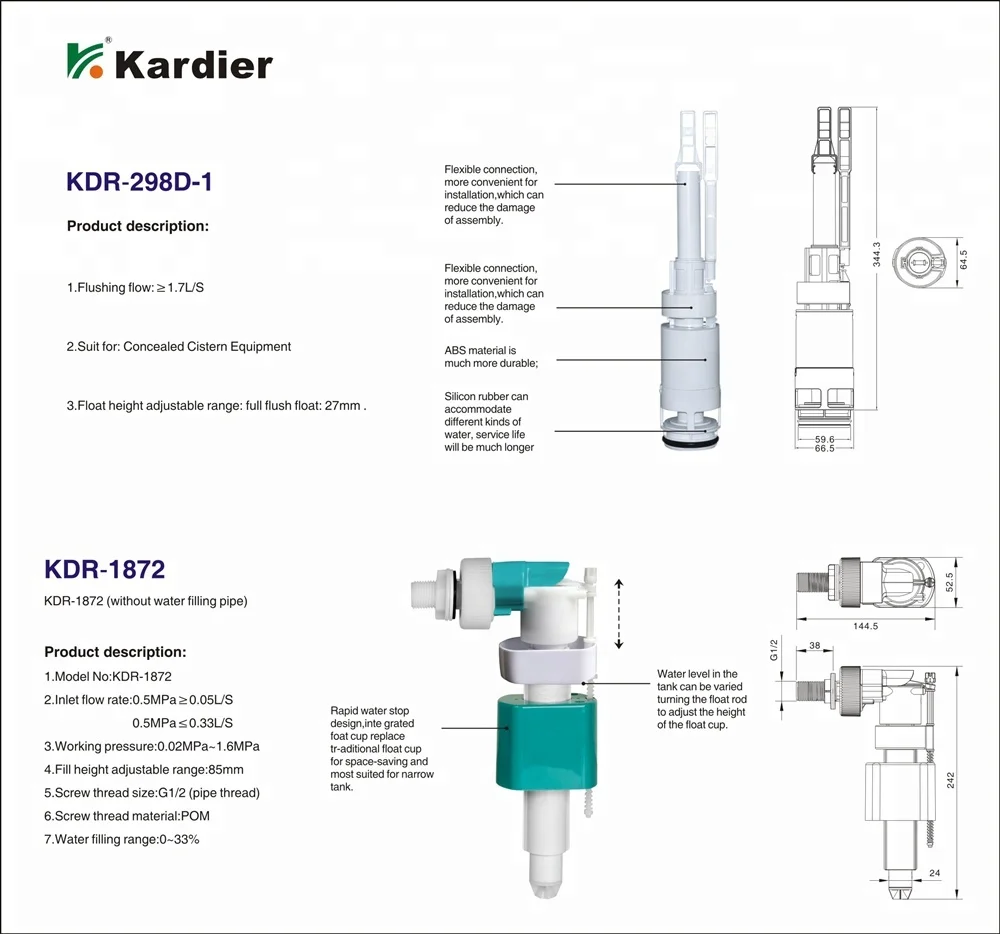

Malfunction and solve way of fill valve

Malfunction\tSolve way

1.The water level too high or too low\tAdjust water level

2.can not stop water\tWash sealed rubber and mandrill

3.fill water speed slow\tWash filter,adjust water stress to higher

4.other questions\tPls consult with professional technician


Product Details

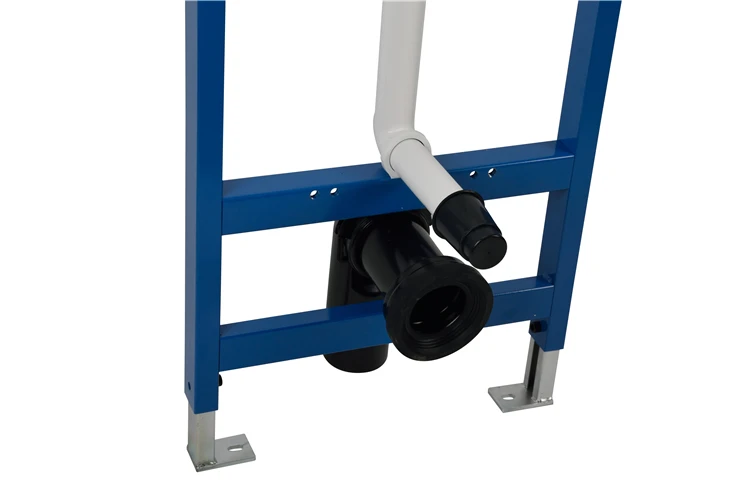

Metal frame installation guide

We have Multiple choices push panels to decorate your bathroom ,ABS & stainless steel & Aluminium & Acrylic etc material ;and have multiple colors for choice,detals as below

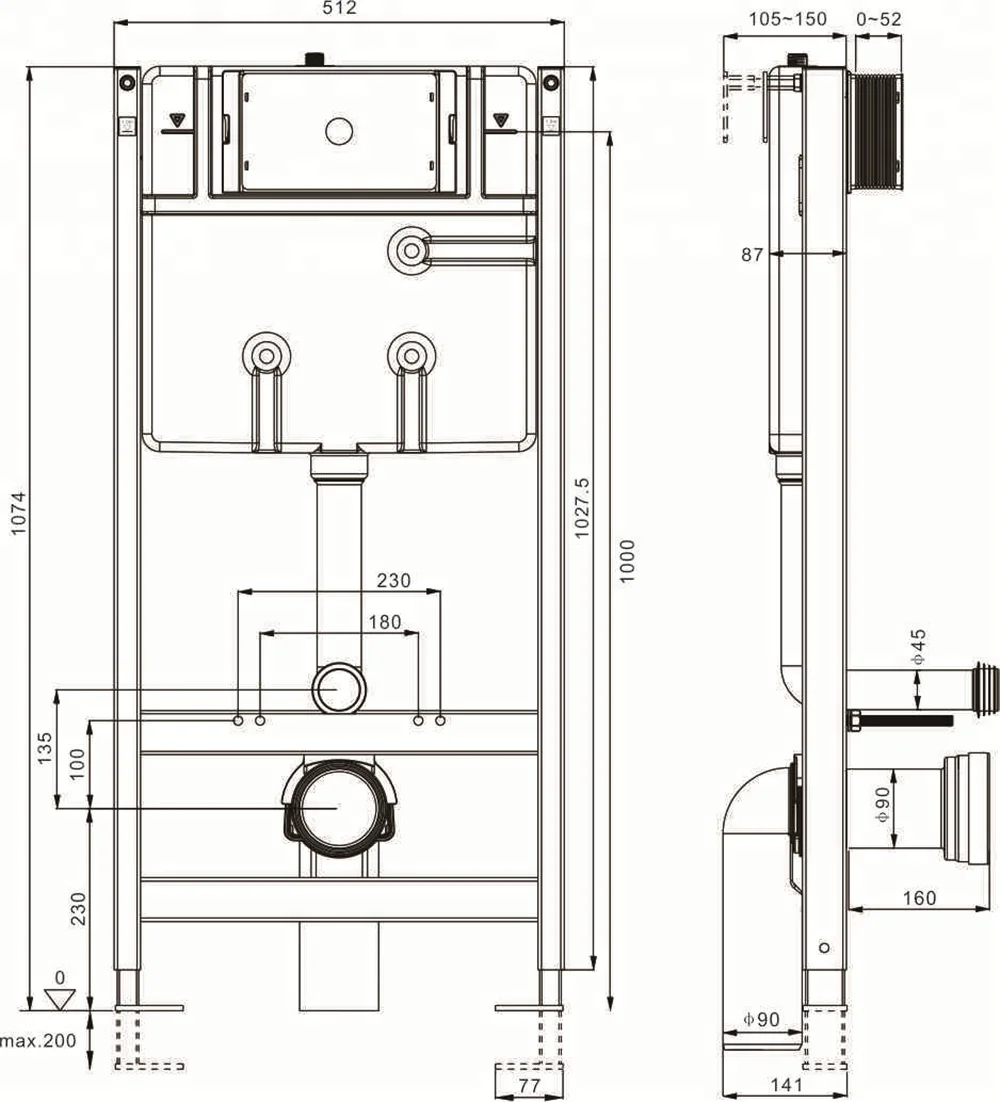

The Technical size standard requirement and installation guide of Wall hung toilet.

Concealed cistern installation effect

Recommend Item
Factory Introduce

Kardier Advantage

1.We are manufacturer factory ,mass production available .
2.One-stop procurement ,time and energy saving .
3.Founded in 1999 and now have export to 80 countries all over the world .
4.Fast delivery speed ,big enough storage space .
5.CE & WRAS & WATERMARK & WELS approval .
6.From material to finish products almost one shop production .
7.Quick response to inquiry .

Kardier New Showroom

Kardier Team

Kardier Fair & Customer Visit

Kardier CE/WRAS/Watermark/Wels Certificates

Kardier Warehouse & Delivery Arrangement

Kardier Products Range

\t\t\t\t\t\t\t\t\tWhy choose us \t\t\t\t\t\t\t
Why to choose Kardier concealed cistern ?

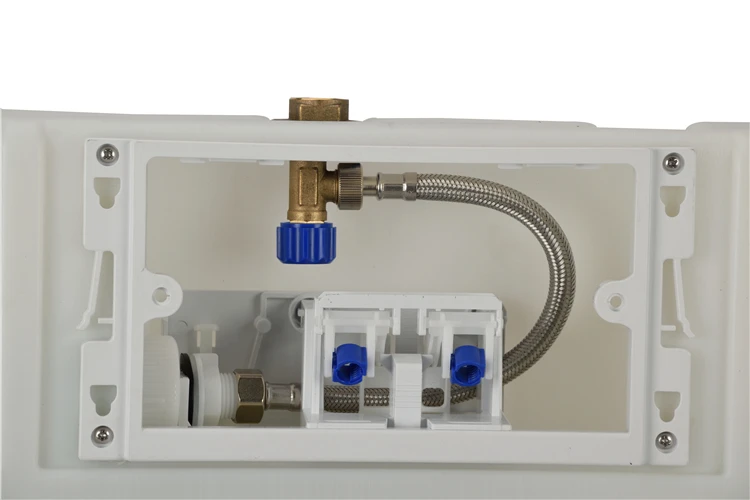

1. Easy maintenance: replace and maintain the inner fittings through the flush plate hole ,no need to break wall ,and easy to install & uninstall fittings by hand without tools .


2. Tools & fittings complete : Frame items one whole set products together with Allen key and fixing frame screws and hanging wall hung toilet poles and flush pipes ,No trouble for installation

3. Clean: Pretty easy to clean the bathroom without missing corner.

4. One meter line notice : Our frame have one meter height notice ,much more easy for plumber install our concealed cistern,seat cover after open will not touch the panel.


FAQ

1. Do you offer ODM service ?

A: Yes ,but you need to provide a stable certain annual purchase qty ,and we will charge you mold fee first and return back continually till all fees returned .


2.  Is there the risk of leakage?

A: Our cistern tank is one piece out and implemented full-inspection, there are 0.01% risk of leaking. Tank body and fill valves and flush valves are 100% tested and finish products are sampling inspection,the risk less than 0.1% of leaking normally.


3. How to solve the after-sales problem?

A: we provide free spare parts for each shipment of 1% cistern order qty. If any quality problem , small problem provide spare parts and big problem we replace the cistern and pay for rebuild fee.


4.How long is the delivery time?


A: Under normal conditions, LCL just need around 7~10days and 20GP & 40HQ need 20 to 25 days. The first time OEM order as need to confirm all package and logo drawings will need more time .
