Product Overview

Description


Product Description

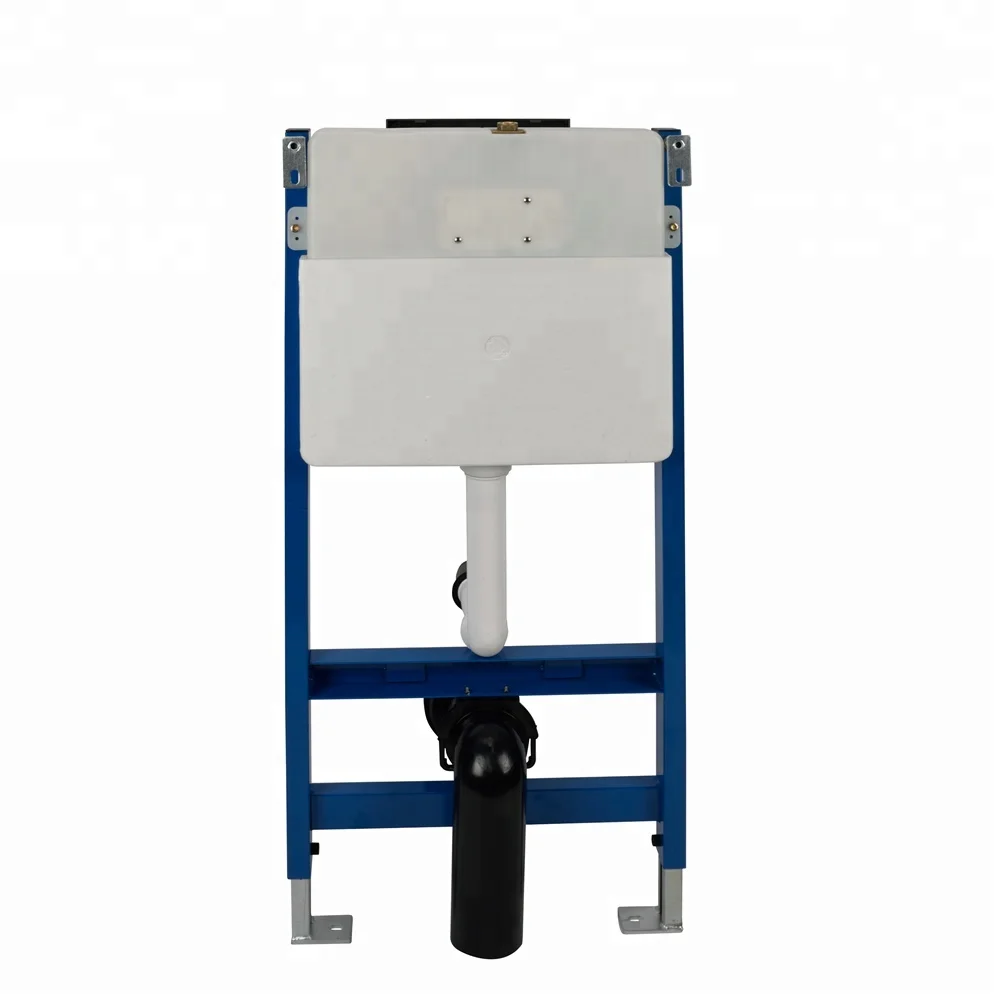

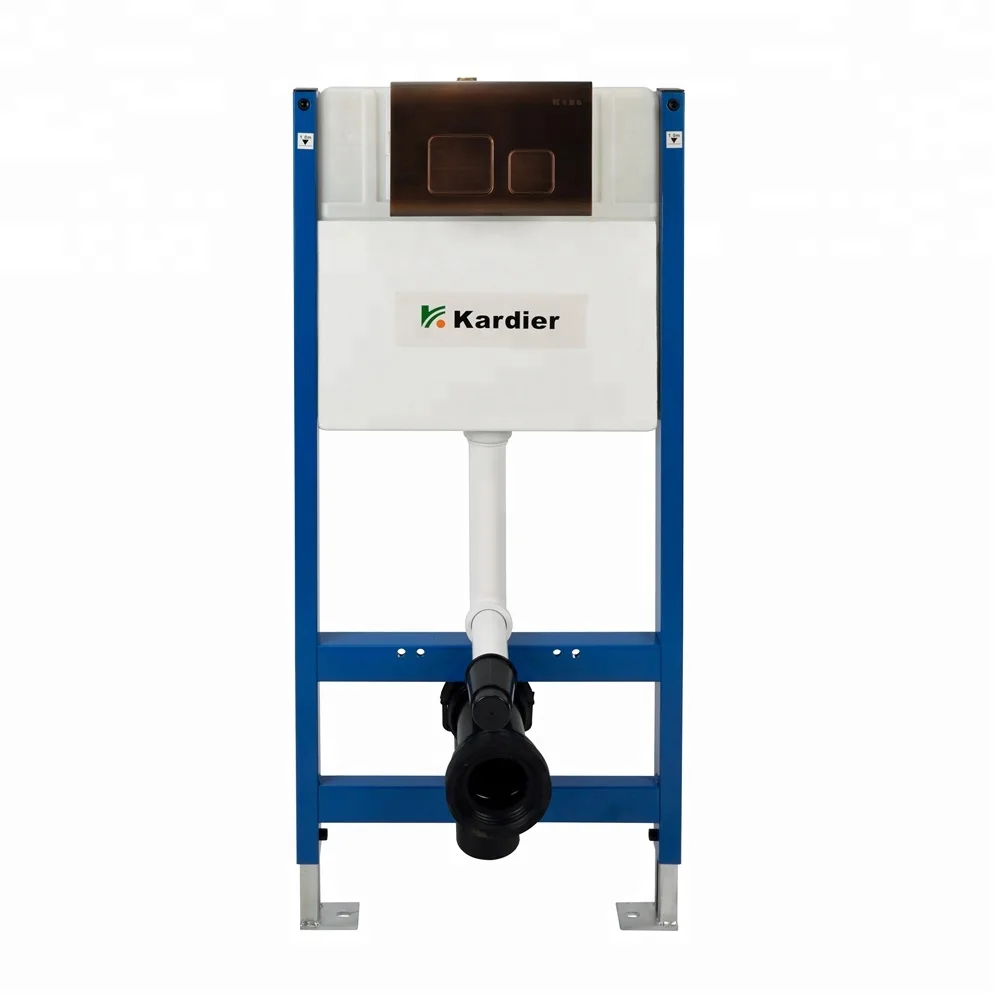

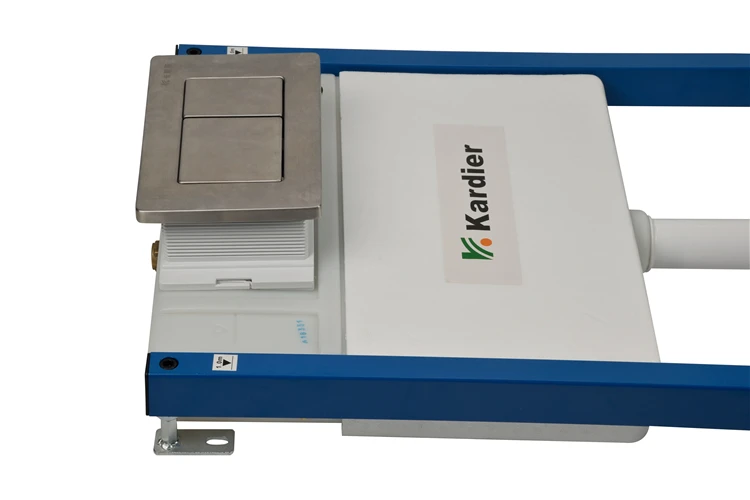

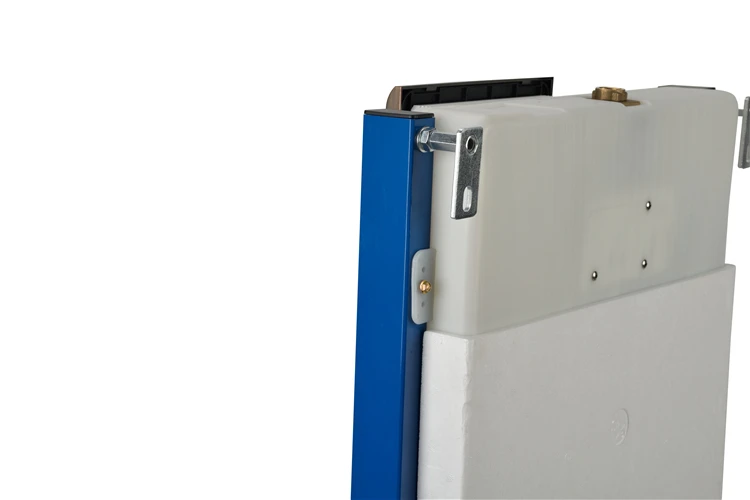

CE approval slim toilet concealed inwall flush tank for wall hung wc
\t
Speical points
\t
Super slim Standard A frame Concealed Flush Cistern with 96mm tank body thickness
\t
Model code.
\t
011A
\t
Certificate
\t
CE.WRAS.WATERMARK.WELS
\t
Dimension(mm)
\t
512x87x1027.5mm
\t
Flush pipe diameter
\t
90mm
\t
Carton Size (mm)
\t
542x105x1100 mm
\t
Suit for
\t
back to wall toilet
\t
Need wall thickness
\t
≥125mm
\t
Material
\t
HDPE + normal metal frame
\t
For wall
\t
dry wall;pre-wall;dry half wall;pre-half wall
\t
Flush volumn
\t
3L/ 6L max. 8L
\t
Panel size(mm)
\t
250x165mm
\t
Panel choices
\t
all choices except O plate
\t
Panel color
\t
white/chrome/satin/black/gold/ silver etc
\t
Flushing volumn
\t
Dual flush
\t
Frame undertake(kgs)
\t
≥400
\t
Delivery Time
\t
LCL 7-10 days ,20GP & 40HQ need 20-25days
\t
MOQ
\t
50 PCS
\t
Port of loading
\t
SHUNDE,CHINA / SHENZHEN,CHINE/ GUANGZHOU,CHINA
\t
Payment term
\t
TT and LC at sight
\t
Price term
\t
LCL:EXW SHUNDE,CHINA ;20GP and 40HQ : FOB SHUNDE,CHINA
\t
Package details
\t
Carton packing ,1set/ctn. flush pipe.flush pipe packing size : 605x430x508mm (12pcs/ctn)
\t
Loading qty
\t
cistern : 0.0632CBM/CTN Total : 0.0742CBM/SET 20GP: 350 sets 40GP: 770sets 40HQ: 890sets

Special point  :

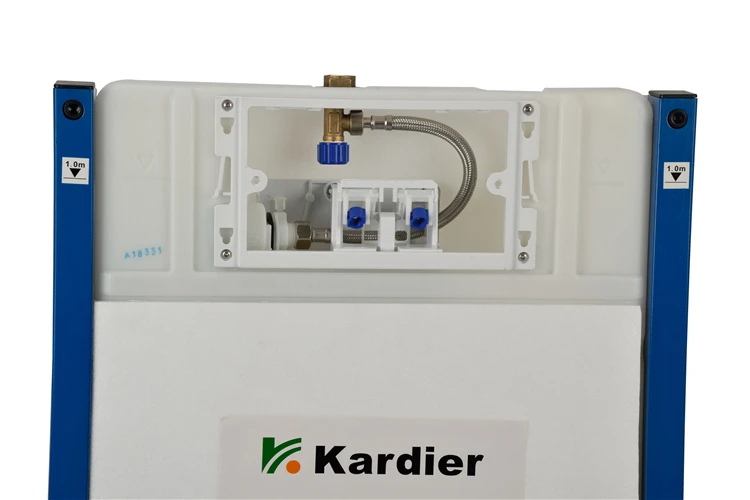

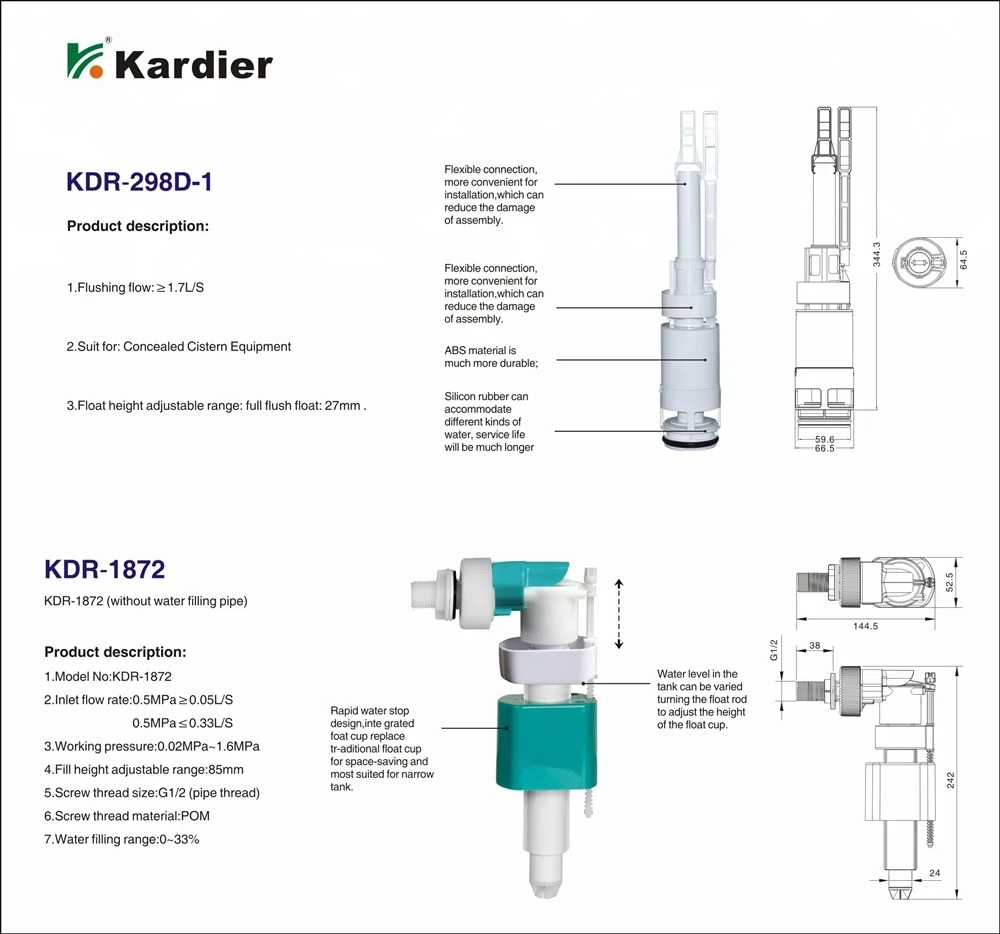

Malfunction and solve way of fill valve

Malfunction\tSolve way

1.The water level too high or too low\tAdjust water level

2.can not stop water\tWash sealed rubber and mandrill

3.fill water speed slow\tWash filter,adjust water stress to higher

4.other questions\tPls consult with professional technician



Technologic data :


1. 1/2" standard fill water hole

2.The water stress range of fill water is 0.02--1.0Mpa

3.The water temperature range is 2°-45°

4.3L/6L dual flush water volume ,the flush water time is 3S-5S

5.The paintted steel frame is corrosion resistant and can bear 400kgs heavy stress

6.The product can be installed in the wall of 110mm thickness


Product Details

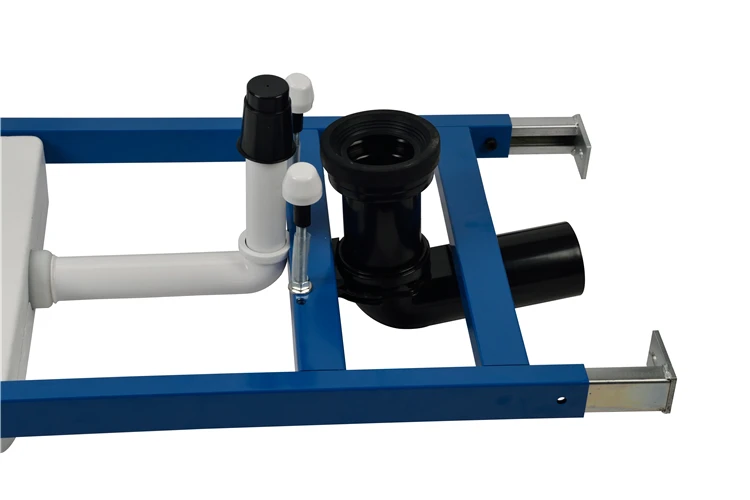

Metal frame installation guide

We have Multiple choices push panels to decorate your bathroom ,ABS & stainless steel & Aluminium & Acrylic etc material ;and have multiple colors for choice,detals as below

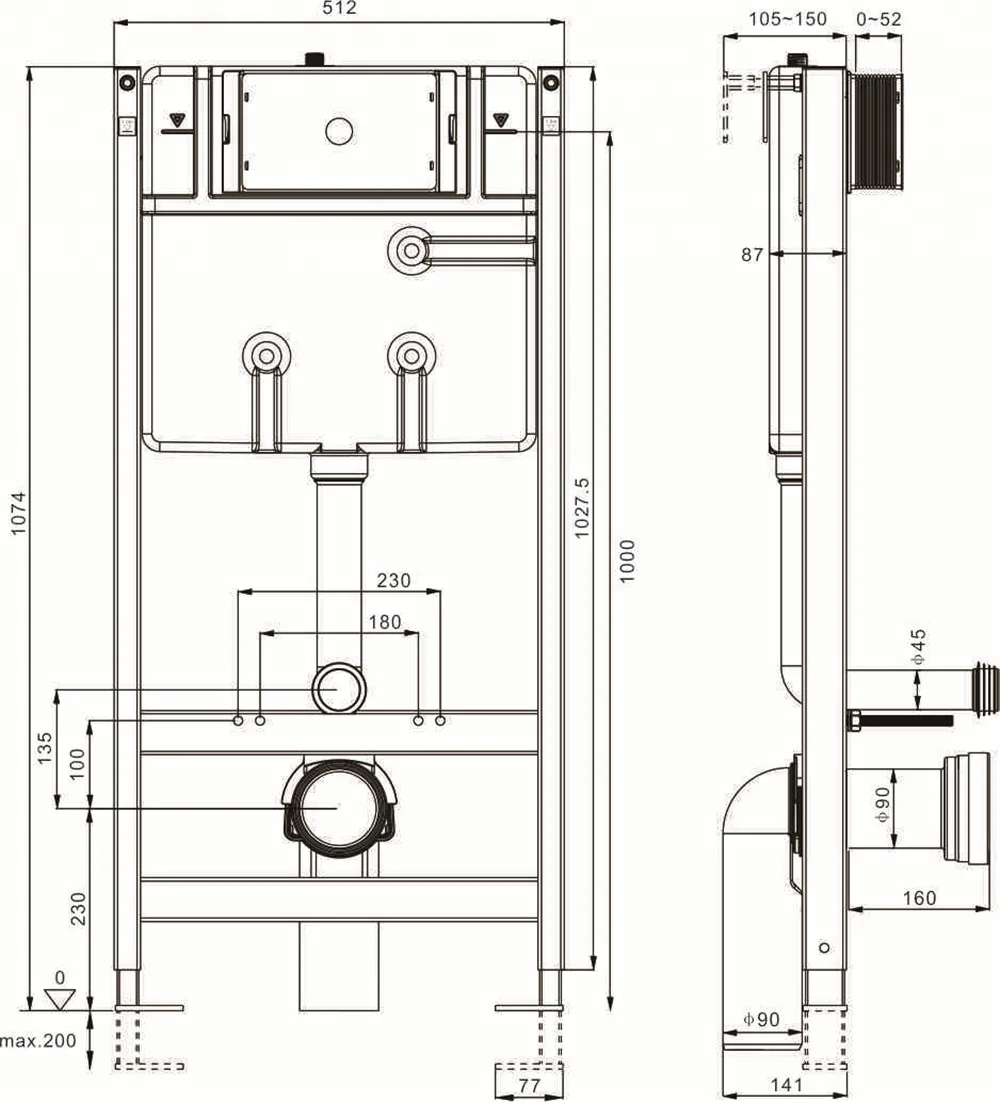

The Technical size standard requirement and installation guide of Wall hung toilet.

Concealed cistern installation effect

Recommend Item
Factory Introduce

Kardier Advantage

1.We are manufacturer factory ,mass production available .
2.One-stop procurement ,time and energy saving .
3.Founded in 1999 and now have export to 80 countries all over the world .
4.Fast delivery speed ,big enough storage space .
5.CE & WRAS & WATERMARK & WELS approval .
6.From material to finish products almost one shop production .
7.Quick response to inquiry .

Kardier New Showroom

Kardier Team

Kardier Fair & Customer Visit

Kardier CE/WRAS/Watermark/Wels Certificates

Kardier Warehouse & Delivery Arrangement

Kardier Products Range

\t\t\t\t\t\t\t\t\tWhy choose us \t\t\t\t\t\t\t
Why to choose Kardier concealed cistern ?

1. Elegant: Multiple choices push panel decorate your bathroom.

2. Water saving: Save water by adjusting flush volume 3L-8L,even can be 3/4.5L .


3.Space-saving: 011 series cistern can be hidden in the wall of 110mm thickness.

4. After 19years update ,our concealed cistern are mature and quality very stable ,no trouble for after sales .

FAQ

1. Do our concealed cisterns suit for all kind of size ceramic toilet ?

A:No ,the ceramic toilet size should be with international standard .pls kindly find above "The Technical size standard requirement for Wall hung toilet & standing floor toilet & Squatting pan " .


2. What certifications do we have?

A: Most of our concealed cisterns with CE & WRAS & WATERMARK & WELS certificates approval .pls kindly check our certificate item table for your reference ,or just contact with us for more details .


3. What is the MOQ?

A: In general, up to 50 pcs.


4.Do you offer OEM service?


A: Yes, but you need provide certification of trademark authorization and trademark registration certificate.
