Product Overview
Description
Product Description

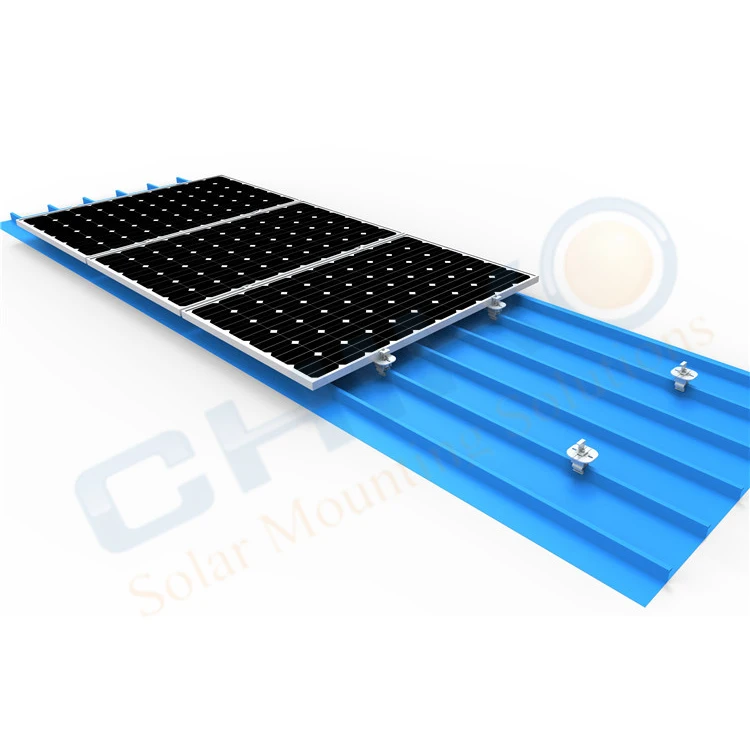

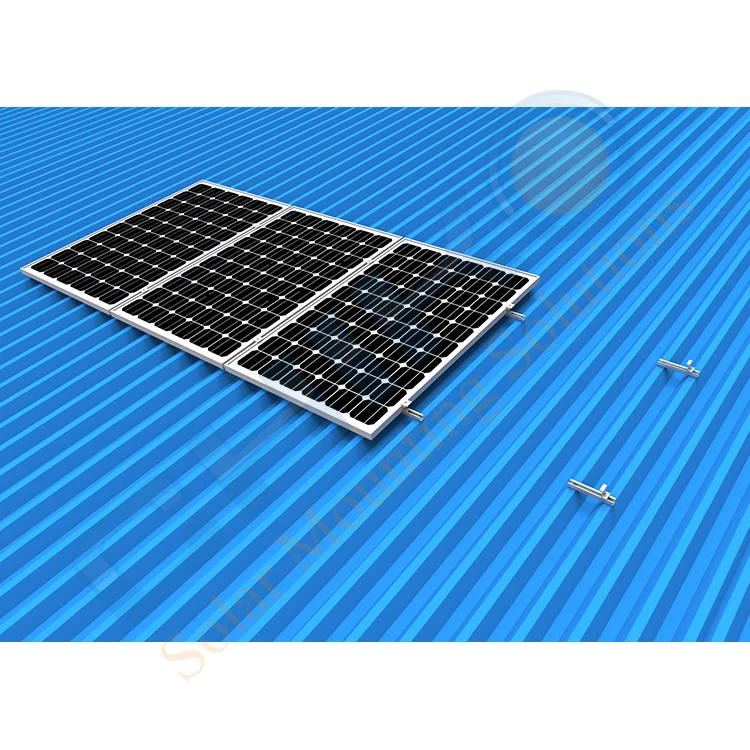

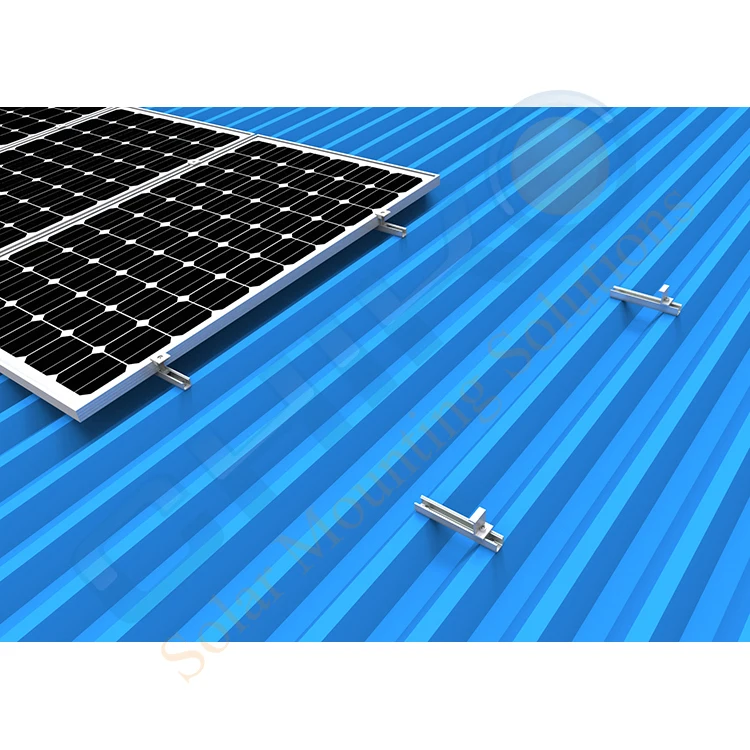

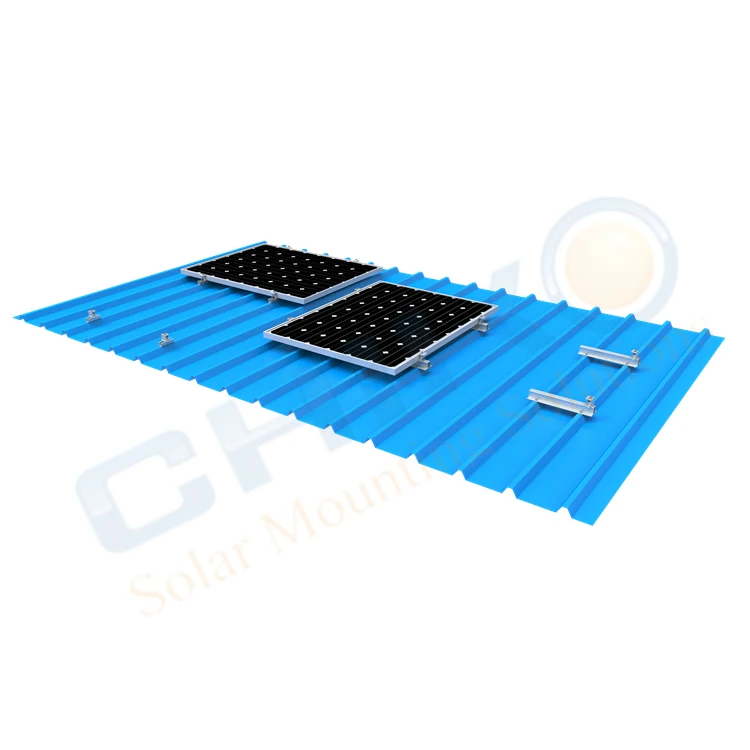

Chiko Rail-Free Mounting System
The chiko Solar Rail-free mounting system is designed as a modular unit assembly system with quality material ,which enables an installer to install any module with easy installation and effective cost.
No. | Item No | Descriptions | Quantity (1x8=8 Panels) |
1 | CK-FT-R22B1-4200 | CHIKO ALU Rail No. 22 4200mm | 4 |
2 | CK-152R7F-40-40 | CK-GTC-R3H | 14 |
3 | CK-101R7F-30-40 | CHIKO End Clamp 40 mm | 4 |
4 | CK-057-2-200 | CHIKO Rail Splice Kit | 2 |
5 | CK-GTC-R3H | CHIKO Grounding Clip for 043# Rail | 14 |
6 | CK-GTC-R3H | CHIKO Grounding Lug for 043Rail | 2 |
Features
• Applicable to Framed modules
• Modules orientation accepts both Landscape and Portrait
• Every size of modules array possible
• Highly pre-assembled components ensure quick installation
• Every size of modules array possible
• Highly pre-assembled components ensure quick installation
• Roof pitch: up to 60 degree
• Wind Speed: 60m/s
• Snow load: 1.8KN/m2
• Material: AL6005-T5
• Color: Silver or Black
• Surface finishing: High standard anodizing
• Anodized thickness: 12-14 microns
• Wind Speed: 60m/s
• Snow load: 1.8KN/m2
• Material: AL6005-T5
• Color: Silver or Black
• Surface finishing: High standard anodizing
• Anodized thickness: 12-14 microns
Recommend Products

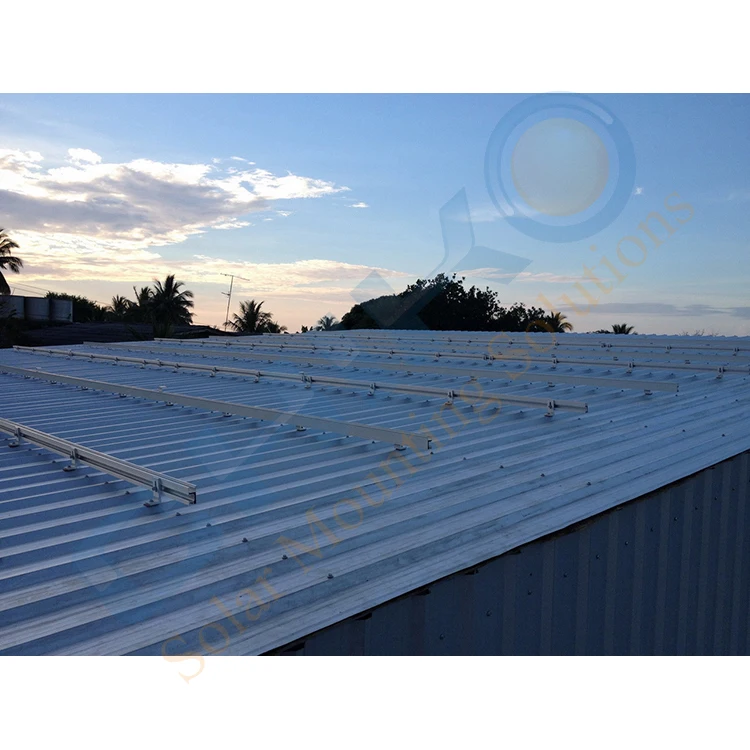

Engineering case
CHIKO focus on manufacturing and design Solar Mounting System for more than 9 years, CHIKO products was installed in more than 60 countries.The customer design is available.
Anything further question and more solution, contact us!
Anything further question and more solution, contact us!
