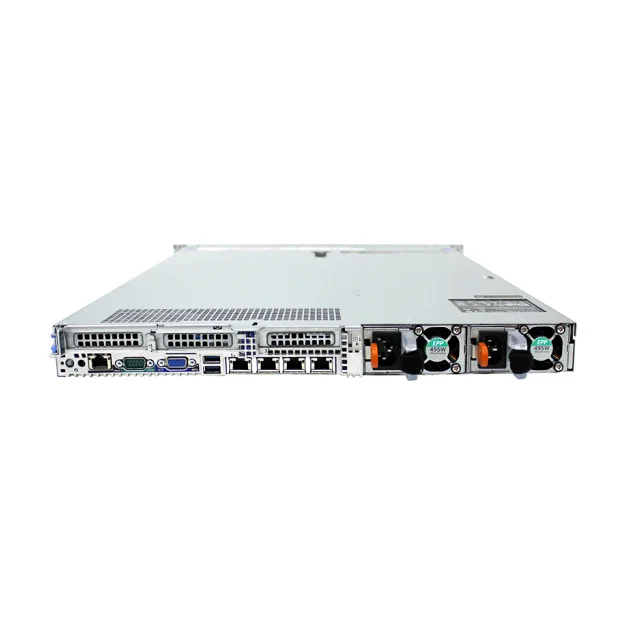

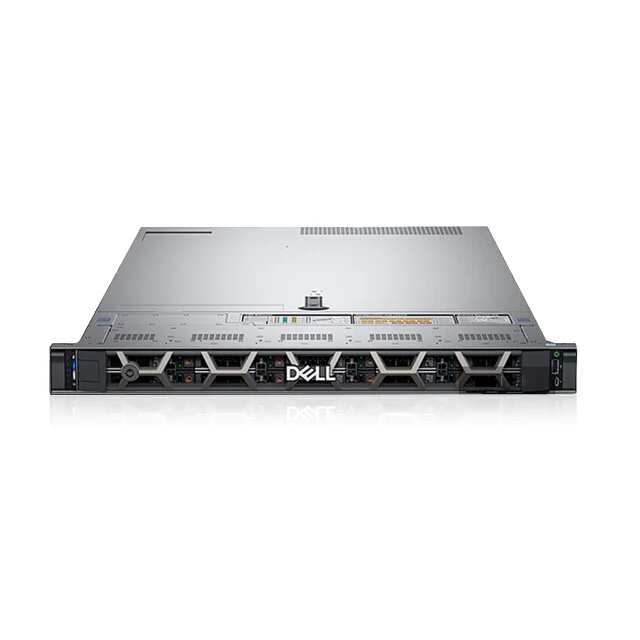

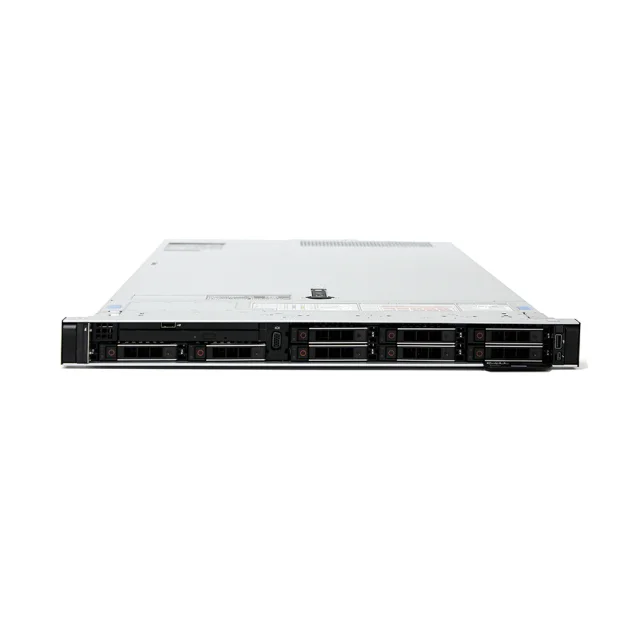

Original PowerEdge Intel Xeon Gold 6144 Dell R640 server
The Dell R640 is capable of providing superior application performance by using only a 1U chassis. The architecture of the server is geared towards optimum flexibility, where plenty of data storage options are left available for expansion. With the server, you can combine up to 24 DIMM's (up to 12 of which can be NVDIMM's) where each has either a 2.5inch or 3.5inch drive. All this capacity is housed within a compact 1U chassis, providing superior performance in a compact and flexible design.
The server also comes equipped with an Intel Xeon SP processor, which provides an increase of 27% in processing cores and a 50% increase in bandwidth.
Processor | Intel® Xeon® Gold 6144 3.5GHz,8C/16T,10.4GT/s 2UPI,24M Cache,Turbo,HT (150W) DDR4-2666 |
Memory |
8GB RDIMM, 2666MT/s, Single Rank 16GB RDIMM, 2666MT/s, Dual Rank 32GB RDIMM, 2666MT/s, Dual Rank |
Hard Drive |
120GB SSD SATA Boot 6Gbps 512n 2.5in Hot-plug Drive,3.5in HYB CARR, 1 DWPD, 219 TBW |
Warranty | 3 Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5x10 NBD On-site |
Rack Rails | ReadyRails™ Sliding Rails With Cable Management Arm |
Processor Thermal Configuration |
Standard Heatsink for 1 CPU |
| |
Power Cords |
NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America |
RAID | |
Chipset | |
| |
Power Supply |
Single, Hot-plug Power Supply (1+0), 495W |
PCIe Riser |
Riser Config 4, 2x16 LP |
Embedded Systems Management |
iDRAC9, Express |
