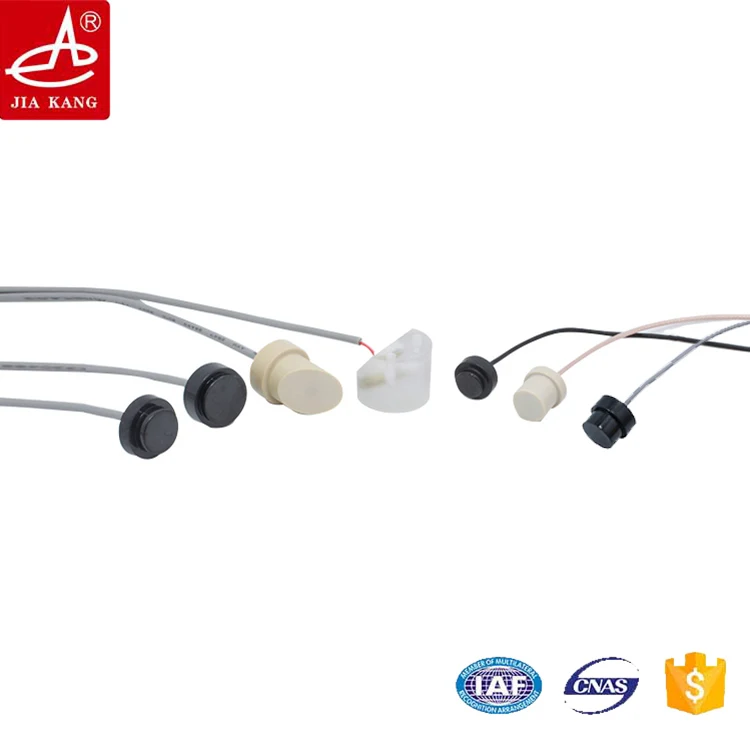

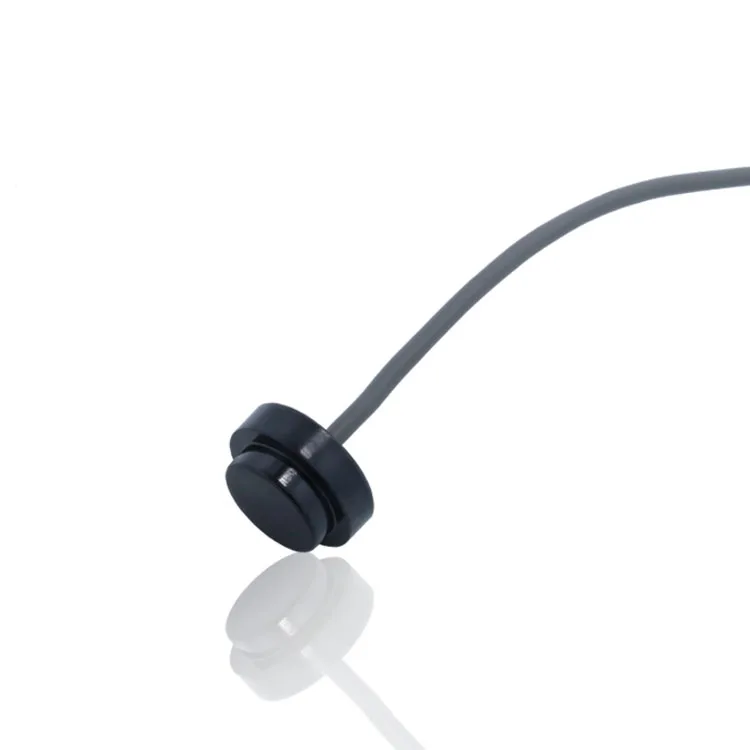

JIAKANG Ultrasonic Water Meter Transducer 1MHz Ultrasonic Flow Sensor
- Category: >>>
- Supplier: Zhejiang Jiakang Electronics Co. Ltd.
Share on (60803300686):
Product Overview
Description
| Specifications | ||
| Items | Unit | Content |
Nominal Frequency(Fn) | kHz | 1100±100 |
Resonance Impedance(R0) | Ω | 300±30% |
Static Capacitance(CP) | pF | 1100±20% |

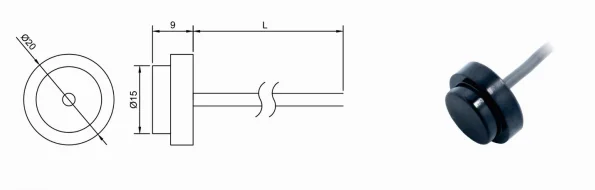

| OUTLINE DRAWINGS AND DIMENSIONS |
 |
 |
Ceramic ultrasonic transducer, the core element of ultrasonic flow meters, is a liquid-medium sensor. It can be used in liquid flow meter, or as liquid level sensor. Products are made from the piezoelectric ceramic developed by ourselves, has the advantages of better temperature stability and superior piezoelectric effect. We have been in the research and development of PZT materials and products nearly 30 years.We are director of Piezoelectric Ceramic Device Specialized Committee, in charge of drawing China’s “The 11th Five-year Plan” and “The 12th Five-year Plan” for development of piezoceramics. Chooosing us will make your developping process earlier and faster. |
FAQ
Q1:Are you a manufacturer or a trading company?
A1: We have been specialized in the piezo ceramic related products manufacturing for 31 years.
Q2:Where is your factory located?
A2: Factory address: No.1188,Jiahang Road,Jiaxing City , Zhejiang Province,China.
Q3: What's your company MOQ?
A3: Small quantity also available.
Q4: What's the payment way?
A4: T/T, western union, credit card etc.
Q5: Can you send a sample for us to test ?
A5: Yes, most samples are available for free. For samples whose cost is very high, the sample fee will return back in future order.
Q6:What is your shipping way?
A6: We support DHL, UPS, FedEx, EMS.
