Manual changeover 4 position 3 Speed Item 3410 12 4A 125V AC 3(2)A 250V Electric fan rotary switches

Product Overview

Description

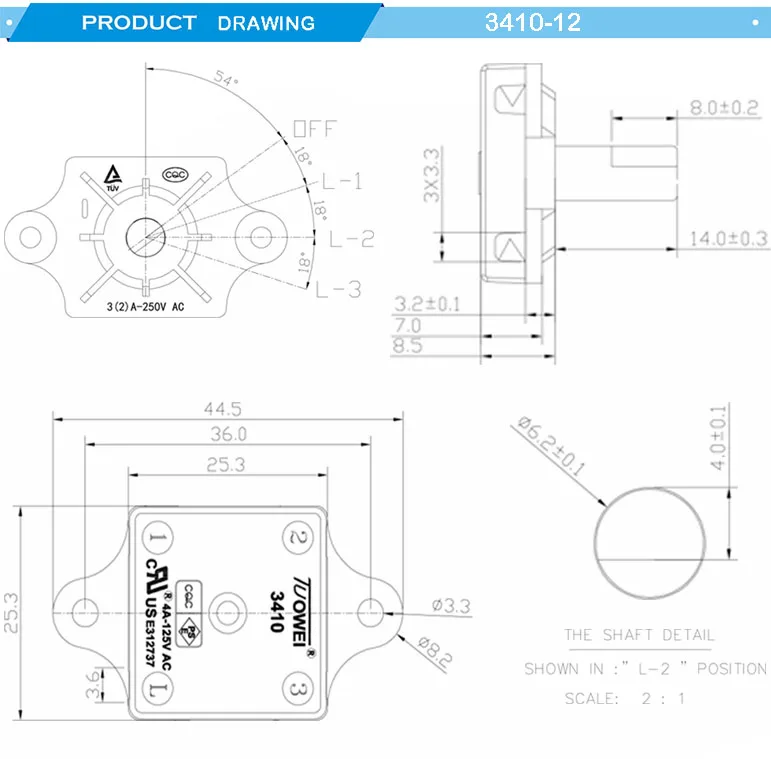

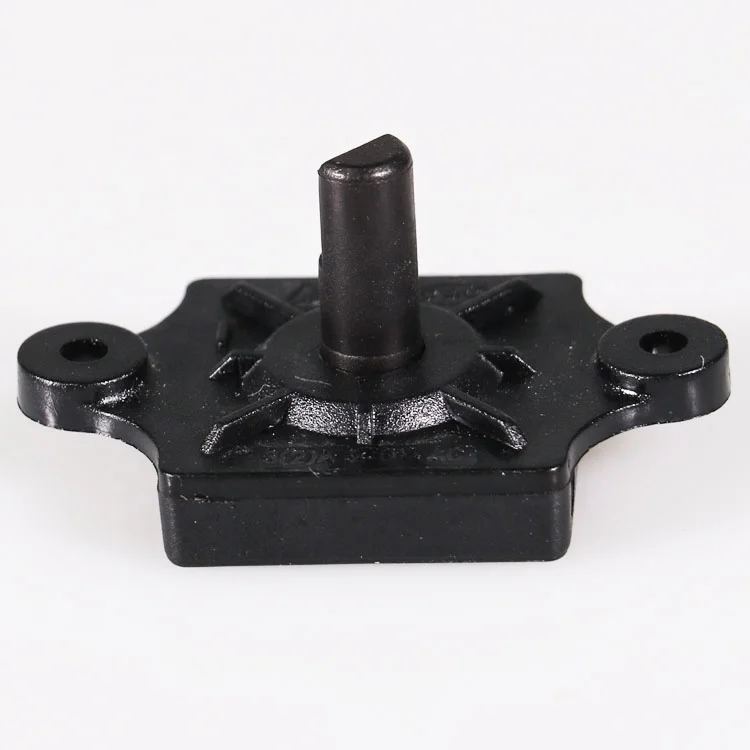

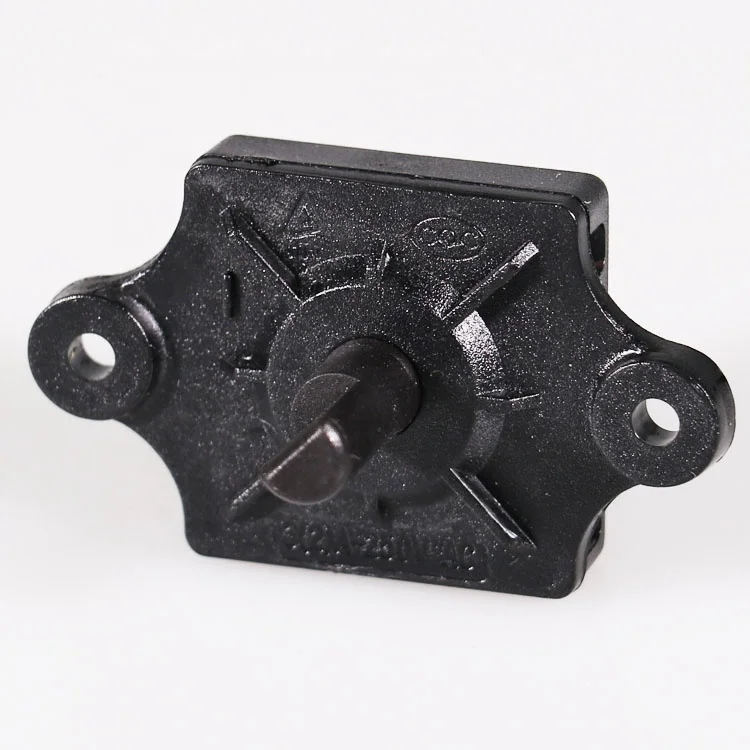

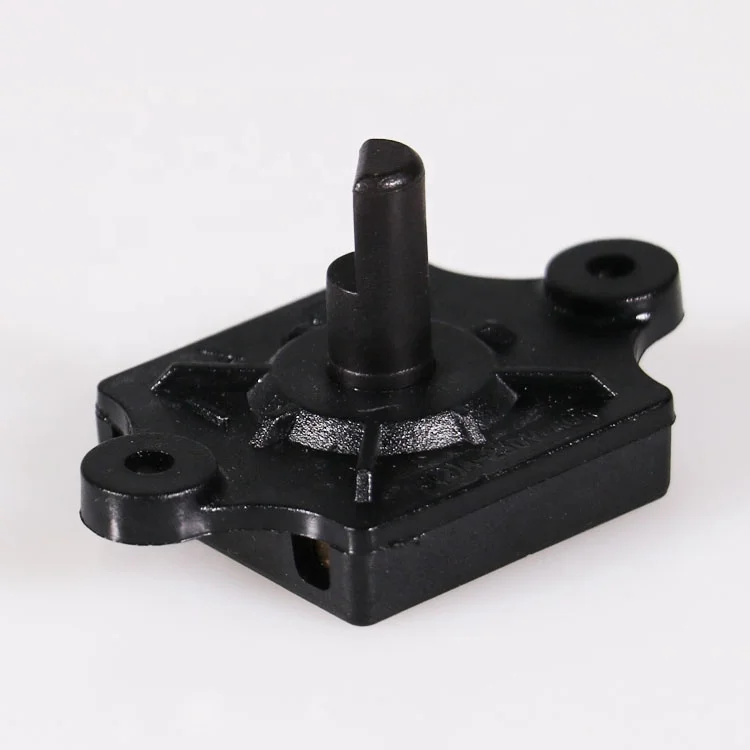

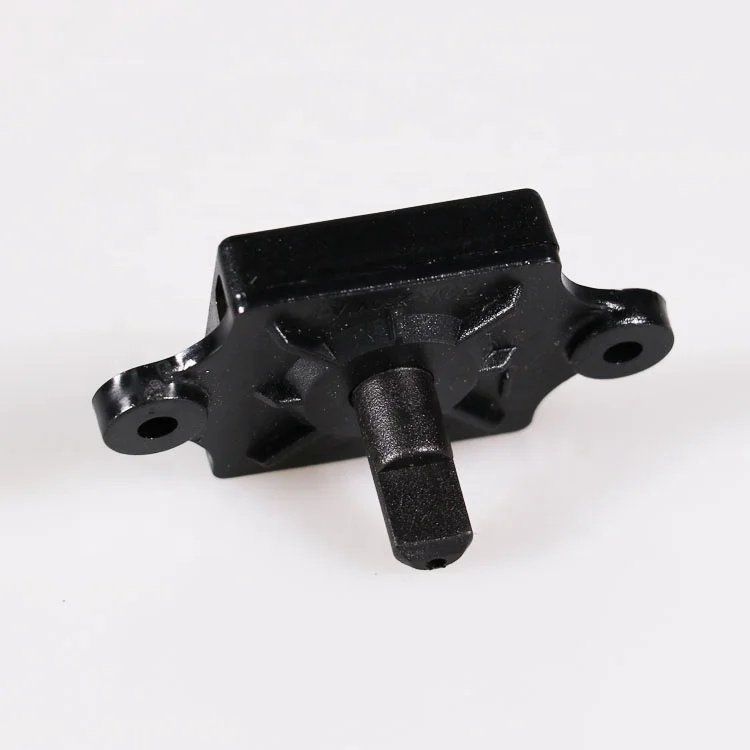

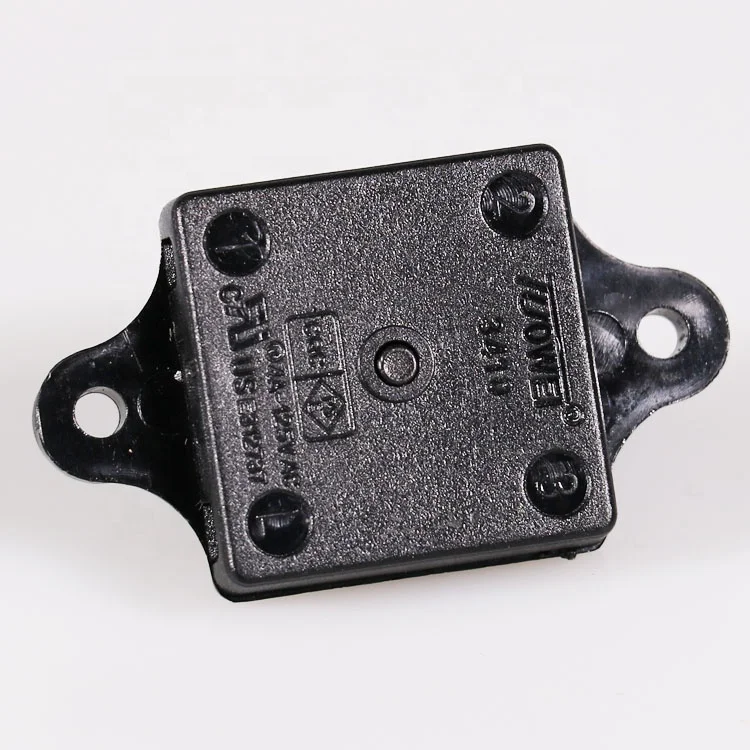

Manual changeover 4 position 3 Speed 4A-125V AC 3(2)A-250V Electric fan rotary switches Item No.: 3410-12



Technical Parameter
Electrical Rating	4A ~120V.AC.   3(2)A~250V.AC.
Function	OFF, L-1, L-2, L-3
Rotary angle	18°
HZ	60/50
Load	Res/ Mot
Temp(C)	125°C
Pol/Thr	1/ M
PP/Circuit	A/--
Endur	10K
Operation force	1400G+_250GF
Withstand voltage	1500 V.A.C
SPCOA	24-18AWG UL1015
Material:
Cover: PC
Insulating piece: PF                                                                                         Grade: SABIC
Rotary: PA66                Flame rating: V-2 or V0               Temperature: 130°C              Grade: Dupont
Movable Contract: Copper
Terminals: Brass
Base: PC          Flame rating: V-2 or V0                      Temperature: 130°C              Grade: SABIC
Apply to:
Electric juicer, Mixer,Blender and  other home appliances









B3410 series have many different function circuits as below:

NO.	Position 1	Position 2	Position 3	Position 4	Position 5
1	L-1	L-2	L-3
2	OFF	L-1	L-2	L-3
3	OFF	L-1	L-2	L-3	OFF
4	OFF	L-2	L-1-2	L-1-2-3
5	OFF	L-2	L-1-2
6	OFF	L-2	L-1-2	L-1-2-3
7	OFF	L-1	L-1-2
8	OFF	L-1-3	L-1-2	L-1-2-3
13	OFF	L-1	L-2
15	OFF	L-2	L-3	L-2-3
16	OFF	L-2	L-1-2	L-2-3	L-3
24	OFF	L-1	L-2	L-1-3	L-2-3
28	OFF	L-2	L-2-3
29	OFF	L-2	L-1-2	L-2-3	L-1-2-3
47	OFF	L-1-3	L-1-2
67	L-2	L-3
