concrete paver molds vibrating shaker table

Product Overview

Description

concrete paver molds vibrating shaker table

Vibrating Table 5 Big Features

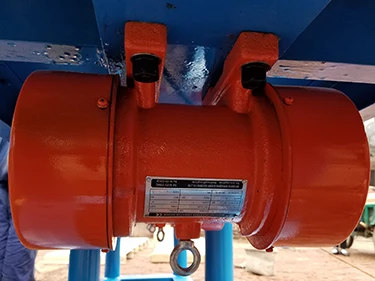

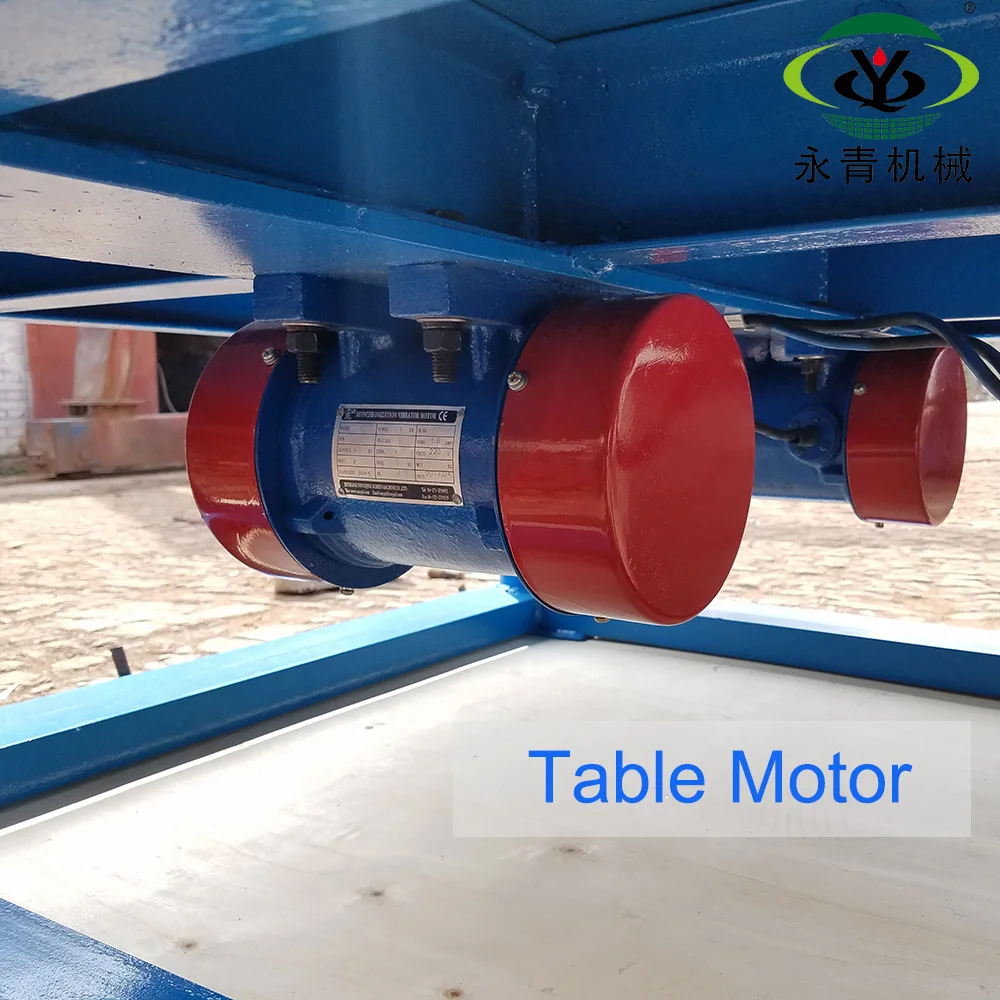

	1. Vibrating motor is the energy source, low power consumption, provding steady amplitude.

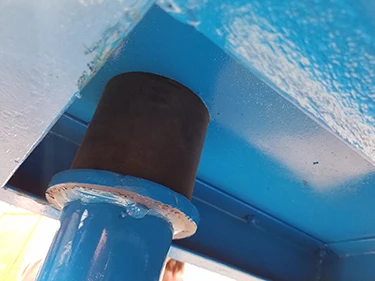

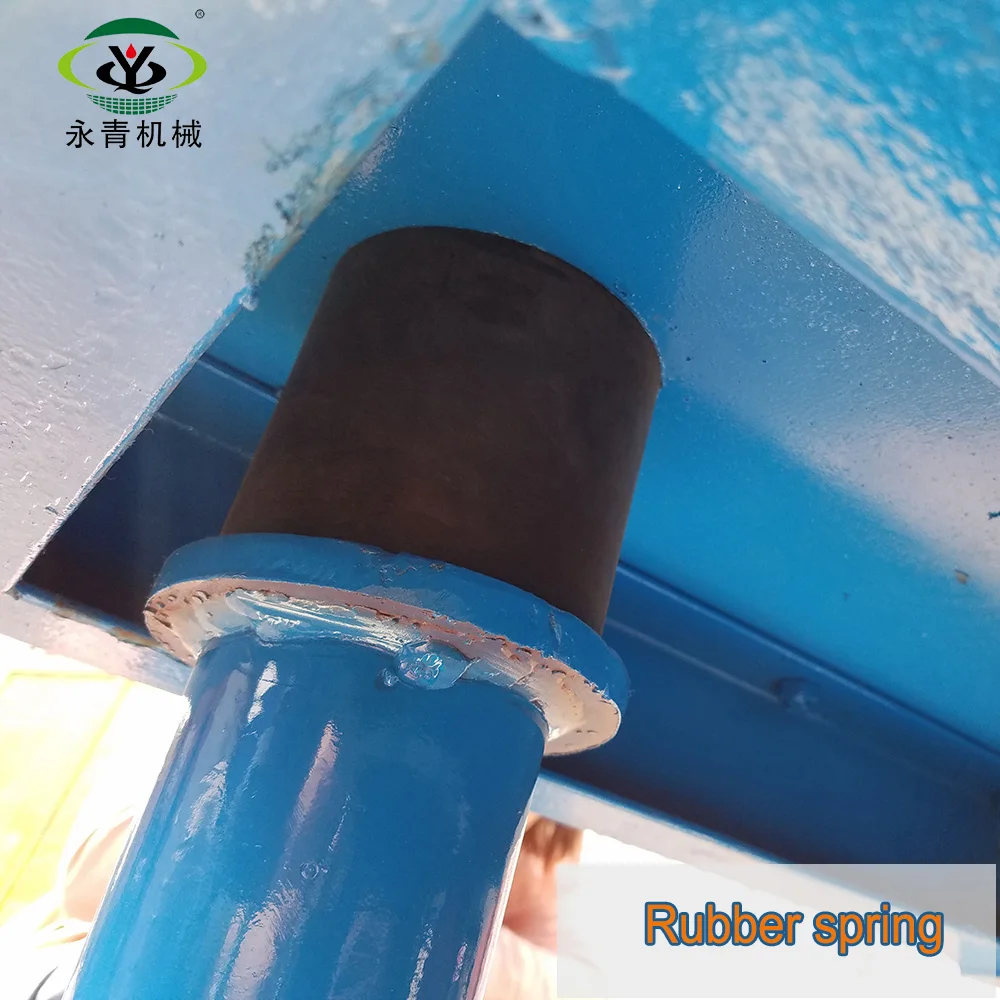

2. Rubber Spring is more durable than others, ensuring the table make lower noise.

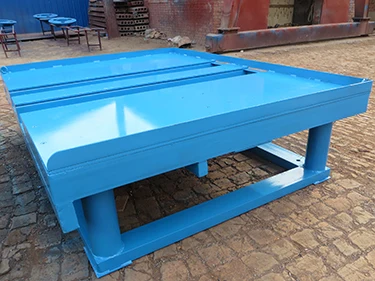

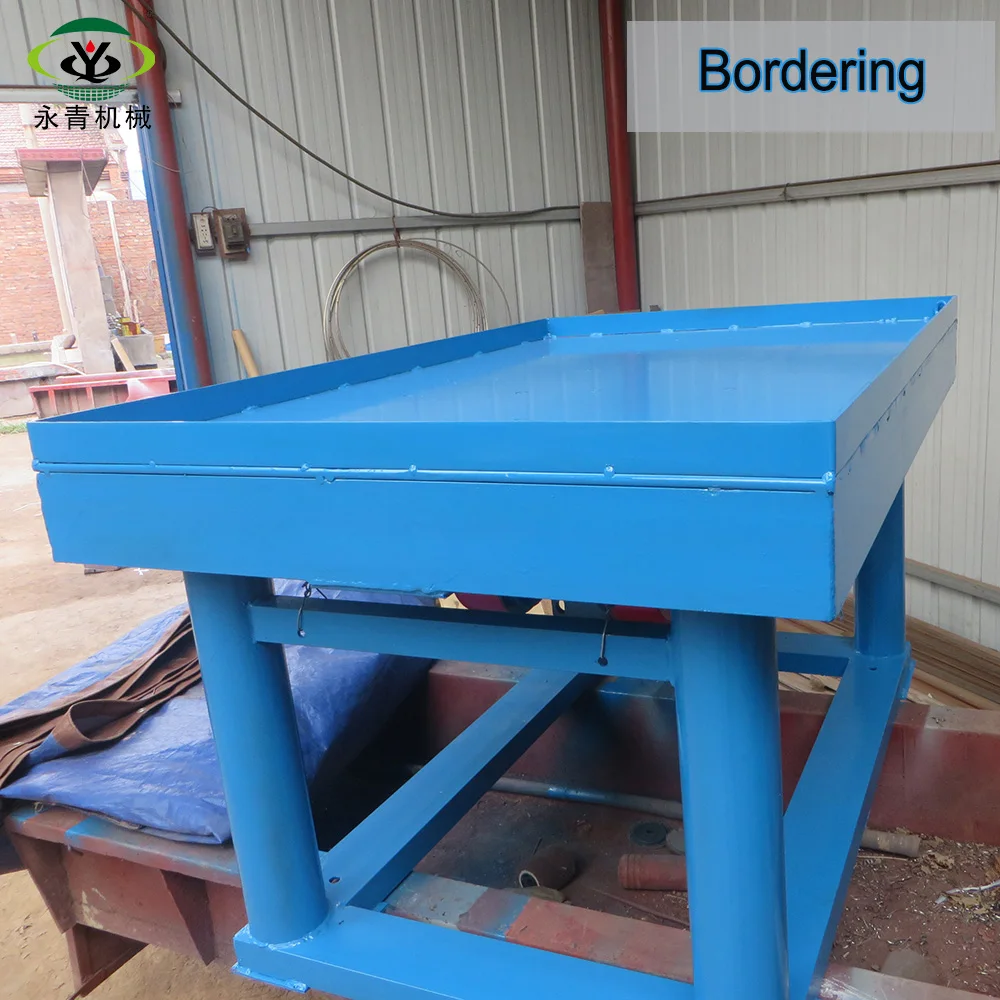

	3. The table dimension can be totally customized, adding edge and groove.
4. The machine has simple structue, no wearing part, easy to maintain.

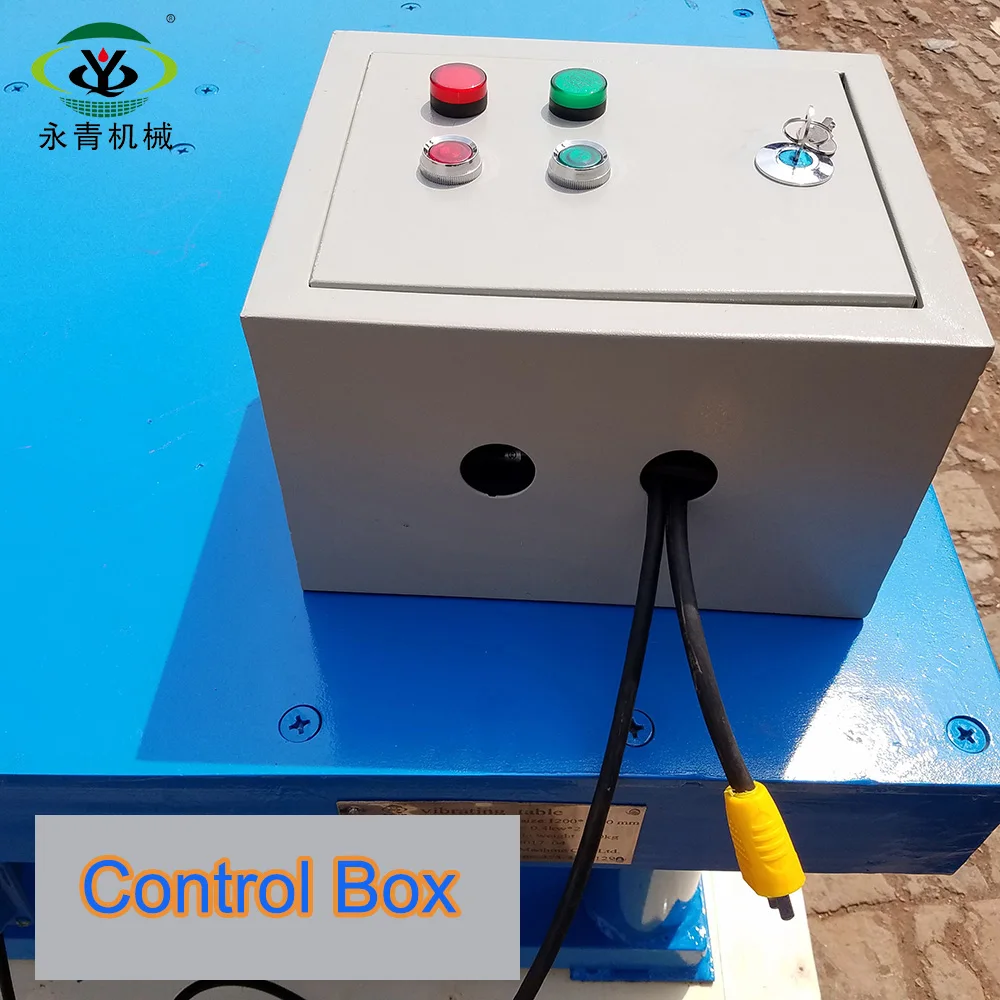

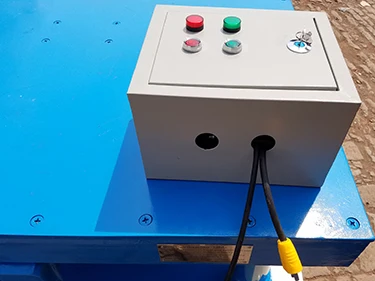

	5. Control box makes it easy to start and stop working, and to adjust the vibrating speed.

Parameters of Vibrating Table

Model	Table Size (mm)	Power (kw)	Amplitude (mm)	Loading Weight (kg)
ZDP500	500*500	2*0.25	2-5	300
ZDP800	800*800	2*0.4	2-5	500
ZDP1000	1000*1000	2*0.75	2-5	1000
ZDP1200	1200*1200	2*1.1	2-5	1200
ZDP1500	1500*1500	2*1.5	2-5	2000
ZDP2000	2000*2000	4*1.1	2-5	2500
ZDP3000	3000*3000	6*1.5	2-5	3000

Remarks: Support to customize based on customer's requirement.
