IBEST M8 Connector Flush 1.5mm NPN PNP Metal Detect Position Inductance Inductive Proximity Approach Limit Switch Sensor

Product Overview

Description

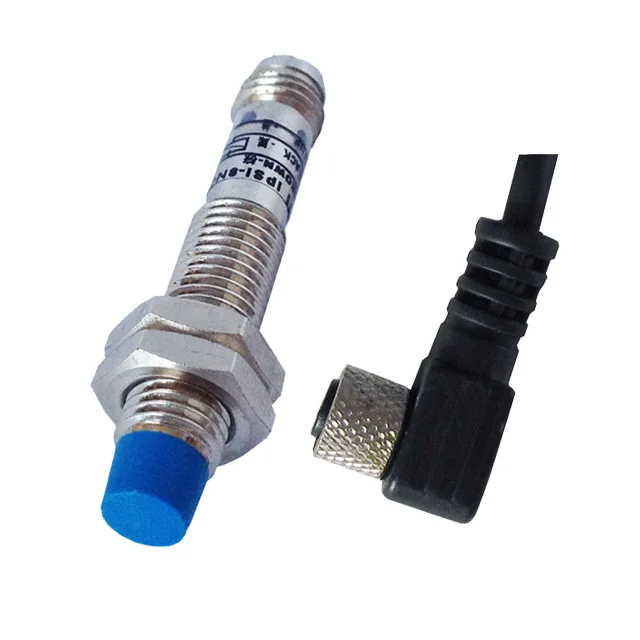

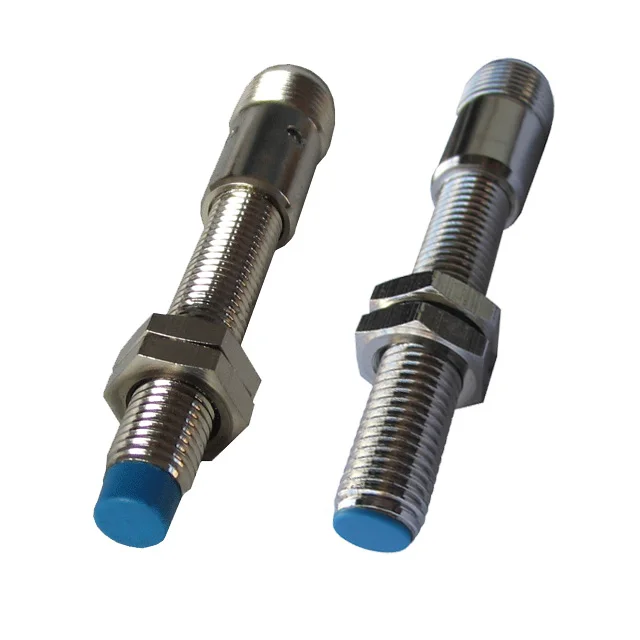

IBEST M8 Connector Type Inductive Proximity Sensor

Flush Shielded Extended Distance 1.5-1.8mm

1.Features of IBEST  M8 NPN Type Proximity Sensor Switch:
*     Style: cylinder shape, diameter: 8mm.

*     Extended double mounting distance: shielded (1.5-1.8mm), unshielded(3.2-3.8mm).
*     NPN or PNP, NO or NC output.
*     Connection mode: 3 wires (or with 3 pin connector)

*     DC 10-30V supply. (DC5V can be special ordered)
*     With LED operation indicate lamp, easily identifiable .
*     Brass chrome plated, proof of oil, water acid, alkaline.
*     Standard sensing object: metal objects.
*     Protection rate: IP67, water resistant.
*     Over-load protection, short circuit protected, and Againest Polarity reversal.

*     Various other shapes: M5/M6/M8/M18/M30, square types and pancake types.
*     Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc .

*     Reliable quality to replace famous brands, with CE approval.

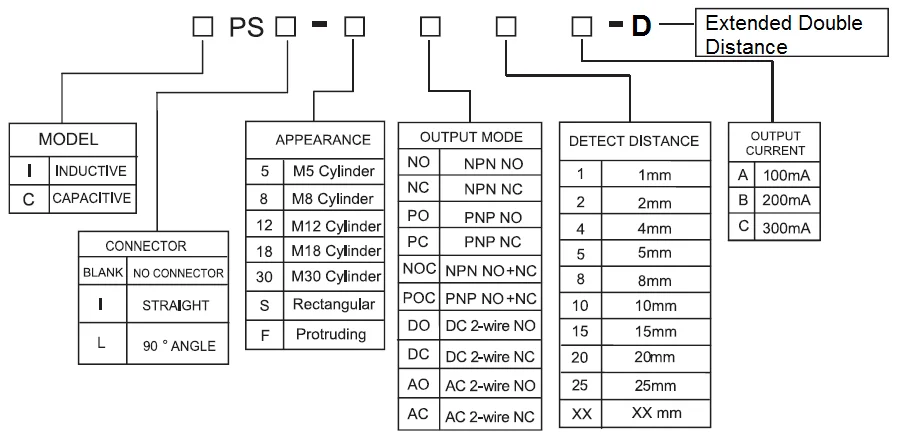

2. Ordering Code

Model and Type	Output type	Mounting distance	Cureent output	Power supply	Connector model	Buy
IPS-8NO2B-D	NPN NO	1.6mm,shielded	≤200mA	DC 10-30V	3 Wire
IPS-8NC2B-D	NPN NC	1.6mm,shielded	≤200mA	DC 10-30V	3 Wire
IPS-8PO4B-D	PNP NO	3.2mm,sheilded	≤200mA	DC 10-30V	3 Wire
IPS-8PC4B-D	PNP NC	3.2mm,shielded	≤200mA	DC 10-30V	3 Wire
IPSI-8NO2B-D	NPN NO	1.6mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI-8NC2B-D	NPN NC	1.6mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI-8PO4B-D	PNP NO	3.2mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI-8PC4B-D	PNP NC	3.2mm,unshielded	≤200mA	DC 10-30V	Plug-in connector


3.Technical specification

Property project	Specific parameter
Mounting distance	shielded (2mm)/unshielded(4mm)
Sensing distance	shielded(0-1.6mm)/unshielded(0-3.2mm)
Power supply	DC 10-30V (or DC5V special order)
Frequency	≤1KHz
Current output	≤200mA
Ambient temperture	-15°C-65°C
Protection	over-current/against polarity reversal
IP rating	IP67

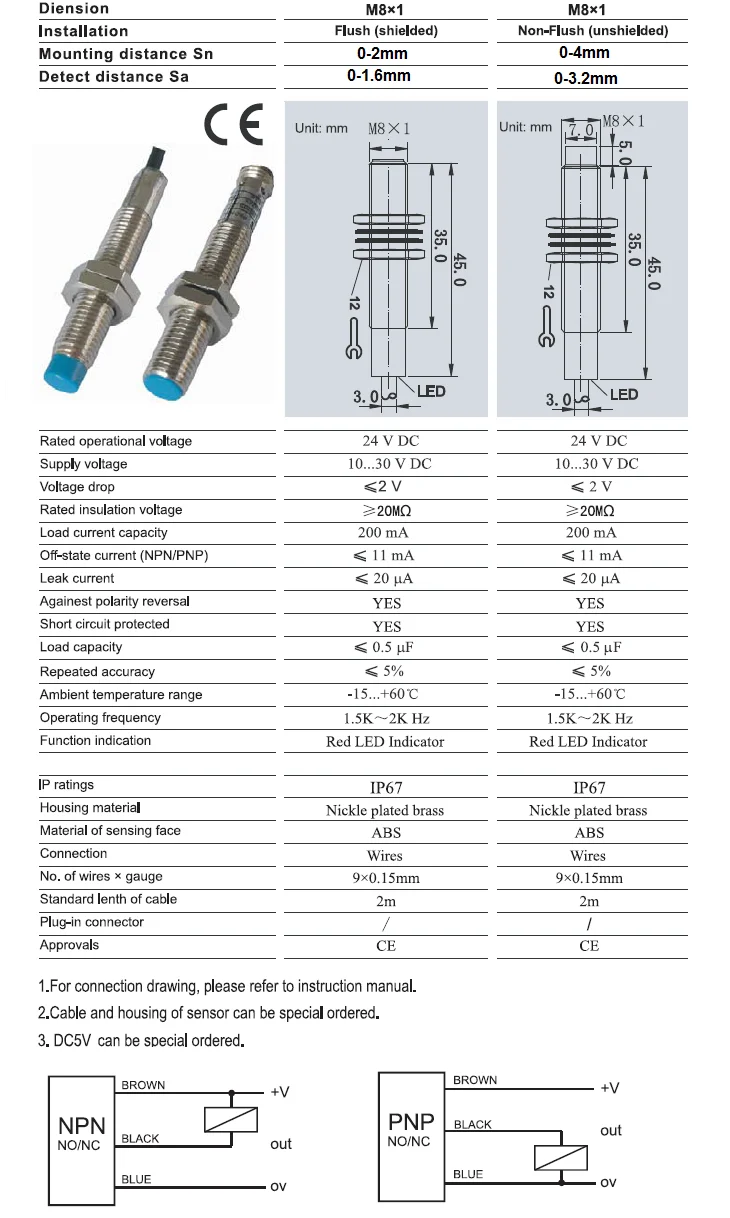

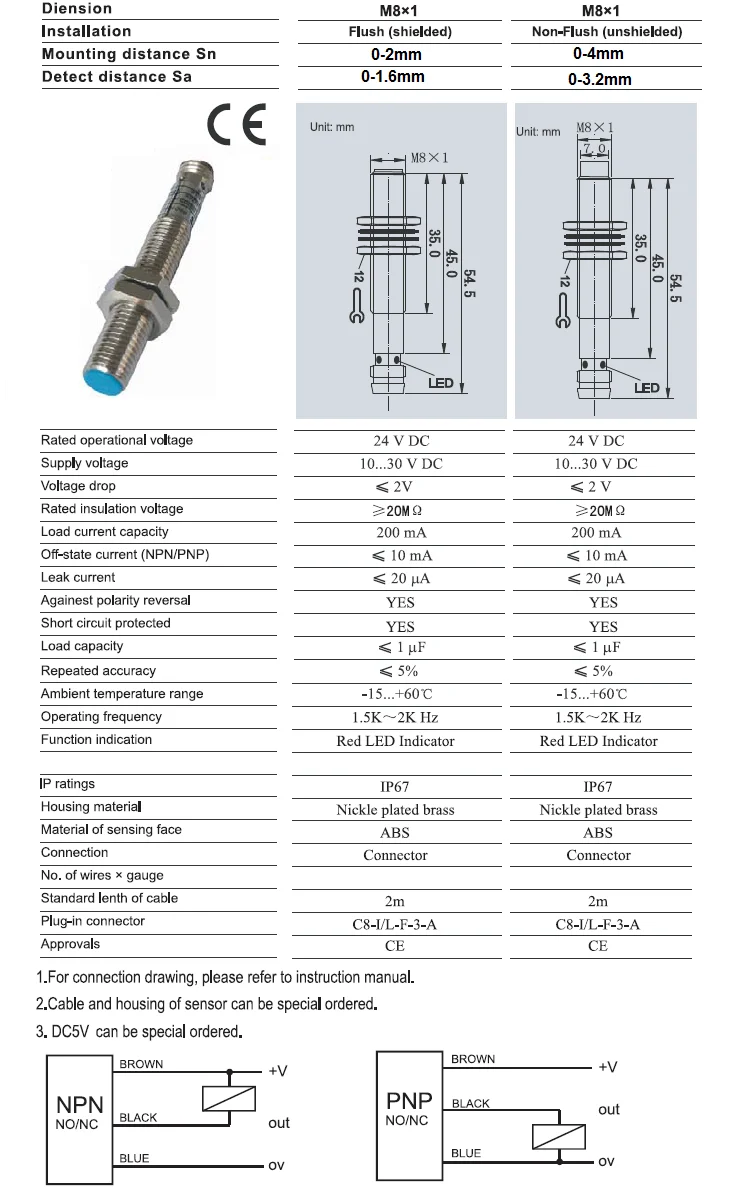

4.Dimension & Specifications & Connection drawing:
