Product Description

Product Application

This machine is specially made for all kinds of granule sauce, jam, paste or spread, such as sauce with small particles, pulp, fruit fresh. Such as fruit jam with pulp,  pickle, garlic sauce, Chinese chilli paste, Chinese black bean in chili oil sauce, bolognese sauce with meat, baked beans in tomato sauce etc.

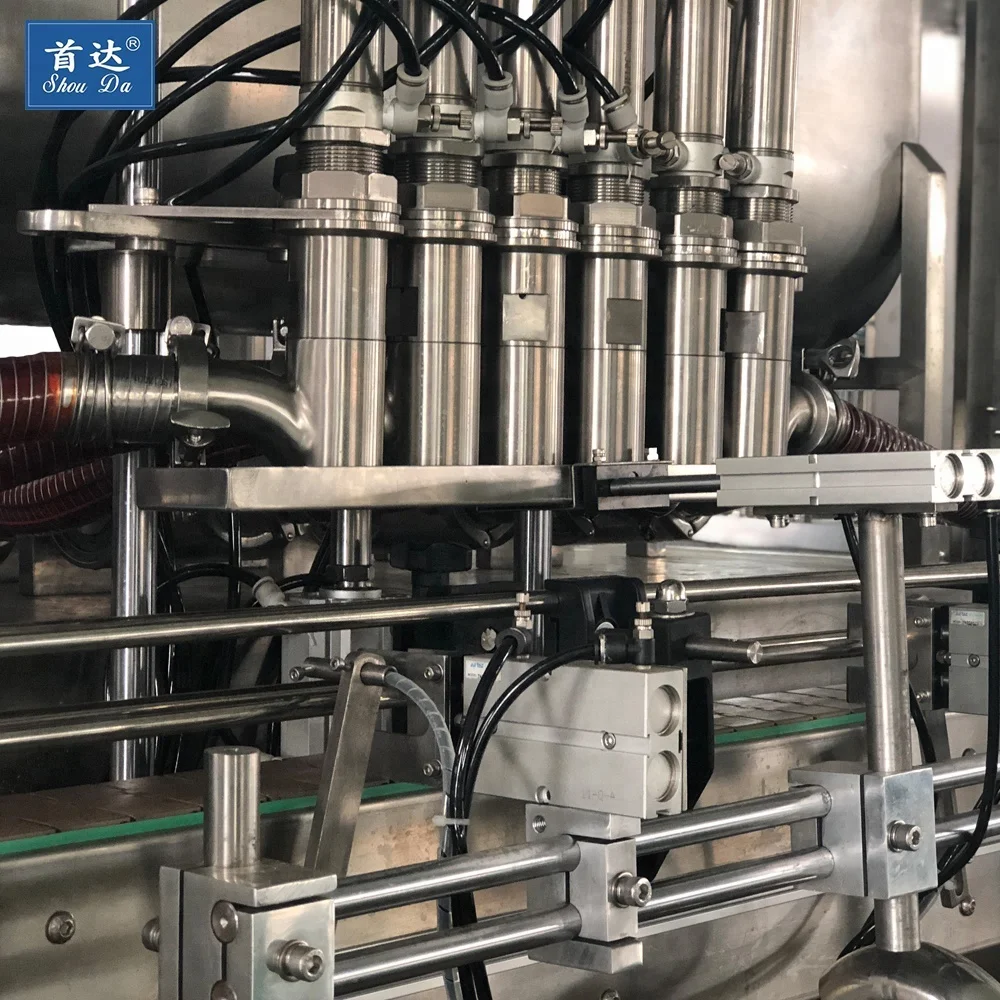

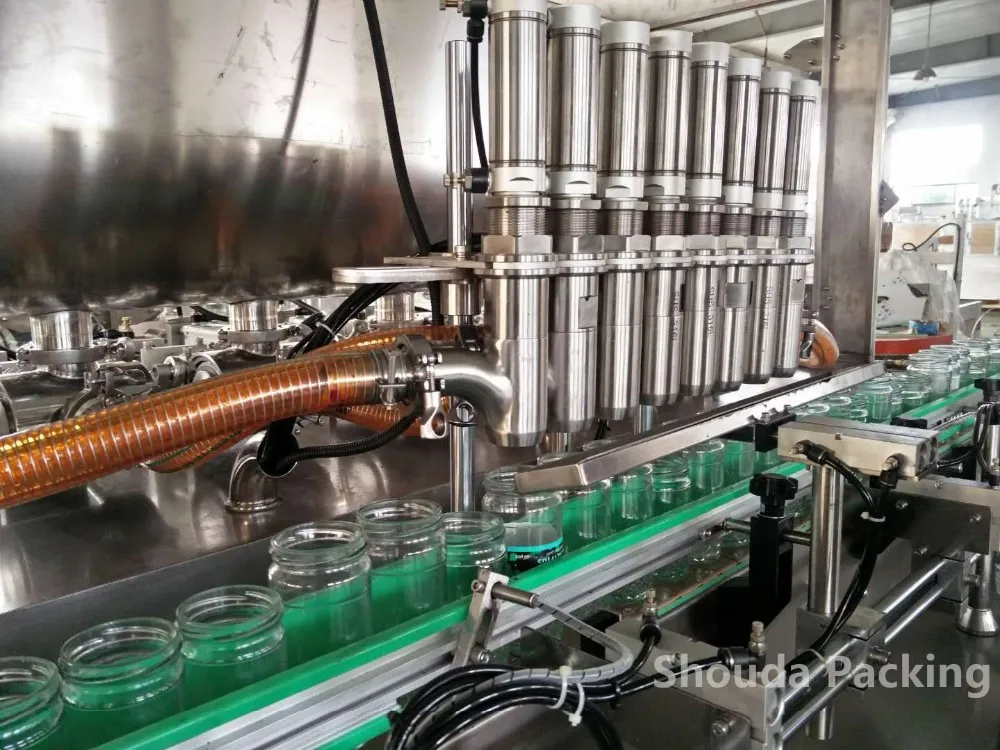

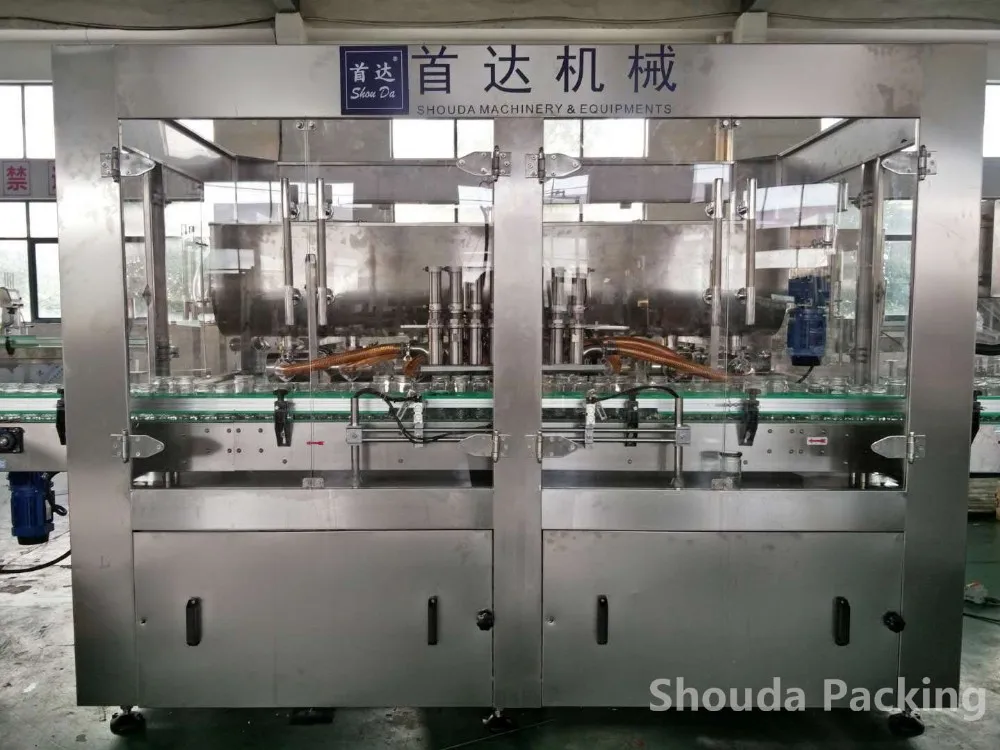

Automatic horizontal piston pump jam with pulp jar  filling machine
Filling nozzle
2/4/6/8/12/14/16
Filling volume
20ml-5000ml
Filling system
Piston pump
Filling speed
1,800 -2,000 bottles/hour@250g jam, 4 heads
Depends on the filling volume, viscosity of material, bottle shape and size
Speed control
Frequency Control
Filling precision
±1%
Power
380V 60Hz, 2Kw
Air pressure range
0.6-0.8Mpa
Weight
450Kg

Main Features

1. It adopt the piston type metering pump to filling; the pump structure using quick-connect disassembly mechanism, easy to clean and disinfect;
2. Piston type metering pump piston rings made of tetrafluoroethylene;
3. PLC control system, frequency control, full automation;
4. It is easy to adjust the filling amount, can be slightly adjusted for each metering pump; easy to operate, fast adjustment;

5. With agitate in the tank, it will stir the material clockwise and counterclockwise direction;
6. Filling cylinder adopts rotary valve type piston pump to effectively prevent wire drawing and drip;
7. To ensure the bottles and filling nozzles are in the correct position, we add a special bottles position device to make the whole filling process smooth and stable. No bottle no filling.

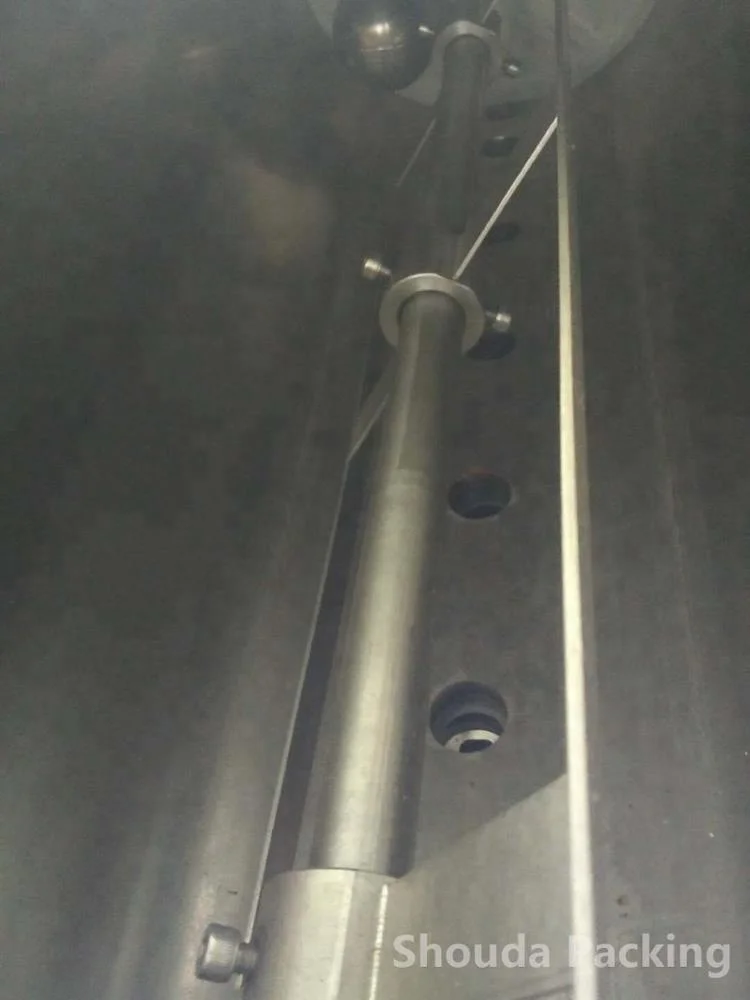

8. The feed tank adopts double-jacket hopper with stirring

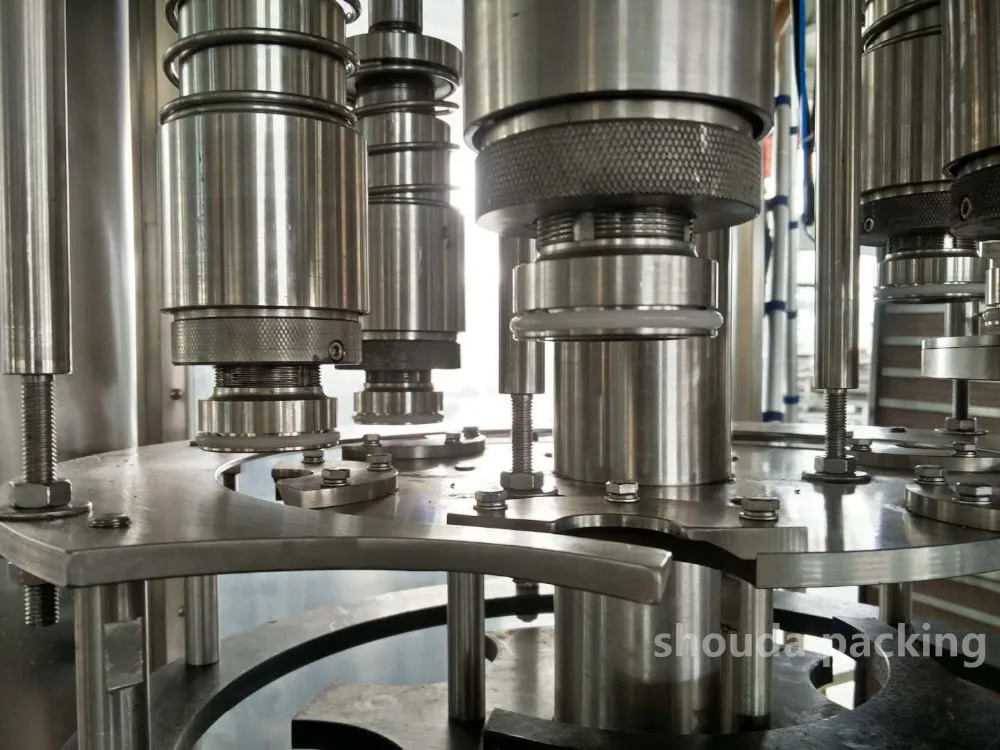

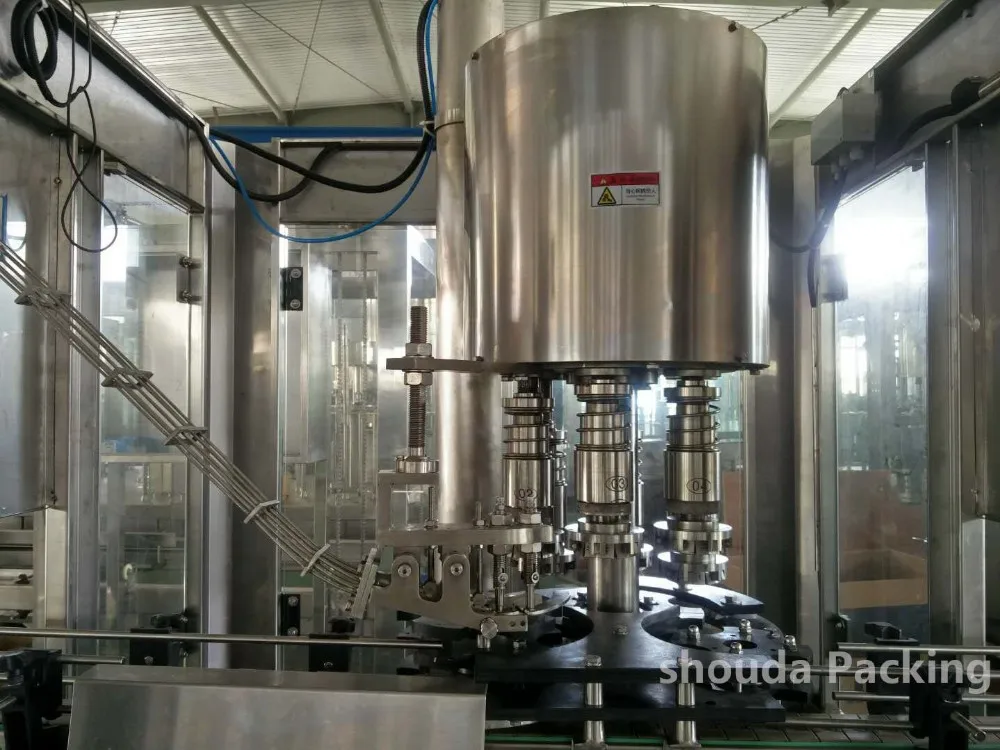

Automatic rotary 16 heads rinsing machine

Automatic bottle rinsing machine absorb in high technology from aboard, by adopting gyration method on rinsing device, it can automatically complete working process from bottle entry, bottle rinsing, water removing to sanitized bottle out.

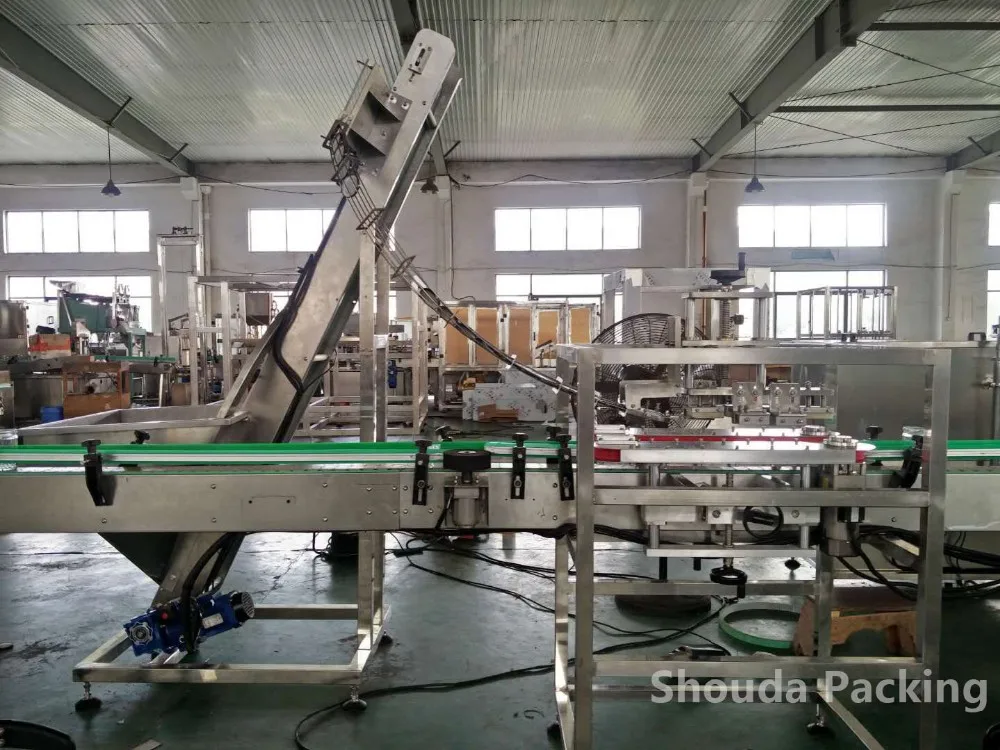

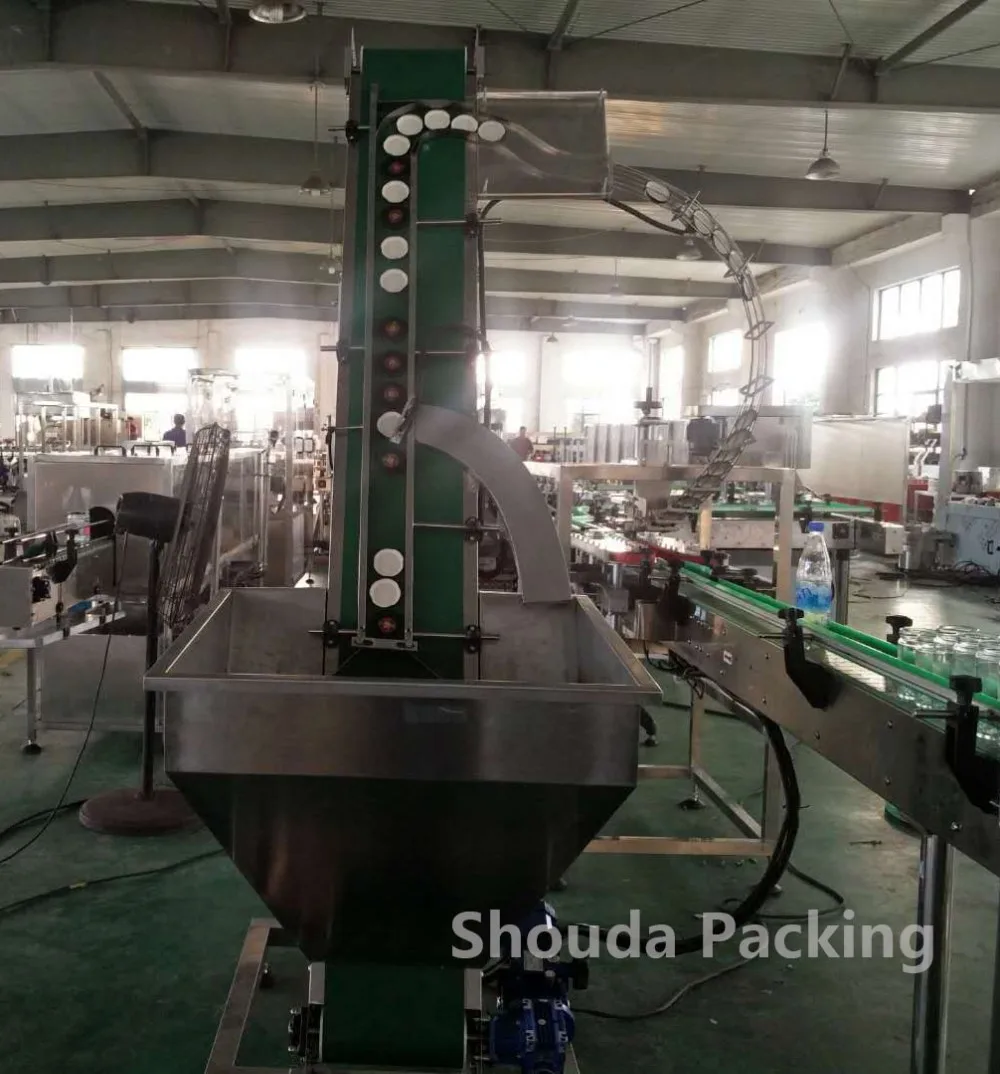

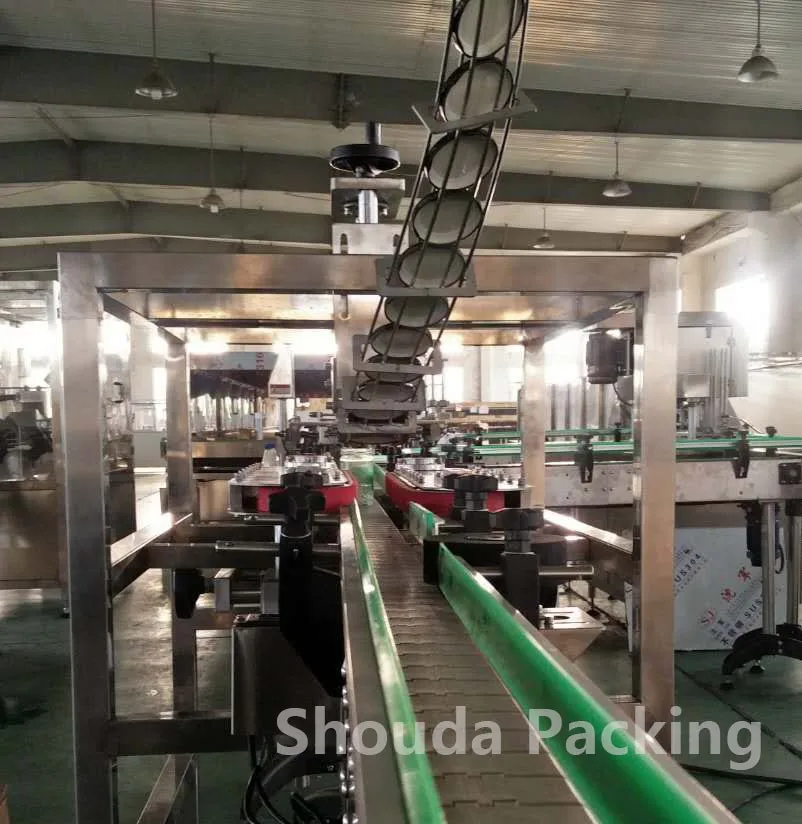

Automatic Pre-capping machine with cap elevator

It is initial capping location, highly improve the capping accuracy.

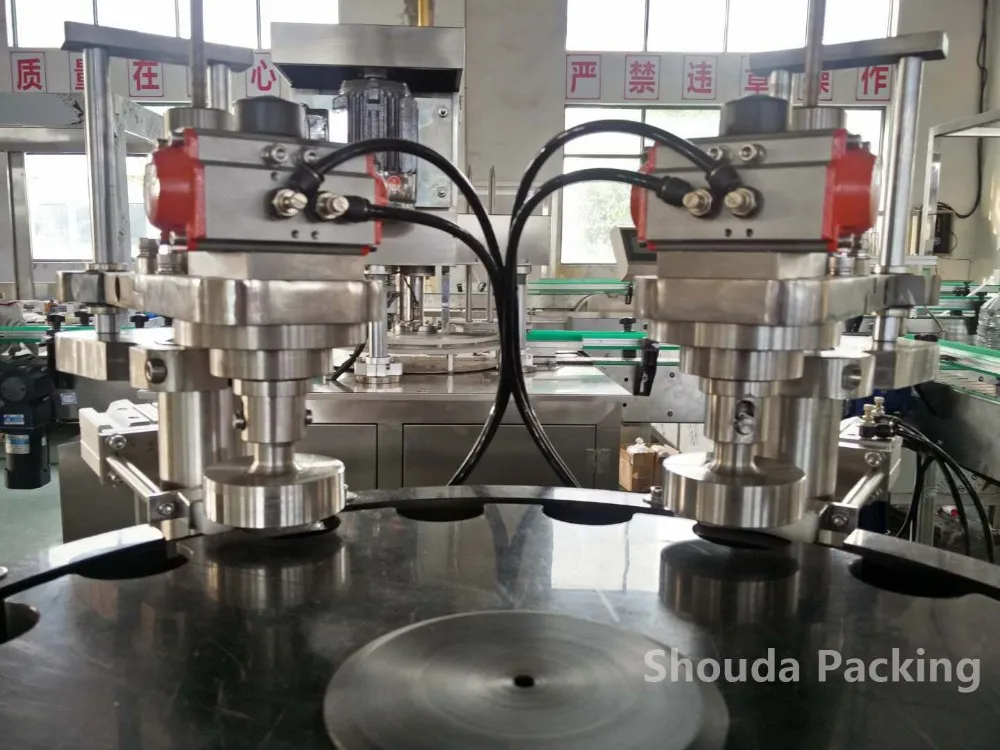

Automatic two heads capping machine

This model capping machine can cap kinds of different metal & plastic caps. It is able to integrate to other matched machine in bottling line, fully complete and intelligence control advantage.


For the capping machine,there are many other models for choose, it depends on your filling material, bottle shape, cap capacity and etc. For more details, pls kindly contact me.

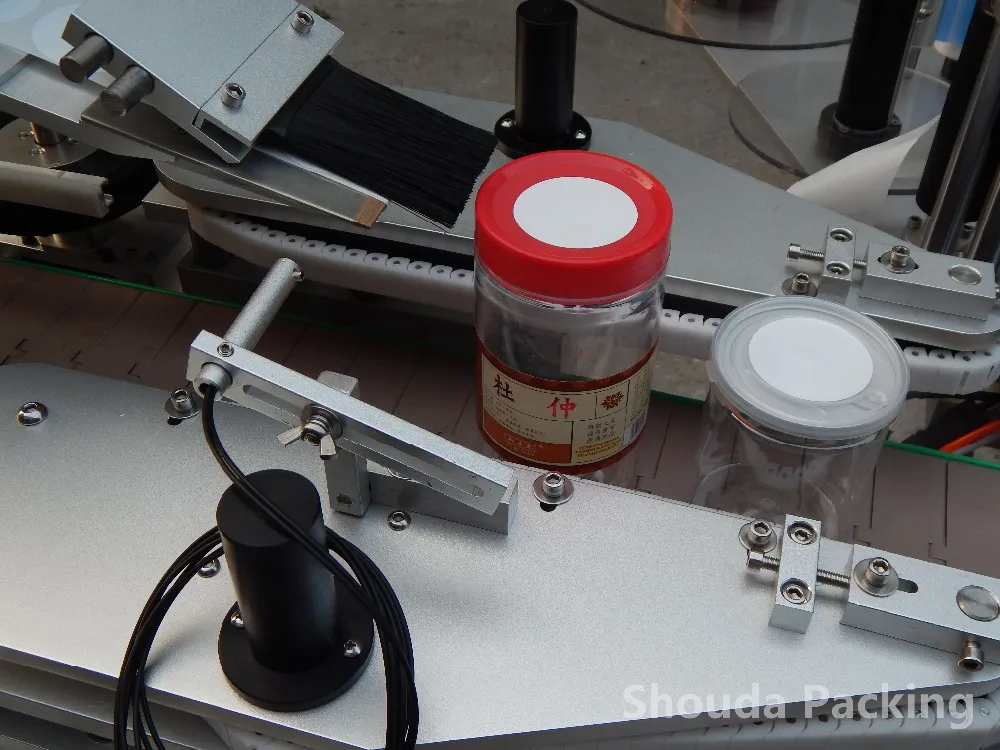

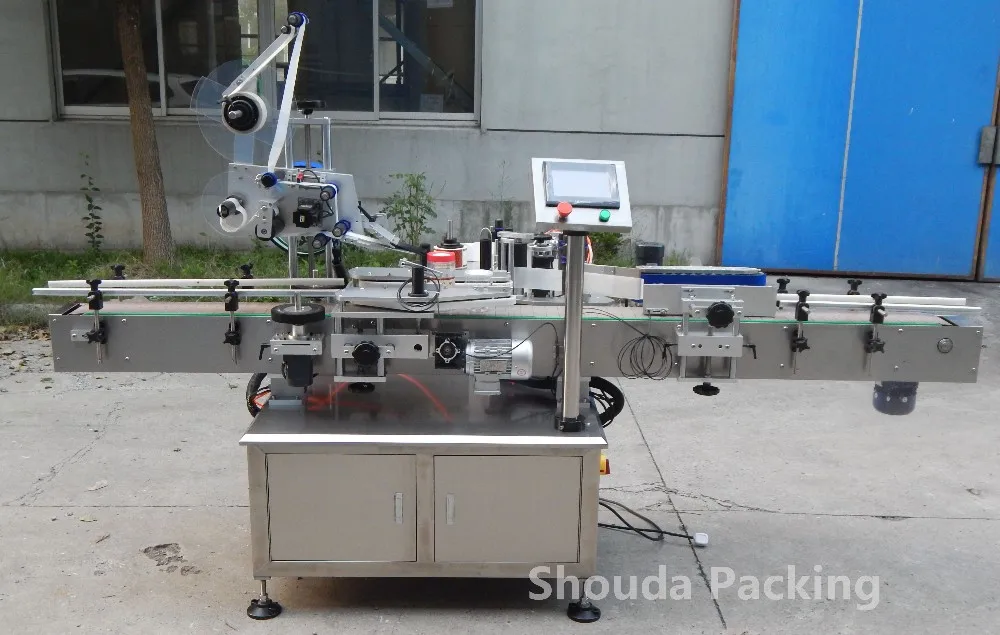

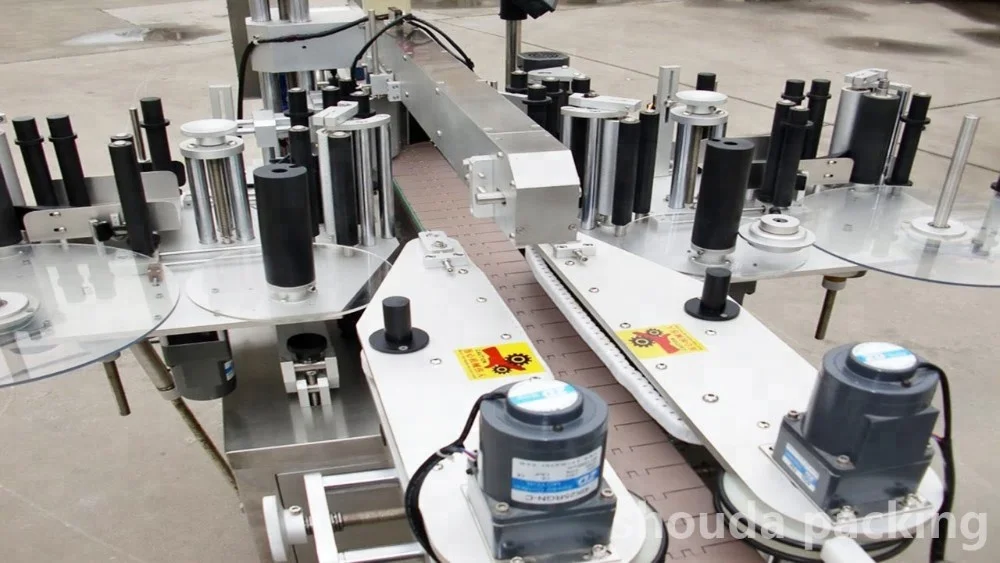

Automatic multifunctional labeling machine

This automatic wrap round bottle labeling machine is applicable for all kinds of round, flat, square or objects or such as food, chemical, pharmaceutical, cosmetic, stationery, carton, box and various oil kettles etc.


pls kindly note the picture shows wrap around & top side for reference, we could also offer you the wrap around labeling, double sides labeling, flat barrel single side labeling  and etc, it will depends on your bottle shape and label.

Equipped machine

Glass bottles Tunnel Type Sterilization Drier

Function: drying
Brand: Shouda
Original: Shanghai

The tunnel type sterilization drier is used in sterilization and drying for the vials, jars and other glass bottles drying and sterilization. the tunnel is divided into three processing zones which are preheating zone, heating zone and cooling zone.


Automatic Bottle Body washing machine
Function: Washing
Brand: Shouda
Original: Shanghai
The tunnel type washing machine is used for the bottle body washing by water after capping, to clean the filling material remaining on the outer wall of the bottle.

Automatic Air Knife Bottle Dryer

Function: Dyring
Brand: Shouda
Original: Shanghai
The machine is used to dry the outside of the bottles after capping and inspection.Before labeling,  the bottles should pass the suits of our special wind knives, to assure the bottle body is dry and no water, Thus it is more convenient for the (sleeve) labeling and carton packing.

Automatic high speed screw capping machine

Function: capping
Brand: Shouda
Original: Shanghai
This model capping machine can cap kinds of different metal & plastic caps. It is able to integrate to other matched machine in bottling line, fully complete and intelligence control advantage.

Automatic Tin Can seamer

Name: labeling
Brand: Shouda
Original: Shanghai
for all kinds of iron, plastic, aluminum cans and caps,glass, paper cans. For the capping of the tinplate cover, aluminum cover. It is appliable for the food, drinks, tea and other industries essential.
