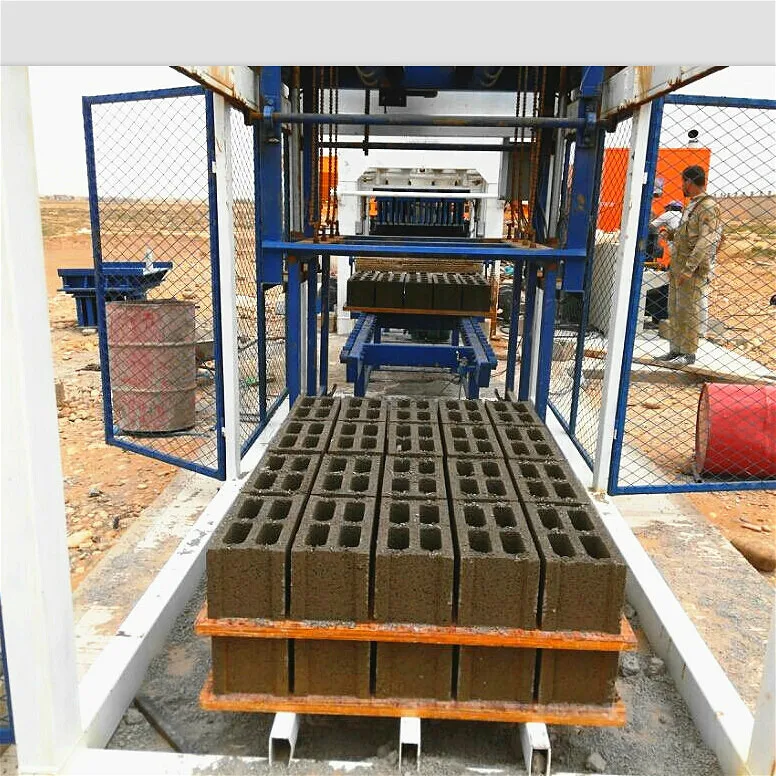

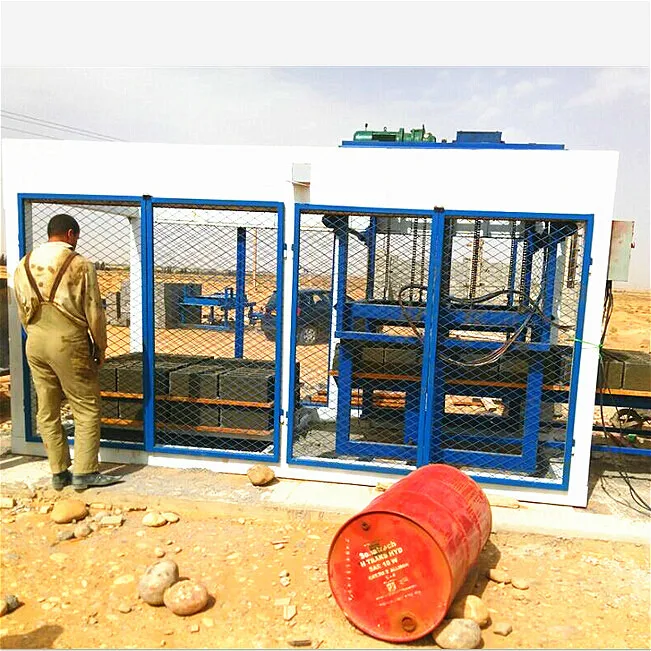

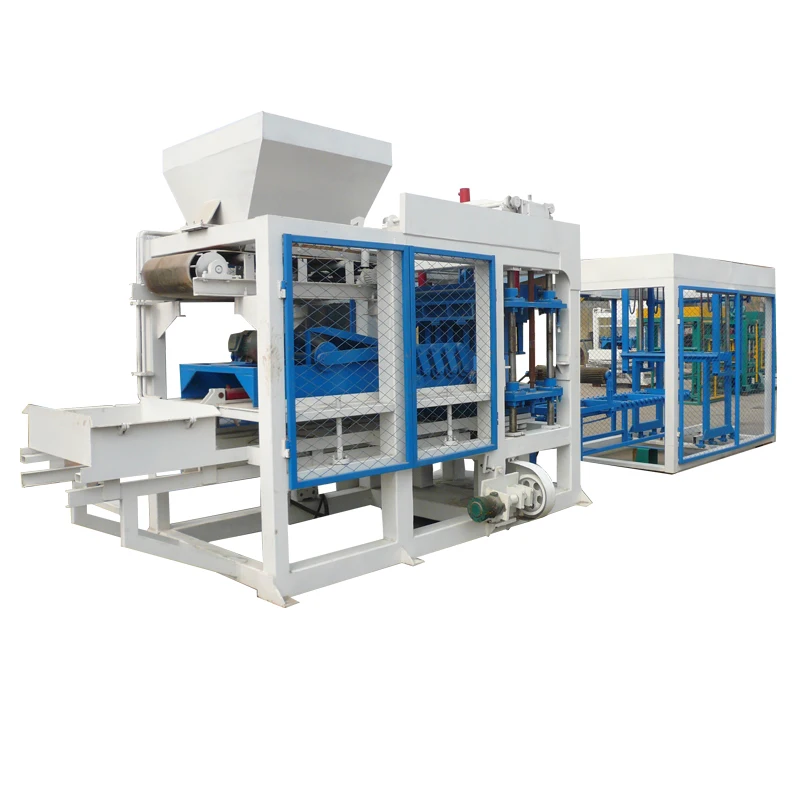

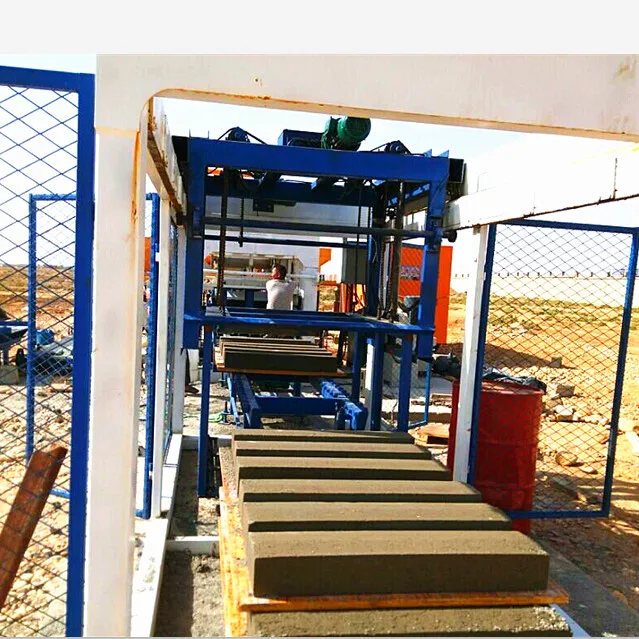

qt 615 fully automatic concrete block making machine

Product Overview

Description







1.Description:

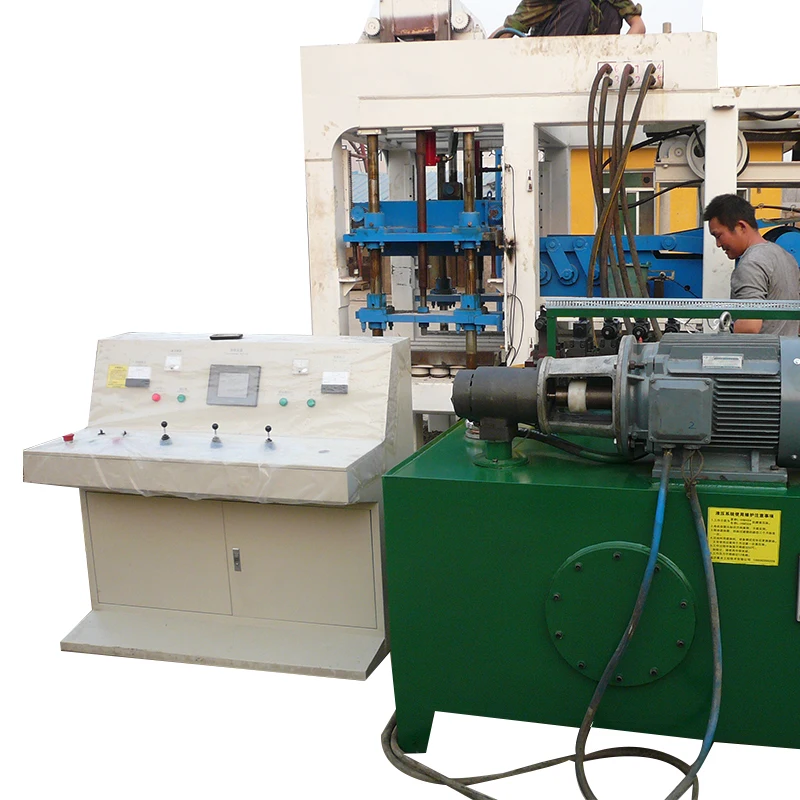

A:PLC controlling system with data entry device,can adjust and measure the machine according to the different steps,and realize this machine's fully automatic production.



B:Hydraulic system consists of imported components and seals with high dynamisc performance proportional valves.The action of key cylinders can operated through the regulator of flow and pressure according to the working requirement.



C:qt615 full automatic concrete block making machine,it's frame uses high-precision,high-strength castings and special welding technology,so qt615 full automatic hollow block macbine has good rigidity vibration resistance and long service life.



2.Technical specifications:



Overall size	4300(l )× 2100(w) × 2600(h) mm
Mould size	880(l) × 650(w) × 35(h) mm
Moulding time	15 SECONDS
Vibration frequency	Max. 4000r/m
Electrical source	220V,380V/50,60Hz
Total mass	7T
rated pressure of hydraulic system	25 MPa.





3.Production capacity:



block photo	size	pcs/mold	pcs/hr	pcs/day(8 hours)
	400*150*200mm	8pcs	1,920pcs	15,360pcs
	400*200*200mm	6pcs	1,440pcs	11,520pcs
	240*115*90mm	15pcs	3,600pcs	28,800pcs
	240*115*53mm	32pcs	7,600pcs	60,800pcs
	200*100*60mm	24pcs	4,800pcs	38,400pcs
	225*125*60mm	15pcs	3,000pcs	24,000pcs





4.Advantage:



A:Siemens hydraulic system and PLC controlling cabinet from Germany.



B:Heat mould for many times,make sure it's service life is long.







A.By buyer's request,we can send our engineers to install machine and train workers.



B.If some spare parts are broken in one year,we can change new parts for free.



C.Supply technical guidance in lifetime.
