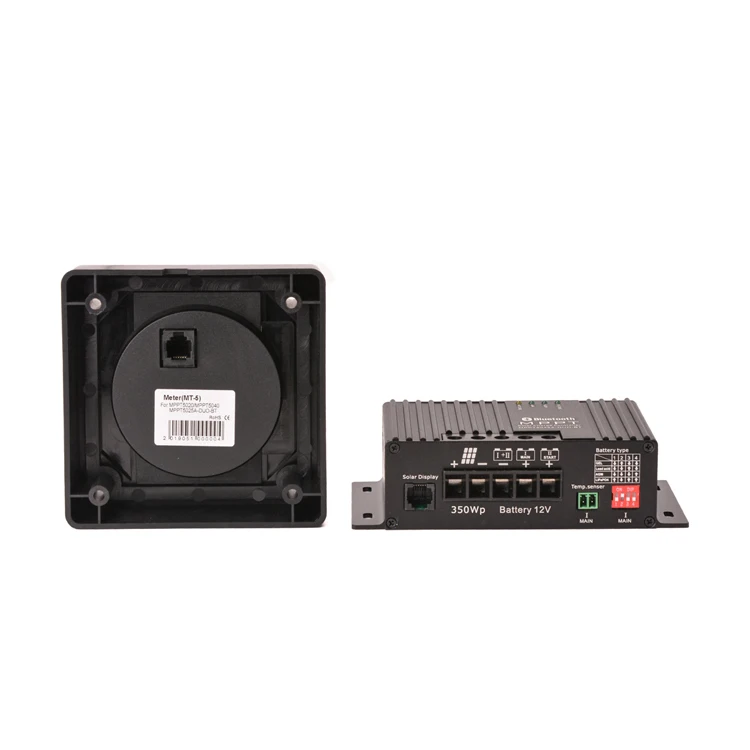

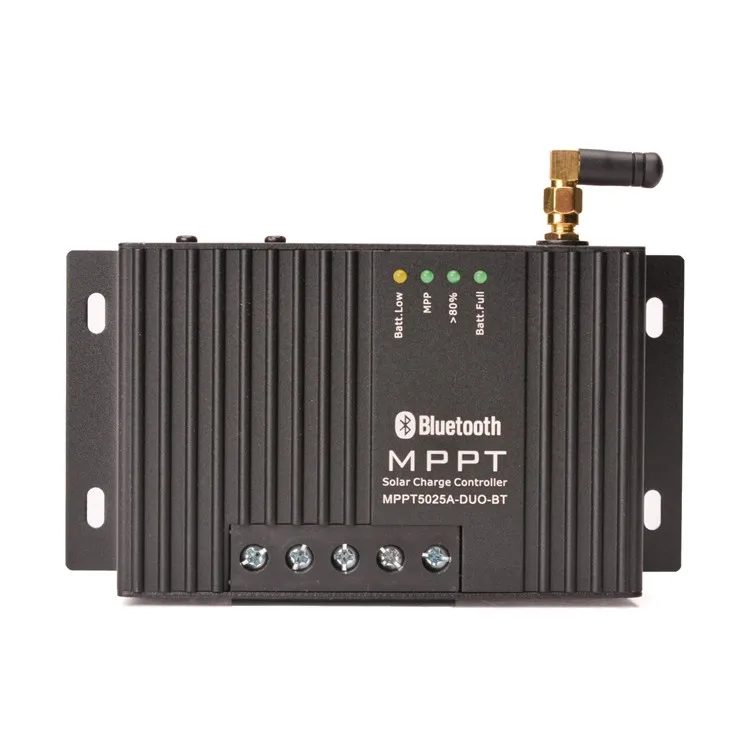

APsolar 12 В 25 А MPPT контроллер солнечной энергии поддерживает двойную зарядку батареи для путешествий RV

Share on (60803505676):


Price:

Quantity:


Product Overview

Description


Product Description

1. Increased MPPT charging current compared with regular controllers, the efficiency is more than 95 %
2. Battery support for Gel/dryfit/AGM/fleece or acid/lead-acid, as wellas LiFePO4 batteries .
3. Load output function with short circuit, overload portection function.
4. Bluetooth function, Phone APP display controller parameters
4. Automatic Charging: protections from overload, overheating, reverse battery and back discharge of the battery ( Avoid of insufficient solar power, such as at twilight, at night etc.).
5. Overcharge protection: Reduction of the charging current of the battery in case of excessive solar power and full battery. Immediate recharging in avoid of power consumption to ensure always the best possible charging state of the battery.

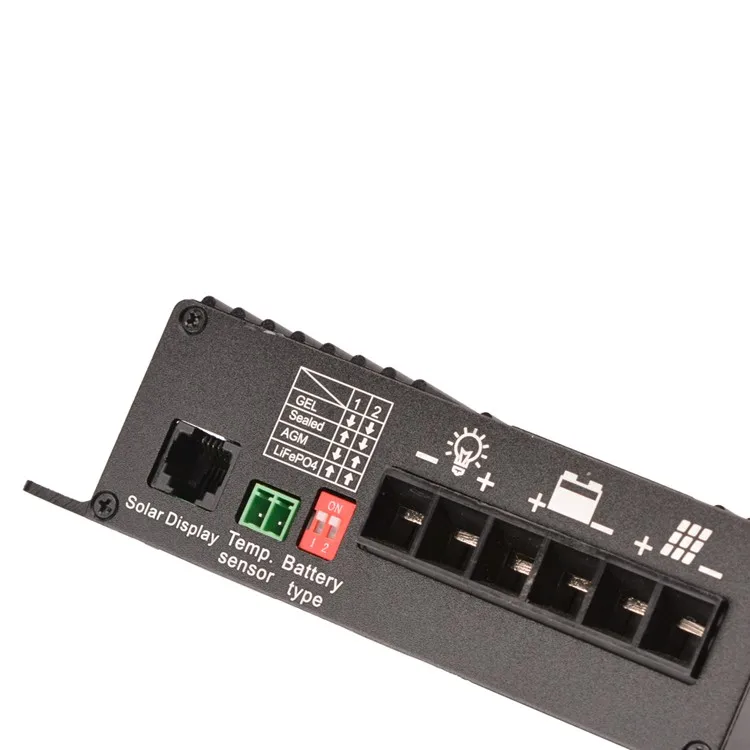

6. Connection for temperature sensor,Automatic adaptation of the charging voltage to the battery temperature. In case of low temperatures outside, full charging of the weaker battery is improved, and in case of summery temperatures unnecessary battery gassing will be avoided. This is highly recommended, if the battery is exposed to strong variations in temperature, such as in the motor compartment.

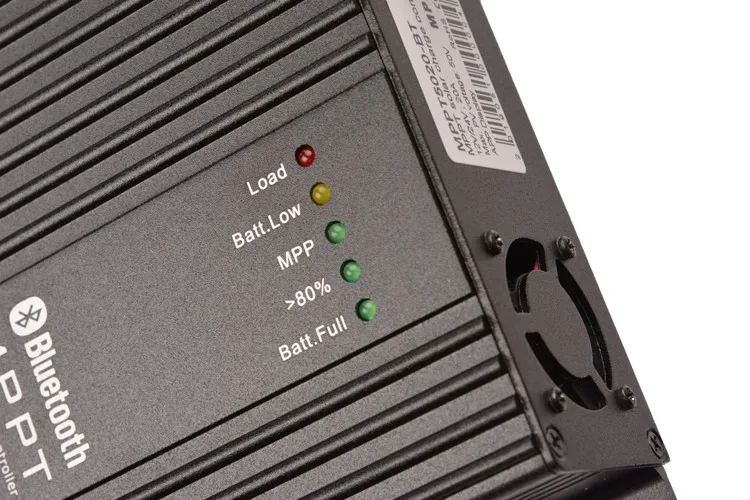

Detailed Images
Specification
\t
Model Series
\t
MPPT5025DUOBT
\t
MPPT5020BT
\t
Capacity of Solar Module
\t
50-350WP
\t
50-350WP
\t
Current solar module
\t
25A
\t
20A
\t
Voltage solar
\t
50V
\t
50V
\t
Battery voltage
\t
12V
\t
12V/24V
\t
Battery support
\t
For Gel / AGM / Lead acid / Lithium battery
\t
Bluetooth Function
\t
Yes
\t
\t
Available accessories
\t
Temperature Sensor
\t
\t

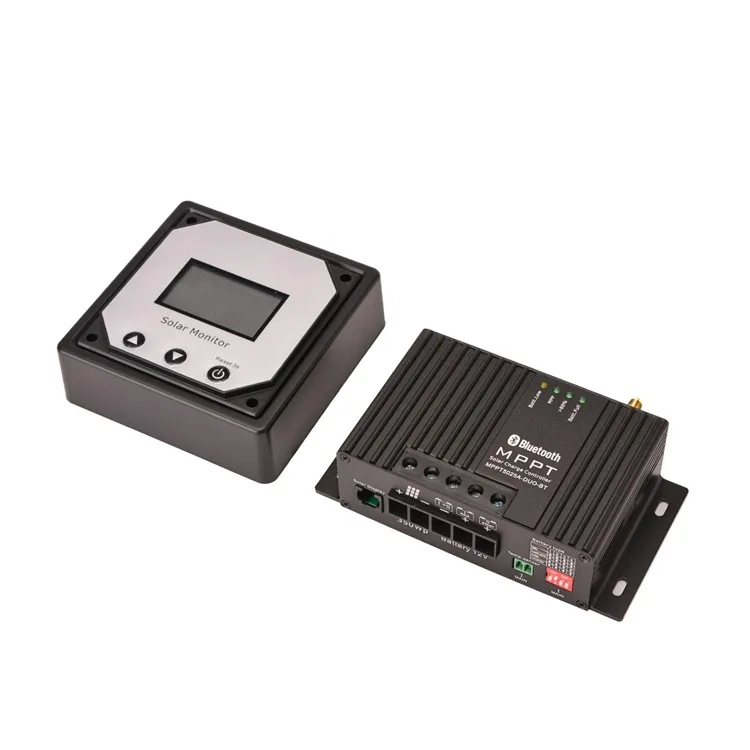

LCD meter

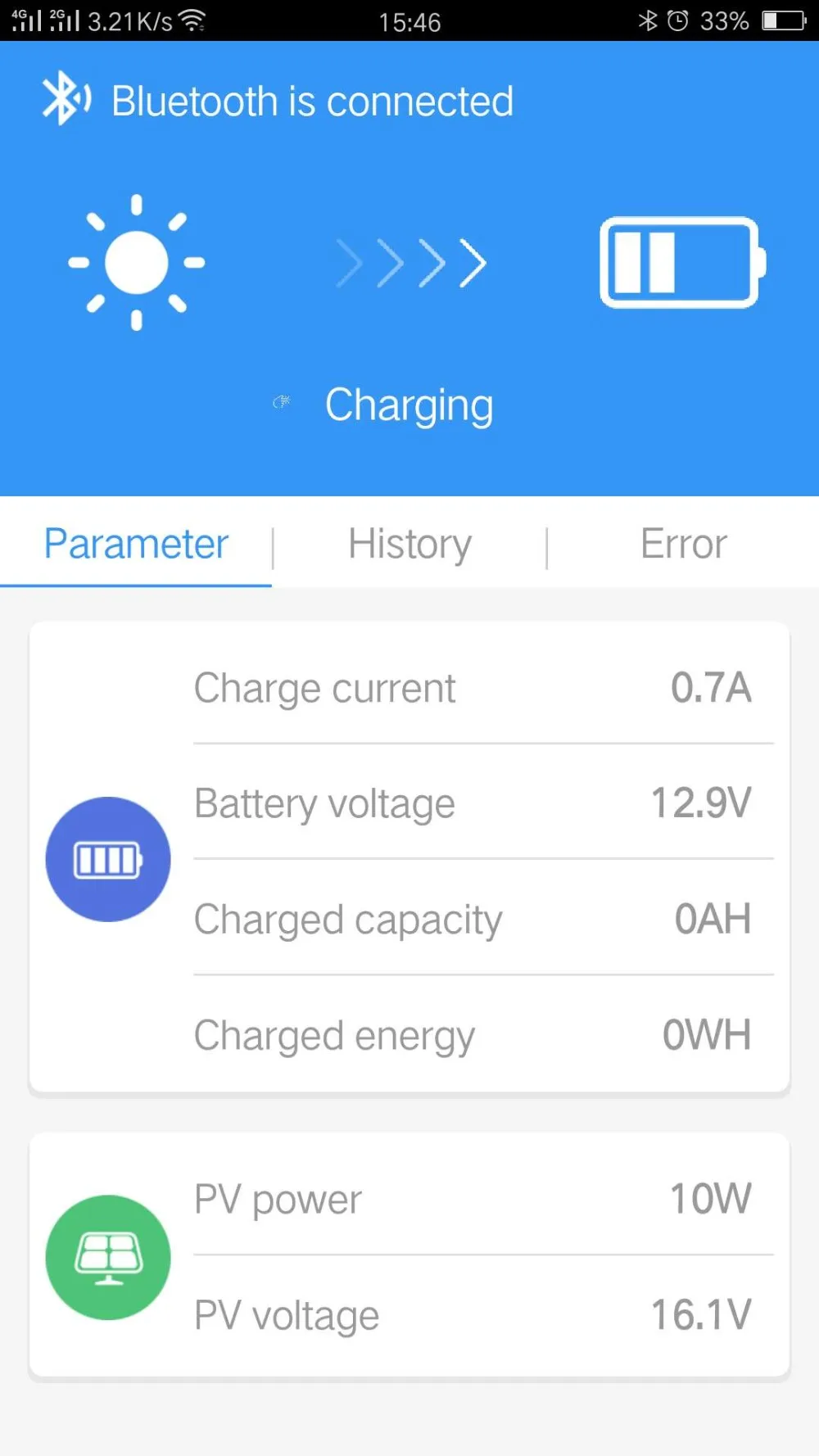

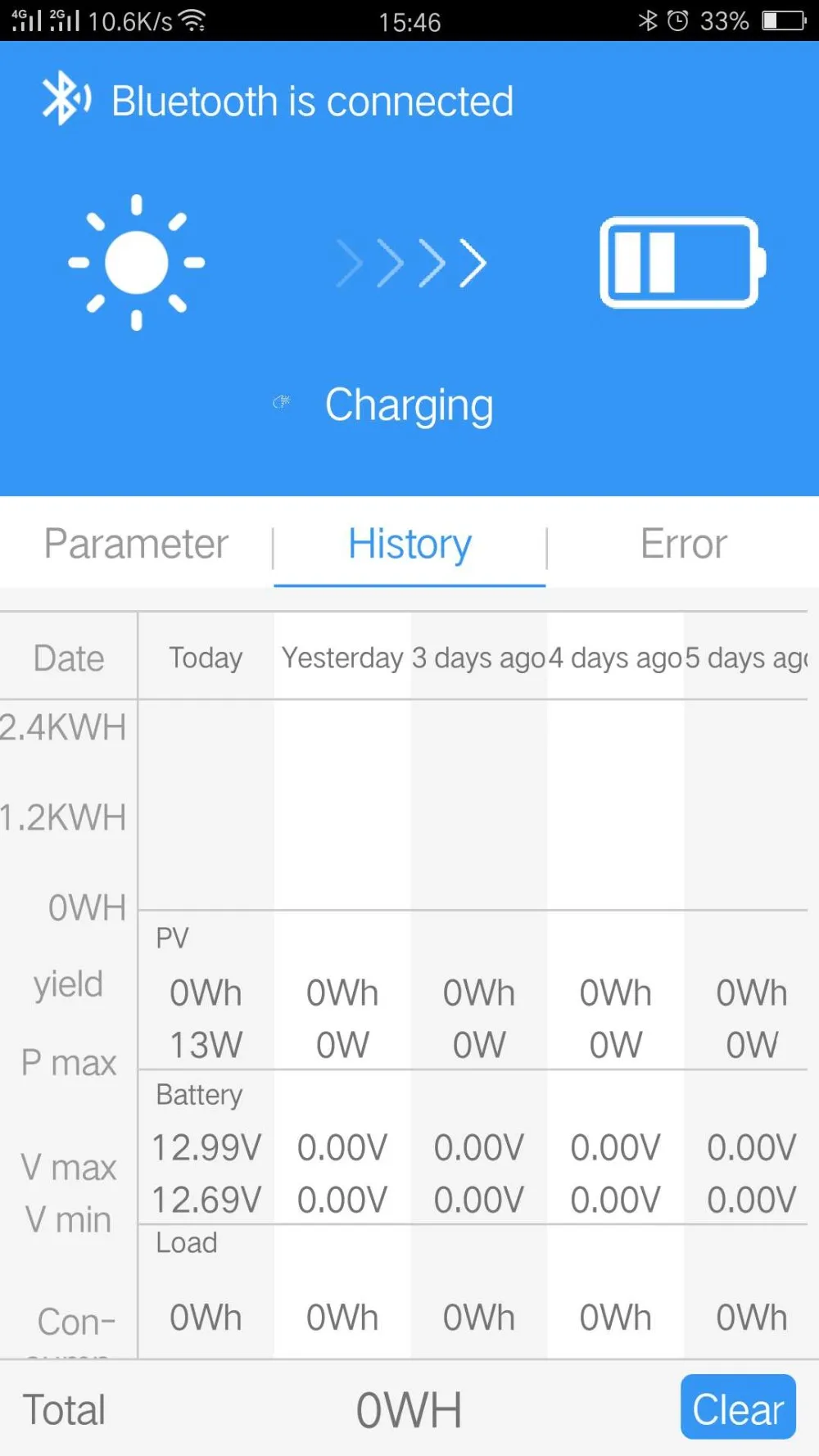

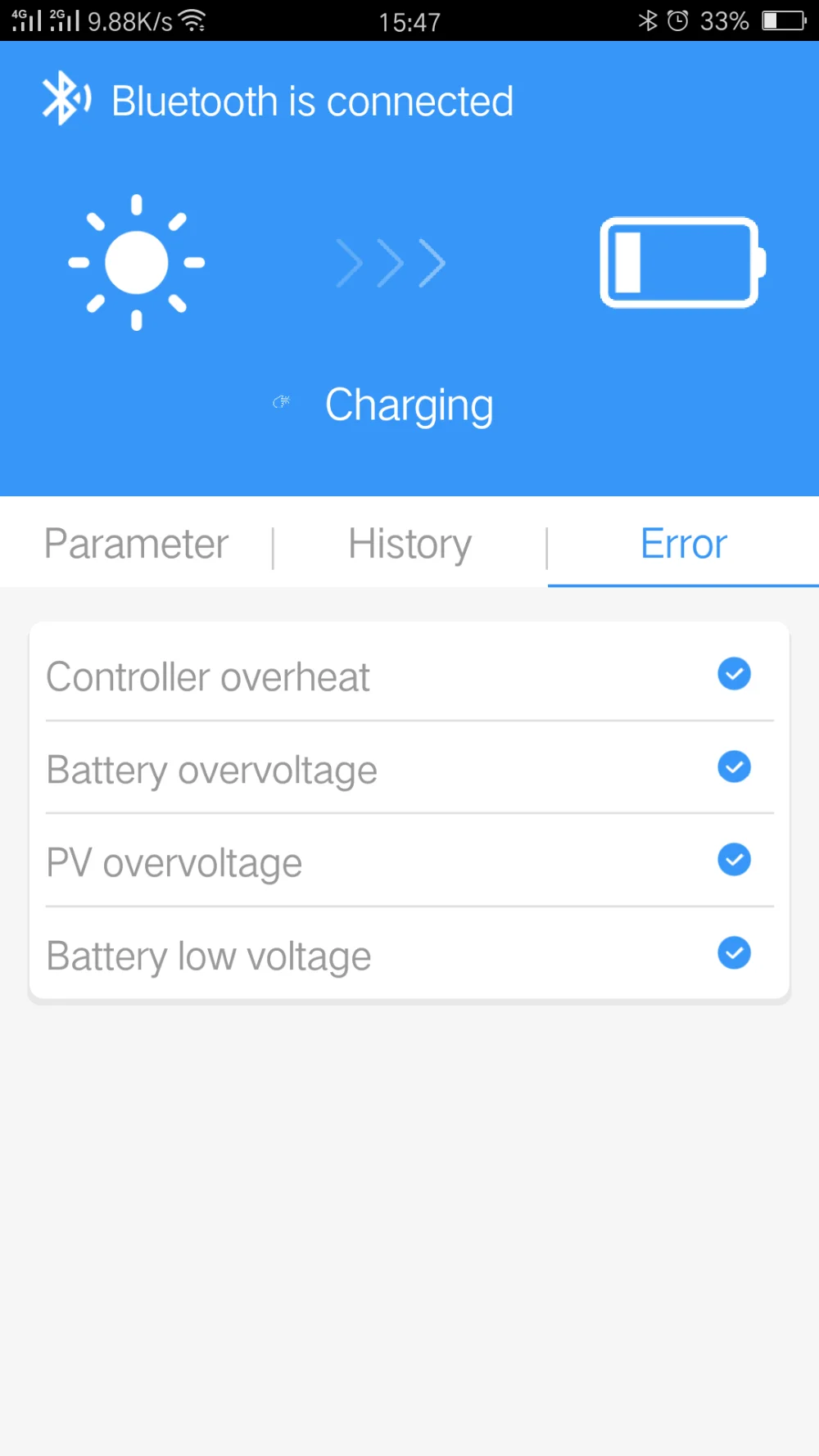

MPPT Solar Controller APP Download

All users can scan our QR code to download MPPT solar controller and easily to track and read solar status from your mobile clearly.
Support FOR IOS and Android system
1. Connect the battery and solar panel to make the controller working
2. Run APP and click " Enter" to shart the APP. It can also be auto run after 3 seconds
3. For android : Clik " Serach regulator " clik solar regulator IOS: Automatically run, no need serach
4. You can read parameter after 3-5 seconds from APP.
5. The distance between phone and bluetooth is 10 meters. If no signal, reconnect device.
6. Support 8 Country Language on APP. Easy to understand all status

Packing & Delivery
\t
Product Dimension
\t
147*79*42mm
\t
Weight
\t
0.5kg
\t
QTY/ctn
\t
40pcs
\t
CTN size
\t
45.5*37.5* 23.5cn
\t
Weight
\t
17kg
