Industrial Vertical Coal Style And Low Pressure Boiler For Steam Turbine
- Category: >>>
- Supplier: Taishan Group Co. Ltd.
Share on (60803525099):
Product Overview
Description
Industrial Vertical Coal Style And Low Pressure Boiler For Steam Turbine
Product Description
| Capacity Range | 10t/h -25t/h |
| Pressure Range | 1.25-9.8 MPa |
| Coal Type | All |
| Exworks Type | Bulk |

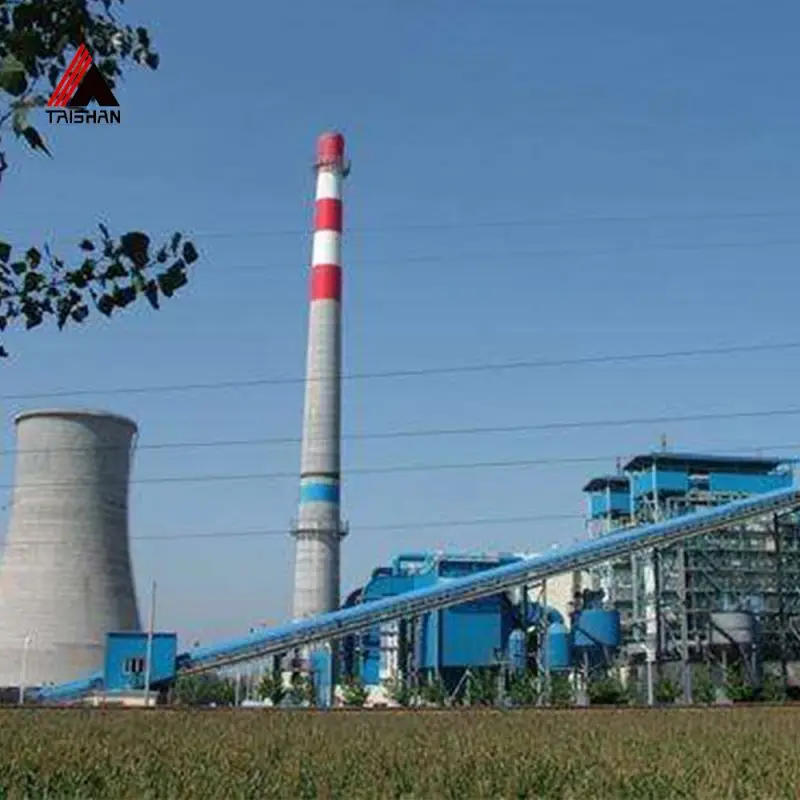

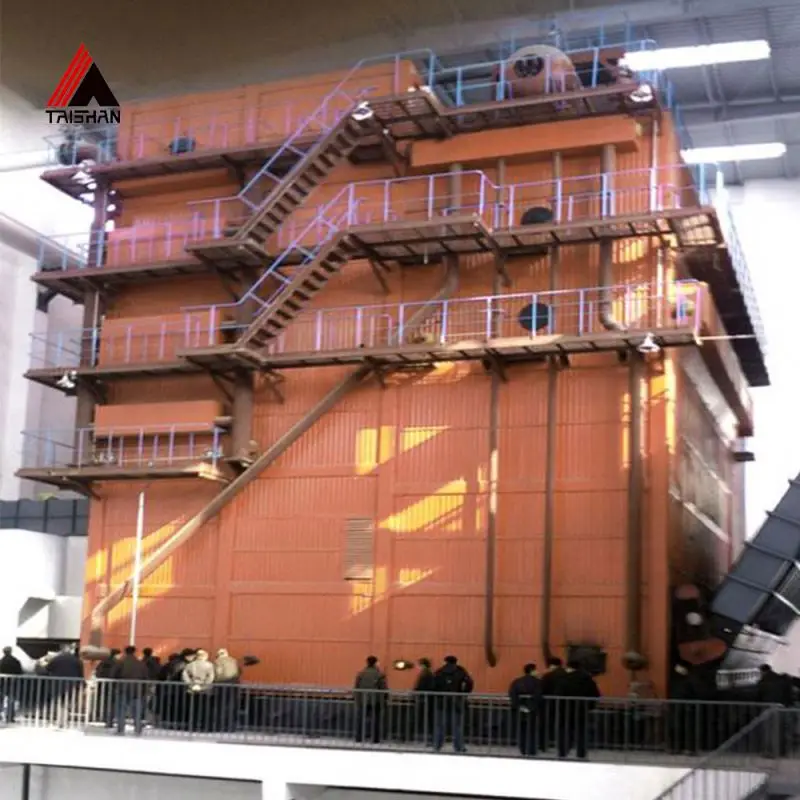

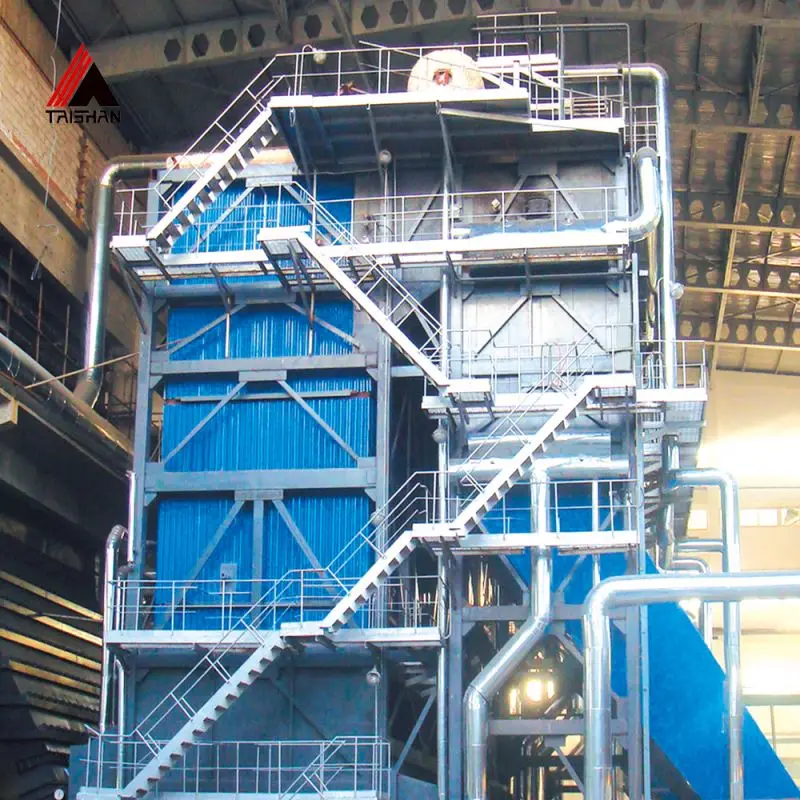

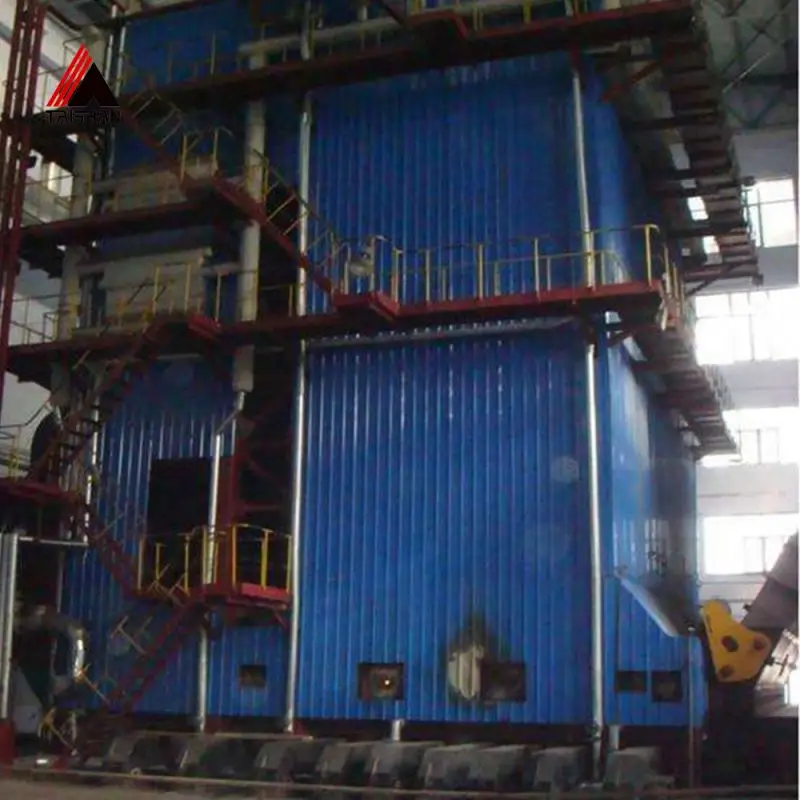

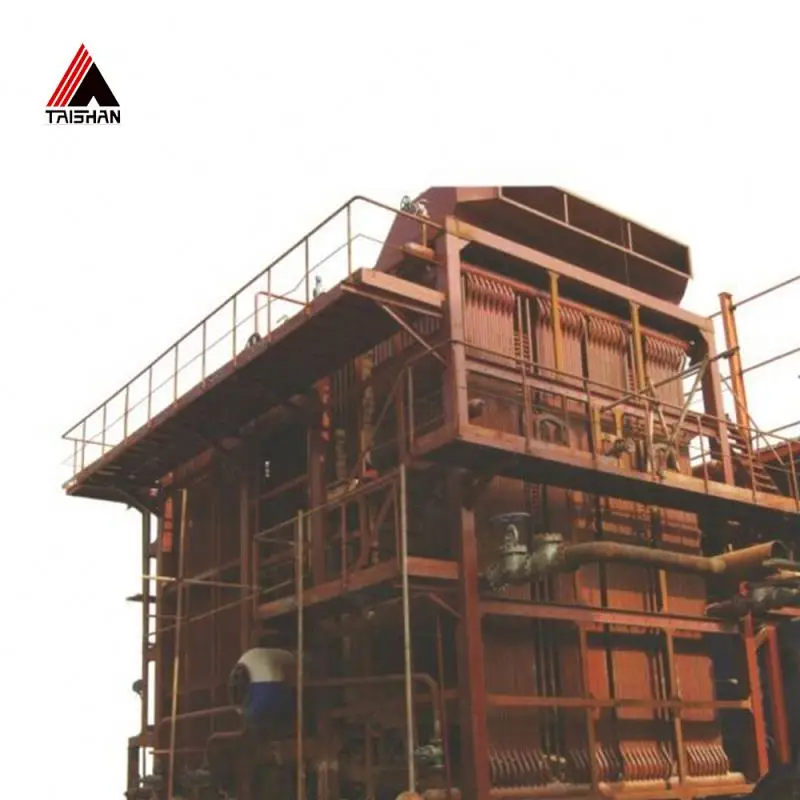

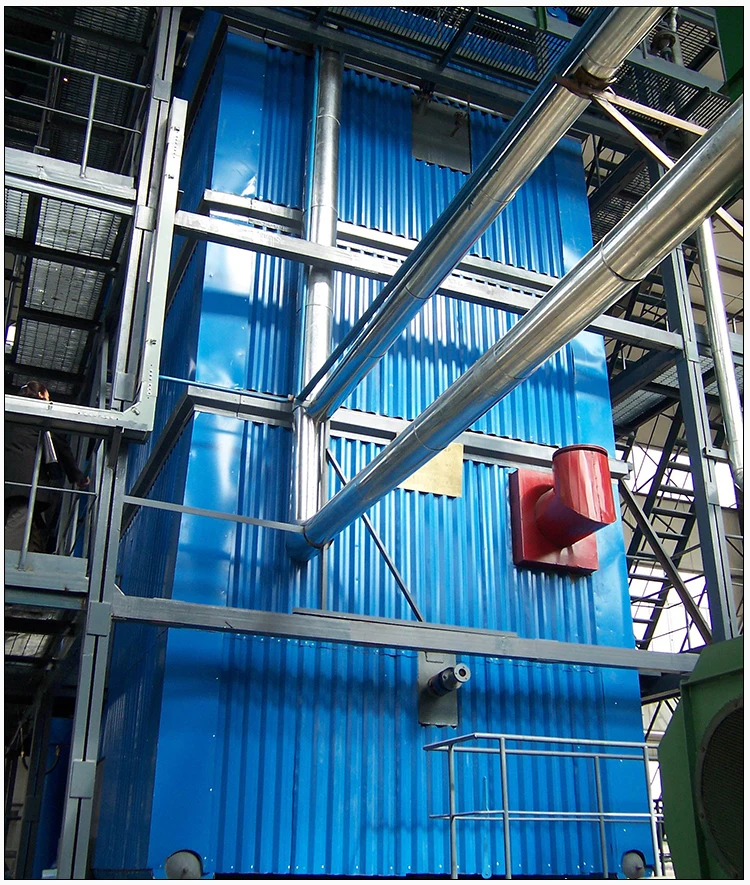

Product Display
Feature
1. High efficiency, low fuel consumption.
2. Low operating costs,High safety level, panel - type heating surface in the furnace, furnace heated evenly.
3. Improve the furnace temperature field to ensure safe operation.
4. Good environmental protection effect, use multi - level dust removal, reduce exhaust gas concentration, ringelmann blackness is less than 1.
Detail Show
Technical Data
Model | DHL 65-1.6-All | TG -35/3.82-M | TG-65/3.82-M |
Rated Steam Capacity (MW) | 65 | 35 | 65 |
Rated Pressure(MPa) | 1.6 | 3.82 | 3.82 |
Feed Water Temperature (°C) | 104 | 105 | 150 |
Steam Temperature (°C) | 204.3 | 450 | 450 |
Radiation Heating Area (m2) | 421.4 | 152 | 293 |
Cool Slag Tuke Heating Area (m2) | / | 35.4 | 59 |
Super Heater Heating Area(m2) | / | 271 | 510 |
Convection Heating Area (m2) | 1085.1 | / | / |
Economizer Heating Area(m2) | 826 | 630 | 923 |
Air Preheater Heating Area(m2) | 410.3 | 693.3 | 1179 |
Grate Effective Area (m2) | 63 | 31.4 | 61.34 |
Temperature of Drain Gas(°C) | 152 | 143 | 160 |
Designed Heat Efficiency(%) | 82.01 | 81.2 | 81.02 |
Coal Consumption(kg/h) | 7792 | 6310 | 10940 |
Max Transport Dmension(t) | 11 | 16 | 23.5 |
Installation Dimension (L*W*H) (mm) | 18000*15300*15000 | 14500*10500*14975 | 16500*13352*16045 |
