Большой пролетный рельсовый контейнер, управляемые козловые краны с концевым выключателем
- Category: >>>
- Supplier: Henan Sinoko Cranes Co. Ltd.
Share on (60803534697):
Product Overview
Description
Product Display
Specification
Lifting weight (t) | 10 | 16 | 20/10 | 32/10 | 36/16 | 50/10 | |||||||
Span (m) | 18~35 | 18~30 | 18~35 | 22 | 26 | 22~35 | 35 | ||||||
Lifting height (m) | Main hook | 11.5 | 10.5,12 | 10.5 | 11.5 | 11.5 | 12 | ||||||
Auxiliary hook | 11 | 12 | 12 | 13 | |||||||||
Speed (m/min) | Main hook | 8.5 | 7.9 | 7.2 | 7.5 | 7.8 | 6 | ||||||
Auxiliary hook | 10.4 | 10.4 | 10.5 | 10.4 | |||||||||
Trolley travel | 43.8 | 44.5 | 44.5 | 41.9 | 41.9 | 38.13 | |||||||
Long travel | 37.6,40 | 38,36 | 38,36 | 40 | 40,38 | 38 | |||||||
Duty classification | A5 | ||||||||||||
Power source | Three-phase AC. 127~480V 50/60Hz | ||||||||||||
Product Features
1. Steel box legs
2. Material Fe37 or Fe52
3. Whole length CNC cutting for complete web plate, high deflection accuracy
4. High quality automatic welding and NDT inspection
5. Shot-blasting Sa2.5 for complete girder after welding, stress release
6. Epoxy zinc rich high quality painting, 2x2 with 140μm
7. Class High tension bolts mounting between girder and legs, life time safety connection
8. Vertical gear motor driving,more safety and smaller space(option)
9. High protection class IP44, F class, 40% ED

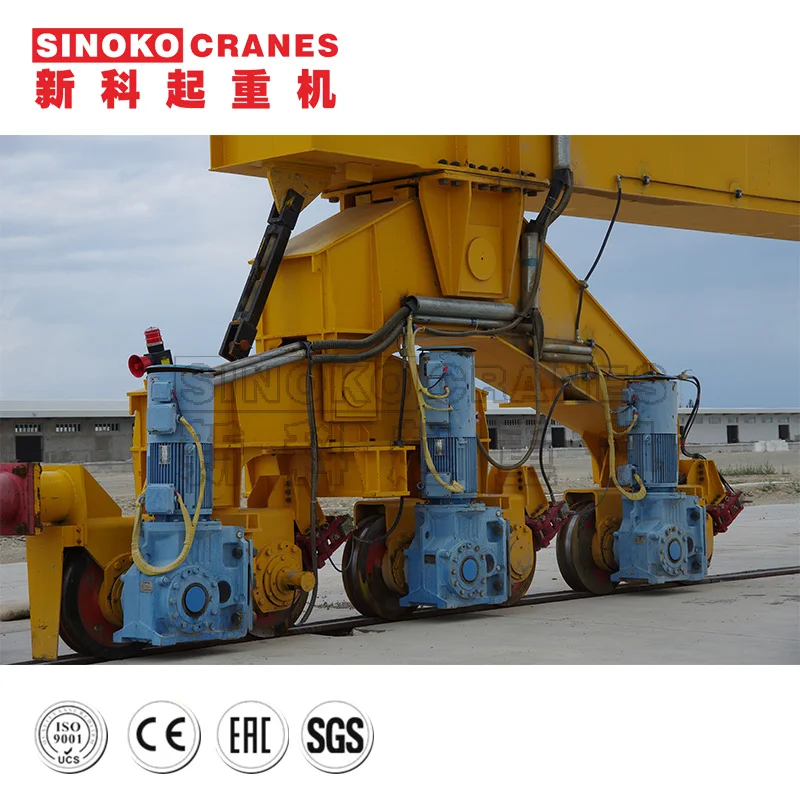

10. End carriage equipped with anti-friction bearings,cellular buffers,derailment protectors.
2. Material Fe37 or Fe52
3. Whole length CNC cutting for complete web plate, high deflection accuracy
4. High quality automatic welding and NDT inspection
5. Shot-blasting Sa2.5 for complete girder after welding, stress release
6. Epoxy zinc rich high quality painting, 2x2 with 140μm
7. Class High tension bolts mounting between girder and legs, life time safety connection
8. Vertical gear motor driving,more safety and smaller space(option)
9. High protection class IP44, F class, 40% ED
10. End carriage equipped with anti-friction bearings,cellular buffers,derailment protectors.

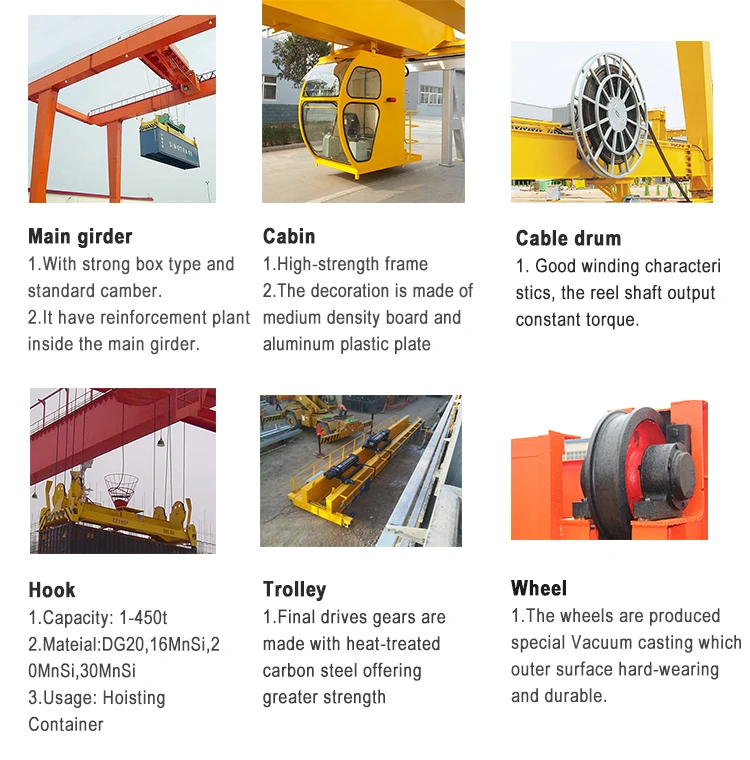

Product Details
