JAPAN HR 30305 DJ Japanese Tapered Roller Bearings JAPAN HR30305DJ






Product Description


Bearing Description Bearing.jpg


The Brief Description of JAPAN Tapered Roller Bearings:


JAPAN Tapered roller bearings are designed to take combined heavy radial loads and heavy thrust loads in one direction while operating at moderate speeds. The bearings shown are single row with a cone and cup (inner and outer rings) and a pressed steel retainer. Metric tapers feature a simplified part number for a complete bearing. Inch tapers require a part number for the cup and one for the cone. The difference between the metric and inch tapers is only in the dimensions of measure for the bearings.










JAPAN Metric Tapered Roller Bearing Series:

















































Bearing seriesBore diameter
3020015-320mm
3030015-260mm
3130025-150mm
3200020-320mm
3220017-320mm
3230017-240mm
3290030-400mm
3300025-120mm
3310045-110mm
3320025-100mm



Nomenclature — Metric Tapered Roller Bearings
























































































































































































Model no


d(mm)


D(mm)


T(mm)


W(KG)


HR30203J


17


40


13.25


0.075


HR30204J


20


47


15.25


0.12


HR30205J


25


52


16.25


0.15


HR30206J


30


62


17.25


0.23


HR30207J


35


72


18.25


0.32


HR30208J


40


80


19.75


0.42


HR30209J


45


85


20.75


0.48


HR30210J


50


90


21.75


0.54


HR30211J


55


100


22.75


0.7


HR30212J


60


110


23.75


0.88


HR30213J


65


120


24.75


1.15


HR30214J


70


125


26.25


1.25


HR30215J


75


130


27.25


1.40


HR30216J


80


140


28.25


1.60


HR30217J


85


150


30.5


2.05


HR30218J


90


160


32.5


2.55


HR30219J


95


170


34.5


3.00


HR30220J


100


180


37


3.65


HR30221J


105


190


39


4.25


HR30222J


110


200


41


5.1


HR30224J


120


215


43.5


6.15


HR30226J


130


230


43.75


7.60


HR30228J


140


250


45.75


8.65


HR30230J


150


270


49


11





Interchange — Metric Tapered Roller Bearings







JAPAN HR30305DJ Tapered Roller Bearing Specification:


Bearing number : HR30305DJ


Size (mm) : 25x62x18.25


Brand : JAPAN


Bore Diameter (mm) : 25


Outer Diameter (mm) : 62


Width (mm) : 18,25


Bearing dimensions and specification in JAPAN catalogue:


d - 25 mm


D - 62 mm


T - 18,25 mm


B - 17 mm


C - 13 mm


a - 19,9 mm


r min. - 1,5 mm


r1 min. - 1,5 mm


da min. - 39 mm


Da min - 47 mm


Da max. - 53 mm


db max. - 34 mm


Db min. - 59 mm


ra max. - 1,5 mm


rb max. - 1,5 mm


Weight - 0,265 Kg


Basic dynamic load rating (C) - 38 kN


Basic static load rating (C0) - 40,5 kN


(Grease) Lubrication Speed - 5600 r/min


(Oil) Lubrication Speed - 8000 r/min


Calculation factor (e) - 0,83


Calculation factor (Y0) - 0,4


Calculation factor (Y1) - 0,73

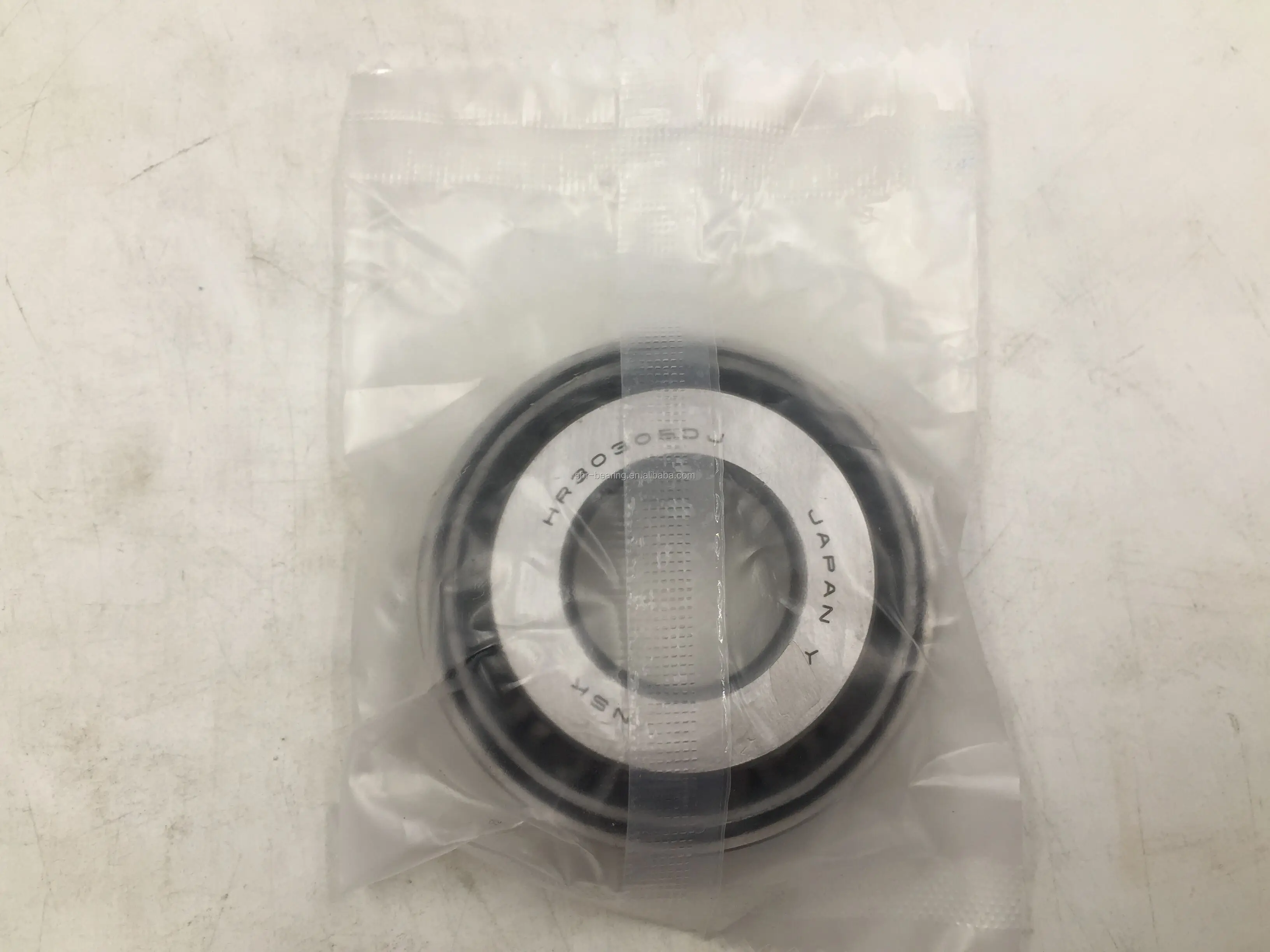

JAPAN Tapered Roller Bearings JAPAN HR30305DJ Pictures:


HR30305DJ.jpgNSK HR30305DJ.jpg






Bearings Application


bearing application



















































Guide Boxes in Bar and Rod MillsConstruction Equipment
Pumps and CompressorsMining Equipment
Cranes and HoistsOil Field Equipment
Gears and DrivesAutomotive Front and Rear Axles
Stamping PressesPlastic Forming Equipment
Machine Tool SpindlesAgriculture Equipment
Bow Thrusts on ShipsMotorcycle Wheels
Speed ReducersPinion Shafts of Differential Gears
TransmissionsDrum Shafts
Conveyor and Transfer EquipmentCrankshafts
Coupling EquipmentCrushers







application
