LA38 series 22mm 10a waterproof mushroom head reset emergency stop push button switch
- Category: >>>
- Supplier: Jiangyin Changjiang Electric Appliance Co. Ltd.
Share on (60803565679):
Product Overview
Description
Products Description

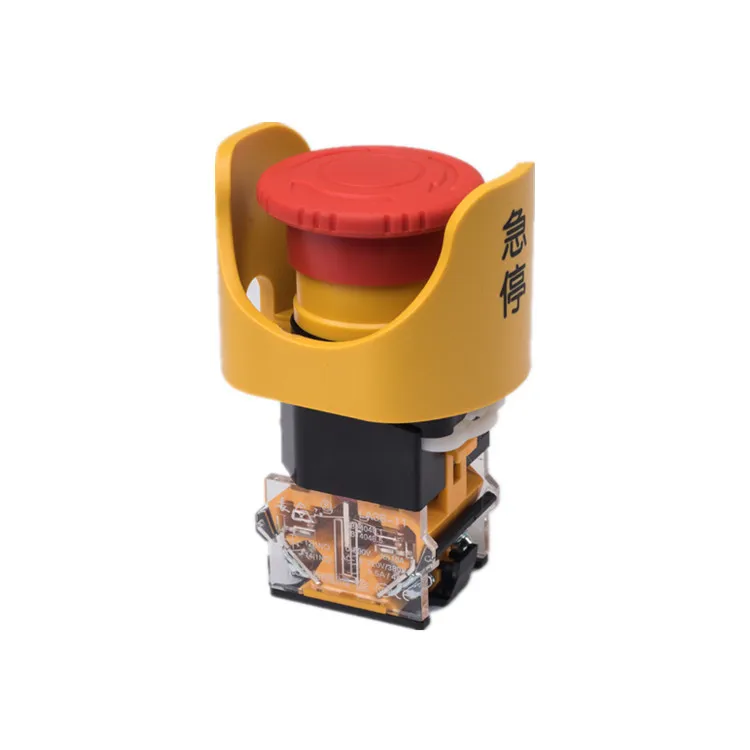

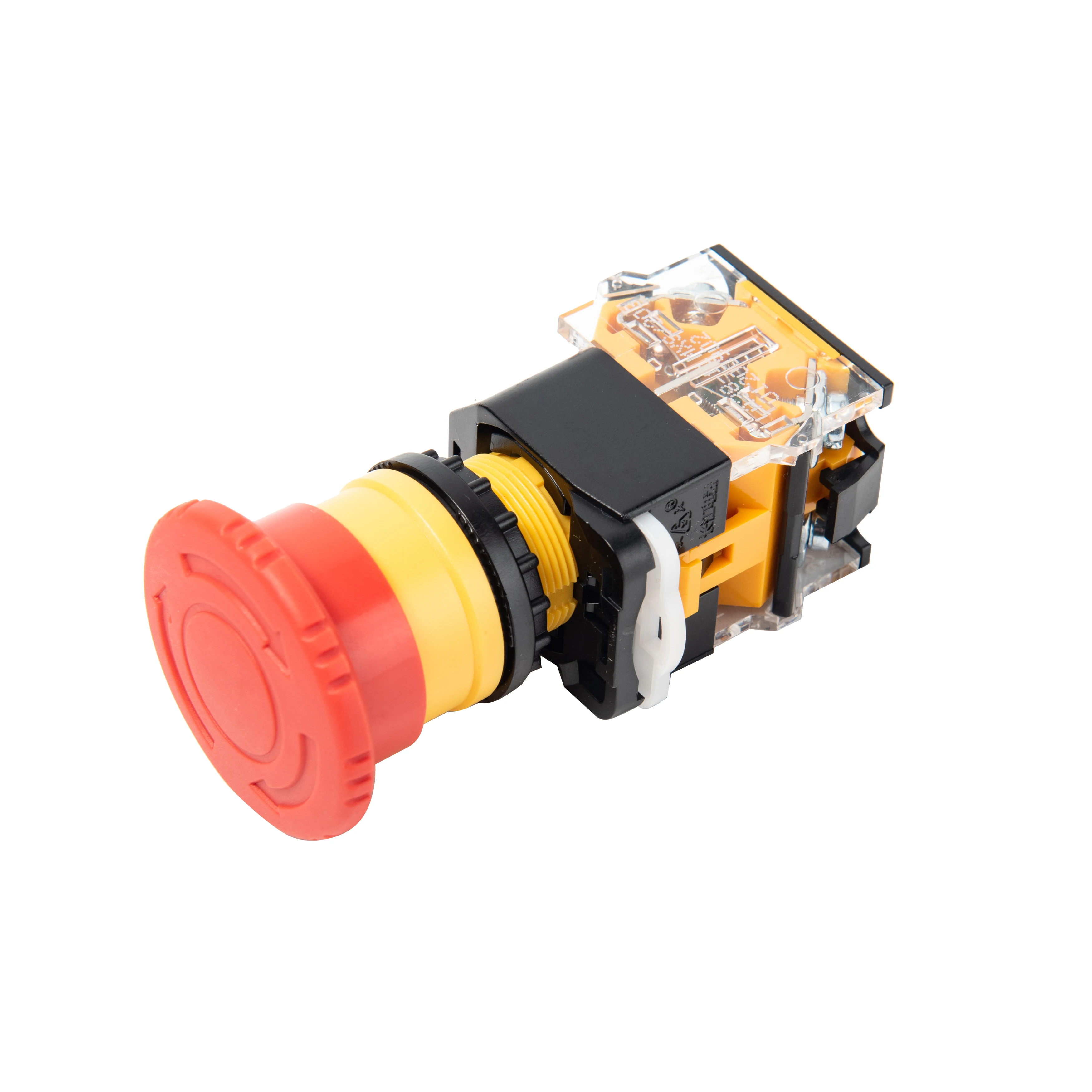

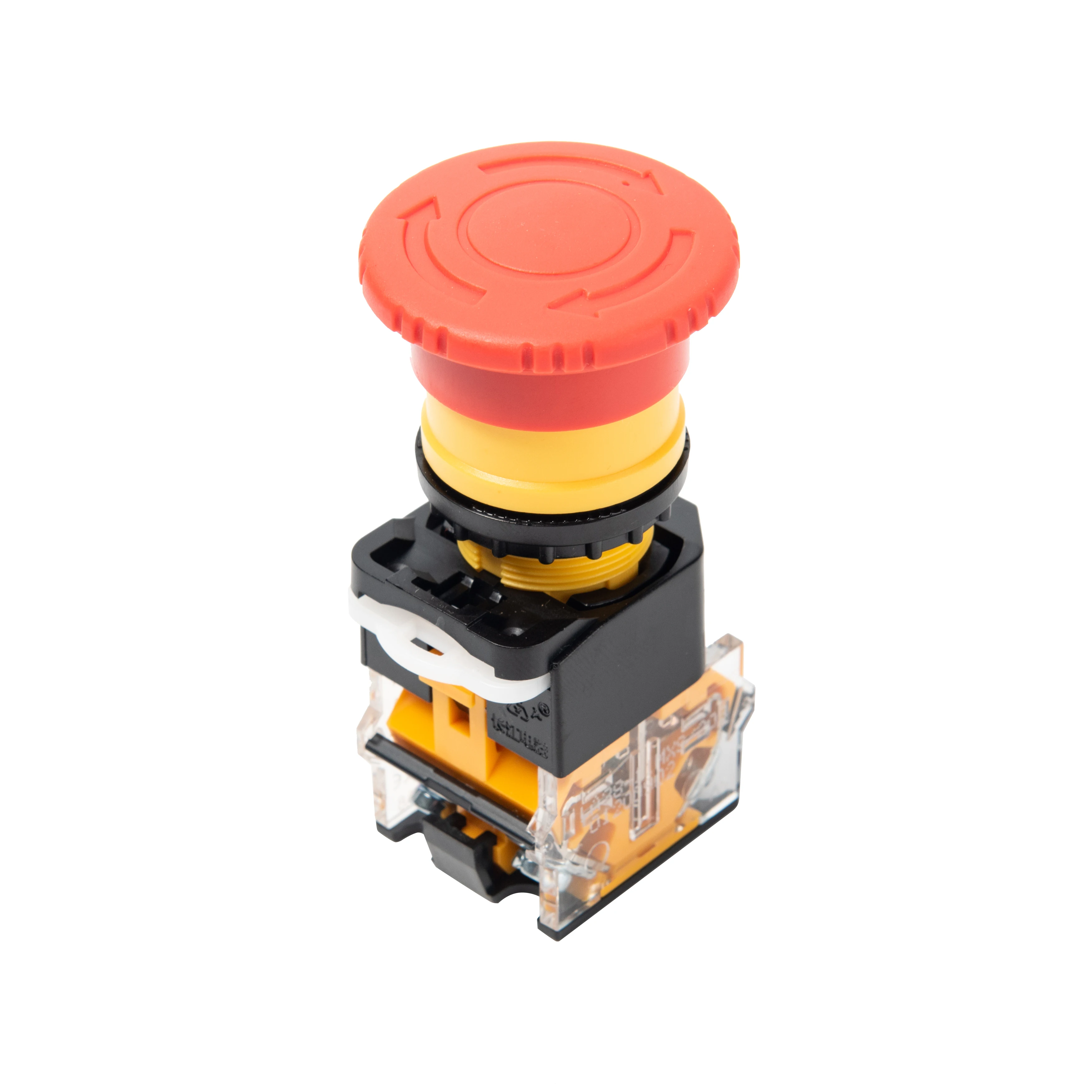

LA38 series 22mm waterproof mushroom head reset emergency stop push button switch
LA38 Series Button Switch is used for remote control in electromagnetic starters,contactors, relays and other electrical circuits with the voltage of 380V and below and the DC voltage of 230V and below, AC 50Hz (or 60Hz); The button with lamp is also suitable for the occasions where light signal indication is needed. It has passed the national CCC certification, CE certification and type approval of China Classification Society.
Product Parameter
Type specification | LA38-**Mxs/203 (**means contact,10:1NO,01:1NC,11:1NO+1NC,20: 2NO,02: 2NC,6 pairs of contacts at most ) | ||||||||||
Product Name | emergency stop button switch | ||||||||||
Products Standard | GB/T 14048.5 | ||||||||||
Operation Condition | Altitude height | Environment temperature | Storage temperature | Relative humidity | Pollution class | Install type | |||||
≤2000m | -25℃~+55℃ | -40℃~+70℃ | ≤90% | 3 | Ⅲ | ||||||
Main technical index | common parameter | Rated insulated Voltage | 500V | ||||||||
Front panel protection degree | IP65 | ||||||||||
power frequency withstand voltage | 1.89KV/5S | ||||||||||
Insulation Resistance | ≥50MΩ | ||||||||||
Basic parameters | Resistive current | 10A | |||||||||
Rated working Voltage /Current | AC-15 | DC-13 | |||||||||
380V/4A | 220V/5.5A | 110V/1A | 220V/0.45A | ||||||||
Electrical life | 200,000 times | ||||||||||
Mechanical life | 200,000 times | ||||||||||
Size
Outside Drawing
Installation Drawing

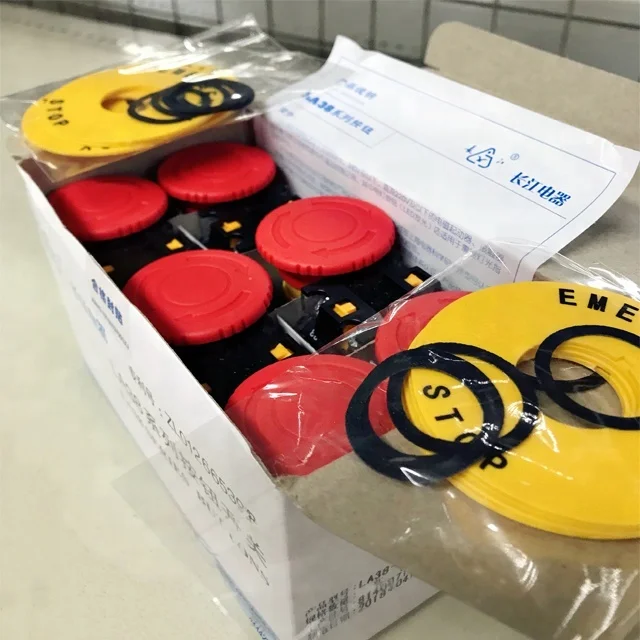

Product packaging

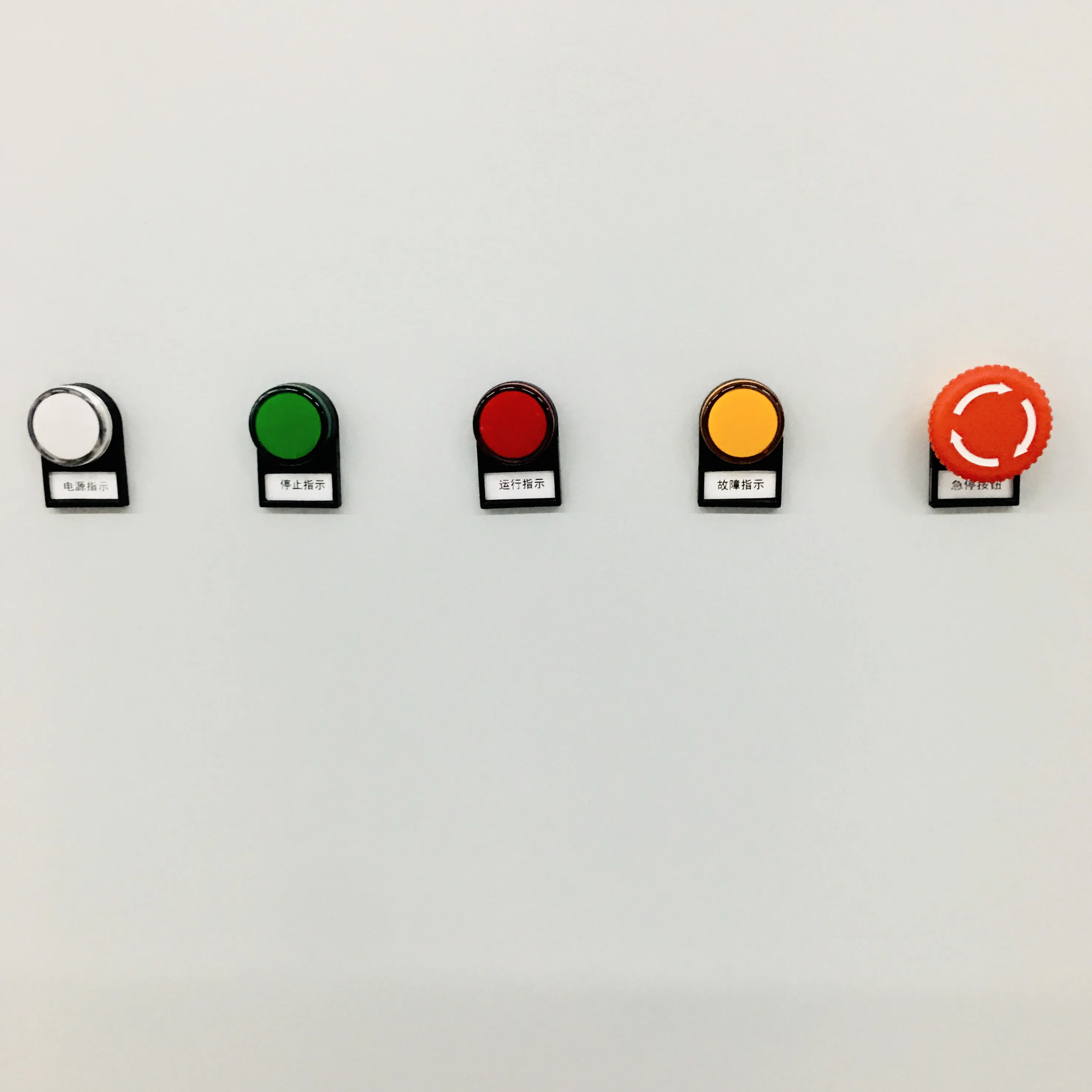

Customer Photos
