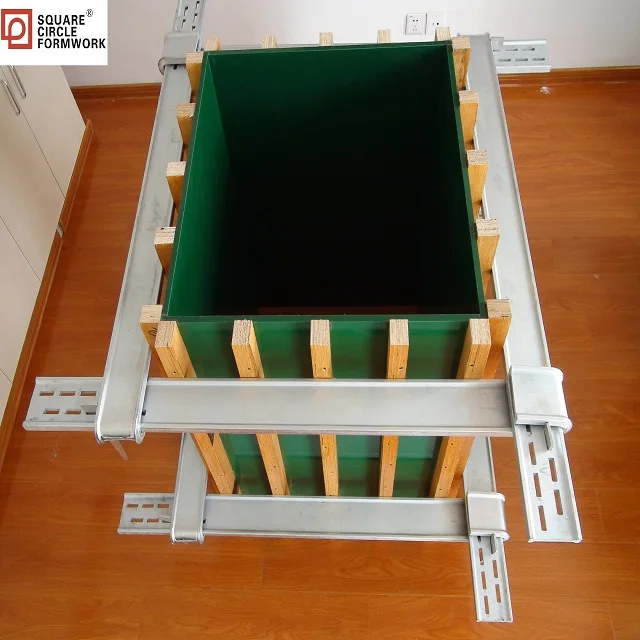

Column formwork uses high quality poplar as raw material, with PP plastic wrapping, match with fastener to build construction square column series.
Panel
15mm PP plastic poplar plywood
Glue of panel
WBP phenolic, 72h water boiling without delamiantion
Plank
LVL beam with PP plastic coating, 40x50mm
Accessory
painted steel frame and fastener
Color
green, etc
Product Options
Size of columns
Interval of fasteners
300x300mm
500mm
400x400mm
500mm
500x500mm
500mm
550x550mm
450mm
600x600mm
450mm
700x700mm
450mm
800x800mm
400mm
900x900mm
400mm
heights and other sizes are customized according to requirements
Advantages
1. reusable 50 times at least 2. quick installation & seamless joining to prevent the leakage of concrete 3. painted accessories, high resistance to rust 4. quick dismantling without concrete release agent 5. nice concrete finish without rework

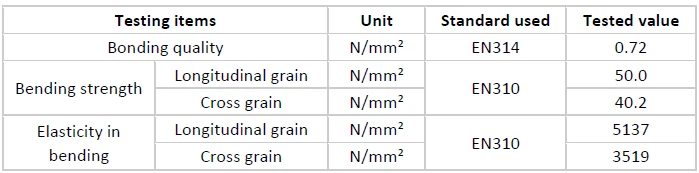

Technical Data
Packing & Delivery
standard export pallet packing or subject to specific requirements from customers.
