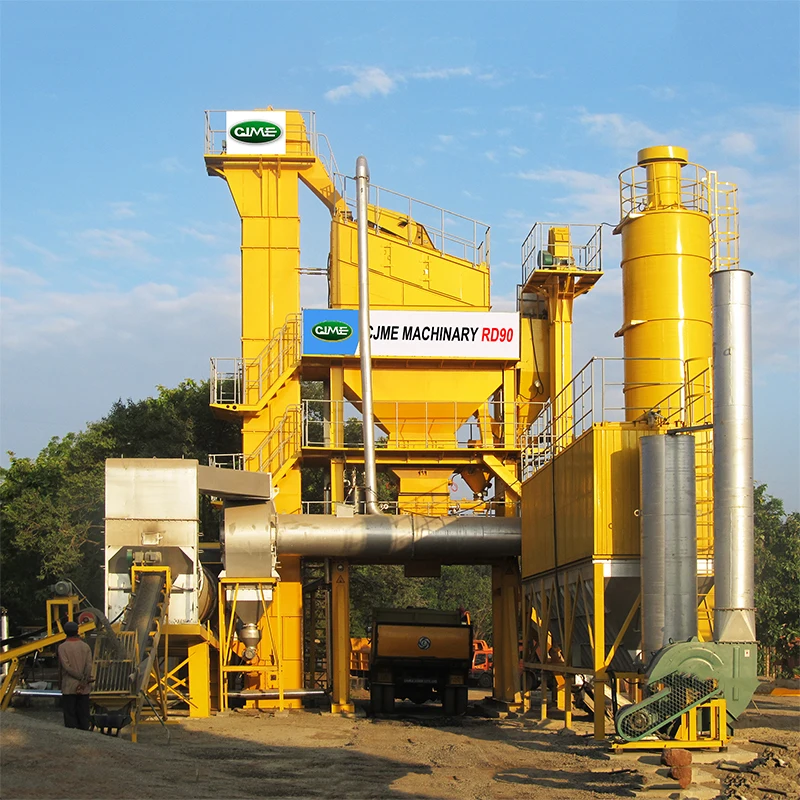

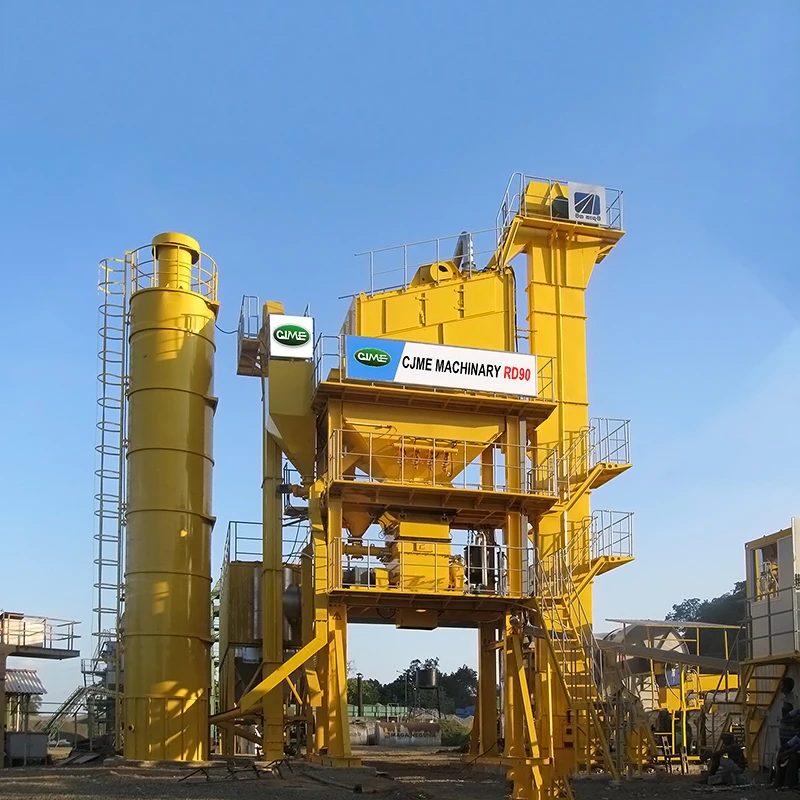

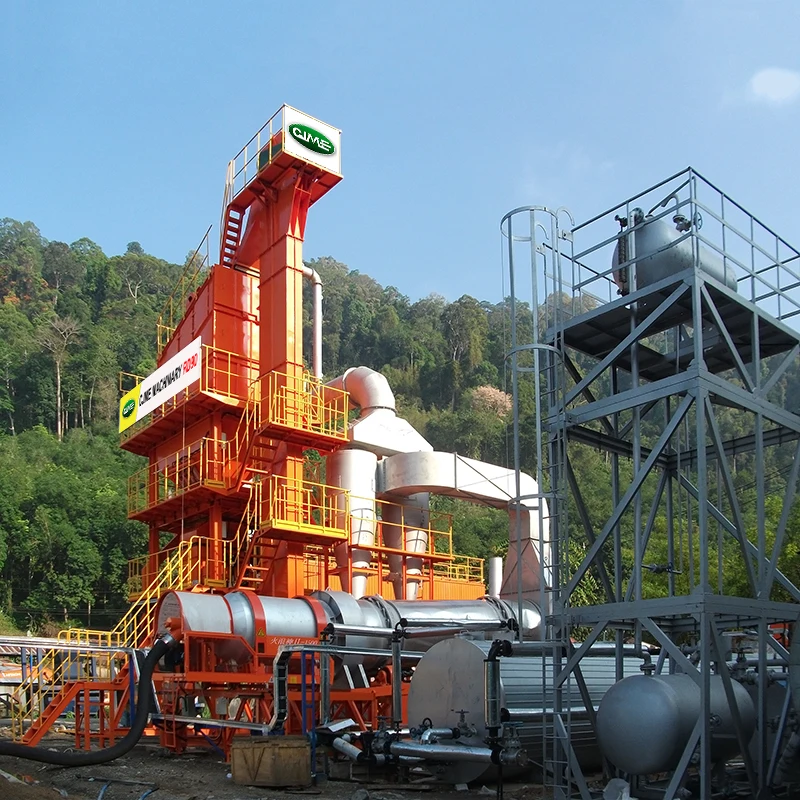

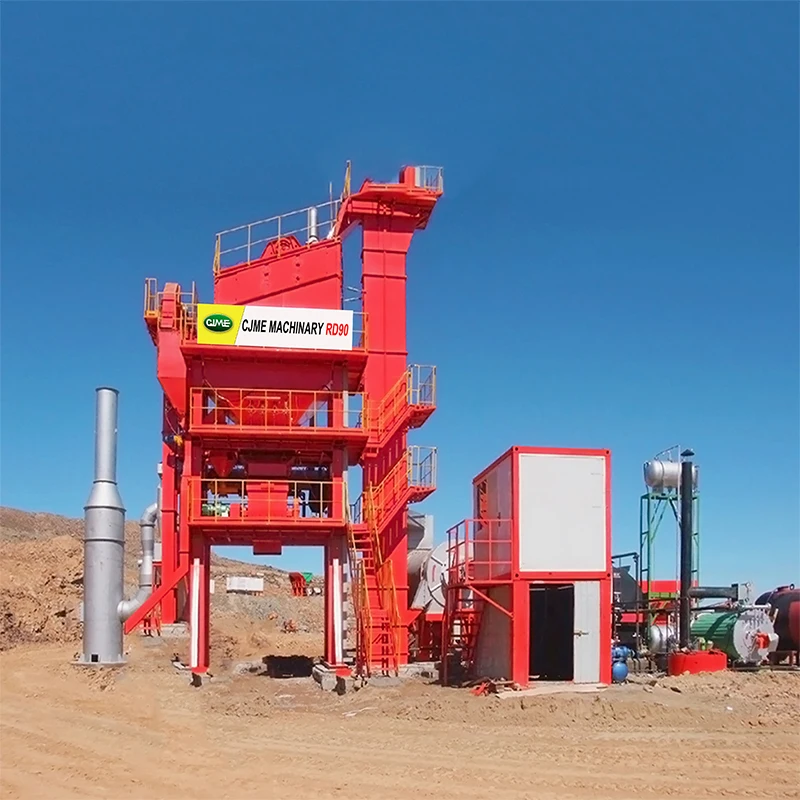

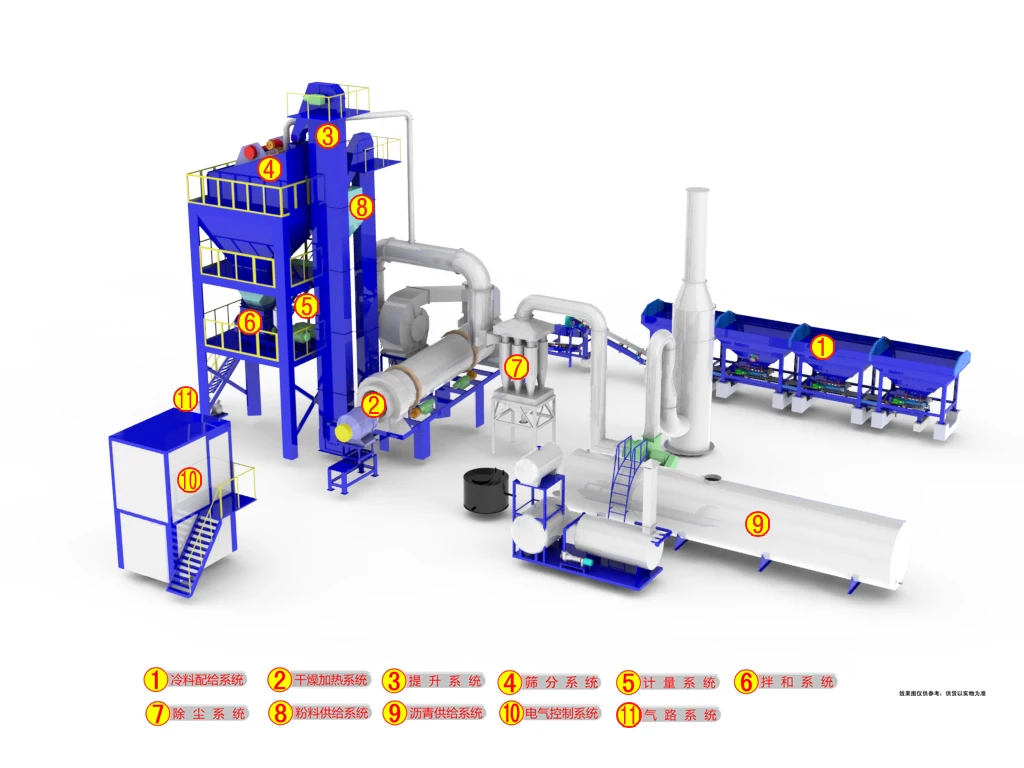

RD90 Batch Stationary Asphalt Mixing Plant

Share on (60803576777):


Price:

Quantity:


Product Overview

Description


RD90 Batch Stantionary Asphalt Mixing Plant

Company Instruction



 Henan Chengjing Mechanical Electrical Equipment Co.,Ltd is an independent international marketing company from Henan Roady Road Machinery Company Inc, located at the headquarters in the Hi-Tech Industrial Park of Nanyang, Henan Provnice. The headquarters covers an area of 106,720 square meters, including a 500 square meters Provincial Large Equipment Testing Center, 500 square meters Research and Development Center, 30,000 square meters integrated production plant. Our main products cover batch asphalt mixing plant, asphalt recycling plant, mobile asphalt mixing plant, drum asphalt mixing plant,wet mixing plant, concrete mixing plant, rollers, loaders, pavers and related spare parts. Annual production capacity is more than1000 sets .

Supported by more than 20 years R&D experience, 38 national patents,well-know brand of TOP 50 in Road Construction Industry, experienced technical talents database of Roady Group, CJME is engaged in providing one-stop solutions on road construction, excellent after-sale service and technical supporting, passed ISO 9001 audit, CE audit and CU-TR audit, has served more than 200 clients in 30 countries and regions with a high clients satisfaction in 98%.

Technical Parameter



RD90Batch Stationary Asphalt Mixing Plant

Model

RD90

Rated Capacity

90t/h

Oil Consumption

6.5kg/t

Figure Dimension

3734m×14m

Total Power

215.26KW

Operation

Manual, auto manual, auto

Cold Aggregates Supply System

Cold aggregate hopper:4×6.5m³

Conveyer belt width:500mm

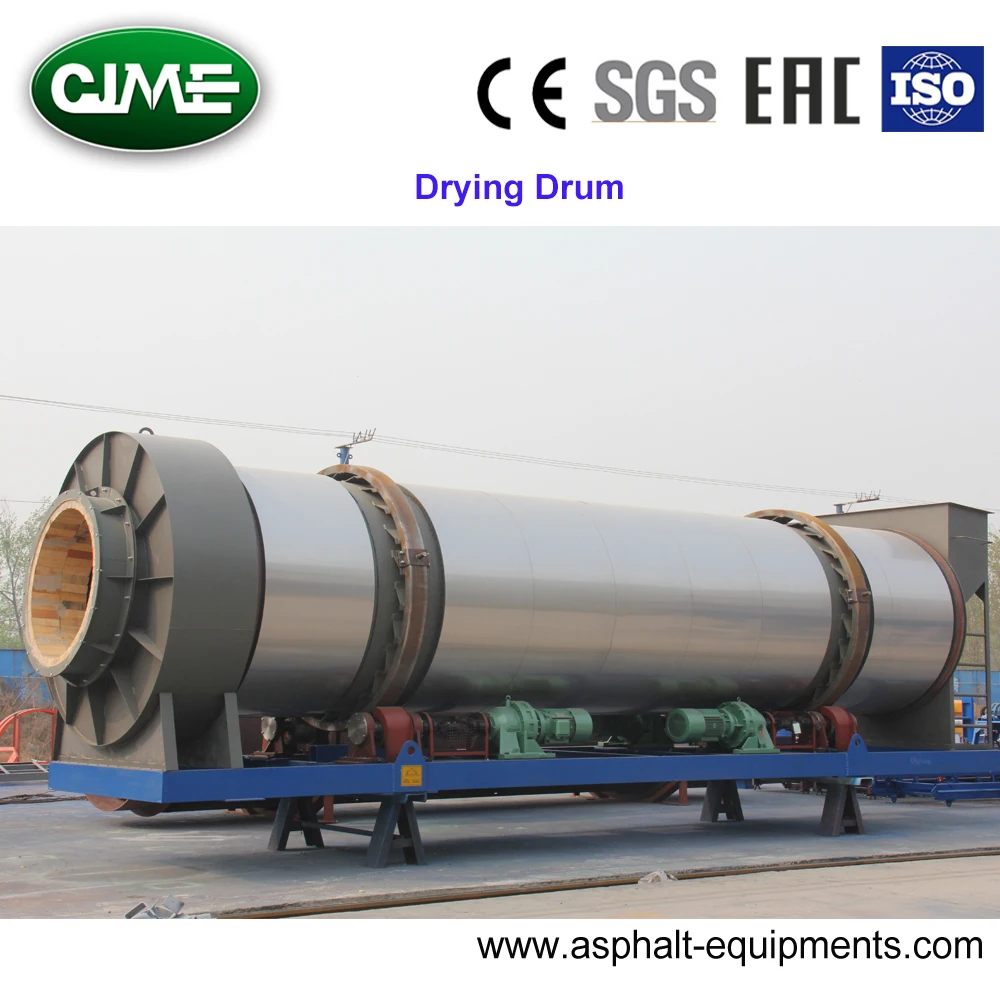

Drying Drum

Φ1.56.6m

China Brand Light Oil Burner

Rated oil consumption:600kg/h

Hoisting System

Hot aggregate elevator:11KW

Filler elevator:4KW

Vibrating Screen

Four layers

Weighing system

Hot aggregate weighing hopper:1000kg;                         Weighing accuracy:±0.15%

Filler weighing hopper:150kg;                                 Weighing accuracy:±0.15%

Asphalt weighing hopper:70kg;                               Weighing accuracy:±0.1%

Mixer Capacity

1100kg/batch

Dust Collecting System

Gravity dust catcher + Cyclone dust catcher + Water dust catcher

Filler Supply System

Filler temporarily storage silo:1.8

Asphalt Supply System

Asphalt tank:40m³

Hot oil heater:0.2 million kcal (fuel: diesel oil)



Electric Control System

Control room:3m×2.2m×2.5m

Control system: PLC+ touch screen

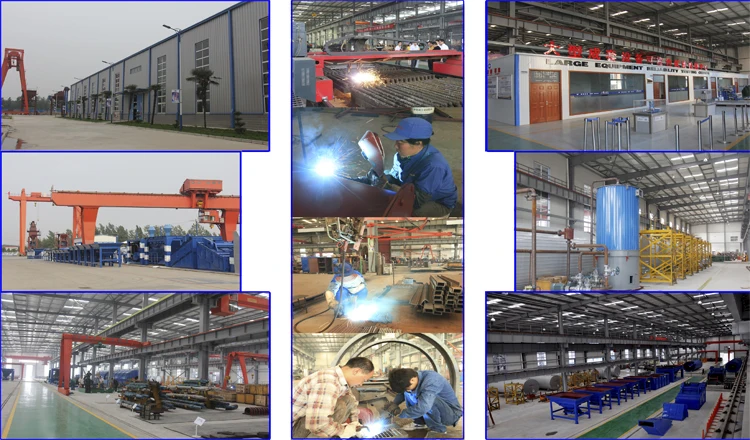

Manufacturing Shop

 Workshops 4

Packaging & Shipping

 Packing and Deliverytransportation

Product Details

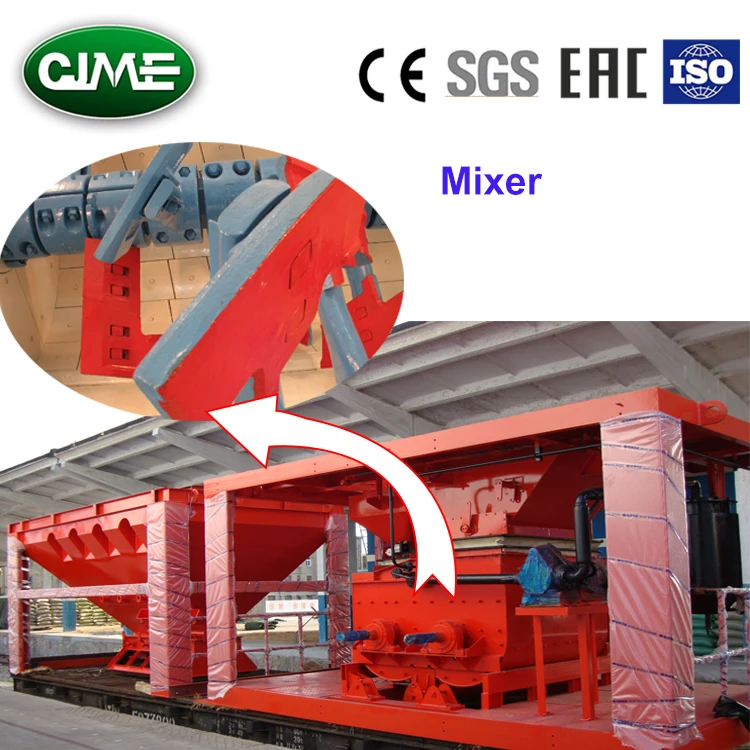

 Details FMSBDetails Hoisting SystemDetails mixerDetails Vibrating ScreenDrying Drum

FAQ



Q:How many countries your equipment have been exported?

A:More than 30 countries around the world,for example Malaysia,Indonesia,Thailand, Vietnam,Burma,India,Philippines,Nigeria, Saudi Arabia,Russia, Kazakhstan,Uzbekistan, Kyrghyzstan,and other countries of Africa and the Middle East.



Q:How many days of the production cycle of one RD90 stationary asphalt mixing plant?

A:Around 30-35 days,according to the model of the plant.



Q:How many days are used for installation of one set RD90 stationary asphalt mixing plant?

A:About 30 days,according to local situation,for example,the crane, power supply, electric welding equipment and other necessary instruments, material used for installation.



Q:How many workers are needed operating the asphalt plant?

A:1 loader operator, 1 mechanical, 1 electrician, 1 the operator of the whole plant.



Q:Can I visit your factory?

A:Of course. We warmly welcome you to visit our factory at any time.



Q:Which service can you provide if I buy RD90 stationary asphalt mixing plant?

A:One year warranty, Assist customer for worksite layout and planning, Guide customer for foundation making, Guide customer for equipment installation and commissioning, Training for operator and maintenance personnel, Provide life-time service, Provide pure spare parts timely, Professional service engineer regular return visit.
