Description

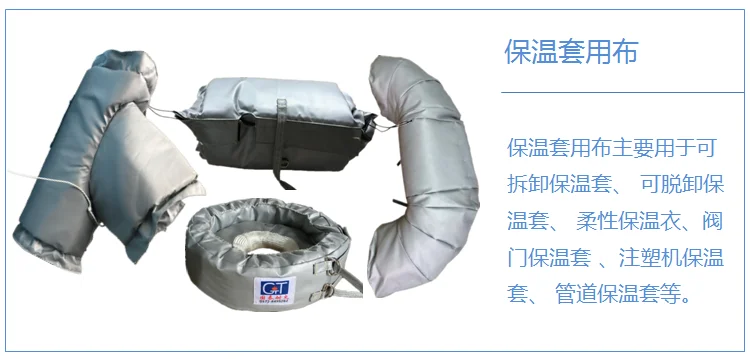

valve insulation blanket thermal ceramic welding blanket Silicone cloth

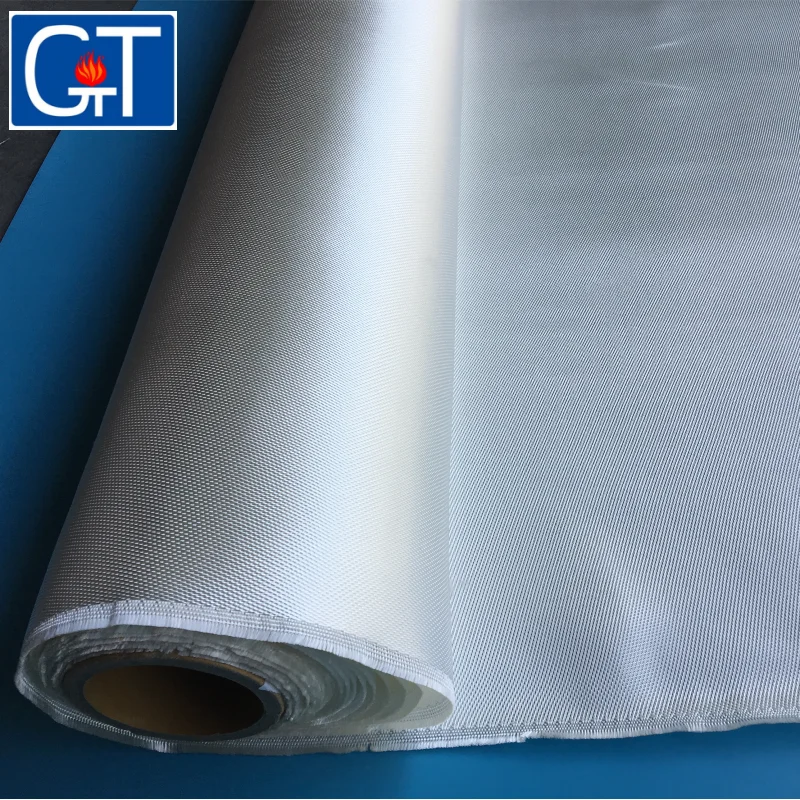

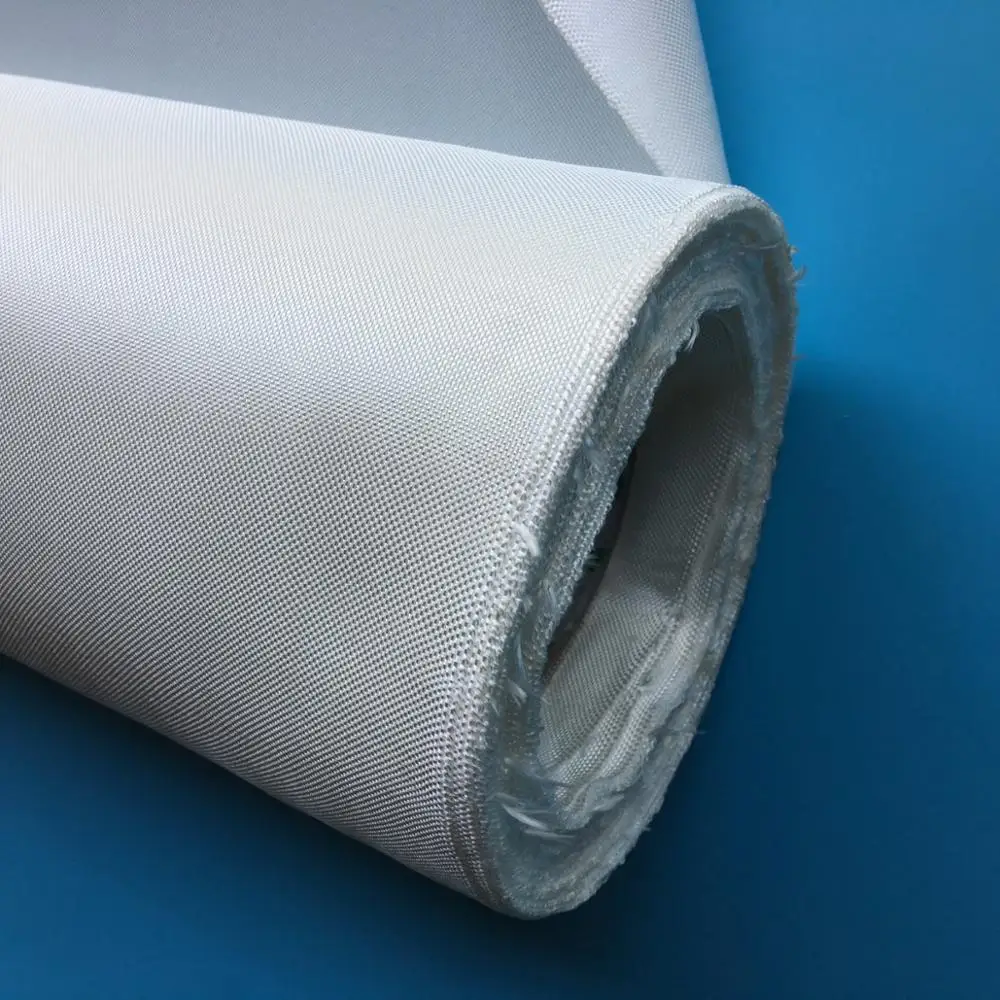

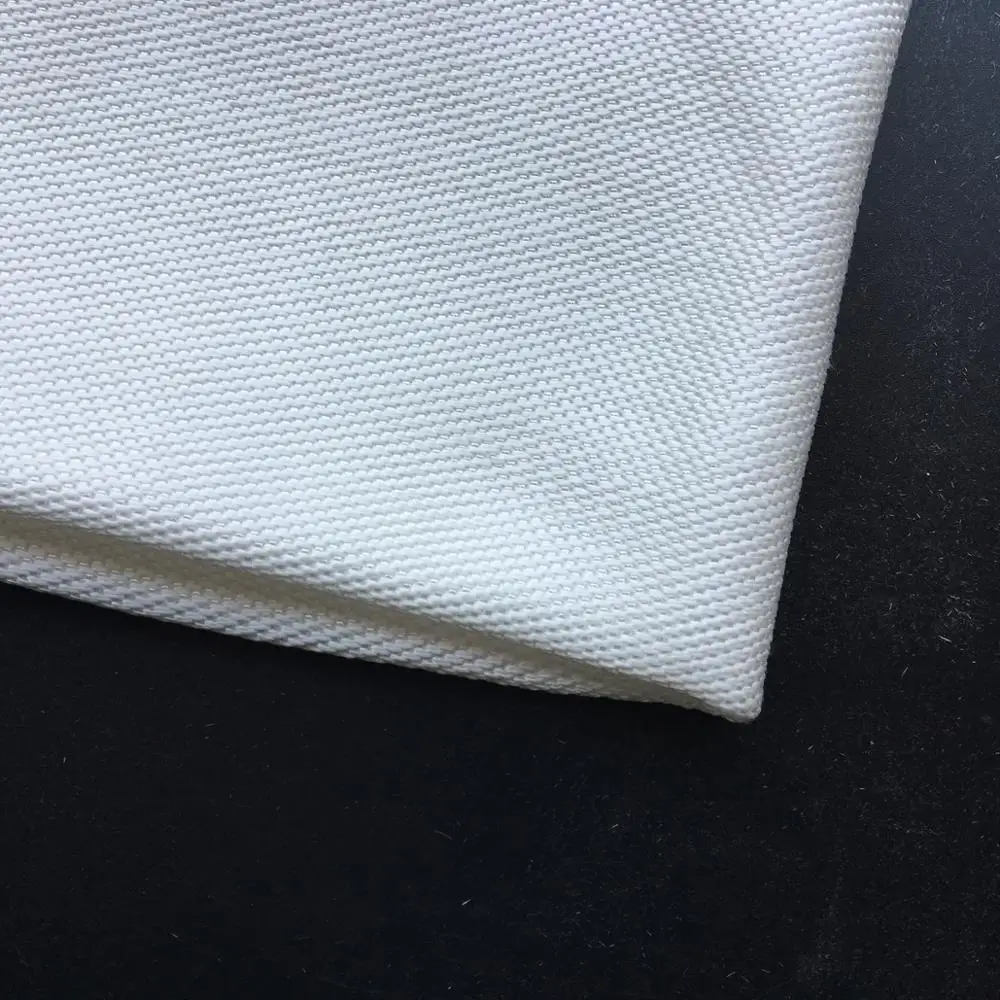

Ceramic Fiber Fabric / Aluminum Silicate Fiber Fabric



Introduction:

Ceramic fiber fabric, also named aluminum silicate fabric, Al₂O₃ content about 45%, is divided in to two types: glass fiber reinforced and stainless steel wire reinforced. Fire rating class A, long term use 1000℃ below.

It will prolong high temperature and heat insulation time, when ceramic fiber fabric by heat treating, or coated with vermiculite.



Application:

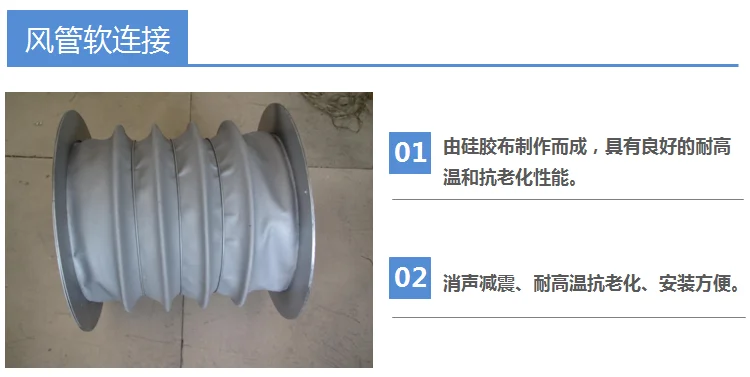

Large area industrial insulation, thermal radiation shielding protective clothing, coated fabric, fireproof curtain, flexible expansion joint insulated carpet, other industrial thermal insulation, heat insulation, fire resistance and protection.



Characteristics:

Heat and electric insulation, acid resistance, oil and water vapor corrosion resistance, resistance of aluminum, zinc and other non-ferrous molten metal etching, good tensile strength, low thermal conductivity, non-toxic.



Specification:

Colour	White	Gray
Material	Aluminum silicate fiber	Aluminum silicate fiber
Thickness	1.5mm-6mm	1.5mm-6mm
Density	500-525	500-525
Longitude	58±2	58±2
Latitude	29±1	29±1
AI2O3	≥45%	≥45%
Burning Out Rate(1050%)	≤18%	≤5%
Thermal conductivity	0.17-0.20W/MK(100℃)	0.17-0.20W/MK(100℃)
Reinforcements	Stainless Steel Wire	Stainless Steel Wire
Maximum temperature	1260℃	1260℃
Working Temp	1050℃	1050℃
Melting Point	1720℃	1720℃
Incombustible	grade B	grade A
