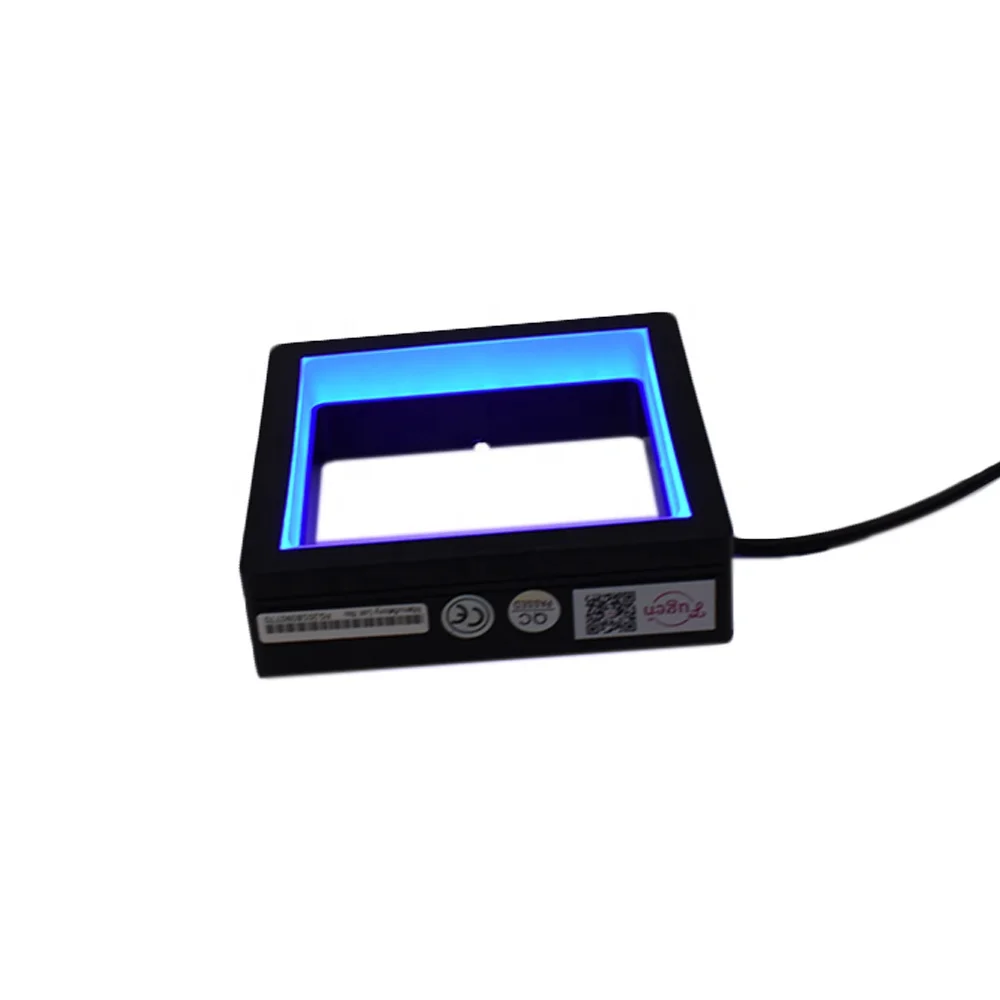

FG FPQ Series machine vision automation inspection led shadowless square light illuminator for industrial inspection in China
- Category: Other Lights & Lighting Products >>>
- Supplier: Shanghai Fugen Automation Tech. Co. Ltd.
Share on (60803620358):
Product Overview
Description
Product Description
FG-FPQ Series machine vision automation inspection led shadowless square light illuminator for industrial inspection in China
We can lend you 1-200pcs samples, you only need provide your letter of credit (L/C) and 30% deposit! (We will return your deposit when you return our samples)
Shadowless Square Lights
Shadowless square light is formed by evenly distributed LED particles passing through the light guide plate from all sides to form uniform diffused light, add a reflector on the top, avoid the reflection of the LED on the reflective surface effectively, and achieve shadowless low angle and multi-direction uniform illumination from the top.
Features
-High density LED array, high brightness.
-Various beam angle can be customized.-Diffuse board is optional, increase the uniformity of lights.
-Use wave-soldering technology, improved product quality,easy installation.
Application Areas
-Inspect the defects on cigarette case surface.
-Inspect small size glass.-Inspect IC element characters and appearance.
-Inspect the scratches, marks, breakages of surface and edges of appearance.
-Inspect the easy-reflective surface.
Applications:
Inspect the alignment of reflective surface
Model: FG-FPQ120-W
Inspecthe true position of connector terminals
Model:FG-DR50-B
Inspect the car dashboard
Model: FG-FPQ140-B
Technical Index
Color (Wavelength) | Red:620-630nm | Green:525-530nm | Blue:465-470nm | ||
White color temperature: 6600-7000K | UV:365/385nm | IR:850/940nm | |||
Operating environment | Temperature: 0 to 50 ℃, Humidity: 20% to 85% RH | ||||
Life time | 100,000hrs theoretical service time(Depends on the operating environment, not a guarantee.) | ||||
Compatible Control Unit | Analog Controller, Digital Controller, Constant Current Controller | ||||
Optional Accessory | 1. Lights source and lens adaptor. | ||||
2. Diffusion plate, Polarizing plate.(Opational transmittance:60%,70%,80%,90%) | |||||
3. Extension cable: 1m/2m/5m/10m/15m(2 kinds of materials of the shell of wire:PVC of hardness;silicone of softness.) | |||||
Warranty | One year warranty, Free samples and technical support(buyers pay for the freight) | ||||
Lights customization | Provide design and development service according to individual needs of customers. Reach the best image effects. | ||||
Lights customization: We provide design and development service according to individual needs of customers. Reach the best image effects.
Selection Guide:
FG | FPQ | ## | R/G/B/W |
Fugen | Shadowless Square Light | Outside Diameter | Color |
Installation Process
Certificates
Company Introduction
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. But you need pay for the the freight.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 50 pieces.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS etc., usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 y ears warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
