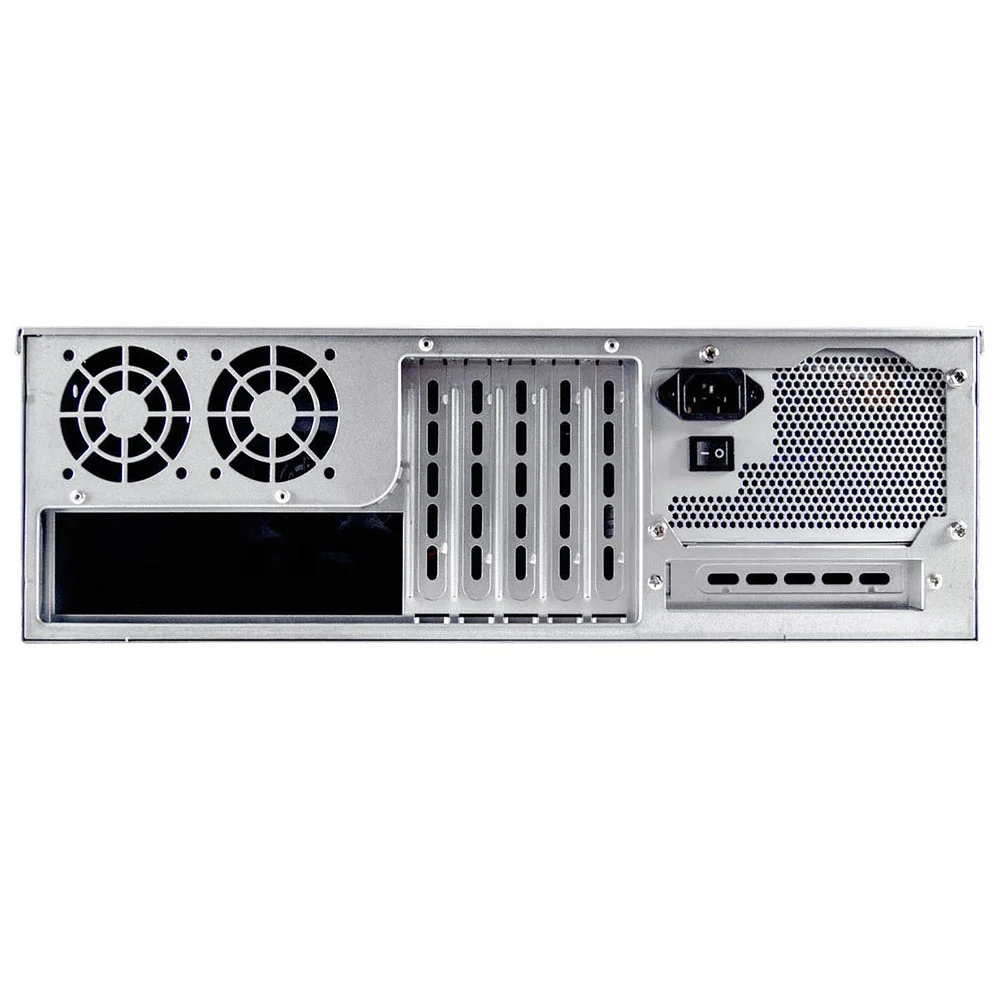

PC Computer Industrial Rack Mount Server Chassis Case 3U

Product Overview

Description

Product Description

Model	NP-F348002
Form Factor	3U Rackmount Server case
Material	Metal material	SGCC
	Metal thickness	1.2mm
	Panel material	Metal
	Handle material	Metal
M/B support	microATX (9.6″ x 9.6″), CEB (12″ x 10.5″), ATX (12″ x 9.6″), Mini-ITX (6.7″ x 6.7″)
CPU support	DP Xeon(Intel)/DP Opteron(AMD)/Core(Intel)

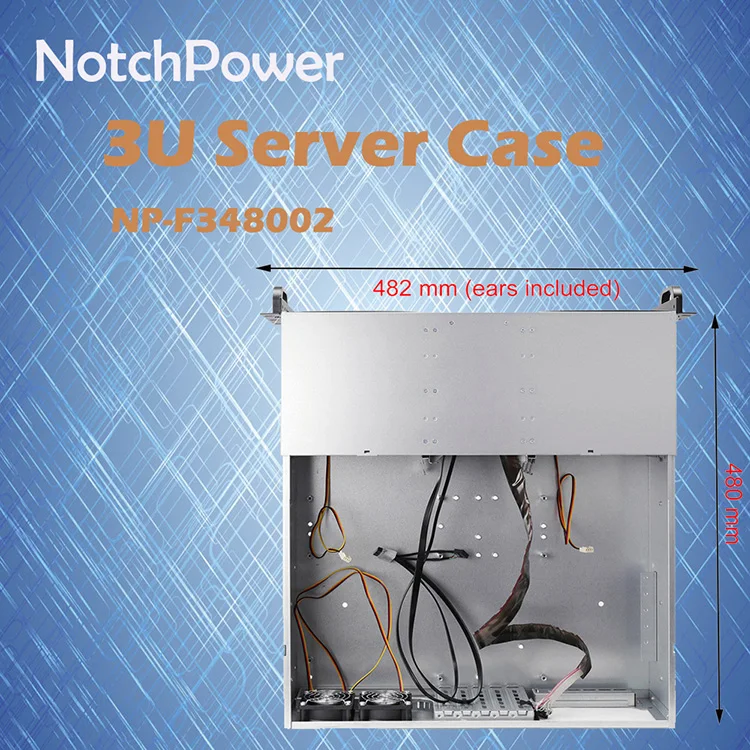

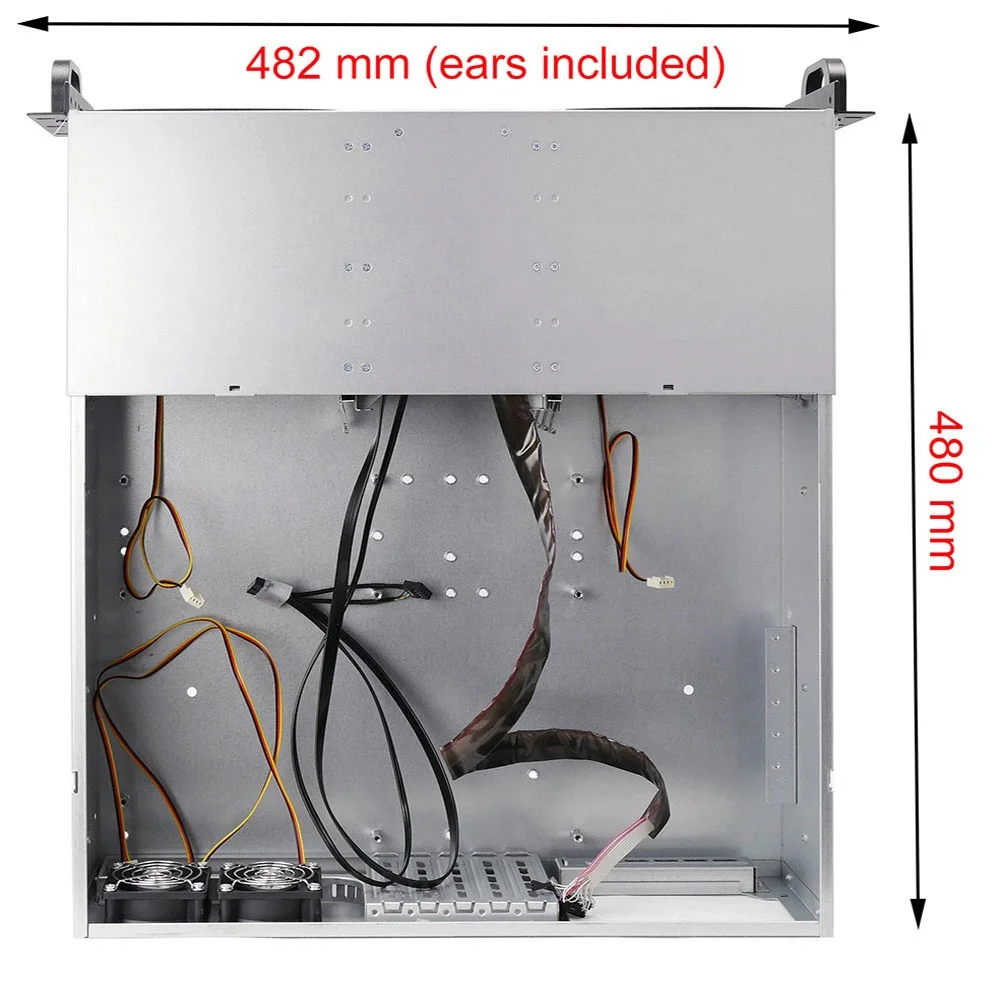

Size	D*W*H(mm)	480 x 482 x 132
	D*W*H(inch)	18.9 x 19 x 5.1

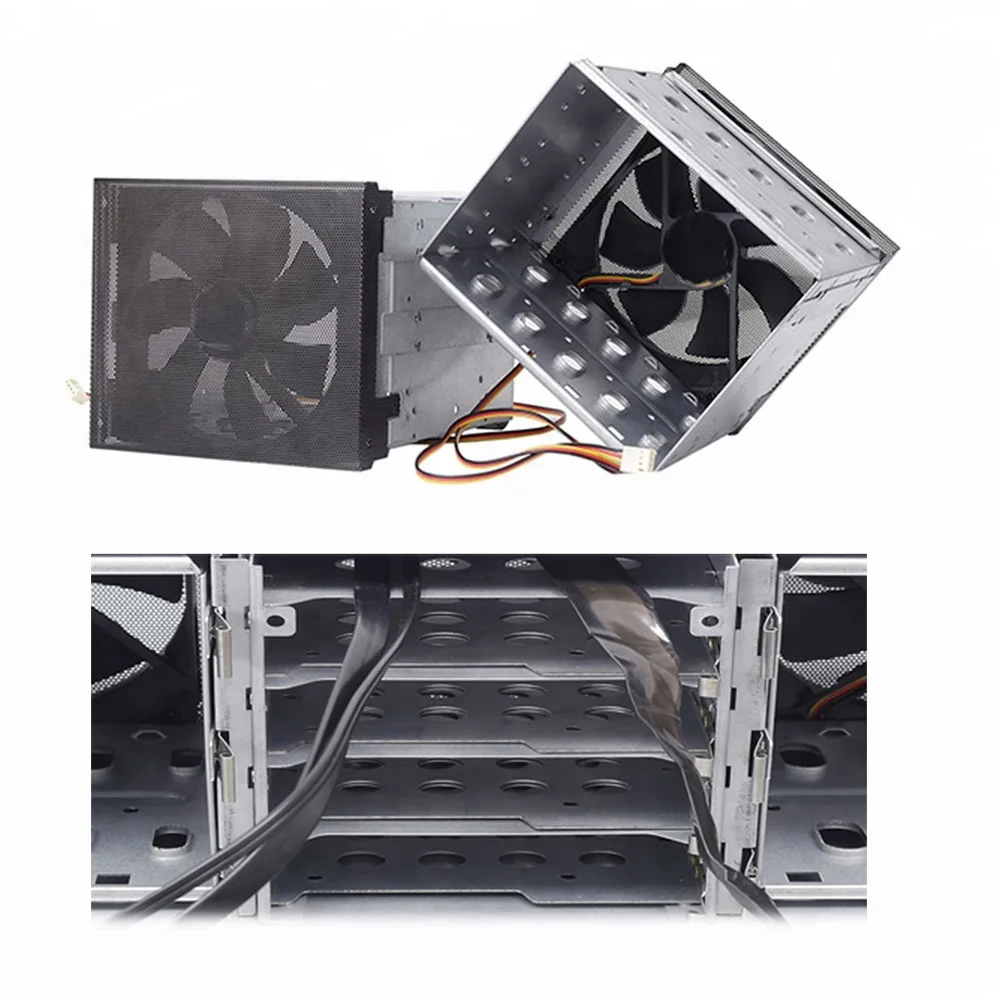

Drive Bay	External 5.25"  bays	6
	External 3.5" bays	4
	Internal 3.5"	14
	Internal 2.5"	4
Power Supply support	ATX power supply
Front panel	Control button	Power ON/OFF x 1, system reset x 1
	Indicator	Power ON/OFF x 1, HDD x 1, NETWORK x 3, Alarm x 1
	Ports	USB 2.0 x 1 , USB3.0 x 1
Expansion	Riser Slot	6 (5 full-size + 1 full-size horizontal using a riser card)
Hot-swap Backplane	Mini SAS 6.0GB/s	NO
	SATA	NO
System cooling(optional)	Front	2x 120mm (standard)
	Middel	NO
	Rear	2x 60mm (standard)
Net weight	9.4kg
Gross weight	11.7kg
Packing size	D*W*H(mm)	680*555*195
	D*W*H(inch)	26.8*21.7*7.7
Packing Material	Polyfoam with carton box
Environment Temperature	0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
Relative Humidity	5% to 95%,non-condensing
Vibration ( 5-500 Hz )	1 Grms (Operating), 2 G (Non-Operating)
Shock	10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)

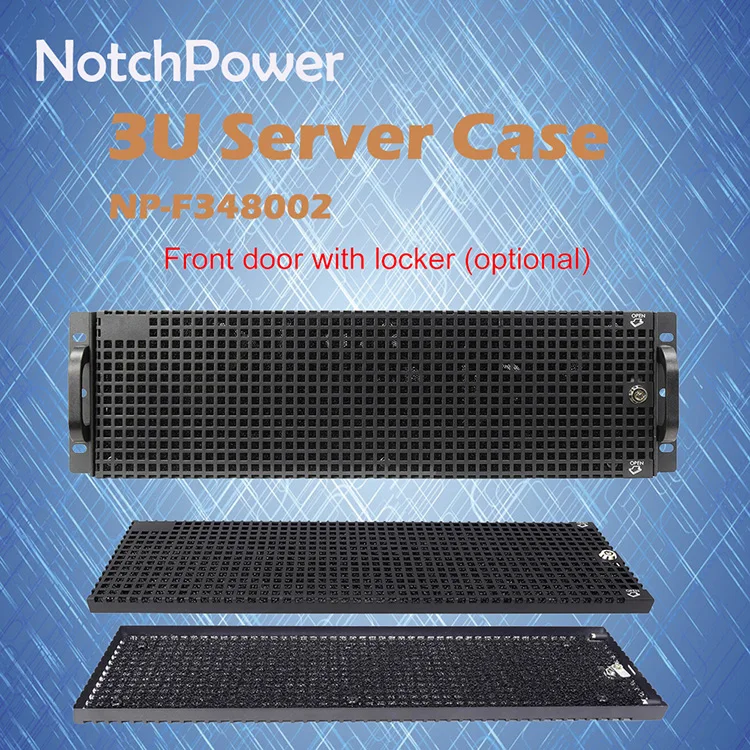

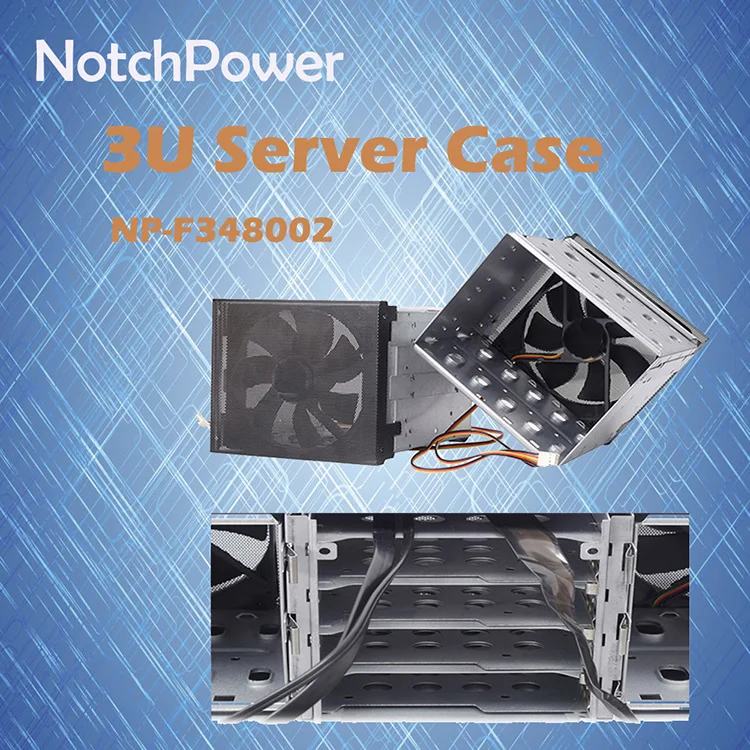

Detailed Images
