Key point:

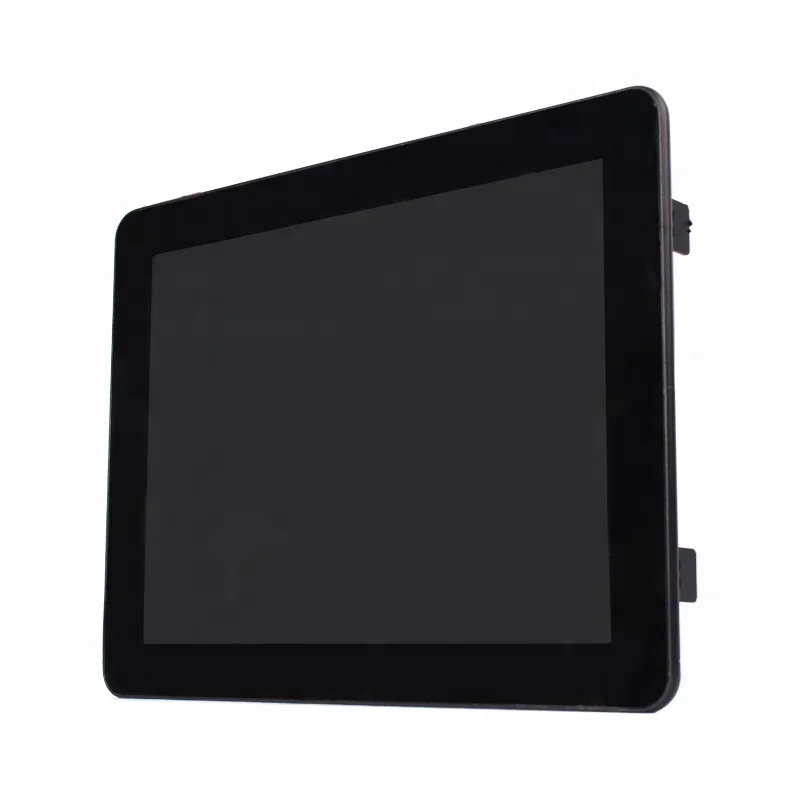

1. 10.1-19 inch 1024*768 TFT LED Screen
2. 10 points Capacitive touch screen.
3. Windows7/8/10, Android, Linux system for your option.
4. Meet with CE, ROHS, ISO standard.
5. One year warranty with lifelong technical support
6. 12 years China OEM BUREAU VERITAS certificated factory.
Product Specification
| Display Panel | |||
| Display panel size | 10.1 inch digital panel (10.1-19 inch optional) | ||
| Resolution | 1024*768 | ||
| Contrast | 550:1 | ||
| Brightness | 350 cd/m2 | ||
| Touch screen | 10 points capacitive touch screen | ||
| Visual angle | up/down 65-60 Deg/ - left/right 70-70 Deg | ||
| Computer Configuration | |||
| CPU | Intel Haswell-U 4010U CPU,BGA 1168,1.7GHz,3M(i3,i5,i7 is optional) | ||
| Motherboard | Model:ITX-H31914T-6CD8, Intel Mini ITX Motherboard | ||
| Memory | 4G DDR3 (4G ,8G is optional),1*SO-DIMM,DDR3L 1333\1600 MHz Memory, 16GB | ||
| Harddisk | 32G SSD (500G ,1T ,HHD 64G ,128G SSD is optional),1*SATA2.0 1*MINI-SATA3.0 | ||
| Graphics | Integrated graphics HD | ||
| Audio | Onboard 1*Realtek ALC662 HD audio decoding controller | ||
| LAN | Onboard 1*Realtek RT8111E Gigabit LAN | ||
| WIFI | Support 4G/Wifi | ||
| USB | Support 2*USB 3.0,2*USB 2.0 | ||

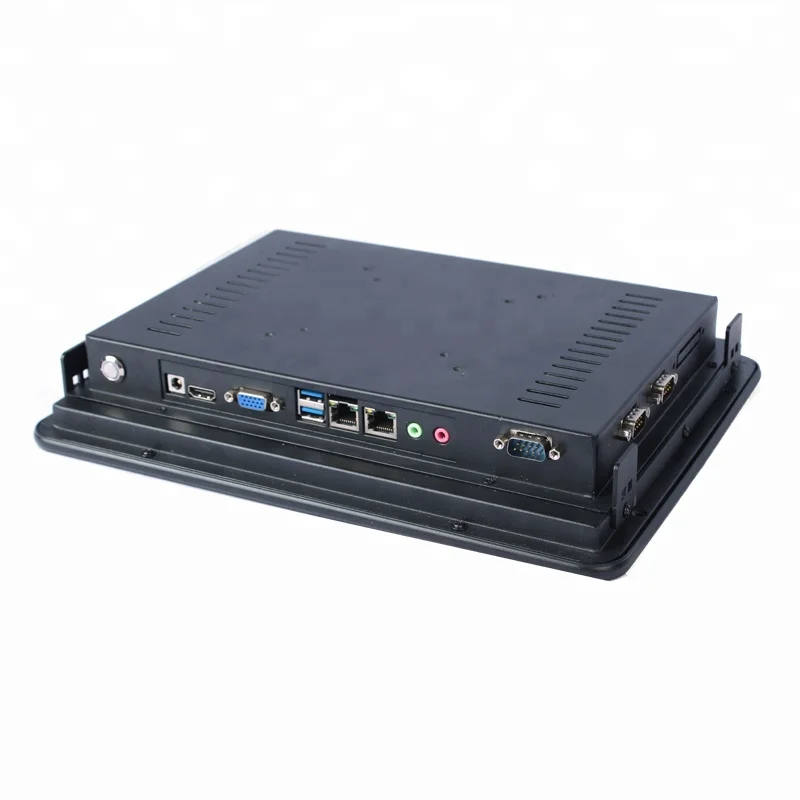

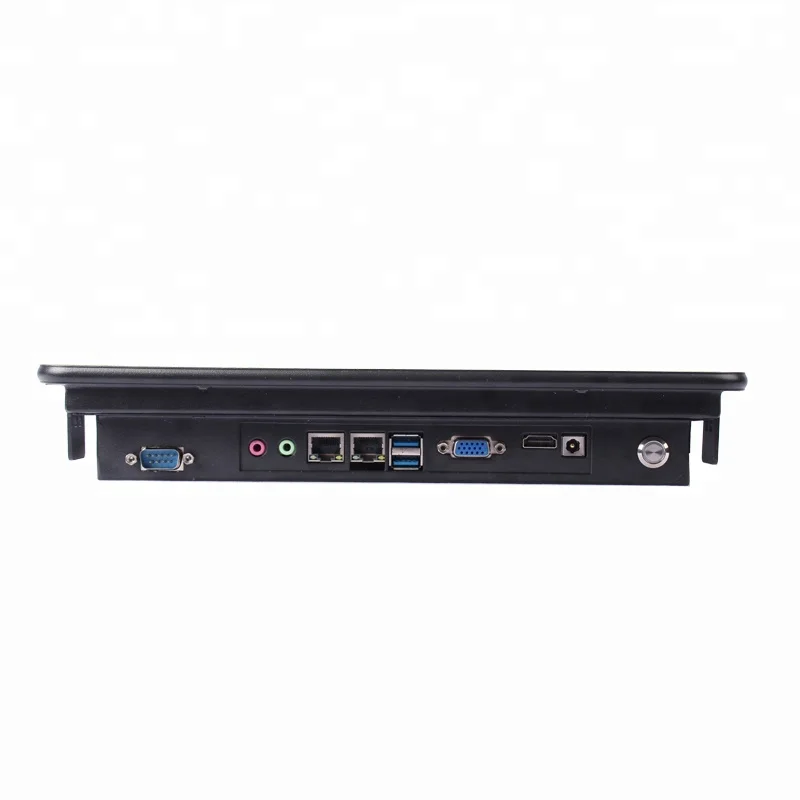

| Port Support | |||
| 1 x VGA port | 1x HD | 4 xUSB | 6x RS232 com |
| 1 x WIFI connector | 1xAudio in/out | Power button | 1xLAN |
| Other Information | |||
| Color | Black | ||
| OS Support | Window 7,8,10 ,Linux | ||
| Power | DC12V, AC100-240V | ||
| Case | entire aluminum bezel | ||

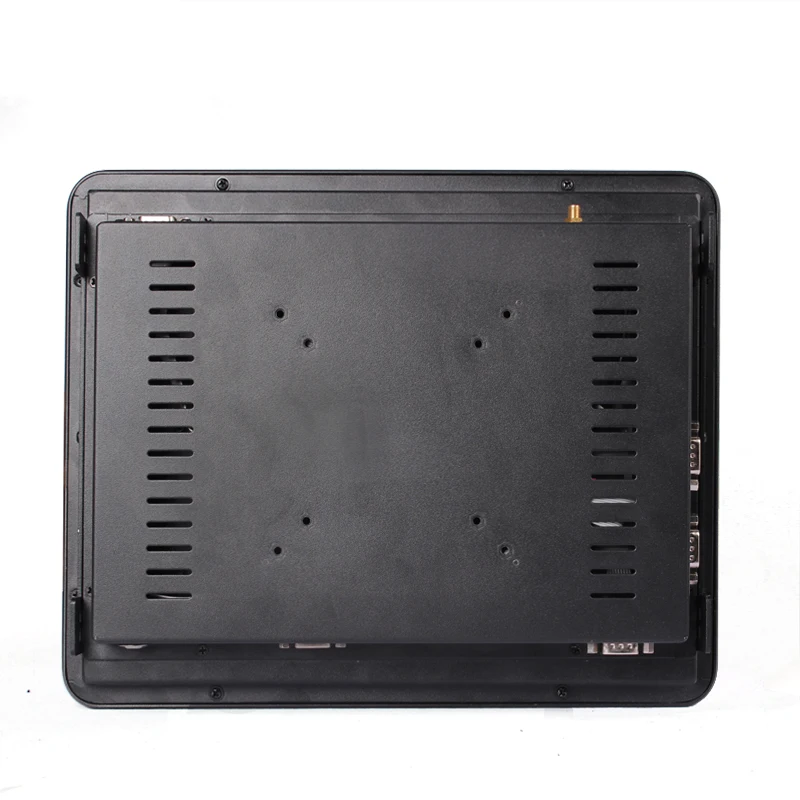

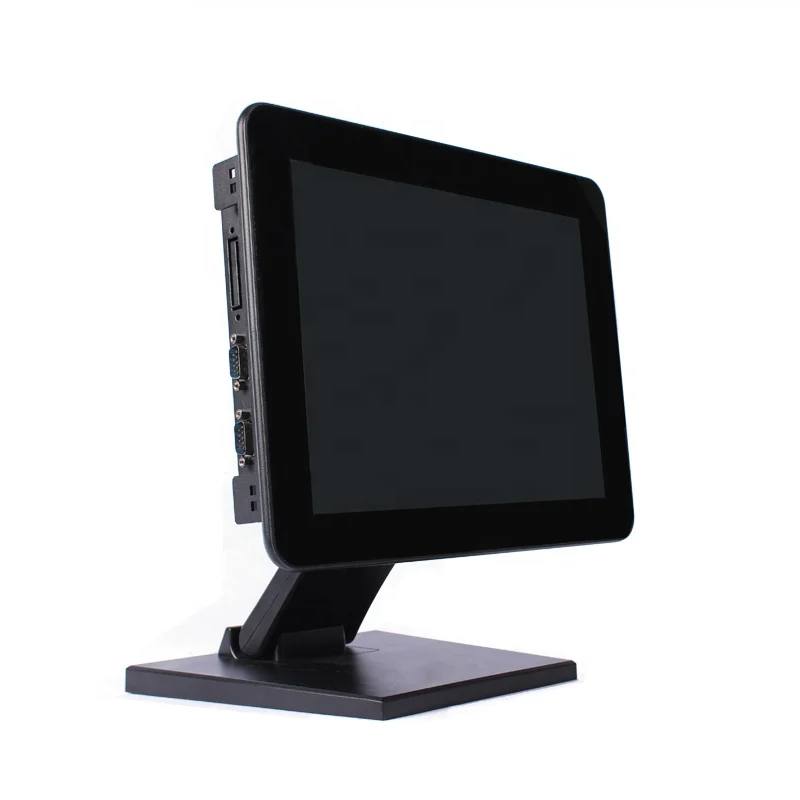

| Stander | standard VESA | ||
| Accessories | |||
| 1xpcs motherboard cd drive | 1xpcs touch cd drive | 1xInstruction manual | 1xpcs 5A power adapter |
