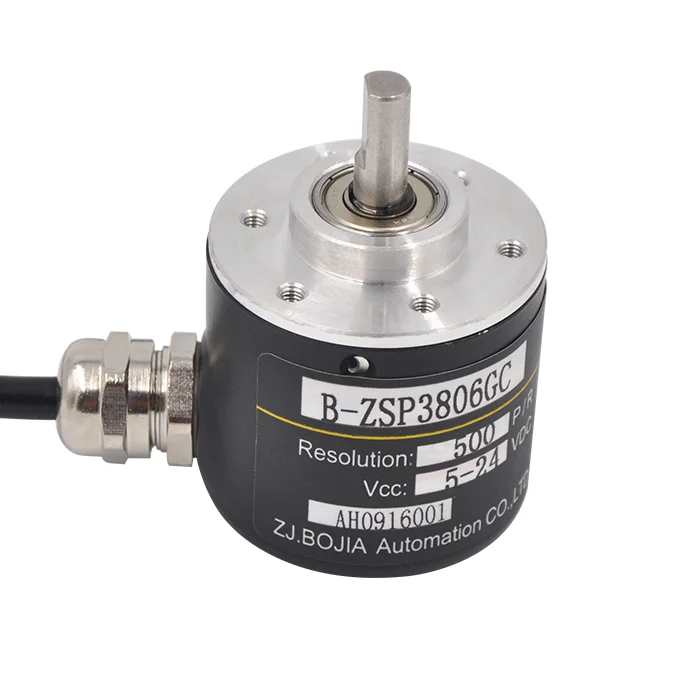

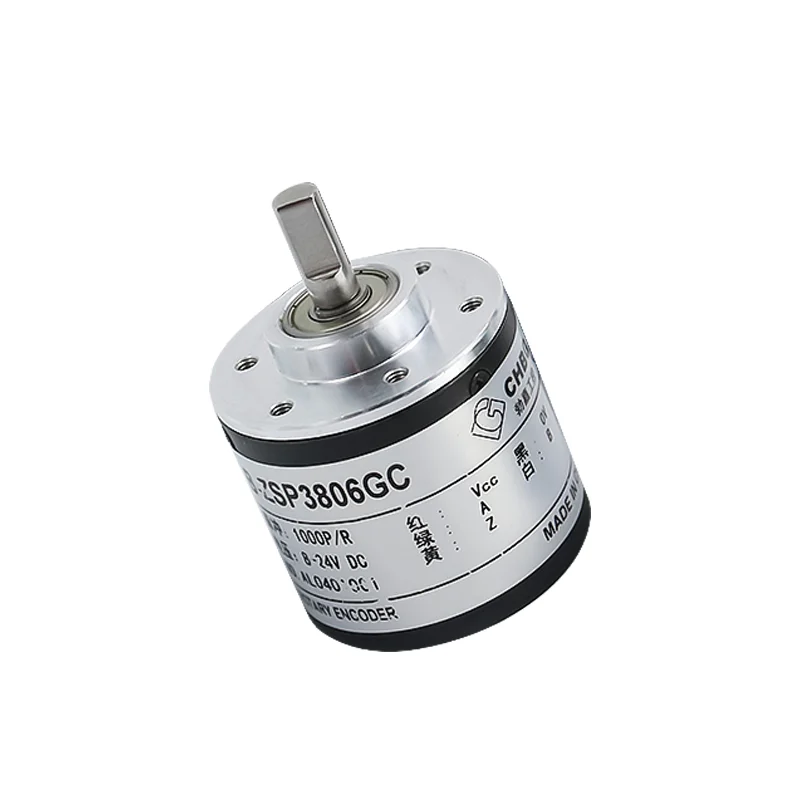

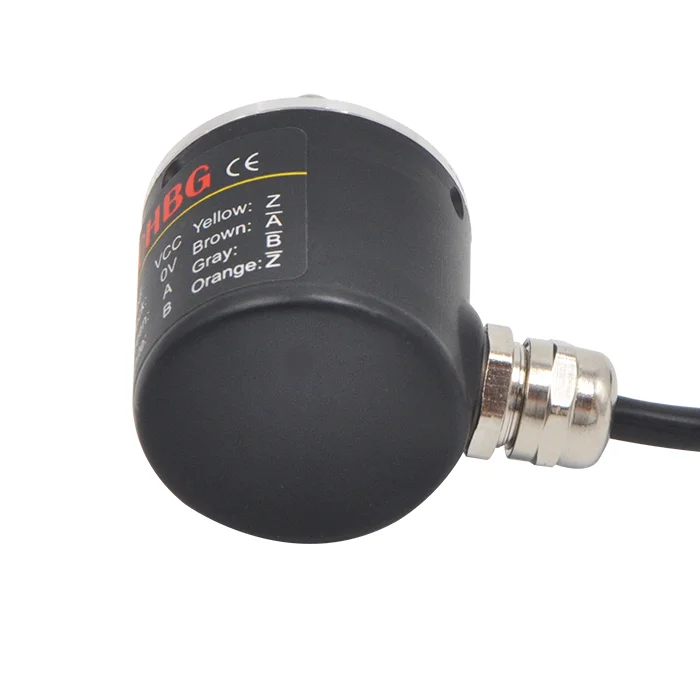

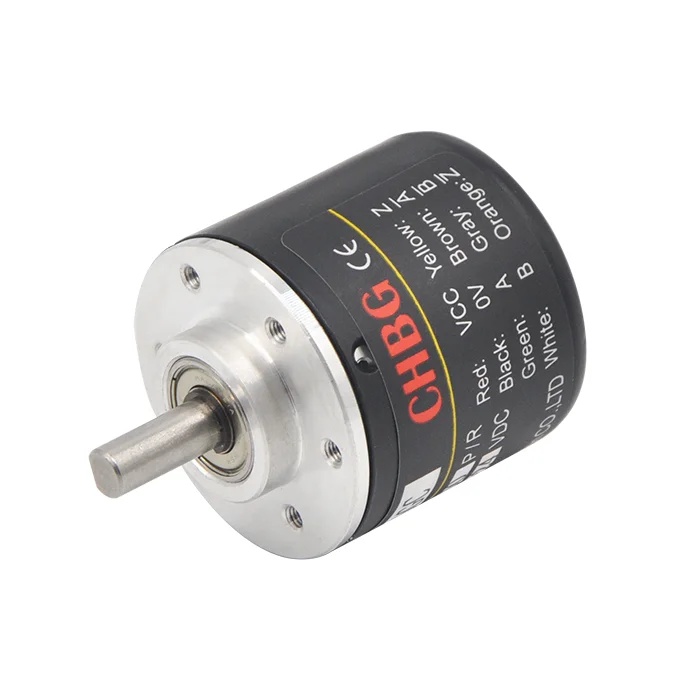

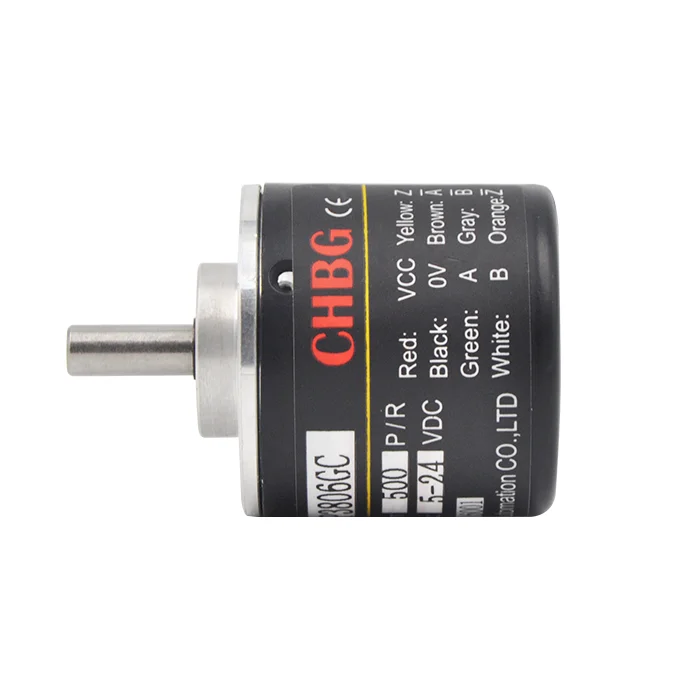

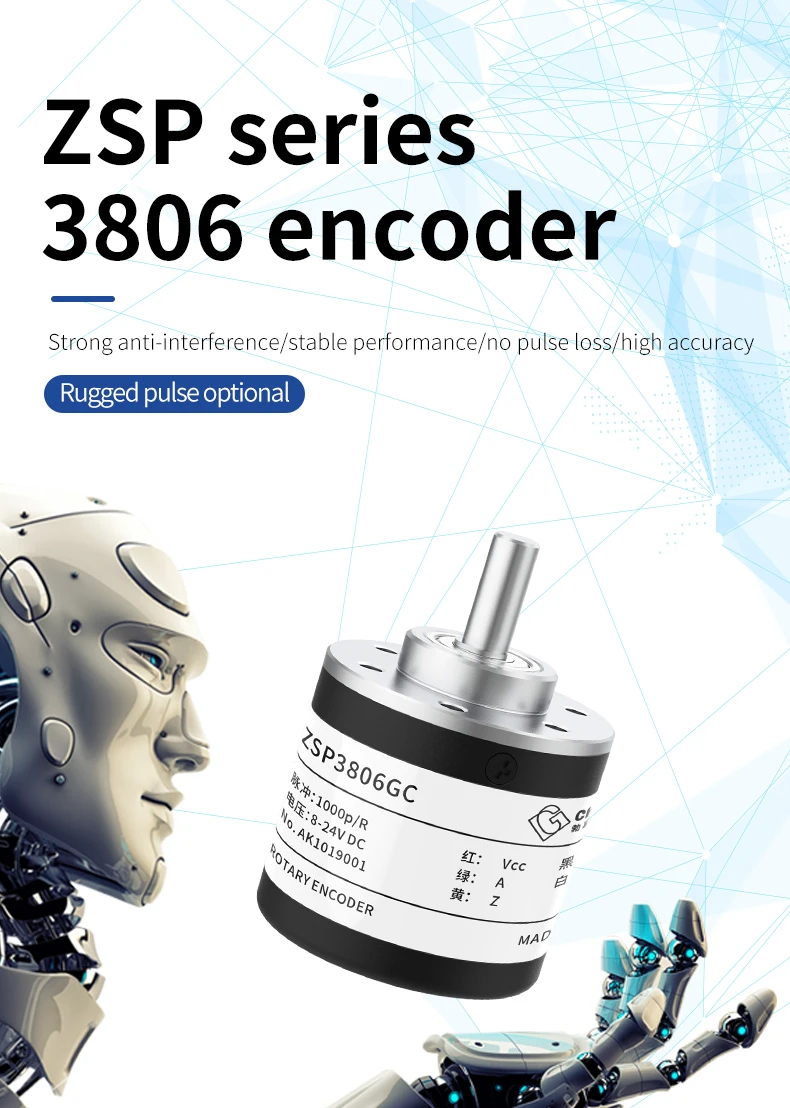

CHBG 38mm Optical Incremental Shaft Rotary Encoder for 24V Servo Motor
- Category: >>>
- Supplier: Zhejiang Bojia Industrial Automation Co. Ltd.
Share on (60803682852):
Product Overview
Description
CHBG 38mm Optical Incremental Shaft Rotary Encoder for 24V Servo Motor
Certifications
Product Description
| Electrical parameters | Mechanical parameters | ||
| Number of pulses | maximum:3600P/R | Starting torque | 2×10-3N.m(+25℃) |
| Consumes current | ≤100mA | Allowable load on the shaft | axial10N,radial20N |
| Response frequency | 0~100kHz | Inertia | 4×10-7Kgm2 |
| Operating temperature | -20℃~+70℃ | Maximum number of revolutions | 5000r/min |
| Storage temperature | -20℃~+80℃ | Degree of protection | IP65 |

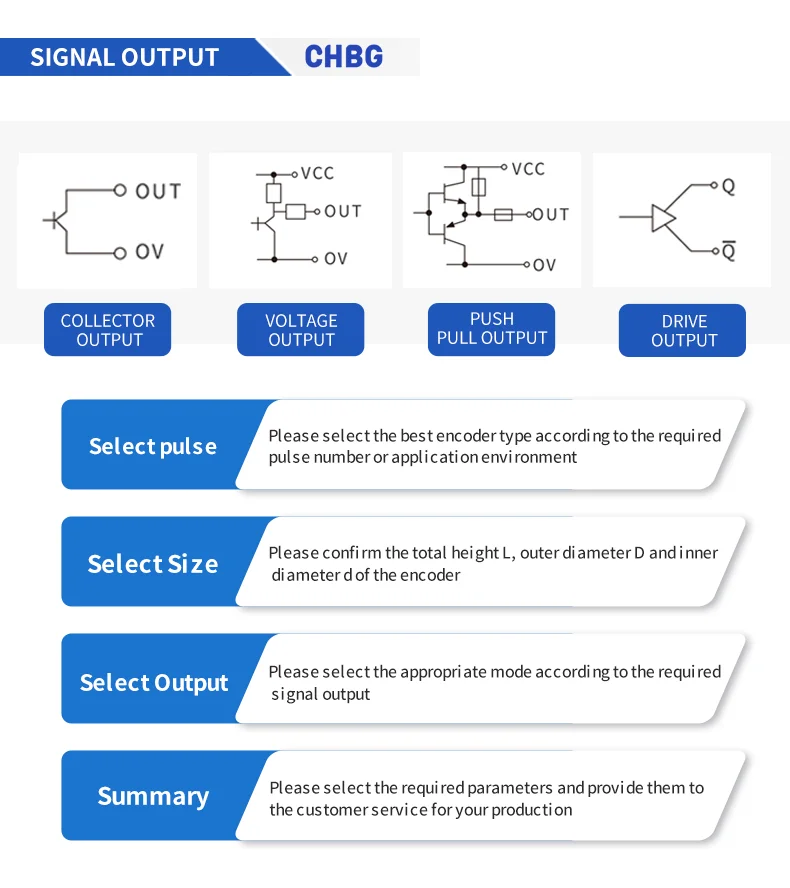

| Output item | A,B,Z,`A,`B,`Z | Vibration resistant | 50m/S2(10~200Hzx,y,z 2 hours in three directions) |
| Output voltage VH | ≥Vcc-2.5V | Shock resistant | 980m/S2(x,y,xTwo times in three directions, each lasting for 6ms) |
| Output voltage VL | ≤0.5V ≤1.0V | material | axis:stainless steel end face:aluminium alloy Enclosure:Aluminum alloy plastic powder |
| Supply voltage | DC5V DC8V~24V | weight | 190g |
| Rise/fall time | 5V disk drive≤0.1us 24V<1us | ||

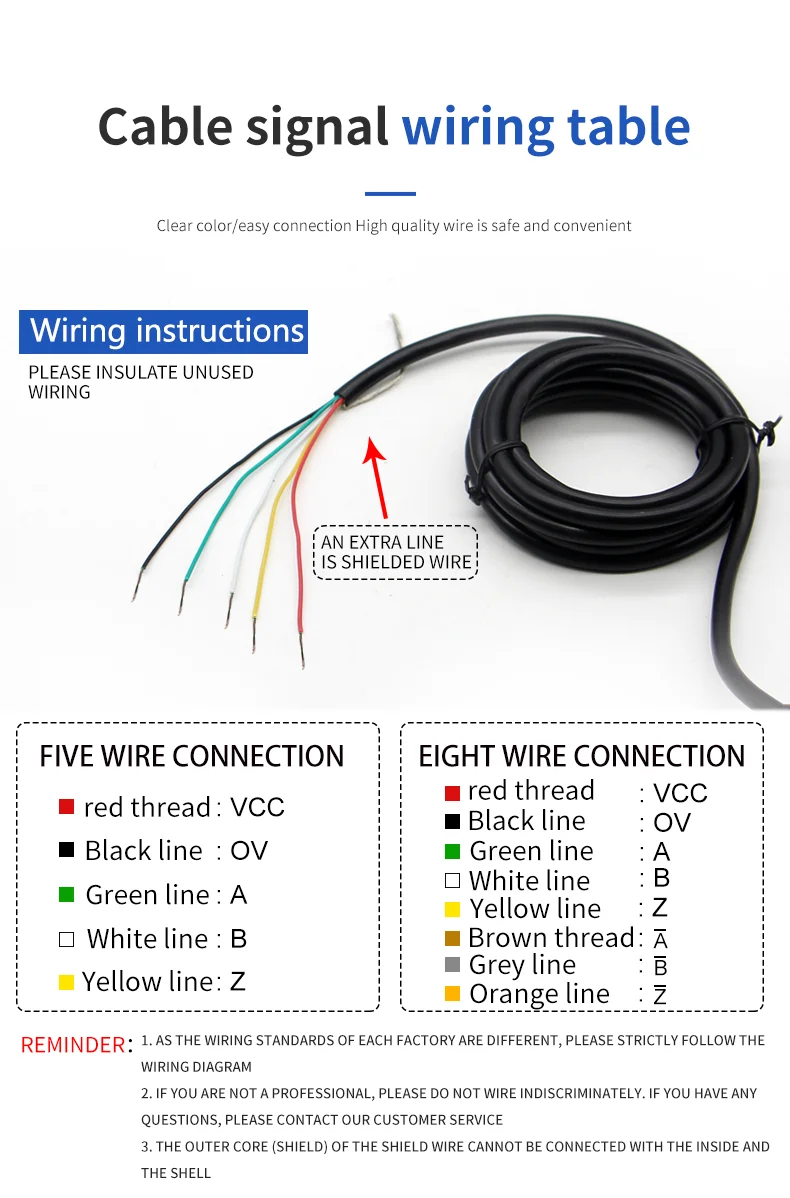

Wiring list and usag
Company Information
Packaging & Shipping
Our Services
- 12 Month warranty:Free replacement of defecitive products within12 months.
- Questions about encoder will be answered within 24 hours.
- OEM solution will be offered to meet all your requirement.
FAQ
Q1:What's the MOQ?
A:MOQ:1 pc.
Q2:How to place the order?
A:Please contact with our sales to get the detall datasheet and confirm the part number of the encoder you need.then you can place the order online or underline.
Q3:What's the payment term?
A:We can accept T/T,Western Union and PayPal etc.
Q4:What's the lead time?
A:Standard encoder within 7 working days.Customized encoder need 15-20 working days.
