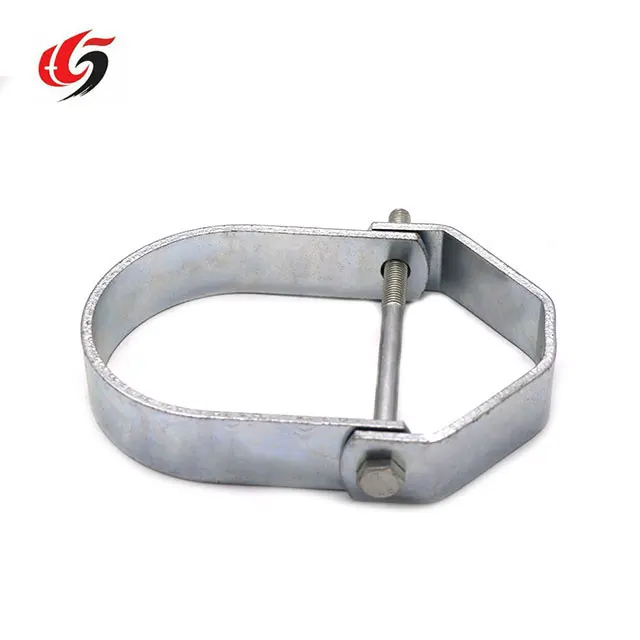

China factory supply Steel Adjustable Rubber lined Clevis Hanger Pipe Clamps
- Category: >>>
- Supplier: Handan Heng Jie Fasteners Manufacturing Co. Ltd.
Share on (60803695642):
Product Overview
Description

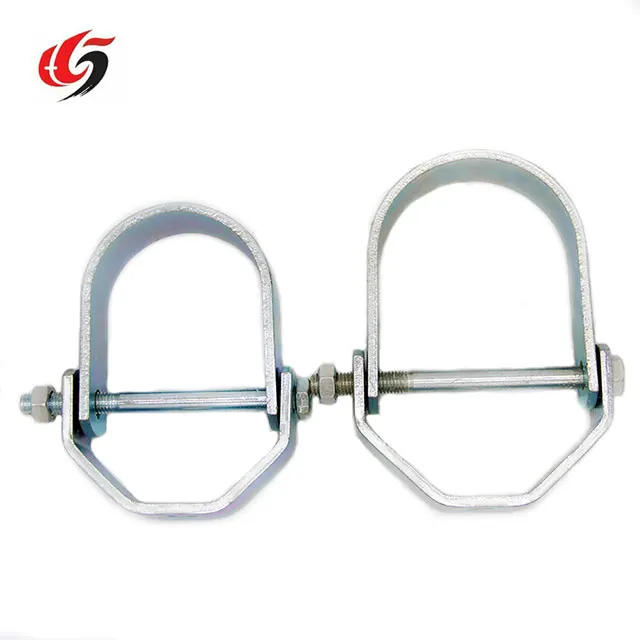

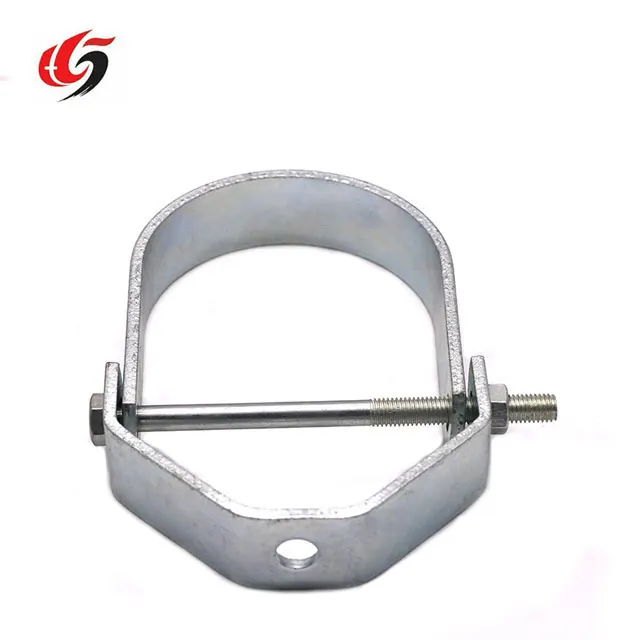

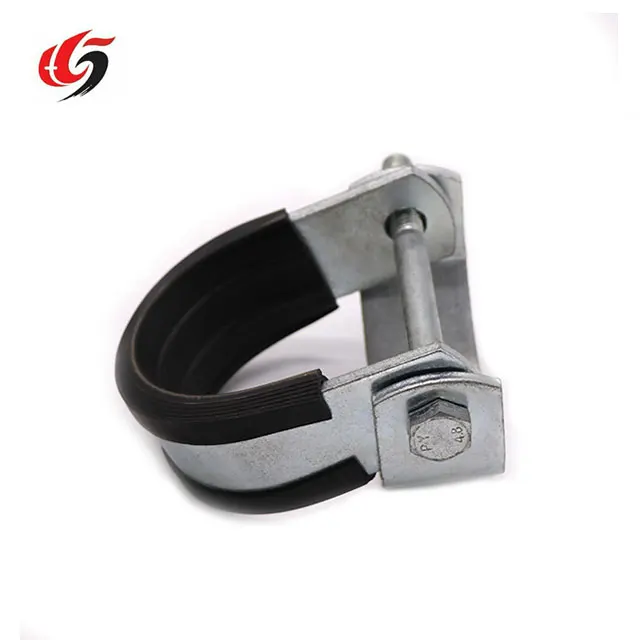

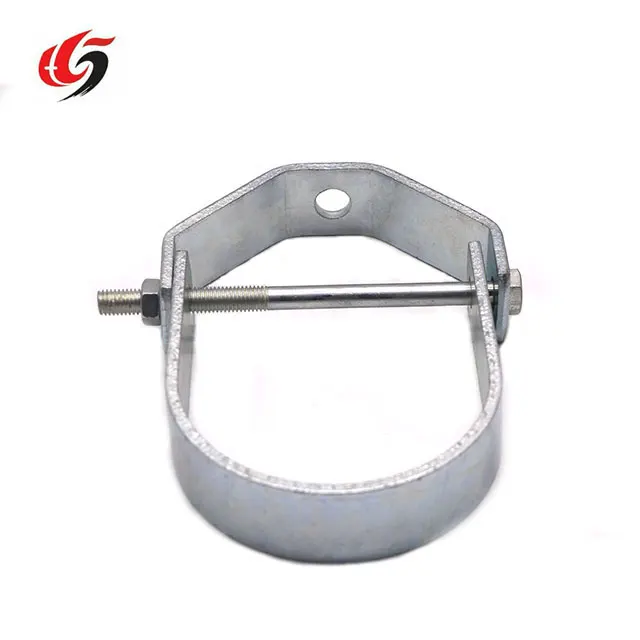

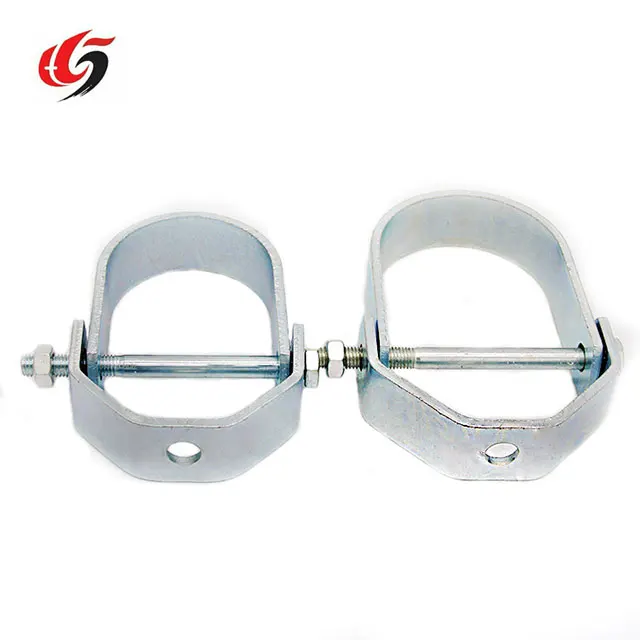

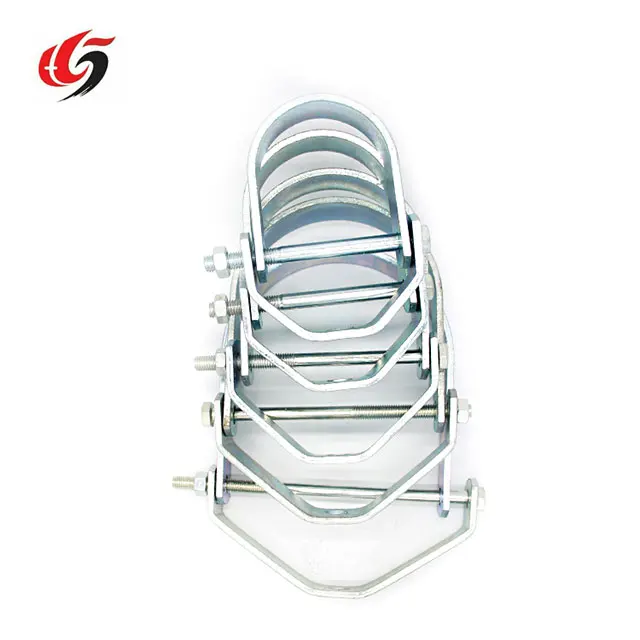

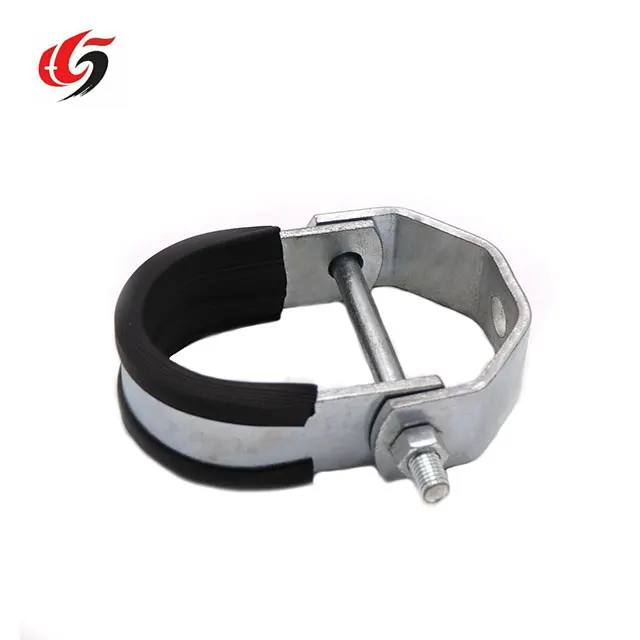

China factory supply Steel Adjustable Rubber lined Clevis Hanger Pipe Clamps
| pipe size inch | Max load kgs | upper Steel | lower steel | rod hole size | Bolt size | H (mm) | D (mm) |
| 1/2" | 275 | 3x25 | 3x25 | 10 | M8x60 | 73 | 22 |
| 3/4" | 275 | 3x25 | 3x25 | 10 | M8x68 | 79 | 28 |
| 1" | 275 | 3x25 | 3x25 | 10 | M8x78 | 85 | 35 |
| 1-1/4" | 275 | 3x25 | 3x25 | 10 | M8x82 | 95 | 42 |
| 1-1/2" | 275 | 3x25 | 3x25 | 10 | M8x88 | 103 | 48 |
| 2" | 275 | 3x25 | 3x25 | 10 | M10x110 | 120 | 60 |
| 2-1/2" | 525 | 4x25 | 4x25 | 10 | M10x125 | 149 | 73 |
| 3" | 525 | 4x25 | 4x25 | 10 | M10X140 | 158 | 89 |
| 3-1/2" | 525 | 4x25 | 4x25 | 10 | M10x155 | 176 | 105 |
| 4" | 650 | 6x32 | 6x32 | 10 | M10X170 | 201 | 115 |
| 5" | 650 | 6x32 | 6x32 | 12 | M12X195 | 235 | 140 |
| 6" | 875 | 6x32 | 6x32 | 12 | M12x225 | 269 | 168 |
| 8" | 900 | 6x40 | 5x40 | 12 | M12x275 | 341 | 219 |
| 10" | 1600 | 6x40 | 6x40 | 16 | M16x360 | 422 | 273 |
| 12" | 1700 | 9x50 | 6x50 | 20 | M20x420 | 493 | 323 |
| 14" | 1900 | 9x50 | 6x50 | 20 | M20x455 | 559 | 355 |
| 16" | 2000 | 12x65 | 6x65 | 24 | M24X510 | 613 | 406 |
| 18" | 2150 | 12x65 | 6x65 | 24 | M24x555 | 678 | 457 |
| 20" | 2200 | 12x75 | 9x75 | 30 | M24X610 | 718 | 508 |
| 24" | 2200 | 16x75 | 9x75 | 30 | M24X710 | 853 | 610 |
| 30" | 2700 | 19x75 | 9x75 | 30 | M24x890 | 998 | 755 |
FAQ
1.Q: Do you offer the sample?
A: We can provide sample for you. Usually you need to pay the charge for sample and freight, which will be repaid to you after ordering.The pictures of product are shot in reality. If you want to know more about the products,you can contact with our sales person.
2.Q: What’s your delivery time?
A: We pack the products within a week after payment,Usually 10-15 days after payment.It can be changed dependent on your requirement.
3.Q: Which payment can you accept?
A: We accept T/T or L/C or other terms of payment.
4.Q: About Warranty
A: We are confident in our products,and we pack them very well.So usually you will receive your order in good condition. But if any quality issue happens, we will deal with it immediately.
