Product Overview

Description

Product Description

Automatic Thermoforming Vacuum Meat Food Skin Packing Machine

Application Range:

Suitable for various kind vacuum packed products, like pickled vegetable, meat product, grain products etc.

Main Technical Parameter:

Full-automatic Thermoforming and Filling Packaging Line

Equipment ModelRC-520J
Width of Top Film498mm
Width of Bottom Film524mm
Vacuum≤200Pa
Compressed Air≥0.6Mpa
Air Consumption≥0.7m3/min
Air Filling Pressure≥0.2Mpa
Filling Speed3-4p/min
Filling Accuracy≤±1g (according to the products)
Filling Weight10g-50g
Filler Numbers4-5 filler number
Air Filling ConnectorØ16PU tube
Cooling Water≥0.15Mpa
Power Supply380V/50HZ
Total Power14~20KW
Machine Dimension6750*1950*2050mm
Machine Weight2700kg

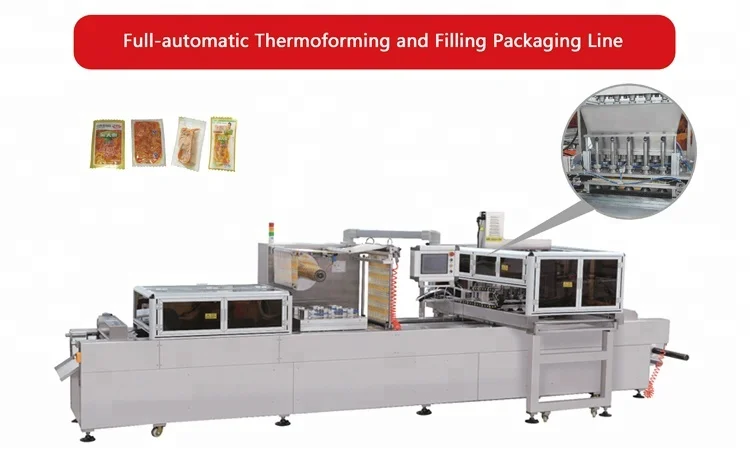

Thermoforming Vacuum Skin Packaging Machine

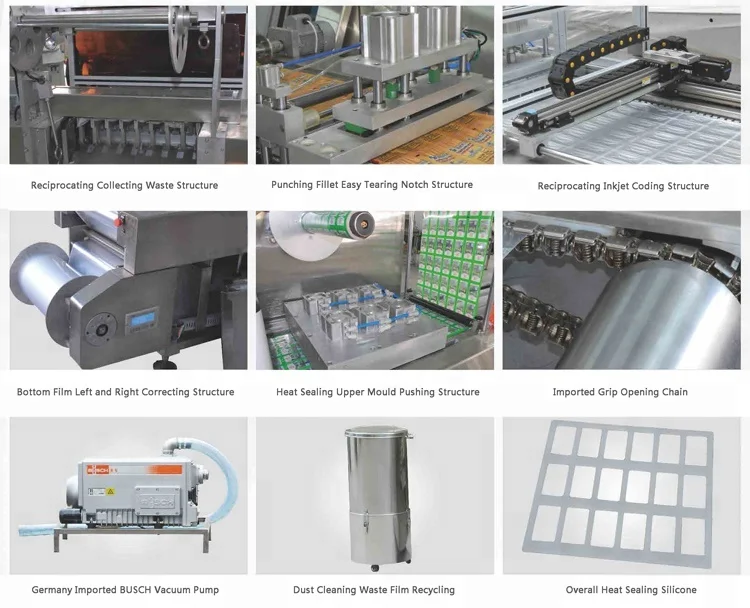

Detail Image:

Thermoforming Vacuum Skin Packaging Machine With Detail Image

Other Series Skin Packaging Machine

Full-automatic Single-Faced Thermoforming Vacuum Packaging Machine

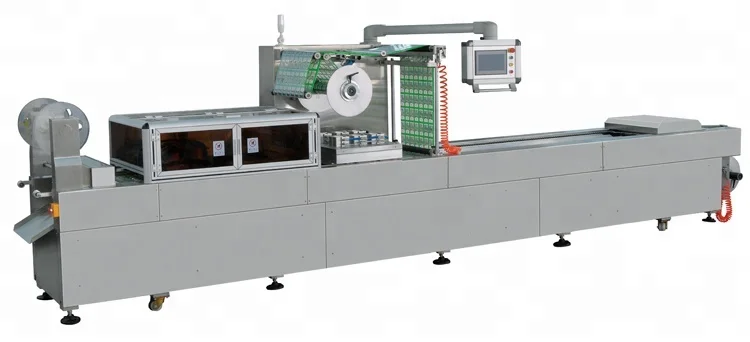

Full-automatic Thermoforming and Filling Packaging Line


Main Functions And Features:

1.Combined with automatic filling machine according to different products;

2.Main process: top and bottom film forming, automatic products feeding, automatic oil feeding, vacuuming, sealing, inkjet coding, cutting and discharging;

3.Easy to operate: PLC controller, HMI system for easy operation;

4.High efficiency: more than 6000bags/hour by two operators (Ref. 100*70mm bag);

5.Easy to clean: 304 Stainless steel, and the filling machine can be moved separately for wash-down;

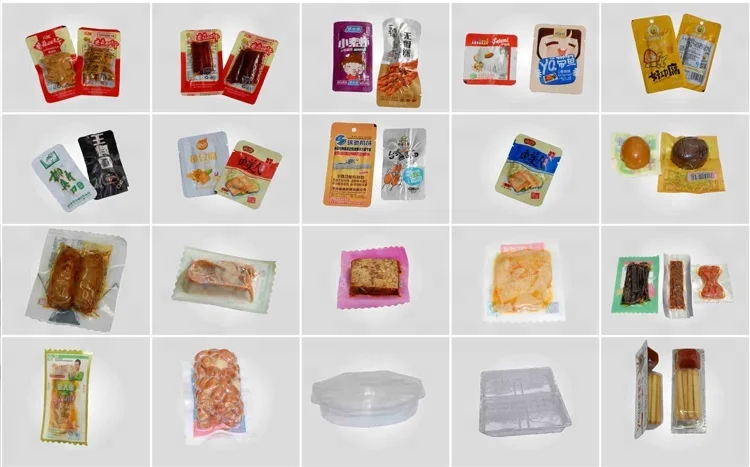

Thermoforming Vacuum Packaging Machine With Sample

For more information, please click.CONTACT US >
Product Category
rotary packaging machine

PRODUCT
CATEGORIES

RZ8-200C Packaging Machine
C
D
S
Pouch Pick Fill Seal Machine
Packaging line
Automatic Vacuum Machine
EOE Machine
→ VIEW ALL
RZ8-200D Packaging Machine
RZ8-150S Packaging Machine
RZ8-300C Packaging Machine
RZ8-350 Packaging Machine
Company Information

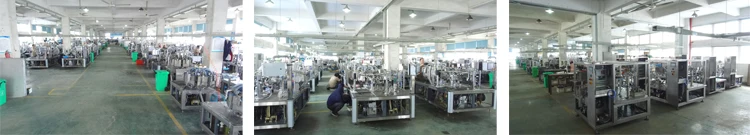

OUR FACTORY




Ruian Unionpack International Trading Co., Ltd.

Unionpack, as a professional overseas sales and service team for REZPACK who is one of China’s preeminent packaging machinery manufacturers, with more than two decades of experience in packaging machinery industry, our machine have been delivered to over 3 0 0 0 companies in 3 0 countries. Our partners and technical consultants can be found in Europe, America and Southeast Asia, bringing us techniques and expertise from all over the world. Rezpack is certified to I S O 9 0 0 1 and CE standards, and have obtained more than 2 0 0 patents.

Home to over 2 0 0 talented employees, and the workshop spans 7 0 0 0 square meters, we can produce 1 5 0 diverse sets of packing equipment in one month. Every machine is made based on customer’s requirements and carefully debugged before shipping. Our R&D team is comprised of more than 3 0 people, to develops new equipment to keep up with ever changing technology and market demands. Besides, we have a professional after-service team, comprised of 2 0 people, who can provide one-to-one video calling, door-to-door service, as well as free technical training for our partners.

We do not only produce pouch packaging machine, thermoforming packaging machine but also cooperate with 1 5 professional factories to supply whole packaging solution.

Out target is to create the extra value for our customers. The Customer is our Partner!

Ruian Unionpack International Trading Co., Ltd.
