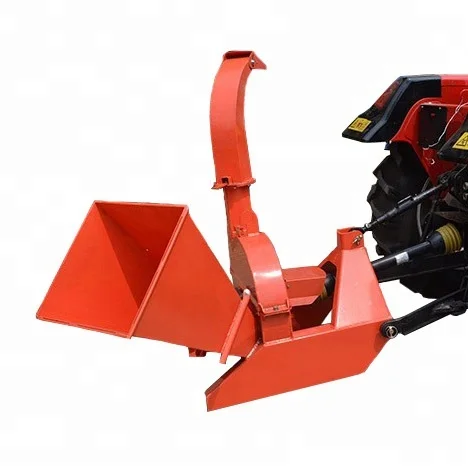

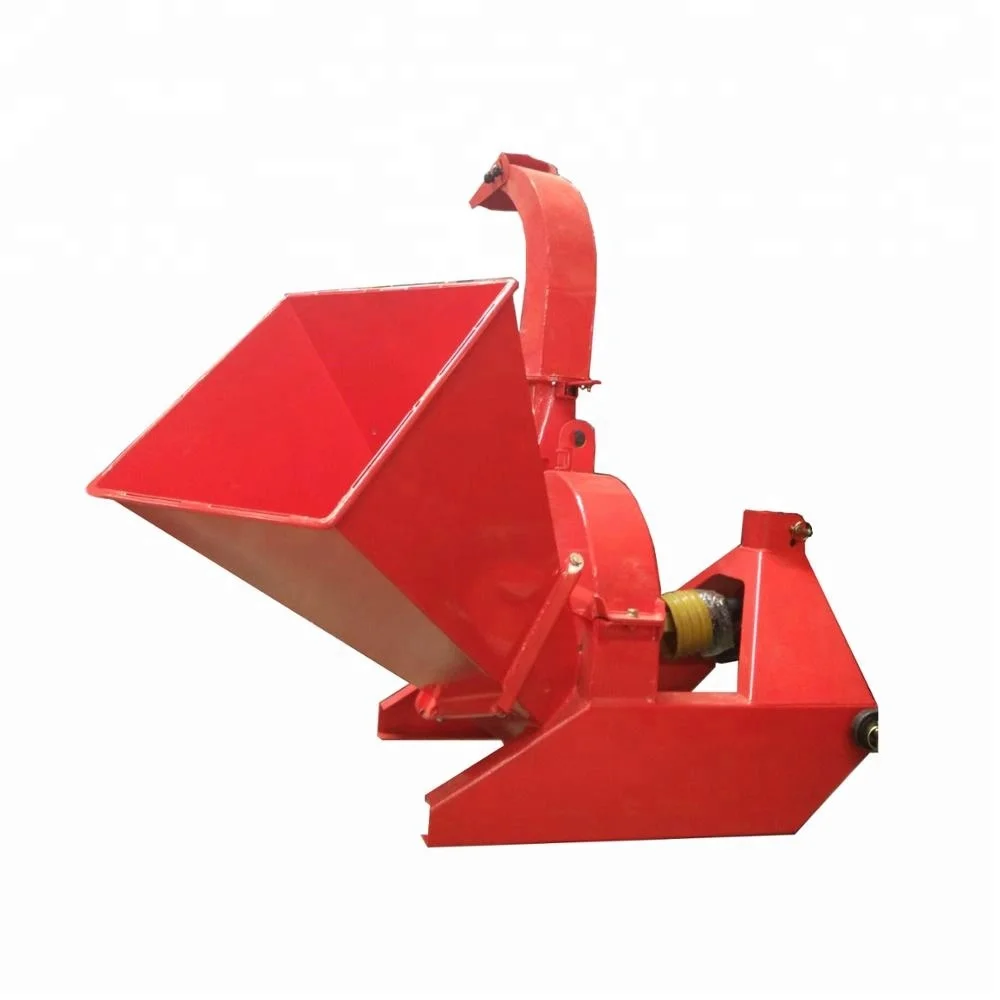

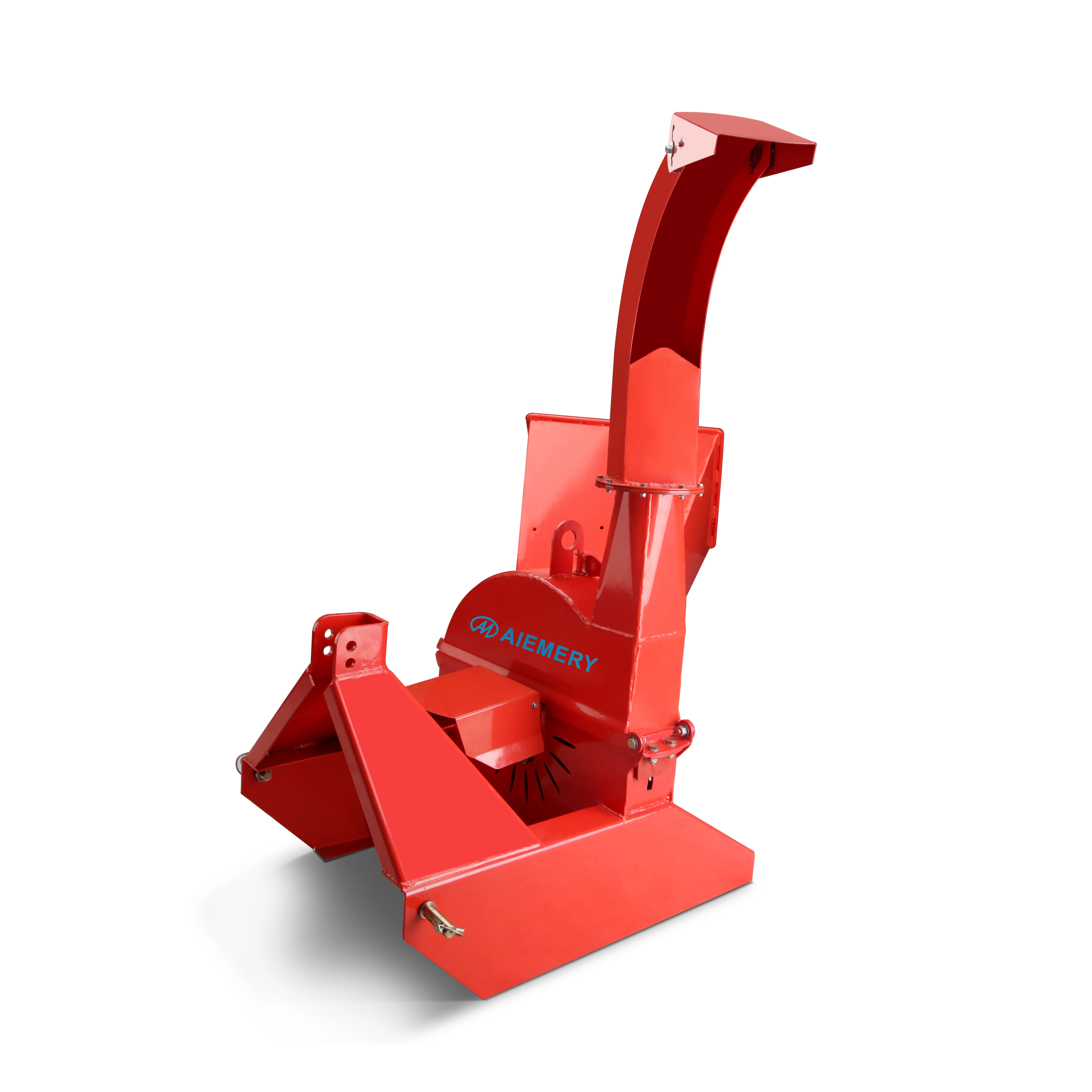

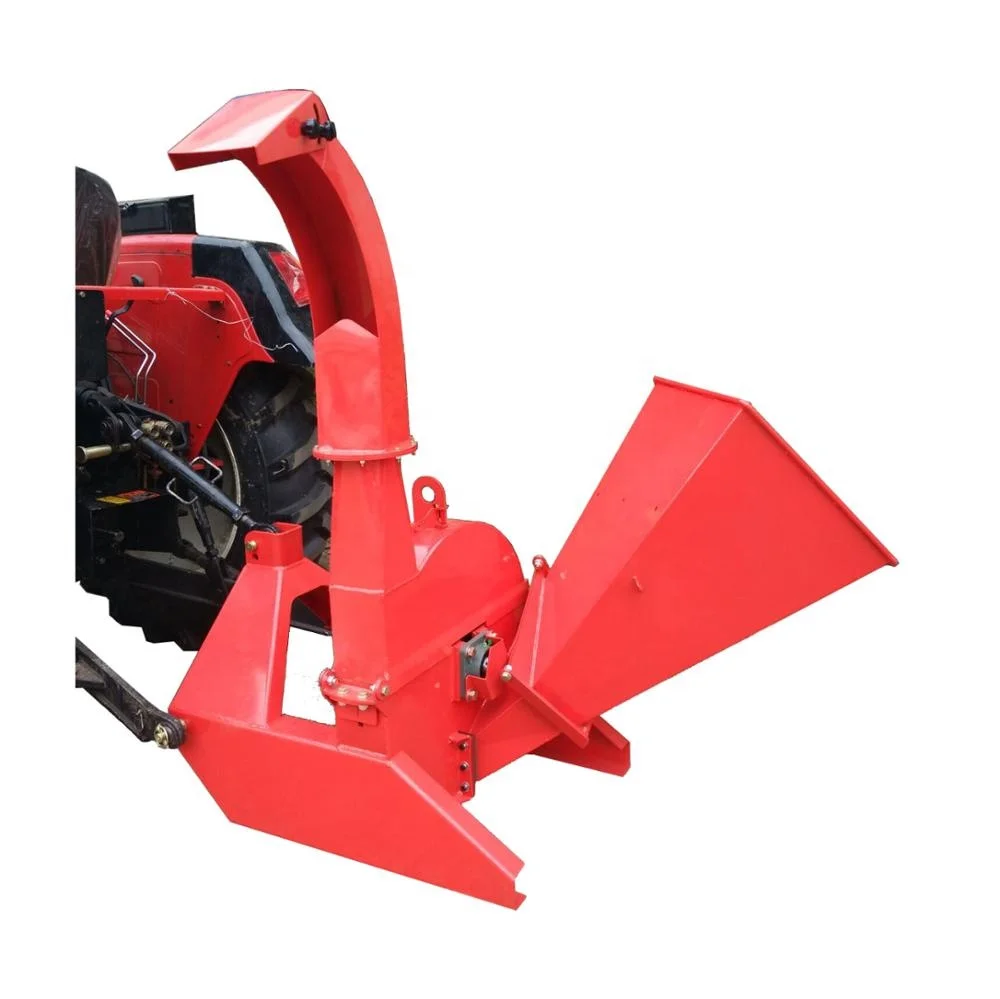

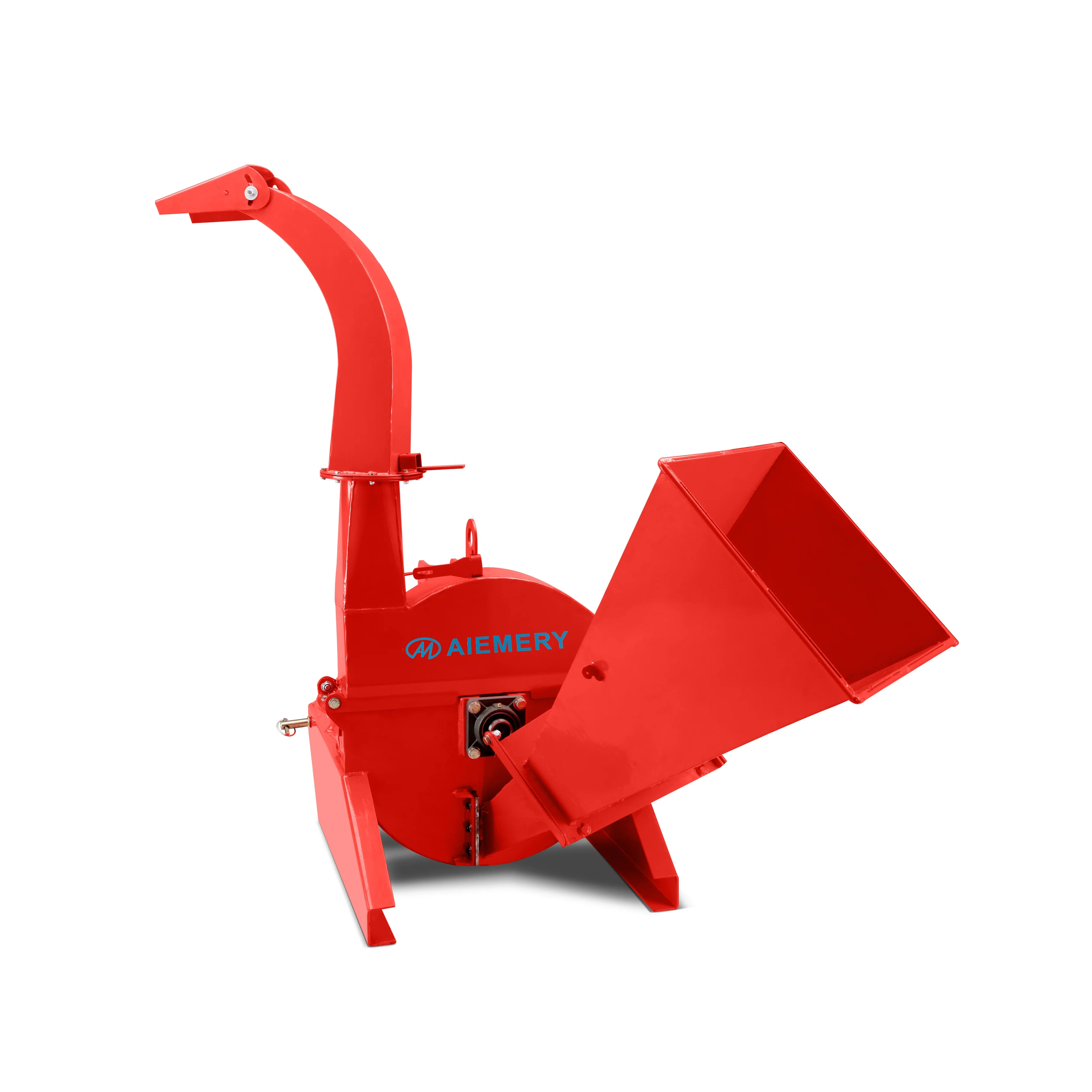

3 point PTO driven wood chipper BX42 for sale
- Category: >>>
- Supplier: Changzhou Aiemery Agri-Machinery Co. Ltd.
Share on (60803739710):
Product Overview
Description
Product DescriptionProduct BX42 Wood chipper
Product BX42 Wood chipper
1.Three point hitch wood chipper
2.CE approved
3. It's optional for shear bolt PTO and clutch PTO
NOTE: The price above is only for reference, please contact us for detailed price.
The color can be made to order, we usually suggest Green, Red and Aiemery Orange as below.
| Model | BX42(S) |
| Chipper Capacity | 100mm/4" |
| Chipper Housing Opening | 4"x10" |
| No.of Knives | 4 |
| Rotor Size | 25" |
| Feeding System Feed | Manual Feed |
| Hopper Folded | 40"Lx42"Wx60"H |
| Hopper Opening | 20"x20" |
| Mounting System | 3 Point Hitch |
| Discharge Hood Rotation | 360° |
| Discharge Hood Height | 60" |
| Structure Weight | 195kg |
| Tractor HP | 18-30hp |
CE Certifications
Detailed Images
Machine Parts

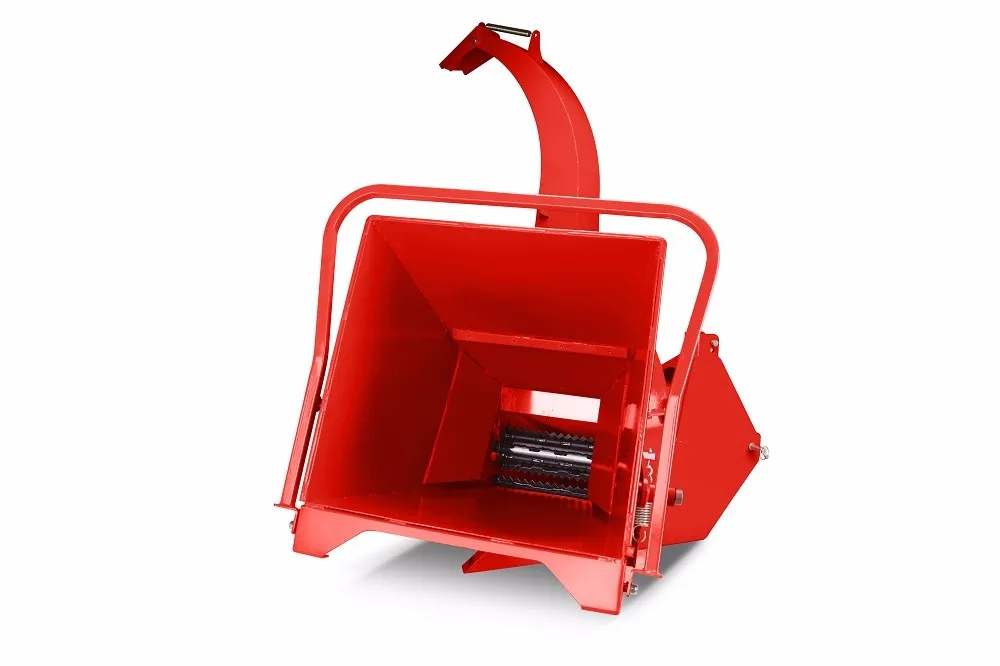

Name: Feeding inlet
Original: China
Put the wood in the feeding inlet, the rubber cover can prevent small branches from flying out.
Main Features
Name: Fly wheel
Original: China
There're four working blades on the fly wheel, one fixed bade on the machine hood.
Machine Parts
Name: Discharge outlet
Original: China
The discharge outlet can be rotated 360 degrees which makes it convenient to collect the wood chips.
Main Features
Name: Shear bolt PTO shaft
Original: China
The wood chipper use 04B 1000 PTO transmission shaft with shear bolt PTO shaft which can prevent the machine from damage when working load is heavy. Clutch PTO is also optional.
Our Service
After-Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Video of testing.
* View our Factory.
After-Sales Service
*12 months warranty.
* Engineers available to service machinery overseas, spare parts available.
Packing & Delivery
| Packaging | |
| Size | 104(L) * 88 (W) * 100 (H) cm |
| Gross Weight | 225kg |
| Packaging Details | The package is steel crate (Size: L*W*H). Two steel crates pile up together in both 20ft container and 40ft container. |

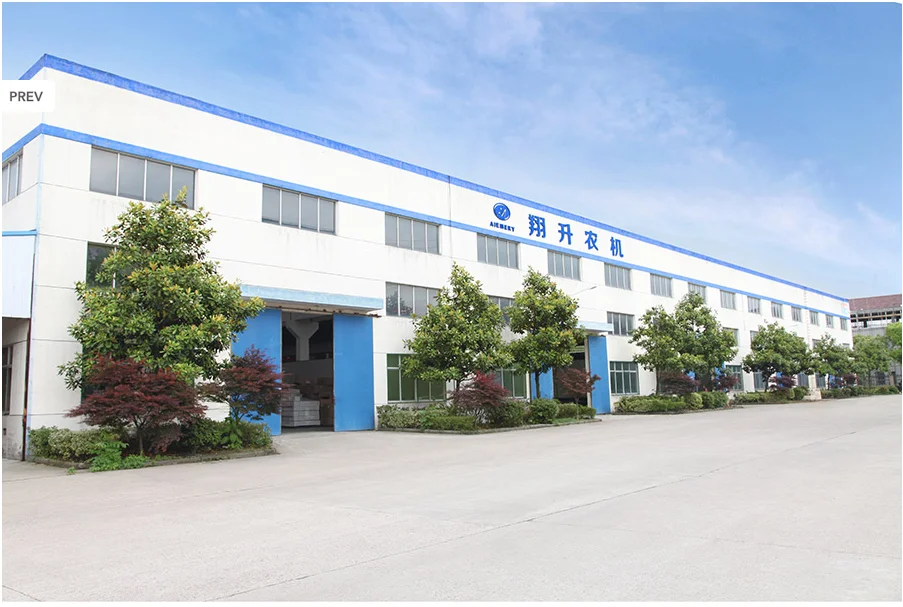

Our Company
Aiemery Agri-machinery
Located in Changzhou City, 2 hours reach to Shanghai by car. We are a professional manufacturer of a variety range of agricultural implements, such as all kinds of Mowers, Rotary tiller, Wood chipper,Post hole digger and so on.
Our company is established in 2010, since then we have passed CE test. We have our own brand, also OEM accepted. In the past few years, we have established a good work team. We have several engineers and quality inspectors with more than 10 years' experience in this area. We will strictly abide by the principle of "client interests above all else". We are strict with our quality, we will inspect material, productive process and product carefully. Now our products are exported to global markets
such as the North American, Europe, Australian, and South American etc. Consequently, we have built long term business relationships with customers from all over the world.
Providing Quality Products, Excellent Service, Competitive Prices and Prompt Delivery', we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more information.
High Quality
In the past few years, we have established a good work team.
We have several engineers and quality inspectors with more than 10 years' experience in this area.
We are strict with our quality, we inspect material, productive process and product carefully.
FAQ
1.Sample test
It's OK for sample test, and you can place a small order for testing.
2.Do you have after-sales service?
Yes, all of our products have 12 month quality assurance to make sure that we supply you the best quality.
3.Can you print my brand name on it?
Yes of course,you just need to send us the picture of your brand.
4.What's your payment term?
Usually 30% T/T deposit once place an order and sign a contract, 70% balanced before shipping or against copy of B/L.
5.Can I mix different models together?
Yes, you can mix different products or models in 1x20ft or 1x40ft container and we will make the best use of the container room.
6.Are your agri machines fit for other brand tractors?
Our 3 point system and PTO shaft are designed according to international standards and will accept all class 3 point implements.
