Npack 10 Nozzle High Speed Servo Motor Driven Piston Automatic 100ml 1l Fruit Jam Jars Filling Machine with Aseptic Filling
- Category: >>>
- Supplier: Shanghai Npack Automation Equipment Co. Ltd.
Share on (60803759233):
Product Overview
Description

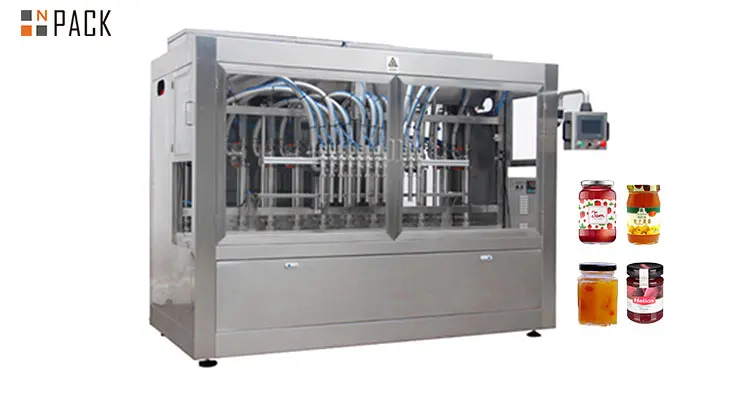

NP-VF AUTOMATIC Jam FILLING MACHINE
Jam filling machine is a kind of automatic filling machine developed for jam, The machine adopts volumetric piston pump to perform filling, long service life, high temperature resistance, acid and alkali resistance. The machine integrates machine,electricity and gas. It can be matched with bottle unscrambler machine, vacuum capping machine, automatic labeling machine and bottle collecting machine to form a jam production line. It has high degree of automation, reasonable structure, small floor area, stable and reliable operation and low failure rate, High technology content, suitable for filling sauce products, is a very powerful sauce filling machine equipment
1. Equipped with horizontal mixing hopper, double screw forward and reverse mixing, the mixing time can be set freely, which can ensure the material uniformity and no oil sauce separation in the filling process to ensure the filling accuracy of each bottle.
2. The design of the equipment greatly shortens the filling distance from the hopper to the filling head, and overcomes the shortcomings of large filling error in the filling process, such as less bottle jam and more bottle jam.
2. The design of the equipment greatly shortens the filling distance from the hopper to the filling head, and overcomes the shortcomings of large filling error in the filling process, such as less bottle jam and more bottle jam.
Model | NP-VF-2 | NP-VF-4 | NP-VF-6 | NP-VF-8 | NP-VF-10 | NP-VF-12 | NP-VF-16 | ||||||
Heads | 2 | 4 | 6 | 8 | 10 | 12 | 16 | ||||||
Range | 100-500ML,100-1000ML,1000-5000ML | ||||||||||||
Capacity base on 500ml | 12-14 bpm | 24-28 bpm | 36-42 bpm | 48-56 bpm | 60-70 bpm | 70-80 bpm | 80-100 bpm | ||||||
Air Pressure（mpa） | 0.6 | ||||||||||||
Accuracy（%） | ±0.1-0.3 | ||||||||||||
Power | 220VAC SINGLE PHASE 1500W | 220VAC SINGLE PHASE 3000W | |||||||||||
Main Features
1.PLC control, operation on touch screen
2.Panasonic servo motor driven , automatic adjust the Filling size on HMI, eg. Users want
To fill 500g tomato paste, users just input the number 500, then the machine will automatic adjust
3.It is volumetric by piston, high filling accuracy
4.With top Double jacketed heating and mixing tanks which will prevent the tomato paste crystallization after stop working one day or more days
5.The automatic tomato paste filling machine also can has the function by CIP system which will connect the users CIP system
6.The horse of the tomato paste filler are specially made according to the tomato paste nature, no dead corner, food grade
7.The soft tubes or pipes on the tomato paste filler are adapt world brand Toyox from japan
8.Specially made rotary valve for viscous tomato paste transfer
2.Panasonic servo motor driven , automatic adjust the Filling size on HMI, eg. Users want
To fill 500g tomato paste, users just input the number 500, then the machine will automatic adjust
3.It is volumetric by piston, high filling accuracy
4.With top Double jacketed heating and mixing tanks which will prevent the tomato paste crystallization after stop working one day or more days
5.The automatic tomato paste filling machine also can has the function by CIP system which will connect the users CIP system
6.The horse of the tomato paste filler are specially made according to the tomato paste nature, no dead corner, food grade
7.The soft tubes or pipes on the tomato paste filler are adapt world brand Toyox from japan
8.Specially made rotary valve for viscous tomato paste transfer

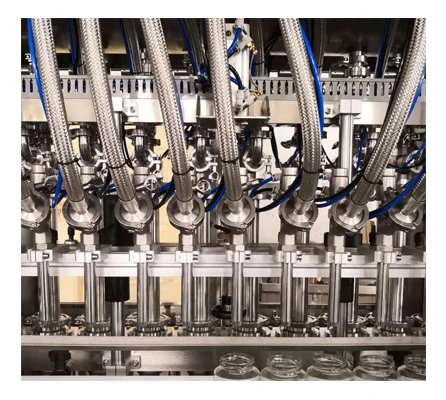

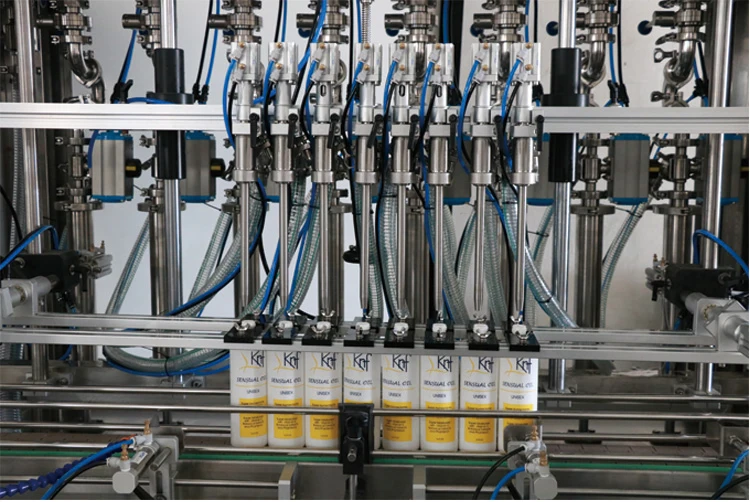

High Pressure Endure SS Hose and Sanization Filling Head
1.Food grade 304ss hose
2.Shut off filling heads
3.With drop collection tray
4.High filling accuracy
5.Diving Nozzles are optional for bubble sauce,like honey
6.304SS Food contruction,no dead corner
7.High quality and food grad O rings and seals inside of the nozzles

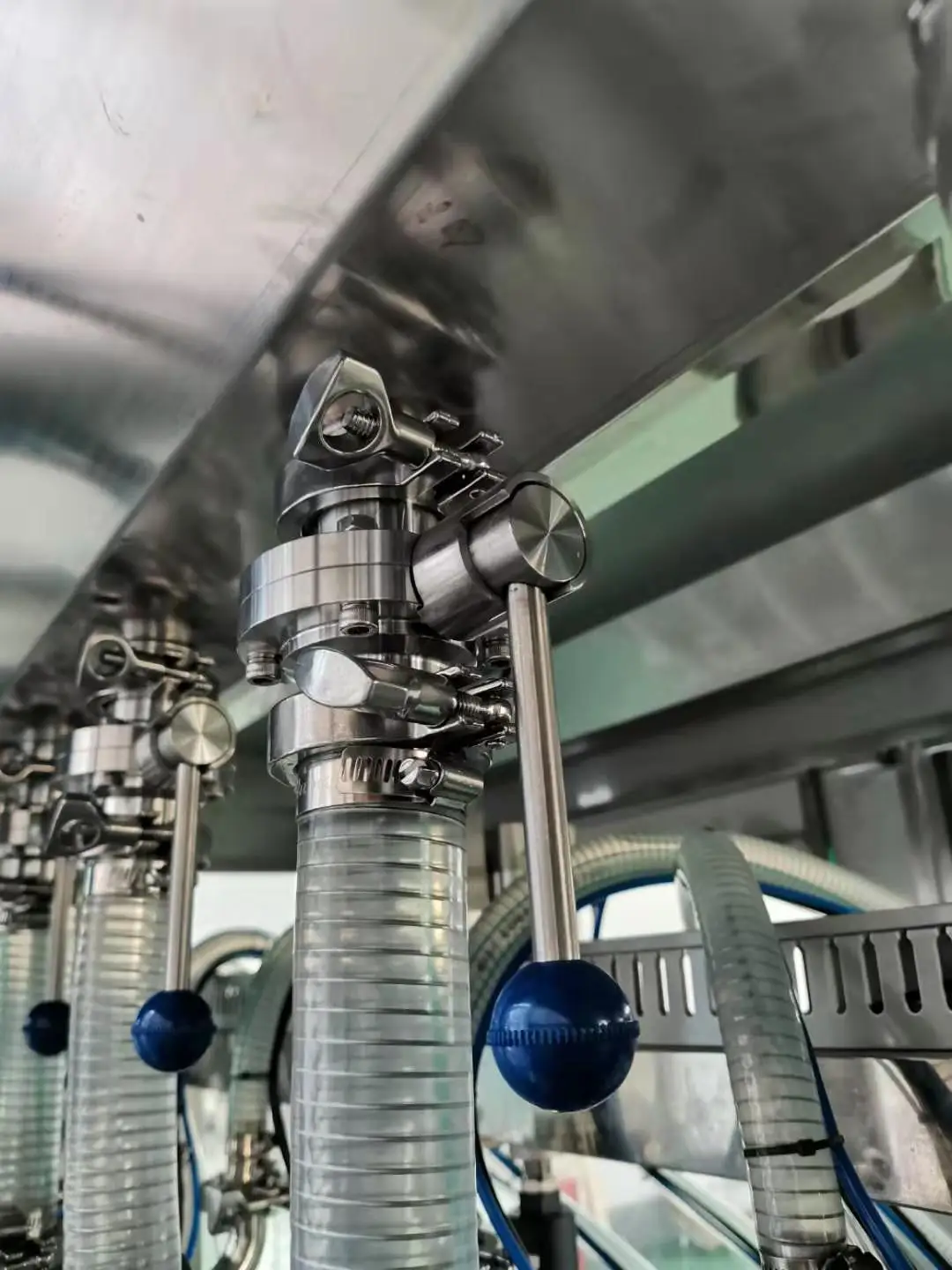

ESG Valve
1.Easy disassembly three way connectors, No dead corner
2.ESG long life valve and high performace
3.ESG valve to gurantee the shut off accuracy and more stably, and no dead corner
4.Sutiable for thin to viscous liquid and Sauce

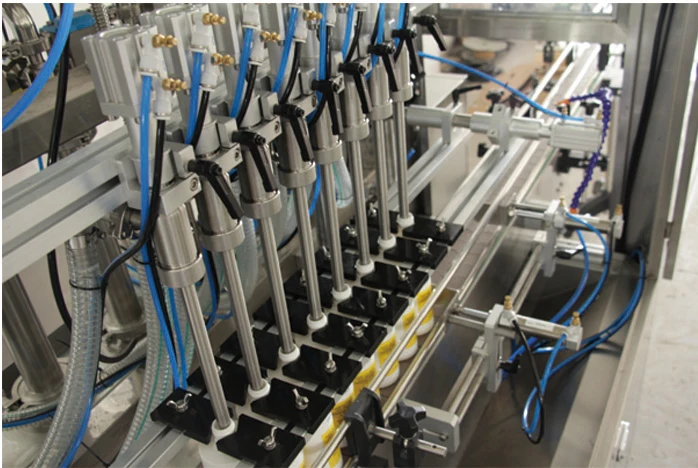

Tools Free Adjustment System
1. No need tools adjustment for different size of bottles
2. All adjustment parts with measurement and easy for record
3.Filling nozzles are easy for moving right and left for the slider system
4.Adjust the Filling Volume by one touch and operation by touch screen
High Quality Hose
Adapt world top brand of hose,such as TOYOX.
hose characteristics:
With stand pressure
With SUS316 reinforced coil and special reinforced structure, it has excellent stereotypes and is suitable for pressure and vacuum conveying
High heat resistance
It can withstand high-temperature fluids within 150 ℃, and can be used to clean the inside of food hoses and the floor (conditional restrictions)
With stand pressure
With SUS316 reinforced coil and special reinforced structure, it has excellent stereotypes and is suitable for pressure and vacuum conveying
High heat resistance
It can withstand high-temperature fluids within 150 ℃, and can be used to clean the inside of food hoses and the floor (conditional restrictions)
No Dead Corner Top Tank.
1.The top tank is with round or semi round design no dead corner, more easy Cleaning
2.Double jacket hopper optional
3.Mixing system optional
4.CIP system optional
5.304SS constuction material, 316SS for option
6.Mixing and heating fuction for potion

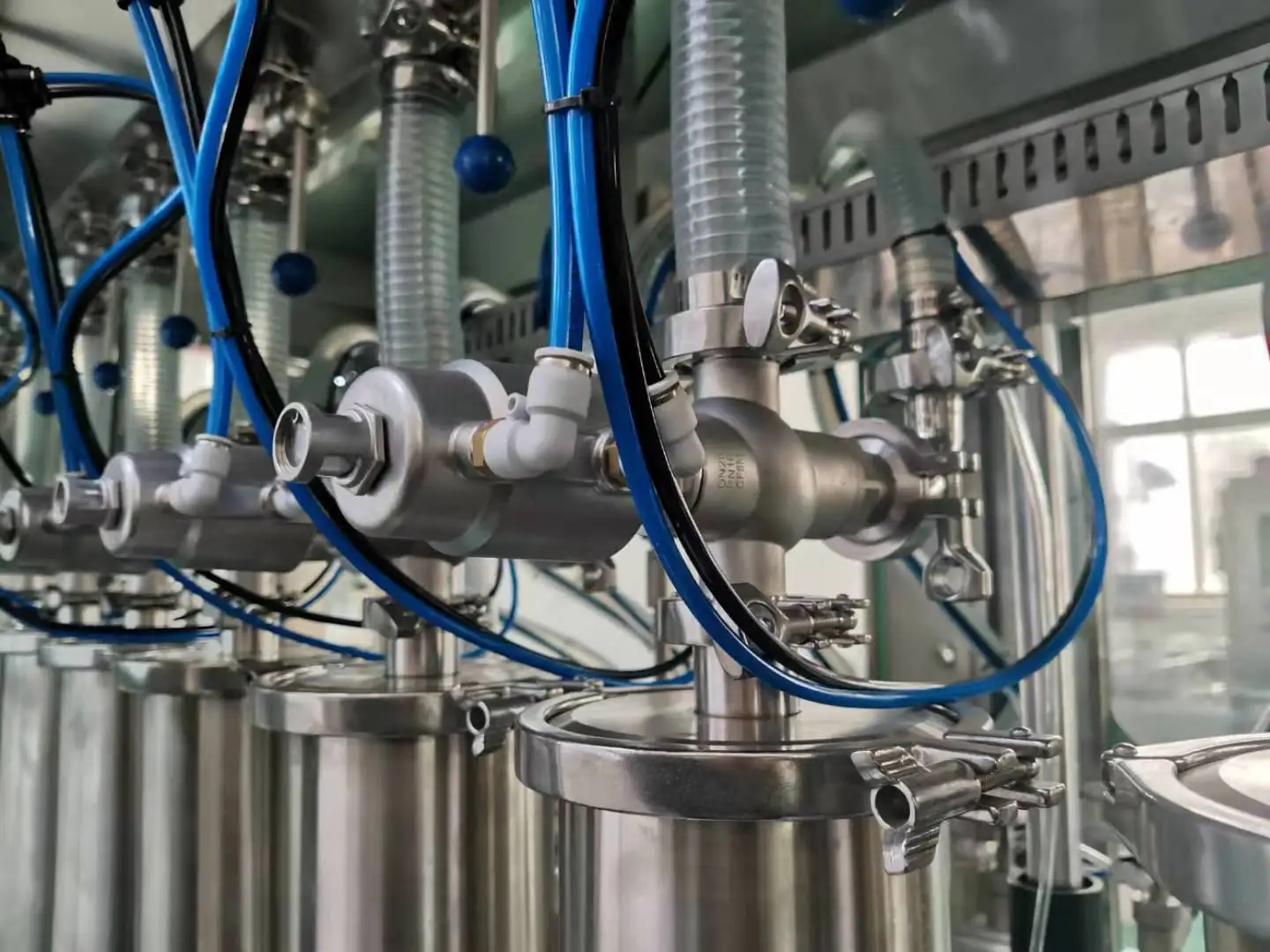

Automatic Piston Take Off
1.Easy cleaning
2.No need tools to clean the pistons which gurantee the food grade,save time and labor.
3.CIP system is for option
Latest new technology Piston Servo Driven system
Use the Panasonic A6 series servo motor driven the piston moving, More compact, more faster and more easy to adjust the filling volume.
Control system
Using the Schneider PLC control and touch screen to guarantee the system more stable. PLC provide multiple device or cloud connections, safety, security and flexibility.Schneider Electric PLCs, PACs and dedicated controllers are easy to program, commission, maintain and IIOT ready.Control system
Using the Schneider PLC control and touch screen to guarantee the system more stable. PLC provide multiple device or cloud connections, safety, security and flexibility.Schneider Electric PLCs, PACs and dedicated controllers are easy to program, commission, maintain and IIOT ready.
Using the Schneider PLC control and touch screen to guarantee the system more stable. PLC provide multiple device or cloud connections, safety, security and flexibility.Schneider Electric PLCs, PACs and dedicated controllers are easy to program, commission, maintain and IIOT ready.
