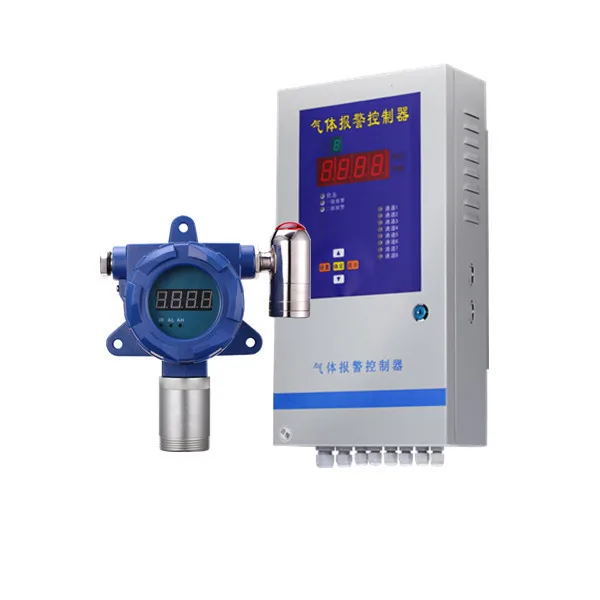

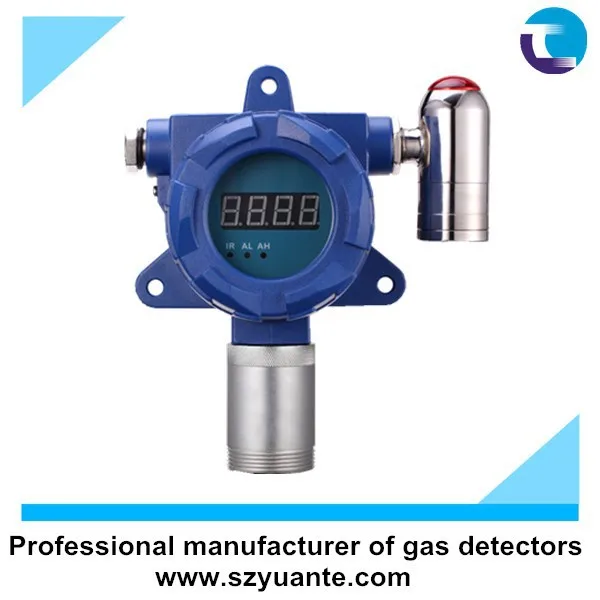

Fixed Wall mounted 0 30%VOL O2 Oxygen Sensor for Industry Use with CE, ATEX, EMC, ISO9001 certificates
- Category: >>>
- Supplier: Shenzhen Yuante Technology Co. Ltd.
Share on (60803764972):
Product Overview
Description
Characteristics & Functions
1. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system, can be remote monitored.
2. Explosion-proof design, fast, reliable and stable. Explosion-proof grade: Ex dⅡCT6
3. With self-calibration function, and three standard keys will be used to realize on-site maintenance.
4. Monitor the oxygen concentration in environment or pipeline and alarm.
5. Two-stage alarm with sound and light, alarm point is settable.
6. Infrared ray controller can remote control alarm point settings, zero calibration, and address modification.
7. Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices.
Specification
Gas Detected | oxygen/O2 | ||
Detection principle | Electrochemistry | ||

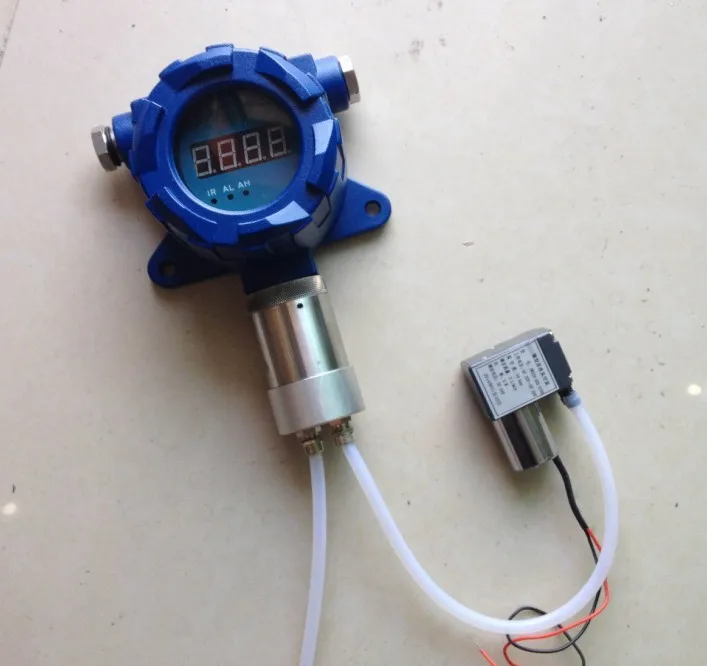

Install Method | Wall-mounted, piping type, flow-type(according to the detected environment) | ||
Measure Range | 0-5%,0-25%,0-30%,0-100%VOL(optional) | ||
Resolution | 0.01%VOL | ||
Precision | ≤± 5% F.S. | ||
Signal Output | 4-20MA, RS485, relay | ||
Response Time | ≤10S | Recovery Time | ≤10S |
Repeatability | ≤±1% | Linearity error | ≤±1% |
Zero shift | ≤±1%(F.S/year) | Display | High light nixie tube display |
Connection mode | G1/2 external thread explosion-proof flexible pipe | Thread size | M45*2mm |
Temperature | -20℃~50℃ | Humidity | 0-95%RH |
Explosion-Proof | Ex dⅡCT6 | Degree of protection | IP65 |
Power | 12-36V DC | Operating time | 24h |
Dimensions | 180*150*90mm | Weight | ≤1.6kg |
