ANSI Steel Rivet Nuts Galvanized Knurling Serrated Flat Head
- Category: Rivets >>>
- Supplier: Dongguan Vedali Hardware Co. Ltd.
Share on (60803777605):
Product Overview
Description
ANSI Steel Rivet Nuts Galvanized Knurling Serrated Flat Head
Product Description

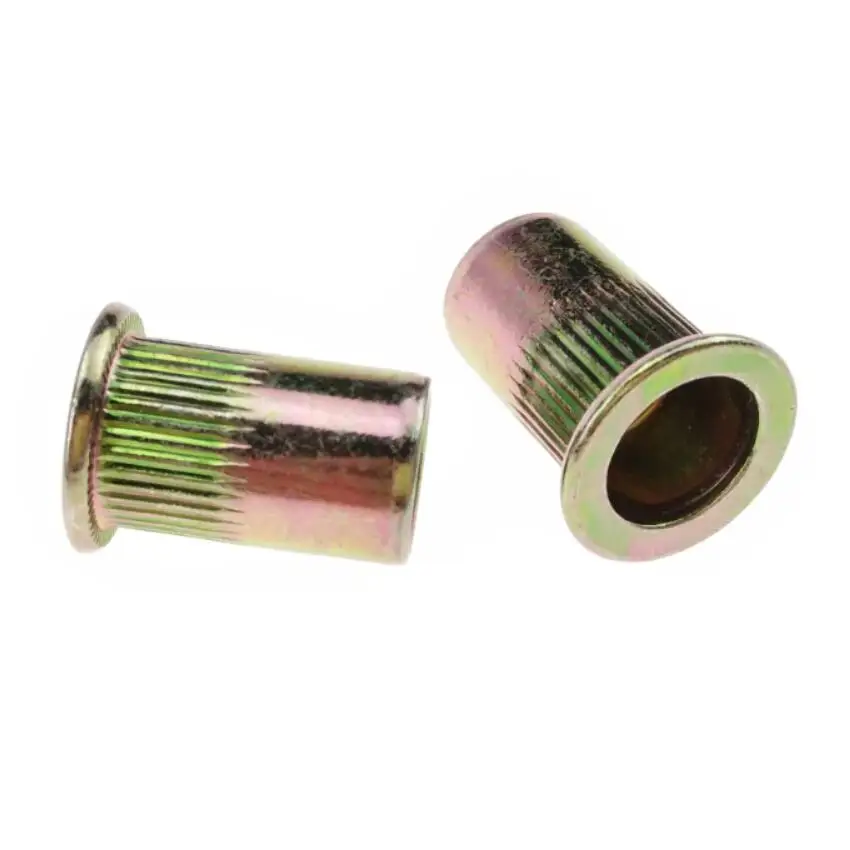

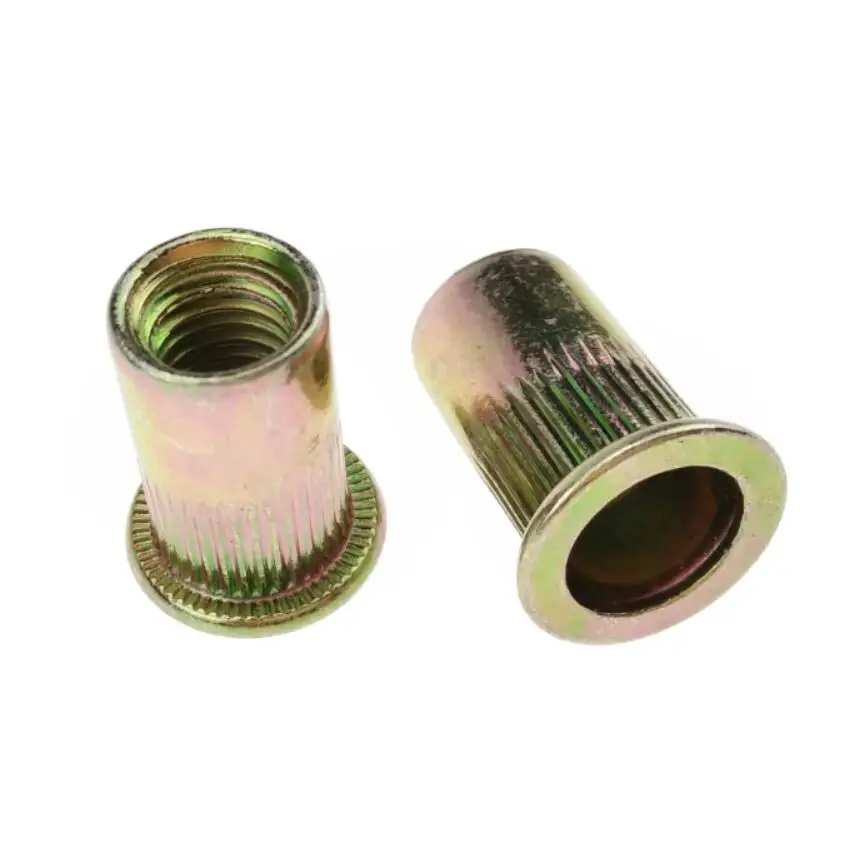

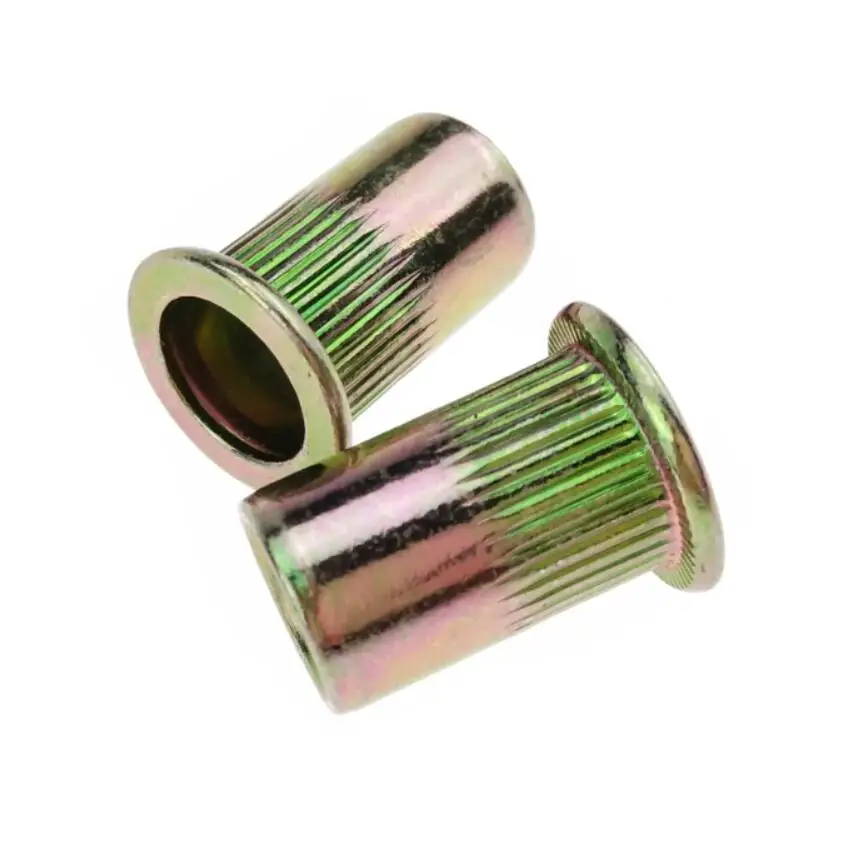

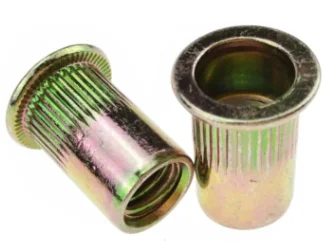

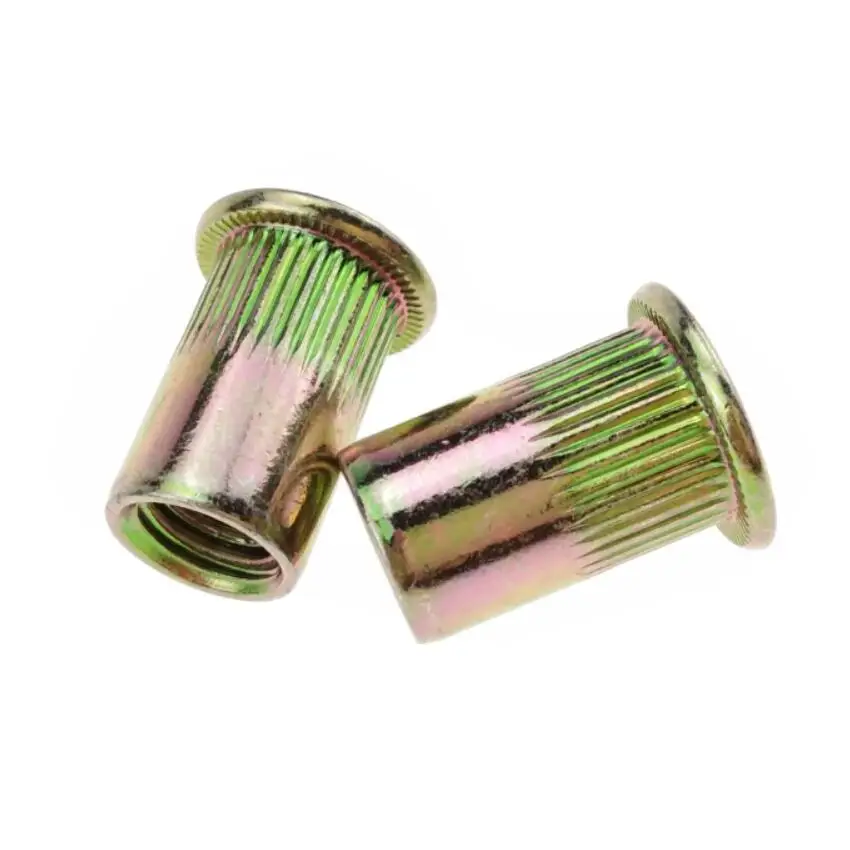

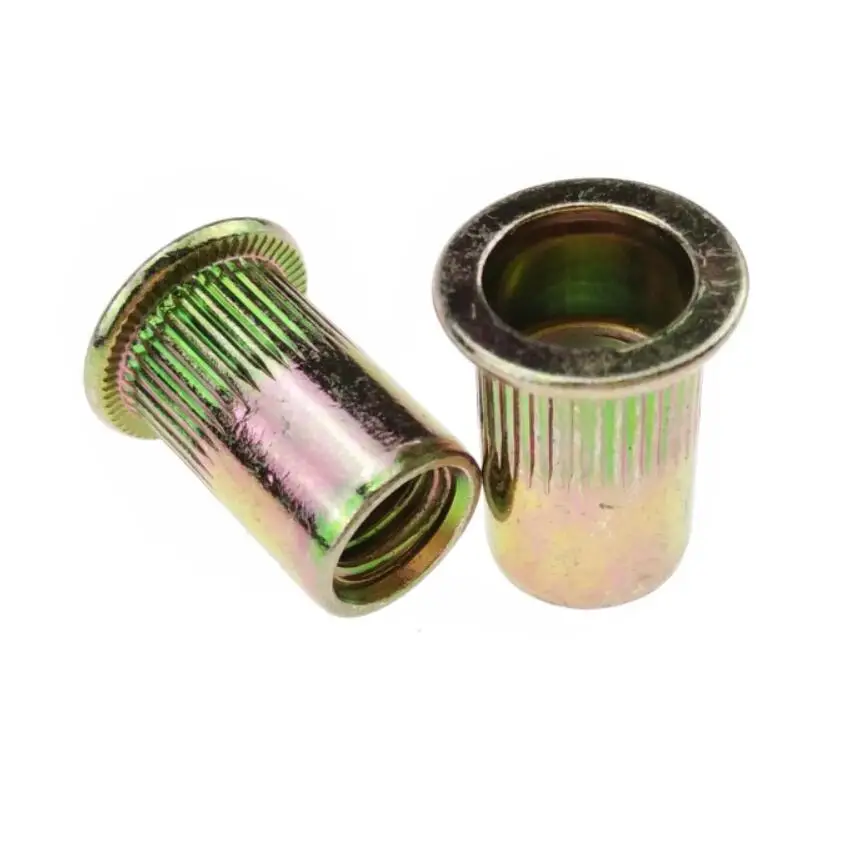

Rivet nuts are also named inset nuts , blind rivet nuts etc , made from carbon steel with yellow zinc plated , Flat flange head and shaft body and a straight knurled neck under head for tight installation .
Steel rivet nuts with partial female threads and shaft insdie hole from top head to middle of shaft .
Technical Data
Items | Description | Remark | Picture |
Material | Steel | 4.8 |
|
Finish / Plating | Zinc |
| |
Hardness | 18 | HRC | |
Tensile Strength MPA | 450 |
| |
Standard | Custom |
| |
Dimensions | Thread | 5/16 | |
Length | 3/4 | ||
Head diameter | 0.61 | ||
Tolerances mm | +/-0.02 | ||
Product Features
1 . Harden material
Carbon steel rivet nuts with good ductility and hardness ups to HRC 20
2 . Resistant corrosion
Rivet nuts are plated in clear trivalent yellow zinc .
3. Perfect security design
Straight knurling neck for good anti-loose .
4 . Standard dimensions .
5 . Free from burrs or scratch .
6 . Not easy to be broken .
Tips for application
1 . Installed by special riveting gun ..
2 . ANSI threads for threads
3 . Thickness of riveted parts can not over max riveted thickness of rivet nuts .
Product Application
Carbon steel rivet nuts are generally used to rivet heavy duty applications in various industrial areas .
How we pack
Normal packing
1. In bulk : Polybag ( 1-5 kgs) and cartons (8-20 kgs ) , 0.01 CBM / CTN
2. Boxes : Box ( 1-3 kgs) and cartons ( 5-15 kgs ) , 0.01 CBM / CTN
3. All cartons to a pallet ( 1X1.2 m )
4. Customized packing |  |
Note : Objects showed in picture are only for reference , not stand for described items .
Optional Products
We manufacture various hardware parts , you can find and click following descriptions to see more items .
Screws
| Various standard and non-standard fastener screws with qualified materials for different applications . |
Nuts and bolts | High tensile strength bolts nuts for engineering projects . |
Washers and spacers | Different materials washers and spacers for mechanical and clectronic parts |
Fastener Pins | Precise mechanical tolerances and good quality for industry . |
Plastic Parts | Customized manufacturing service and top materials for communication and electronics and auto etc . |
Quality Guarantee
Precise testing equipments and tools for hardness , dimensions , corrosion resistance and pass rate etc . our tolerance for tools is up to 0.005 mm . | All products are compliance with RoHS and REACH standards | |
| |
|
| |
|
Note : We are available for customized requests on quality
| ||
Production Capacity
Stamping parts with complicated designs , min. tolerances to 0.01mm (0.0004 inch ) , monthly capacity ups to 100 tons .
Availabe material : 1. Carbon steel 2. Brass 3. Aluminum 4. Stainless steel 5. Plastic 6. Various alloy steel eg. titanium alloy . |
|
 | Precise turning machines and CNC , tolerances are up to 0.01 and 0.008 mm for limitaiton . 5 million pcs monthly capacity .
Availabe material :
1. Carbon steel 2. Brass 3. Aluminum 4. Stainless steel 5. Plastic 6. Various alloy steel eg. titanium alloy .
|
Assorted fastener machines to make different screws , bolts , nuts and pins etc . Diameter from M0.8 to M30 . Monthly capacity ups to 300 tons .
Availabe material : 1. Carbon steel 2. Brass 3. Aluminum 4. Stainless steel 5. Plastic 6. Various alloy steel eg. titanium alloy . |  |
Warm Tips
If you are interesting in flat head flange nut rivets , please contact us via email or phone , we will get back to you within 12 hours , Thank you !
