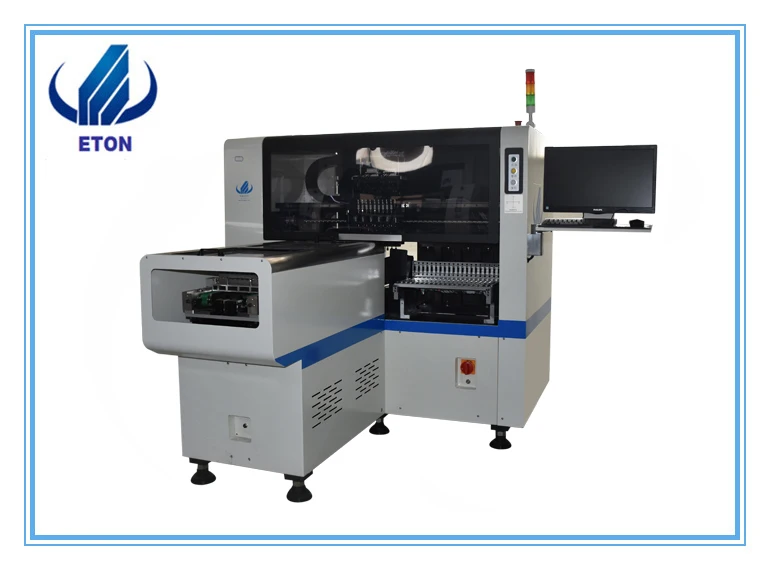

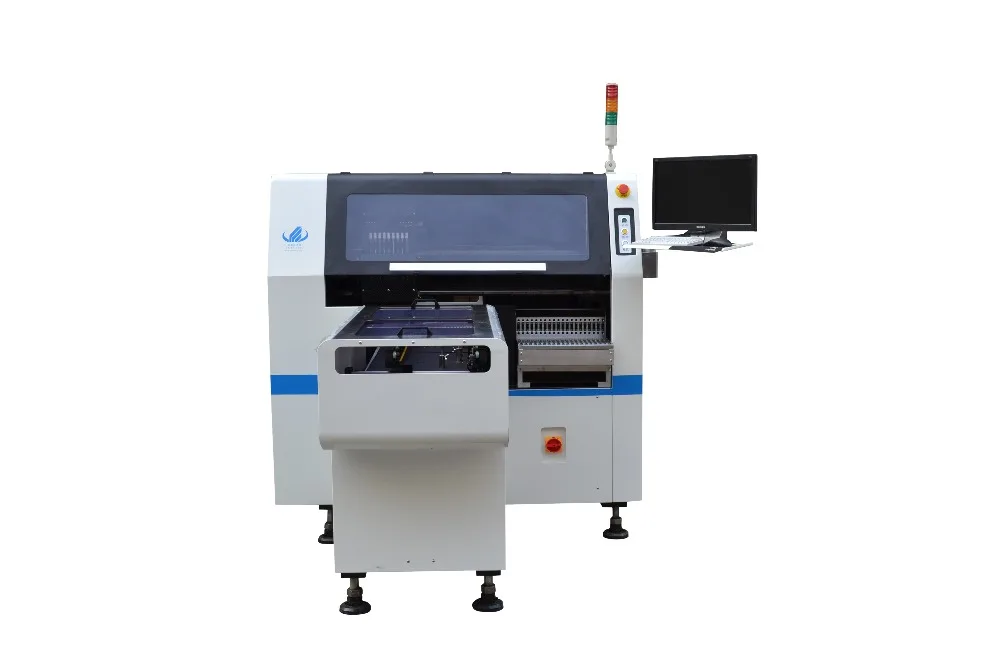

high capacity Automatic SMT Pick and place Machine led bulb making machine
- Category: >>>
- Supplier: Shenzhen Eton Automation Equipment Co. Limited
Share on (60803955629):
Product Overview
Description

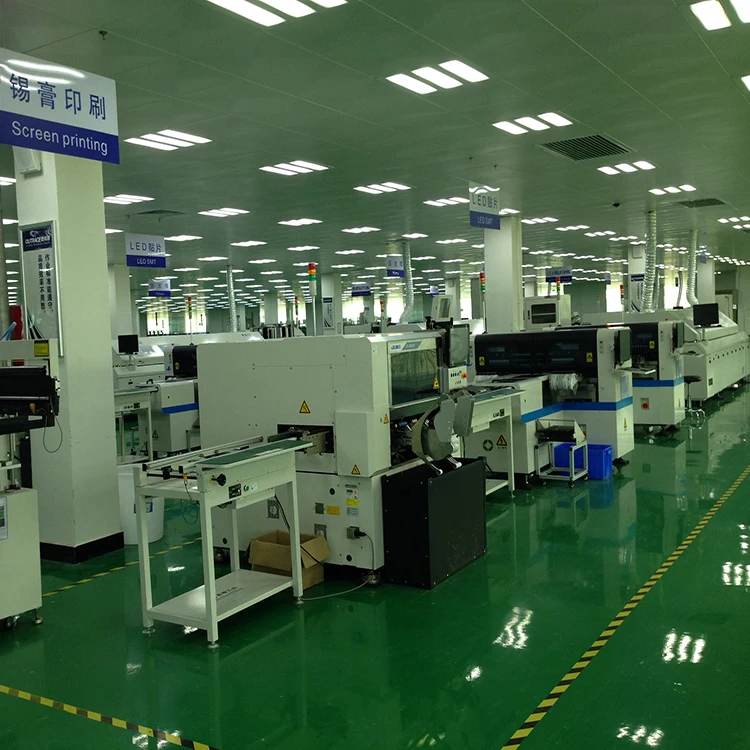

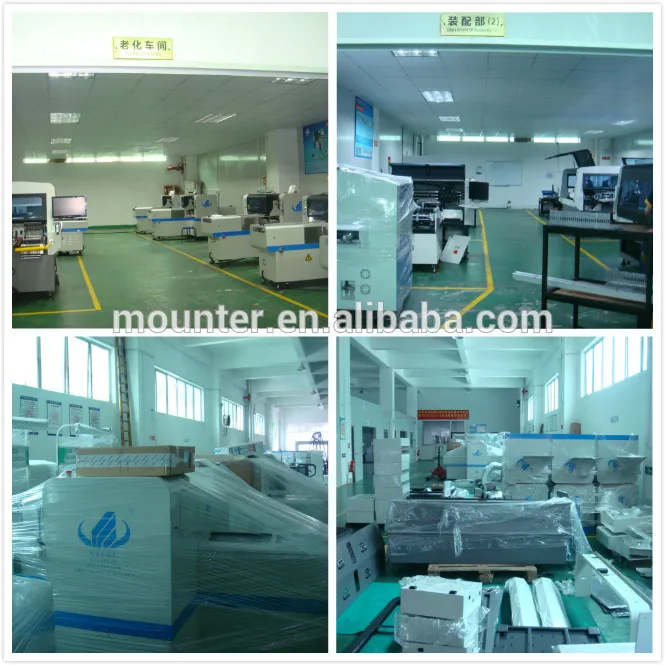

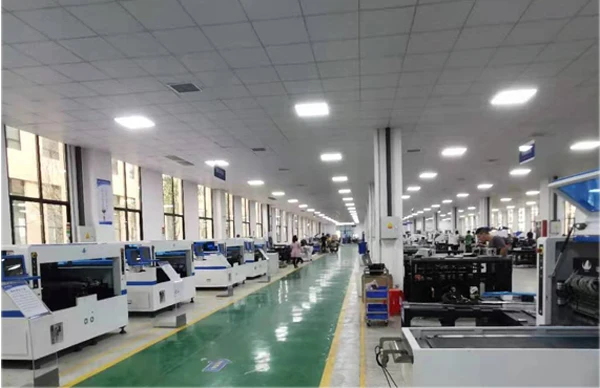

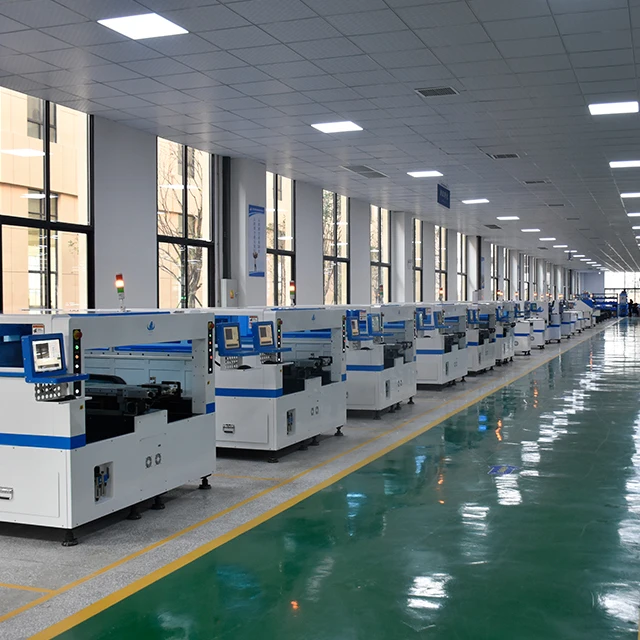

Company Introduction
Shenzhen Eton Automation Equipment Co.,Ltd mainly takes professional, efficient and low consumption SMT full- automatic high-speed laminating machine as its responsibility, national high-speed technology enterprise integrating product development,production,sales and service.
ETON mission: professional, excellent technology, sharing the results.
ETON goal: to create a national brand, to build international Chinese enterprise.
ETON’ s purpose: to create value for customers, to create benefits for society.
Specialty
Single module multi-functional mounter.
Mounting parts: LED,capacitors,resistors,IC,shaped components,etc. Applicable to vibration feeding system for lens.
Exclusive patented technology:
Electronic feeder feeding system
Vision for the flight identification, MARK correction
Auto-optimization feature after coordinates generated, etc.
Packing & Shipping
We use standard export packing(wooden case with vacuum packing)and deliver the goods at ShenZhen port 15days after payment.
Technical Data
l Length:2550mm
l Width:1650mm
l Height:1600mm
l Total Weight:1200kg
l PCB Length Width:Max:120*350mm Min:50*50mm
l PCB Thickness:0.5-5mm
l PCB Clamping: Adjustable pressure pneumatic
l Mounting Mode: group picking and separate placing/ separate placing and separate placing
l System: Windows 7
l Software: R&D independently
l Display: LED Monitor
l Input Device: Keyboard, Mouse
l No. of Camera: 2 sets of imported camera/Vision for the flight identification + Mark correction
l Repeat mounting precision: ±0.02mm
l Mounting Height: <15mm
l Mounting Speed: 30000 CPH
l Components: LED,IC, capacitors, resistors, shaped components etc.
l Components Space: 0.2mm
l Power: 220 AC 50HZ
l Power Consumption: 4 KW
l Operating Environment: 23℃±3℃
l Conveyor Transmission: Max Length:1.2m
l Transmission Speed: >500mm/sec.
l Transmission Direction: single (left→right or right→left)
l Transmission Mode: Online
l Air pressure: >5.0kg/cm2
l Electrical control: Independent research and development by ETON
l Motion control card module 1 sets: Independent research and development by ETON
l X.Y Axies Driving: Servo motor
l No. of feeders station: 1*20 PCS
l No. of nozzles: Single module, totally 8
l Feeder type: Electronic Feeder

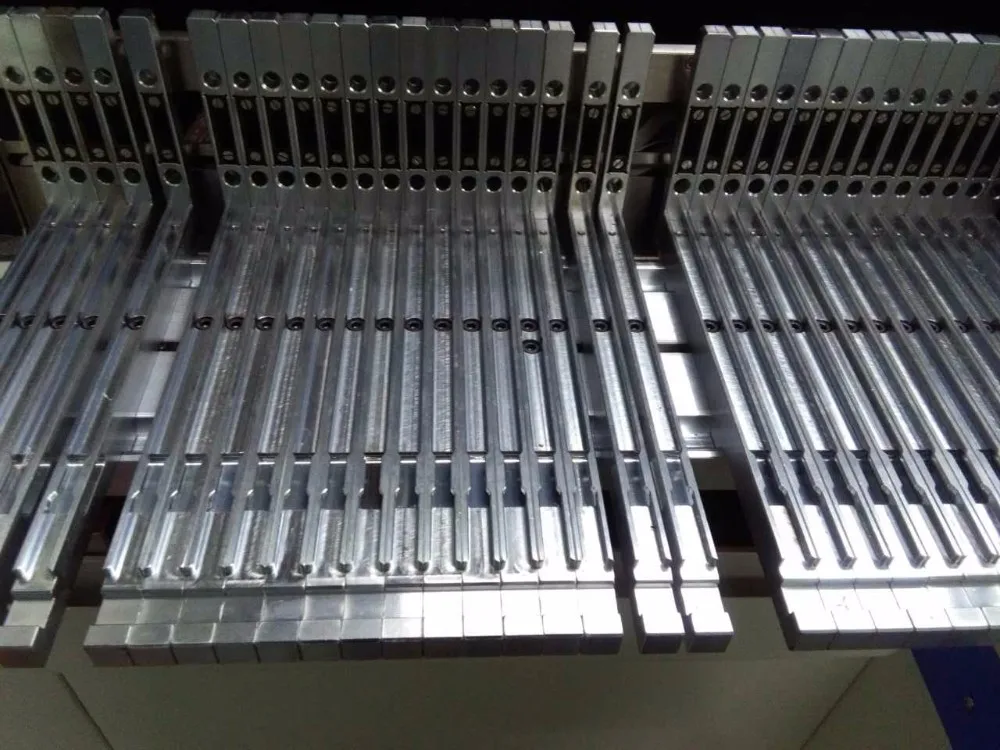

Feeder feeding block
Equipment imported from Japan
FAQ
Q:How long is the time of delivery?
Generally, the test delivery period is one month.
Q:If my order is very urgent, how long you can proceed?
We have helped many clients with their urgent demand. If your order is urgent, please check with our specialists to see if we can help.
Q:How are the products packed for sea shipment?
Most of the products have their unique packing, Then we put them into a carton. The cartons are sealed with tape.
Q:How can you make sure that the products won’t be damaged or wet?
We take multiple measures to protect the products. They are first packing with individual. We put them into a carton and wrapped with plastic film and sealed with tape to keep the cartons in position and protect them from water.
After Sales Service
Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)
Upgrade the software will be free
Visit customer regularly and gather information.
Provide latest information about technology and equipment.
Our Client
Long flexible strip(without cable)
Let's establish a cooperative relationship!
We have special research in machine technology and will follow up the problems of the machine at any time. Not only can we do the best in production and after-sales service, but our company focuses on creating the lowest cost SMT scheme.
Please feel free to contact me.
NAME: Ethel
FAX:+86-755-29502066
WeChat:+86-13824337025
