14mm cable supporting clamps coaxial hanger, cable fixing clip
- Category: >>>
- Supplier: Xiamen Dianchang Communication Technology Co. Ltd.
Share on (60803975397):
Product Overview
Description
Product Description
14mm cable supporting clamps hanger, cable fixing clip
Description.
Cable Clamp is designed for wireless application, and widely used in site installation to fix coaxial feeder cables to base towers, these clamps provide an efficient way of managing & securing the feeder installation system, they are strictly made out of non-rusting product to sustain all weather conditions. They come with angle member adapter and necessary hardware, the angle member adapter fastens the clamp to tower, cable ladder, angle bar etc. It is mainly composed of 304 stainless steel and anti-ultraviolet polypropylene and rubber grommet which is UV resistant material. The design offers least stress and maximum grip to manage the cable system.
Application.
Feeder clamps for coaxial RF cable are used with following products;
● Telecom cable ● Fiber cable ●Coaxial cable
●Feeder cable ● Hybrid cable ● Corrugated cable
●Smooth cable ●Braid cable

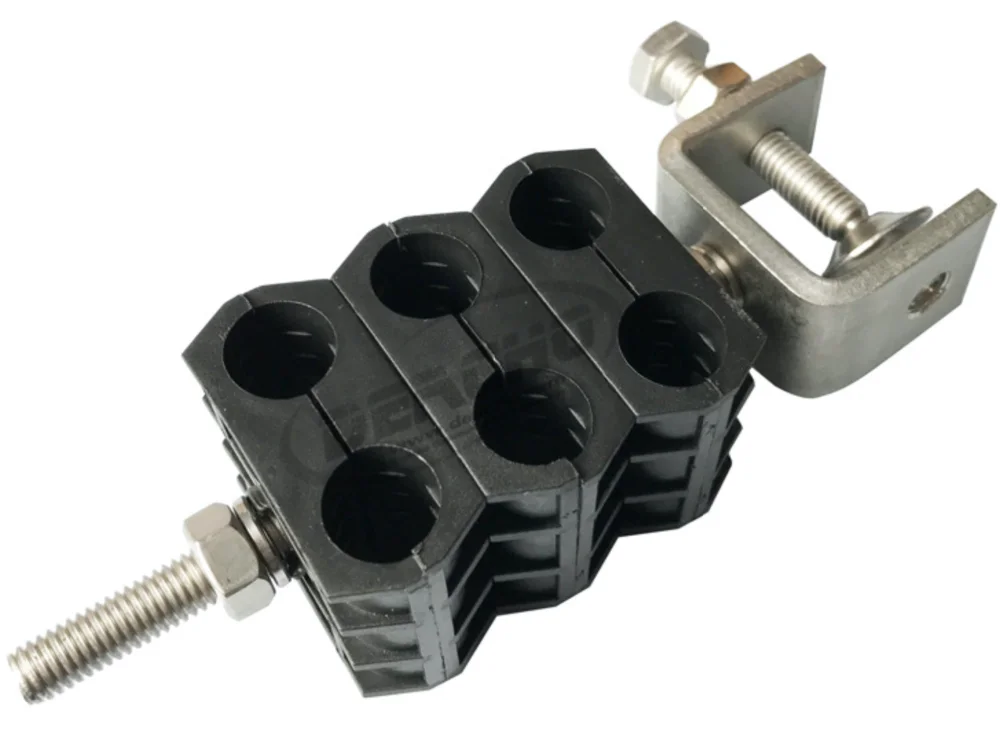

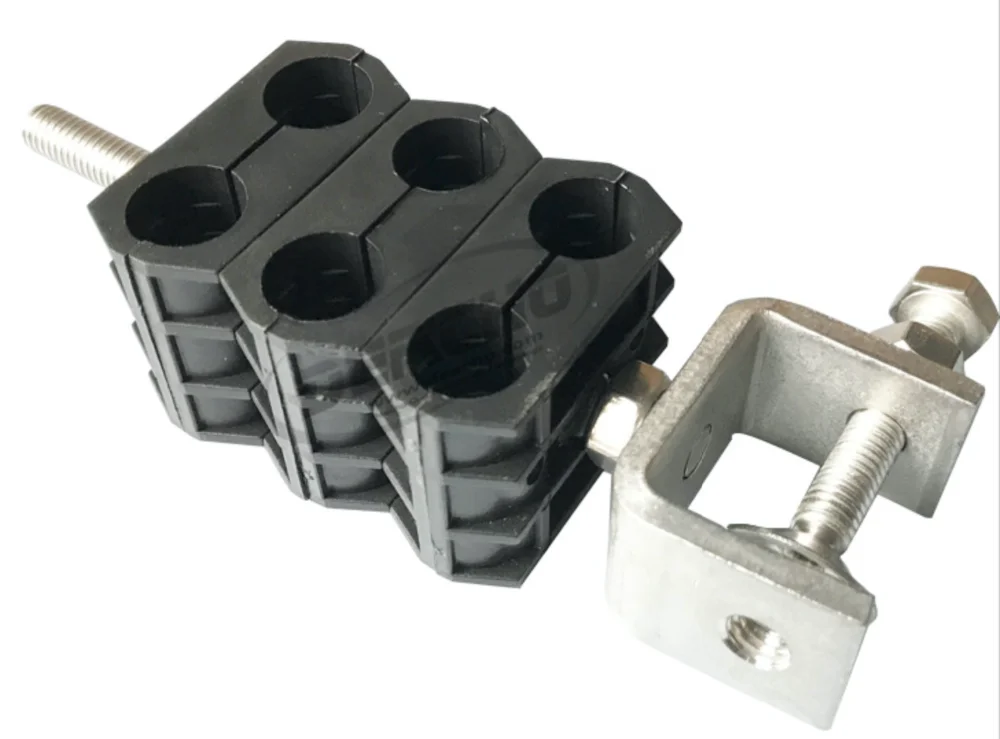

CC23A Detail.
CC23A is 2 holes per stack, 3 stacks.
Angle member adapter is included.
Without rubber, M8 threaded Rod.
Used to fixing 14mm cable.
The C-shape bracket is compact and terse. It is simple to fix the cables reliably.
Include: clamp (without rubber grommet)
Technical Specifications.
Item No. | CC23A | Cable Per Clamp | 6 |
Product Line | Cable Clamp | Operating Temperature | -40℃ to +75℃ |
Product Type | 2 Hole Per Layer, 3 Layers | Salt Spray Test | 96h, No Rustiness |
Compatible Cable Size | 14mm | UV | Protected |
Component Part.
Part Name | Specification | Quantity | Material |
Angle Adapter | 40x33x24x4.6 | 1 | SS304 |
Gasket | Φ20 | 1 | SS304 |
Bolt | M8 X 40 | 1 | SS304 |
Threaded Rod | M8 X __ | 1 | SS304 |

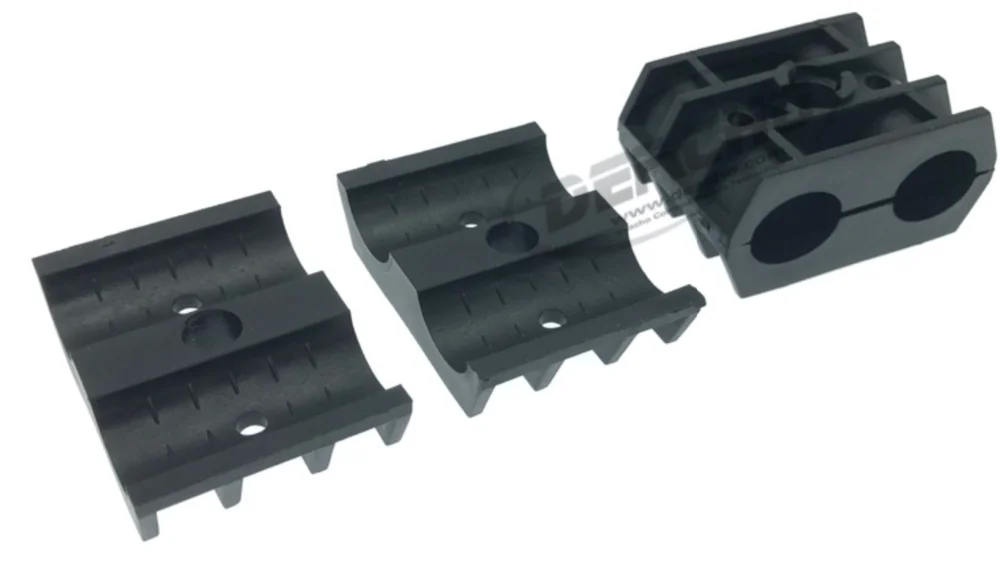

Plastic Support Block | SB2-A | 3 | PP |
Rubber Gromeet | ___ | ___ | ___ |
Nut | M8 | 3 | SS304 |
Flat Washer | Φ8 | 2 | SS304 |
Spring Washer | Φ8 | 2 | SS304 |
Application.
