rima atv timber trailer / log crane timber trailer/hydraulic timber trailer

Share on (60803982602):


Price:$9,095.00

Quantity:


Product Overview

Description



Product Description

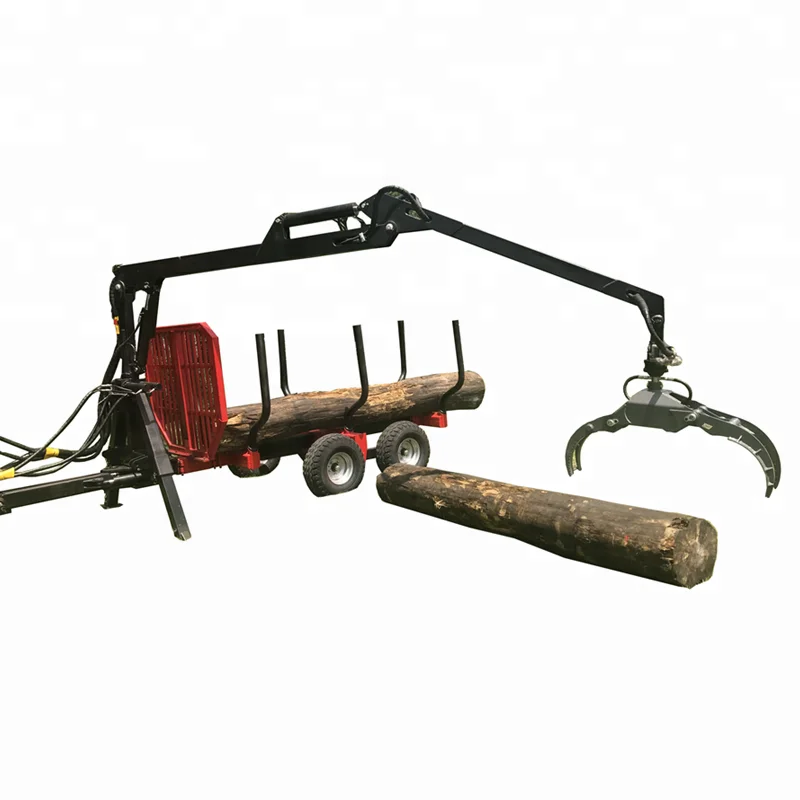

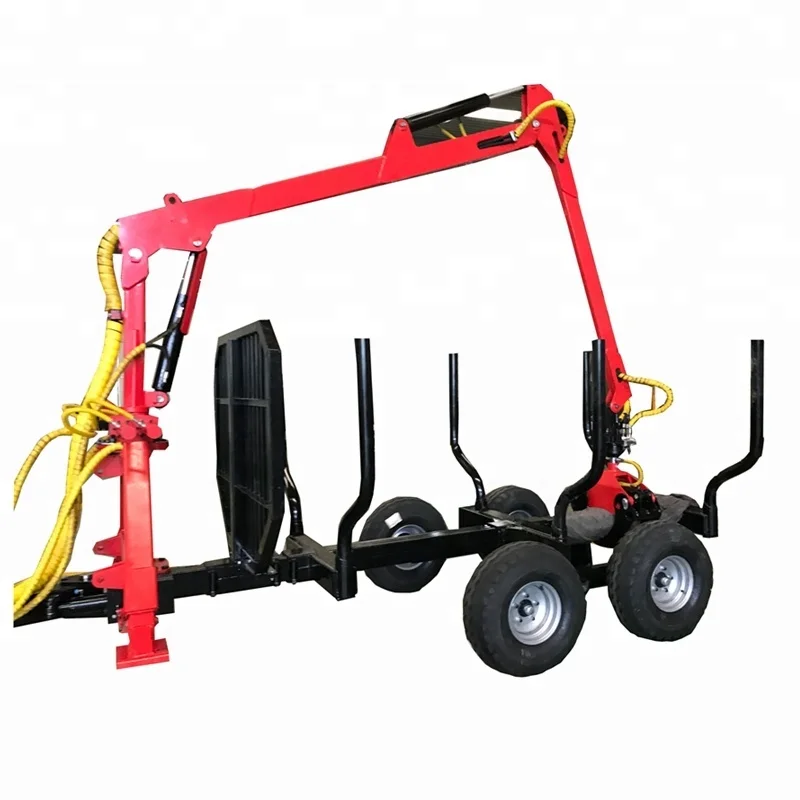

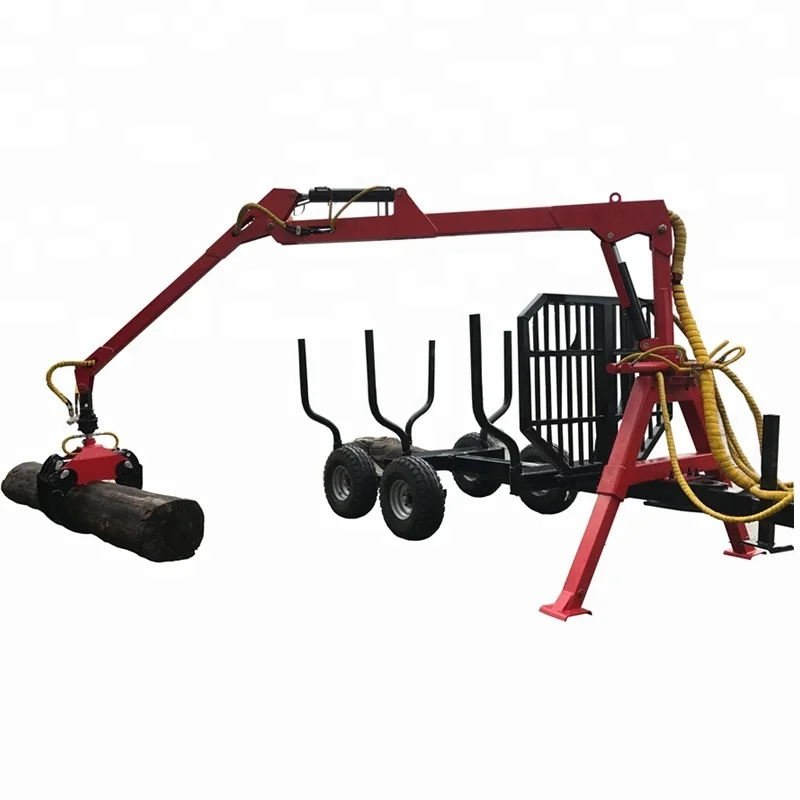

RT06 Timber Trailer with Crane
Model
RT06
A type outriggers weight


170 KG
Max Outreach
4.7m
B type outriggers weight

210 KG
Lifting Moment, gross KNm
28 KNm
Load capacity up to 40 km/h

 6000kg
Lifting capacity at 4 m (excl. grapple and rotator)
400 KG
Length of loading area
3288mm
Lifting capacity at full reach (excl. grapple and rotator)
300 KG
Total length

5332mm
Valve Block
5/7
Total width with standard wheels

1980mm
Slewing torque
7 KNm
Standard wheels

10.0/80-12
Rotator
3 Ton
High of the bloster "S"
1.2m
Grapple
0.18 m2
Number of the bloster "S"
3 sets
Slewing angle
360°
Height of the front gate
1300mm
Slewing cylinders
4 PCS
Centre distance between the tyres
970mm
Working pressure
175 BAR
Cargo Width at the top wagon
1700mm
Crane's weight (without outriggers and valve block)
350 KG
Cargo Width at the bottom trailer
1.1 m
3-Point Linkage
Cat-1&2
Weight(without tyres)
760kg




Main Features

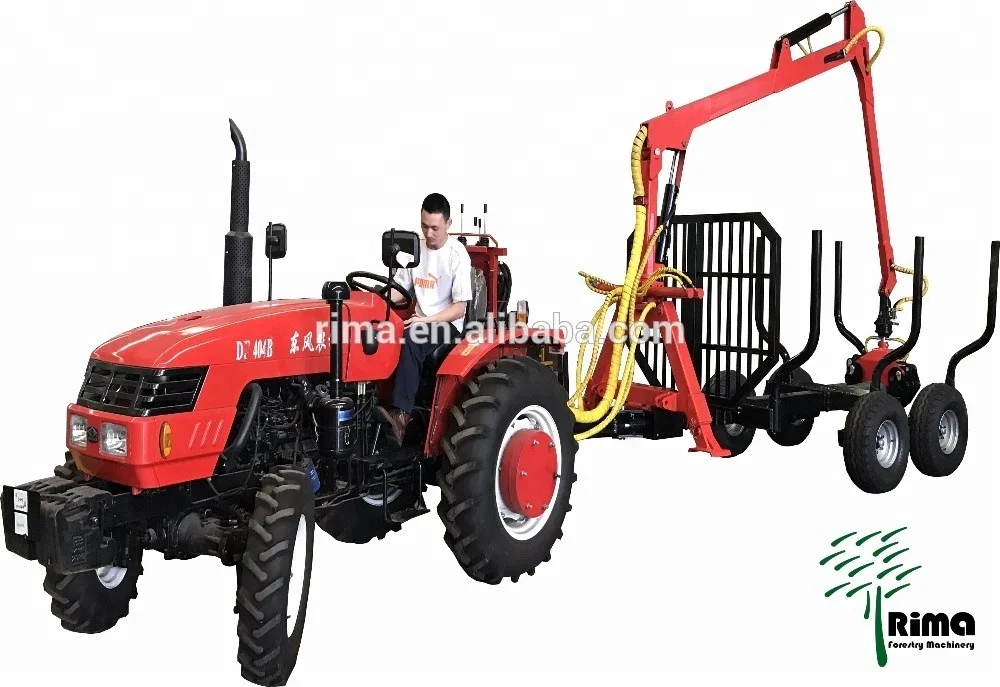

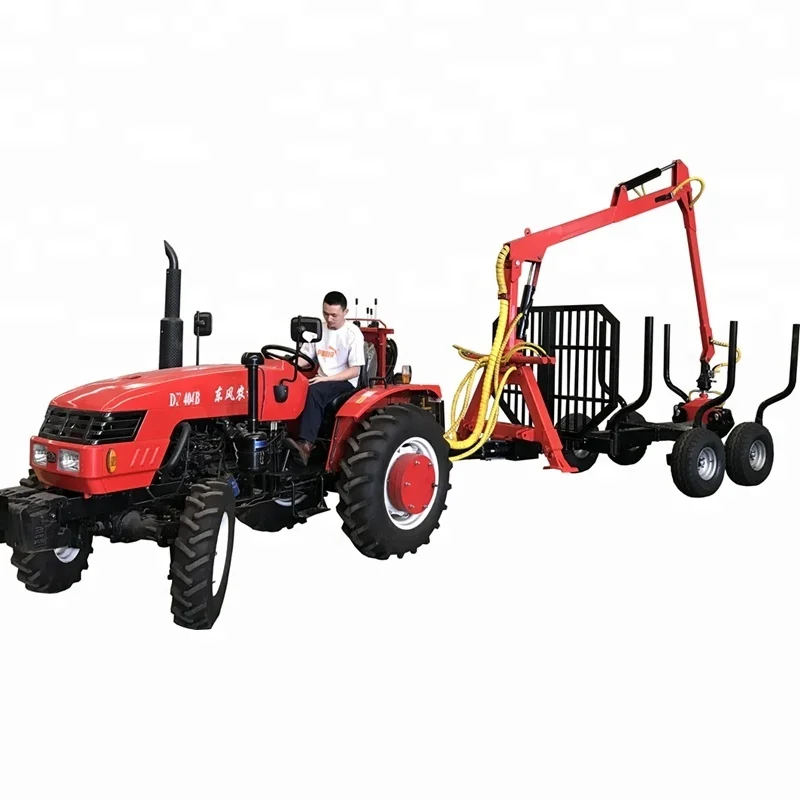

Our forestry trailer allows you to load and unload timber. It is particularly suited for use by self-employed farmers working in the agricultural sector. The forestry trailer is designed to be connected to a tractor hitch and pulled behind a farm tractor.



Our Service

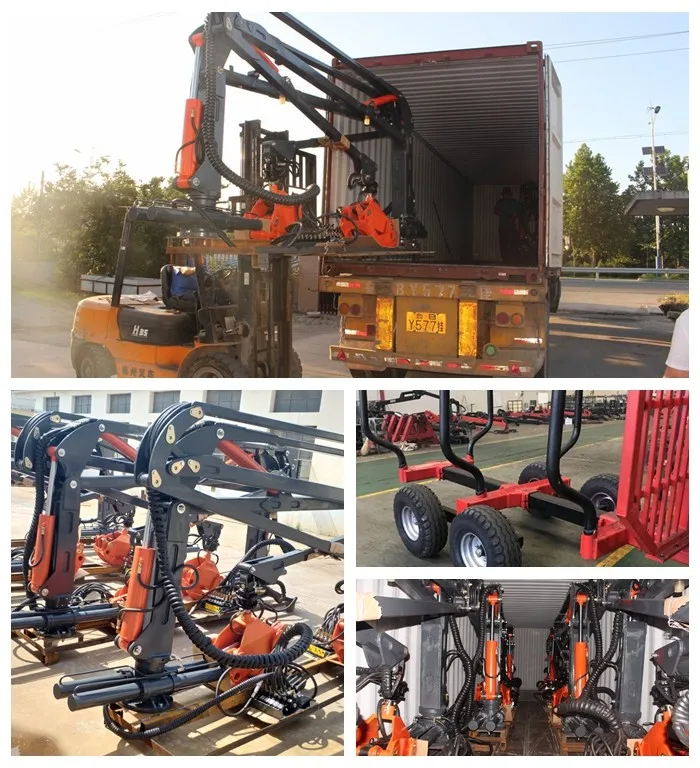

Packing & Delivery




Contact us




Related Products




FAQ


01 Are you factory or trading company?
We have our own factory, mainly manufacture Forestry & Farm Machinery, using "Self-produced
Self-marketing" business model, reducing the cost of intermediate links.
02 What's your company advantages?
A) As the leading manufacturer of forest machines, we have exported to European market for more than ten years, familiar with forest and farm market and can recommend to clients right products.
B) We have various products and can offer all the machines and tools in the forest and farm. You can get all the items you need. Easy and convenient for you.
C) With us your money and your business is safe. We can offer 7-days refund in case of bad quality, and Alibaba trade assurance payment for safety.
D) Coming together is a beginning; keeping together is progress; working together is success.
03 Can we buy one sample?
Yes, one sample order is welcome. However, we need to add sample fee to the price and will return it back to you after receiving your large order in future.
04 What's your delivery time?
After receiving your payment, we start to produce your order. It usually takes about 15-45 days depending on the products you order.
05 How do you control your quality?
To guarantee high quality and efficient management, our whole manufacturing processes are under a very serious and strict system, and we have passed ISO9001 quality management system certificate. All of our products are 100% inspected before shipment.
06 What's your product warranty?
The warranty time of the machine is one year. During this period, we will send you the replacement for the broken part(not man made).
To meet the every demand of customer is our goal. We are standing by for any question of customer. We try to make our service fast, efficient and satisfied.
07 What's your company mainly exporting market?
We mainly export to European, North American, Australia, English and Southeast Asia Market. Because of good quality and service.
We have establish good and long business relations with many clients. Welcome clients from all over the world to visit our factory.
08 If I need different measurements or weight, could you offer OEM service?
Sure, we can provide OEM service, also we can make new mould for your product, attaching your name brand.
09 Why choose Rima?
With our two factories and more than 100 workers, we can offer you the following service:
A. Very competitive advantage products!
B. 7 days money refund in case of bad quality!
C. Small order welcome!
D. Alibaba trade assurance payment for your safety!
E. QC for each product before delivery.
F. Nice after sale service.
