Small Satchet Ketchup Filling And Sealing Packing Machine

Packaging Machine Specification

Brand

ZHIEN

Type

ZE60

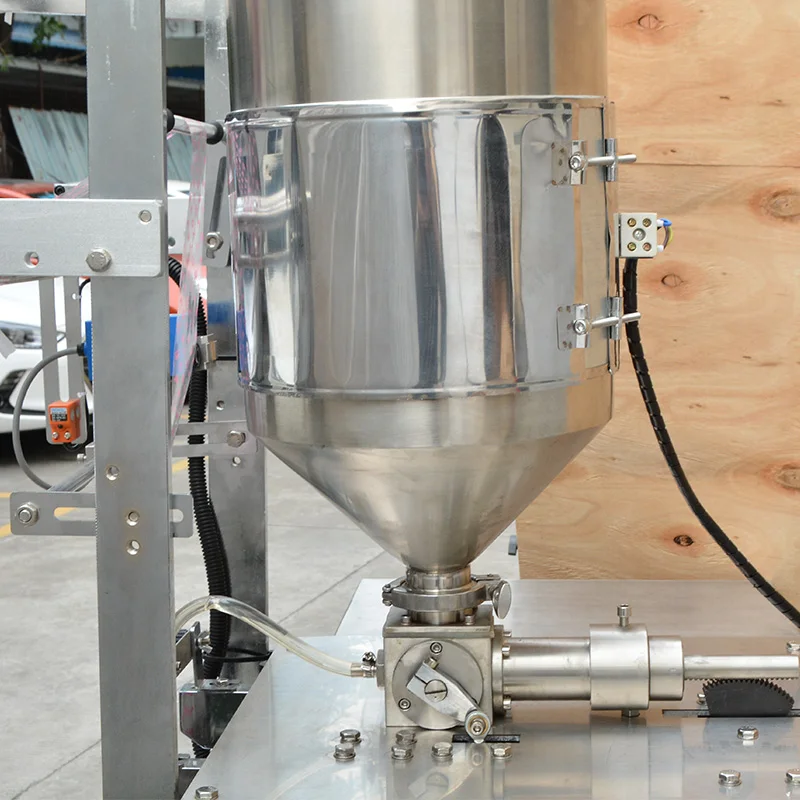

Measuring Form

liquid pump

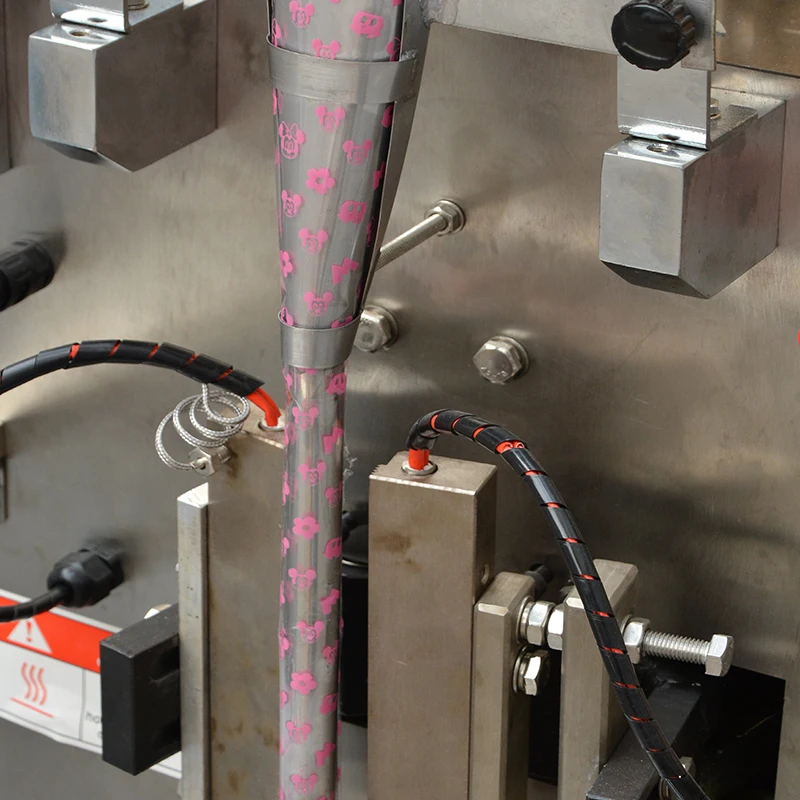

Sealing Form

Three- side-sealing/Four-side-sealing

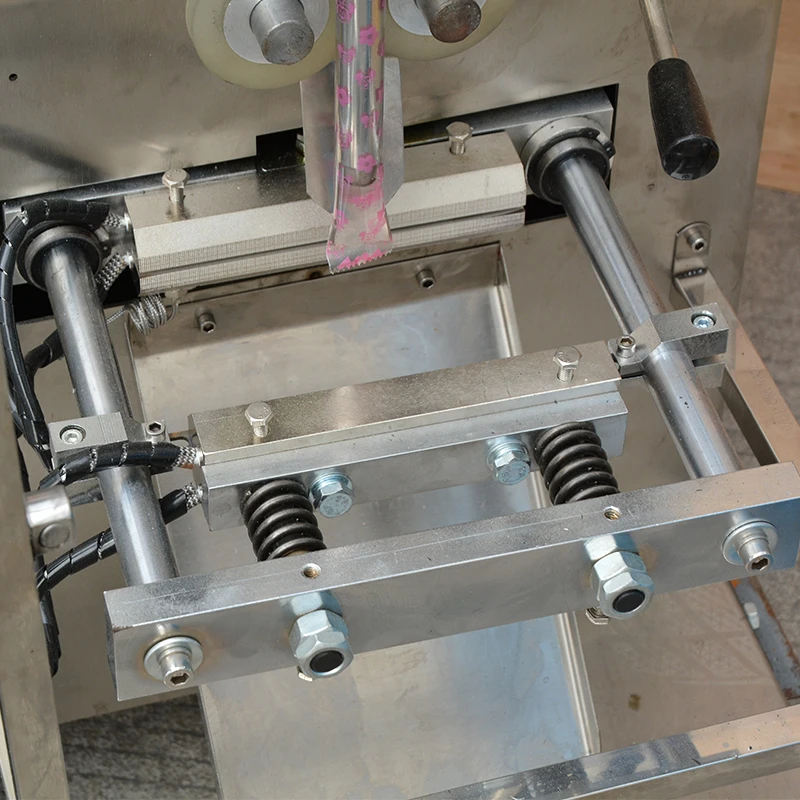

Transverse Sealing

Netted Line/Straight Line

Cutting Form

Tooth Cut/Flat Cut

Measuring Range

1~100ml

Packaging Rate

30~80bags/min

Bag Width

15~100mm

Bag Length

30~180mm

Film Width

30~220mm

Film Roll Diameter

300mm

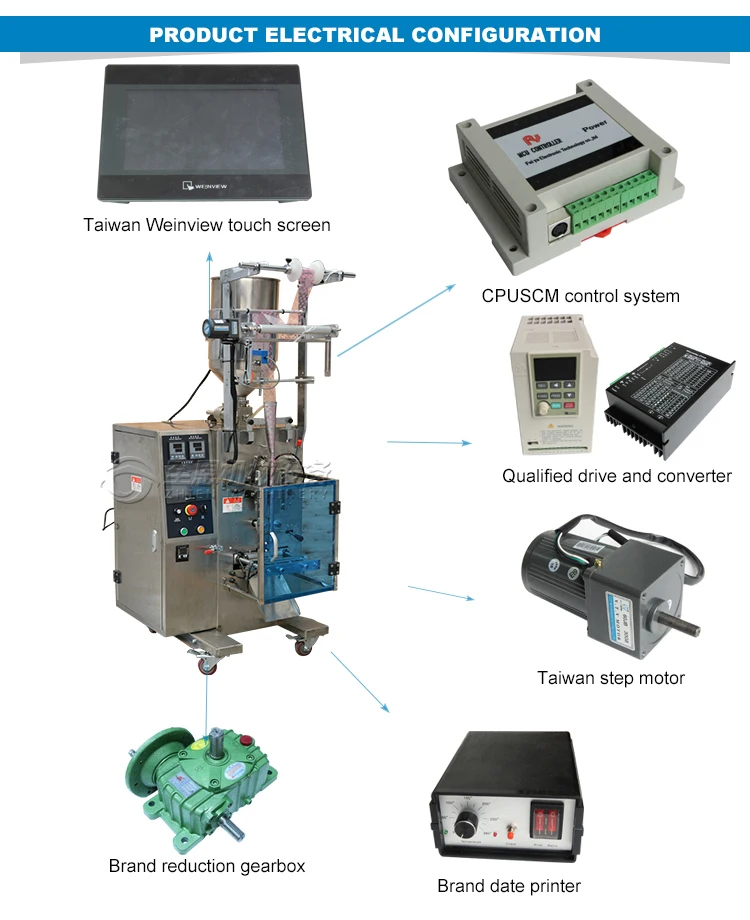

Bag Pulling

Stepping Motor Bag Pulling

Power

220V,50HZ,1.2KVA

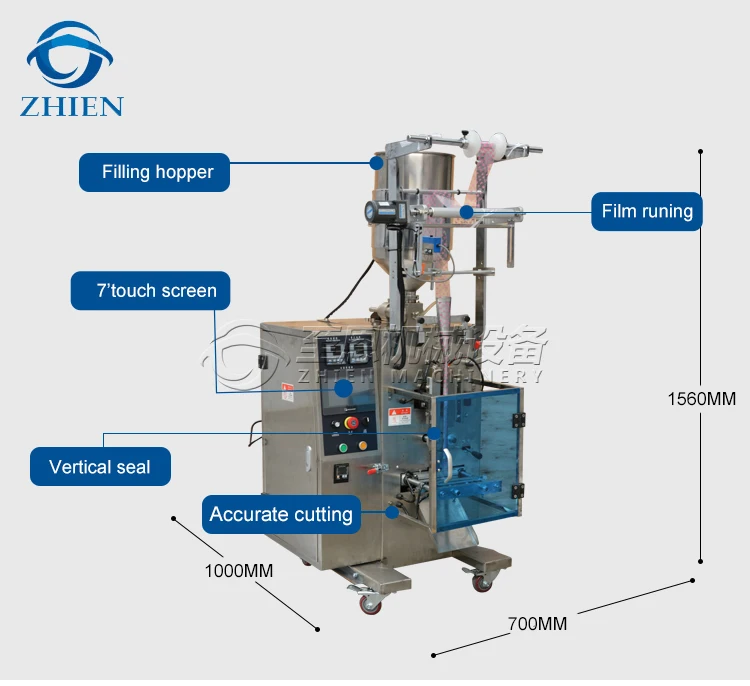

Machine Size

(L)640×(W)700×(H)1580

Machine Weight

300KG

Optional Device

Code Applying Machine

Air Charging System

Drilling Equipment

Machine Wrapping

Wooden Box
