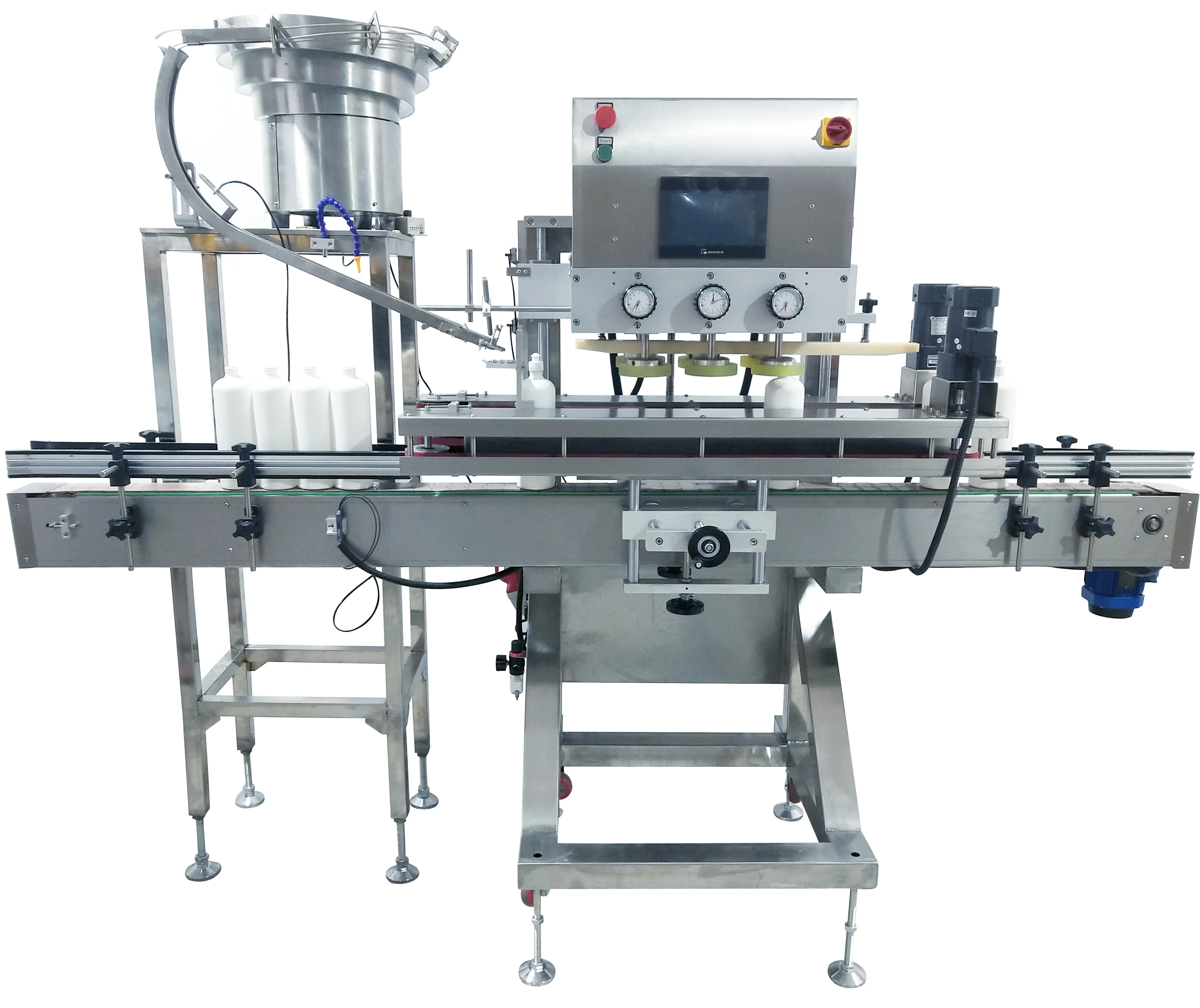

CM300 Automatic online straight capper for glass bottles plastic lid capping machine
- Category: >>>
- Supplier: Shanghai Yimu Machinery Co. Ltd.
Share on (60804033358):
Product Overview
Description
Product Description

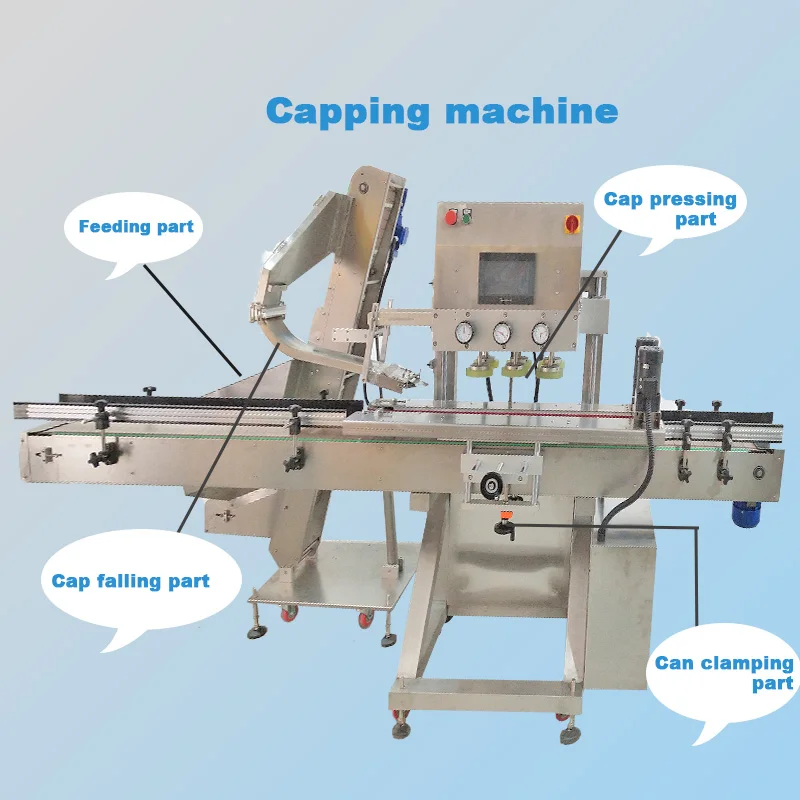

Automatic online straight capping machine
Describe:
1.Adopt agile module combination, new ideal design, suit to various bottle and cap-rotating.
2.No need to change parts, easily adjust..
3.Easy operation and convenient for maintenance.
4.Three group capping consist of first rotating and re-rotating the degree of moment may be adjusted singly. Ensure that will be tight. The machine has clutch to avoid the cap over- rotating.
5.Two sets of bottle nipping and annular belt structure, Good effect for some bottles erecting unsteadily.
6.Cap arranging part, conveying part, cap-rotating, belt for bottle, nipping, all of speed can be governing separately, which is more utility.

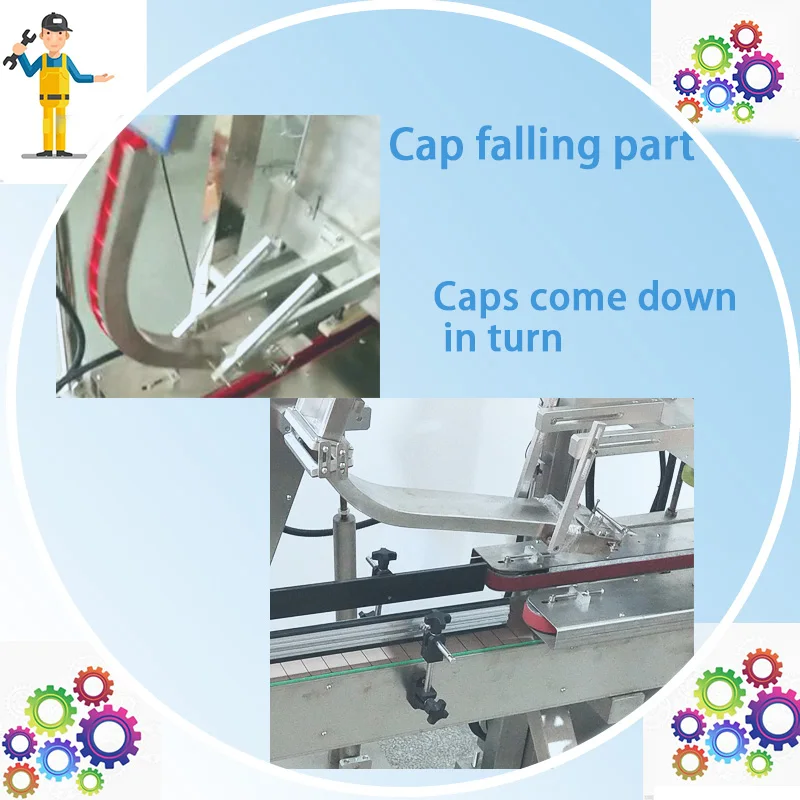

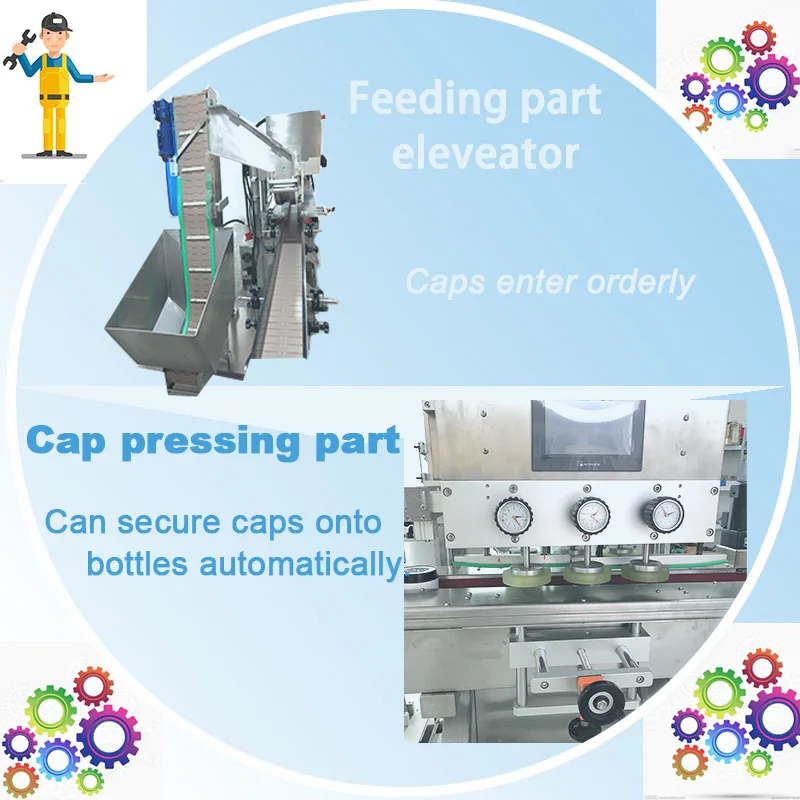

7.Choosing automatic cap-sender and cap hopper.
2.No need to change parts, easily adjust..
3.Easy operation and convenient for maintenance.
4.Three group capping consist of first rotating and re-rotating the degree of moment may be adjusted singly. Ensure that will be tight. The machine has clutch to avoid the cap over- rotating.
5.Two sets of bottle nipping and annular belt structure, Good effect for some bottles erecting unsteadily.
6.Cap arranging part, conveying part, cap-rotating, belt for bottle, nipping, all of speed can be governing separately, which is more utility.
7.Choosing automatic cap-sender and cap hopper.
Technical Parameter:
| Applied bottle height | 50-300mm |
| Applited cap range | 5-500mm |
| Yeild of capping | ≥99% |
| Power supply | 220V/380V 50Hz |
| Power consumption | 500W , 220V,50Hz/60Hz |
| Speed control | frequency conversion adjusting speed |
| Cap feeder | 1 Elevator Feeder/2 Vibrator Feeder |
| Machine weight | 600kg |
| Machine size(L×W×H) | 2500*1000*2000mm(L*W*H) |
Production capacity | 2000-6000bottles/hour |
Industry Type(s):
l Cosmetic /personal care
l Household chemical
l Food & beverage
l Nutraceuticals
l Pharmaceuticals
| NO. | Name | Unit | Brand |
| 1 | PLC control system | 1set | Mitsubushi (Japan) |
| 2 | Touches screen | 1set | WEINVIEW (Taiwan) |
| 3 | Sensor | 1set | Japan (KEYENCE) |
| 4 | Frequency changers | 1set | DANFOSS(Denmark) |
| 5 | Relay | 1set | Honeywell(USA) |
| 6 | Motor | 1set | SE(Taiwan) |
Production process
customers and teams
Company Information
FAQ
1. Q: Are you the factory?
A: Yes. We are factory and manufacturer.Our company engaged in packing machinery for ten years.
2. Q: How long is the delivery time?
A: About 10- 40 days.
3. Q: I there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
4.Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
5 Q: How can I install my machine when it arrives?
A: For simple and semi auto machine, we would send manual instruction and teaching video.
For packing line , we will send the engineers overseas to help client installing, operating and training.
6 Q: How about the spare parts?
A: Normally, we will send you some spare part with machine, other, if you need, we have spare
part price list, price is reasonable.
A: Normally, we will send you some spare part with machine, other, if you need, we have spare
part price list, price is reasonable.
7 Q: How is your After. Sales Service?
A: 2 year warranty with oversea after-service engineers
(oversea after-service team of high efficient,professiona and enough experience for various Non-standard project)
A: 2 year warranty with oversea after-service engineers
(oversea after-service team of high efficient,professiona and enough experience for various Non-standard project)
