Euro4 125cc 4stroke Utility Style Quad/49cc Quadricycle/ All Terrain Vehicle/Quad Bikes/4T 50cc Kids atv w EPA, ECE/EEC/COC
- Category: >>>
- Supplier: Shanghai Diamond Garment Accessories Co. Ltd.
Share on (60804045813):
Product Overview
Description
Product Description
Ideal quad bike for kids/toddlers atv/ children style quadricycle
Euro4 125cc 4stroke Utility Style Quad/49cc Quadricycle/ All Terrain Vehicle/Quad Bike/4T 50cc Kids atv w EPA, ECE/EEC/COC
SPEC:
| MODEL | MU125 |
| CHASSIS | |
| Dimension(L x W x H) | 1560mmX990mmX1120mm |
| Seat Height | 640mm |
| Wheelbase | 1090mm |
| Ground Clearance | 140mm |
| Battery | 12V/4Ah |
| Fuel Capacity | 3.5L |
| N.W | 100kg |
| Max. Load | 100kg |
| Suspension/Front | Independent double swing arm |
| Suspension/Rear | Single swing arm |
| Brakes/Front | Drum |
| Brakes/Rear | Hydraulic disc |
| Tires/Front | 21X7-8 |
| Tires/Rear | 20X9.5-8 |
| ENGINE | |
| Type | 125cc,Air cooled,4-stroke,1-cylinder |
| Bore x Stroke | 52.4mmX57.8mm |
| Compression Ratio | 9.5:1 |
| Carburetor | PZ20 |
| Ignition | CDI |
| Starting | Electric start |
| Transmission gears | 3-2-1-N-R |
| Drive | Chain Drive |
| Max. Torque | 6.5N.m/5500r/min |
| Max. Power | 7.6Kw/7500r/min |
| Available colors | blue, white, red, black |
| Approval | EEC/ECE/COC/EPA |

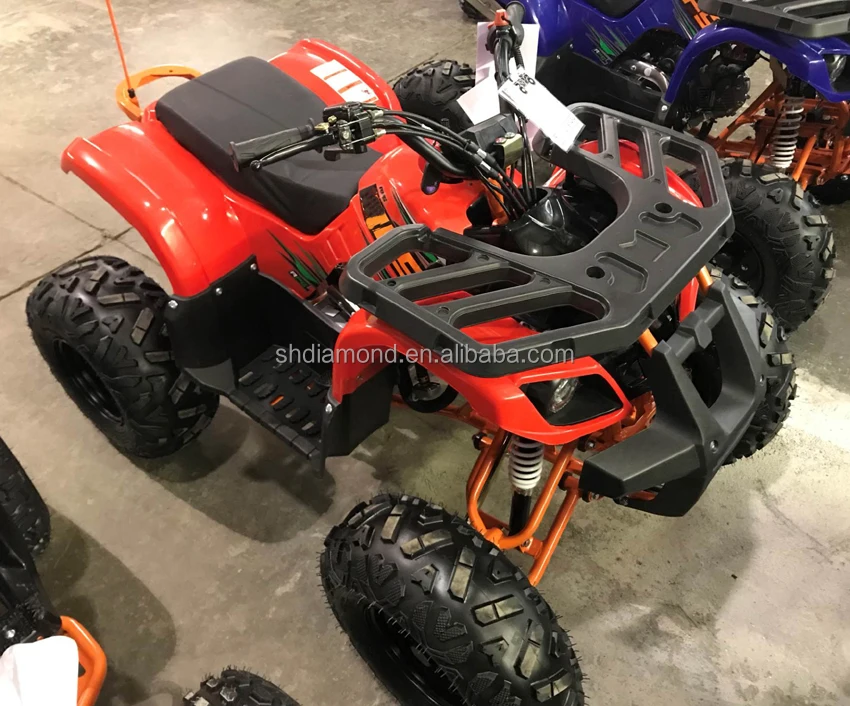

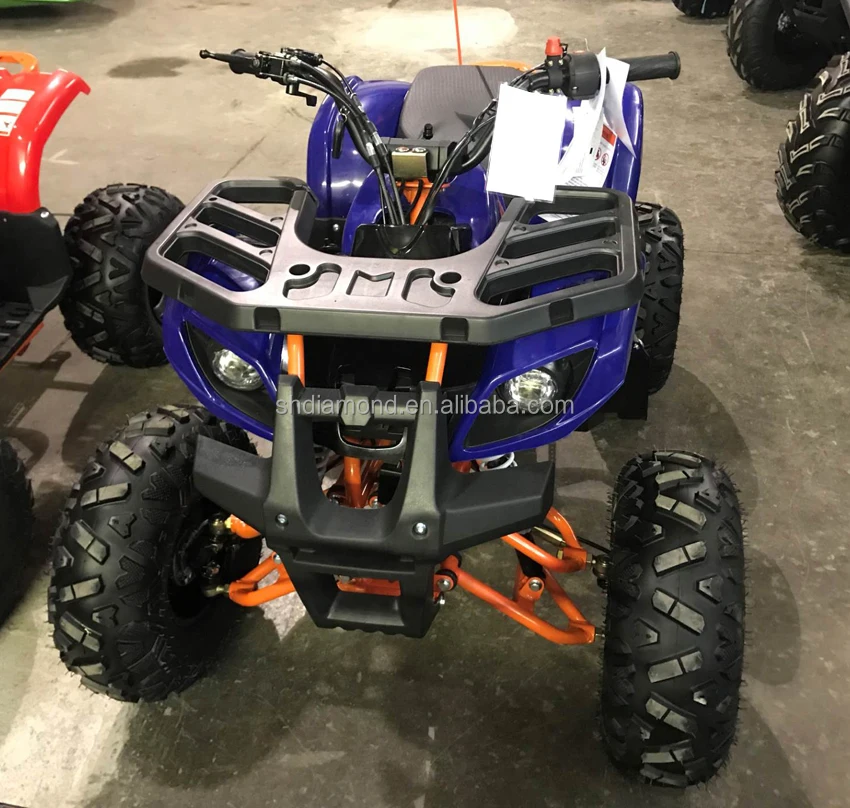

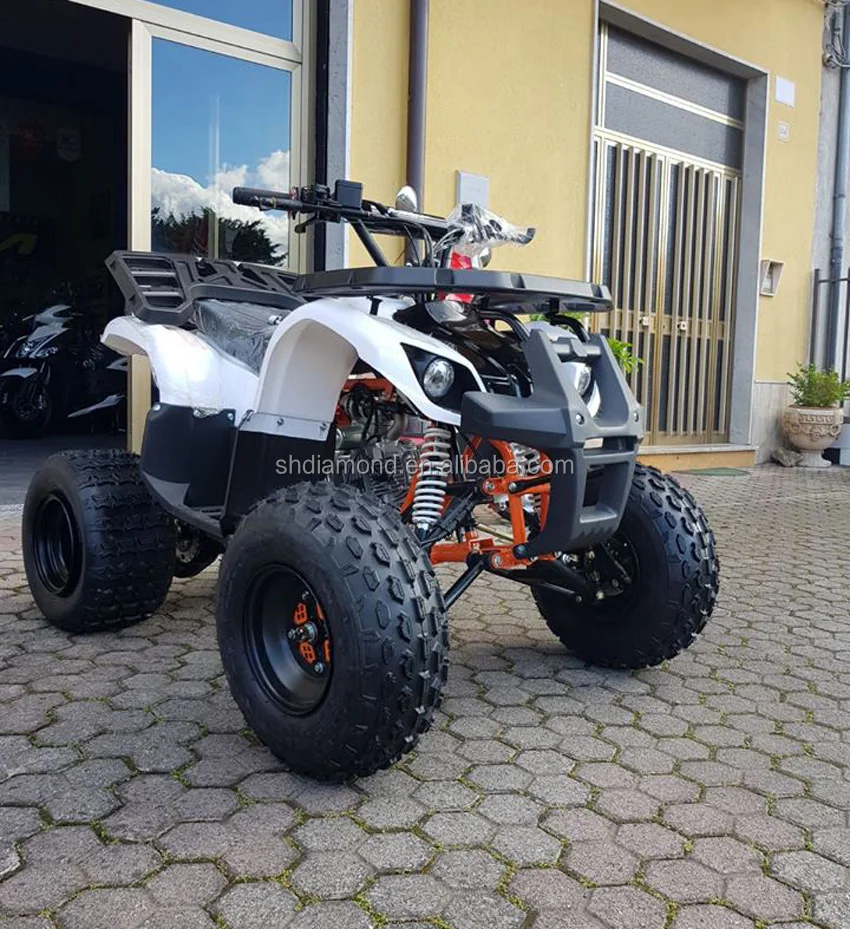

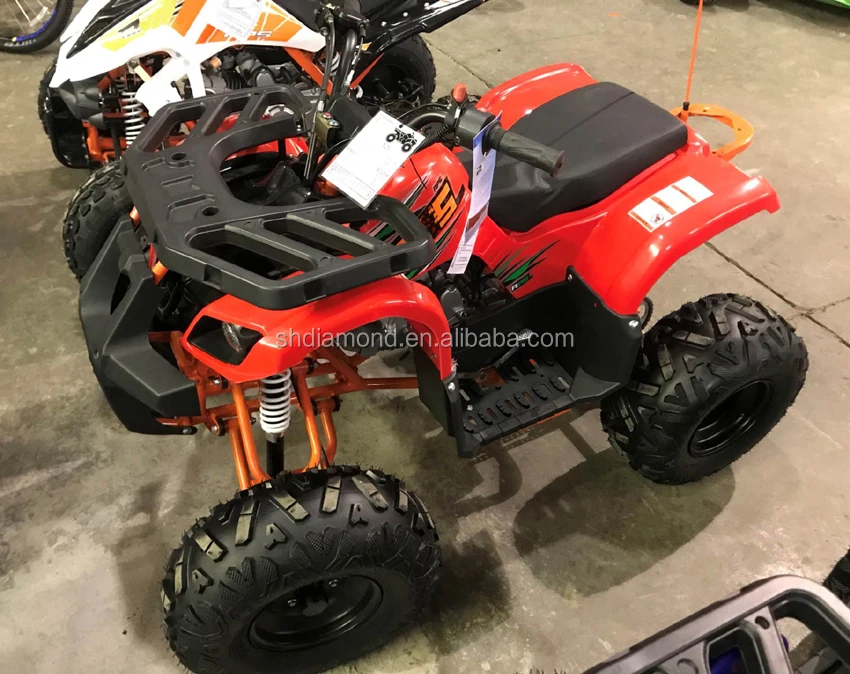

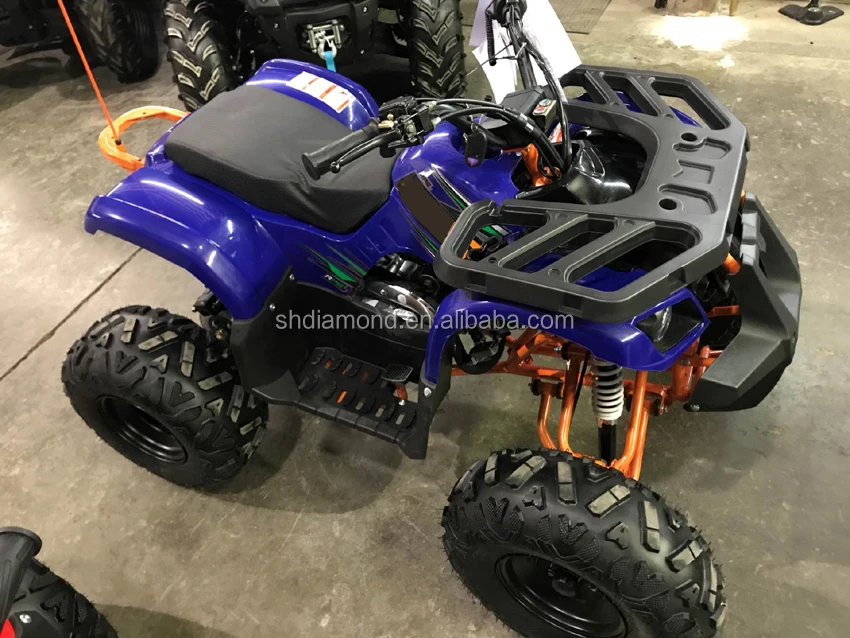

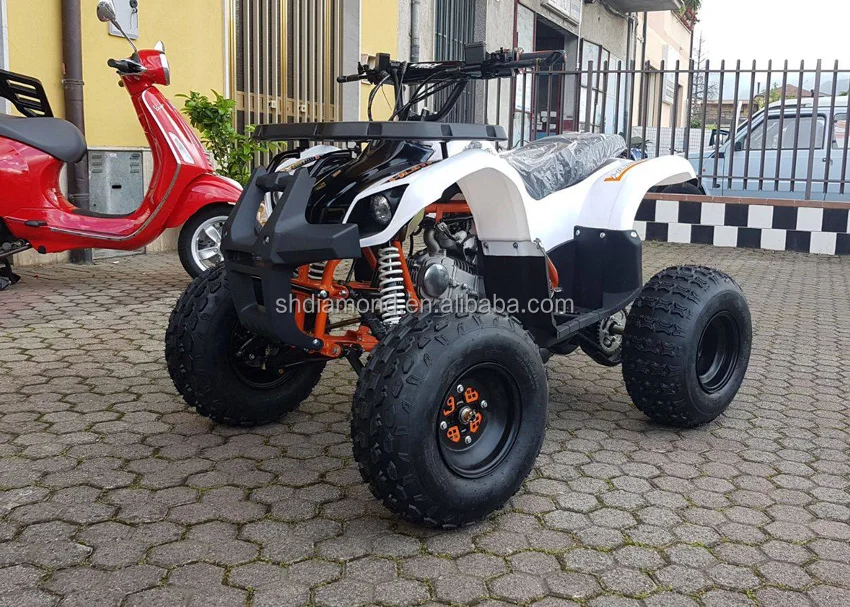

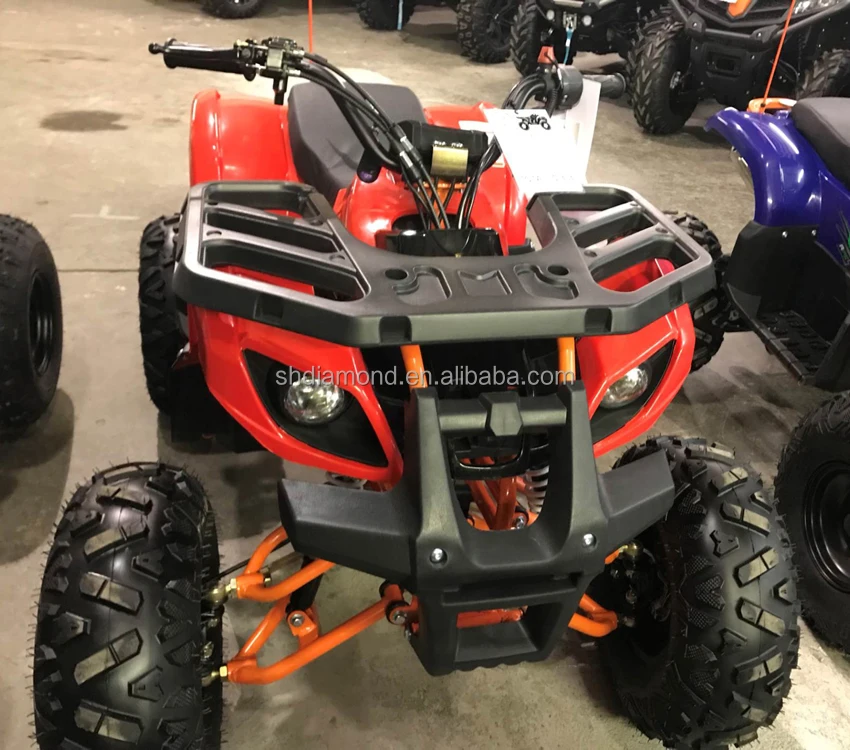

DETAILED PHOTOS:
