Product Overview

Description

Machine introduction

Energy Saving acceptable price HDPE Extrusion Blow Moulding Machine

1. The maximum blow volume is 1L, PE, PP , TPU, etc.  can be used.
2. Servo motor system for optio, could save energy consumption 20%.
3. Different screws and die mandrels, channel styles will be designed based on the specifics of different plastics;
4, It is convenience to refueling, change color, purge, disassembly and cleaning with those die head. Symmetry part of the wall thickness is very uniform;
5, Double proportional valve control oil flow and pressure, directional valve control flow way, deceleration valve brakes, achieve smooth and fast action;
6, Clamping mold is achieved with scissor toggle mechanism, mold carriage is with high-precision ball linear guide, every part of template bears the similar clamping force,
7, Extruder platform can be lifted, easy to adjust the parison length
8, Design is based at CE safety standard, concerning about user safety;
9, Inverter is from France SCHNEIDER, or Taiwan DELTA, adjust the screw speed, saving energy ;
10, automatic lubrication system, automatic alarm function, more concerned about the user;
11, Equipped with high temperature alarm function.



Machine advantages

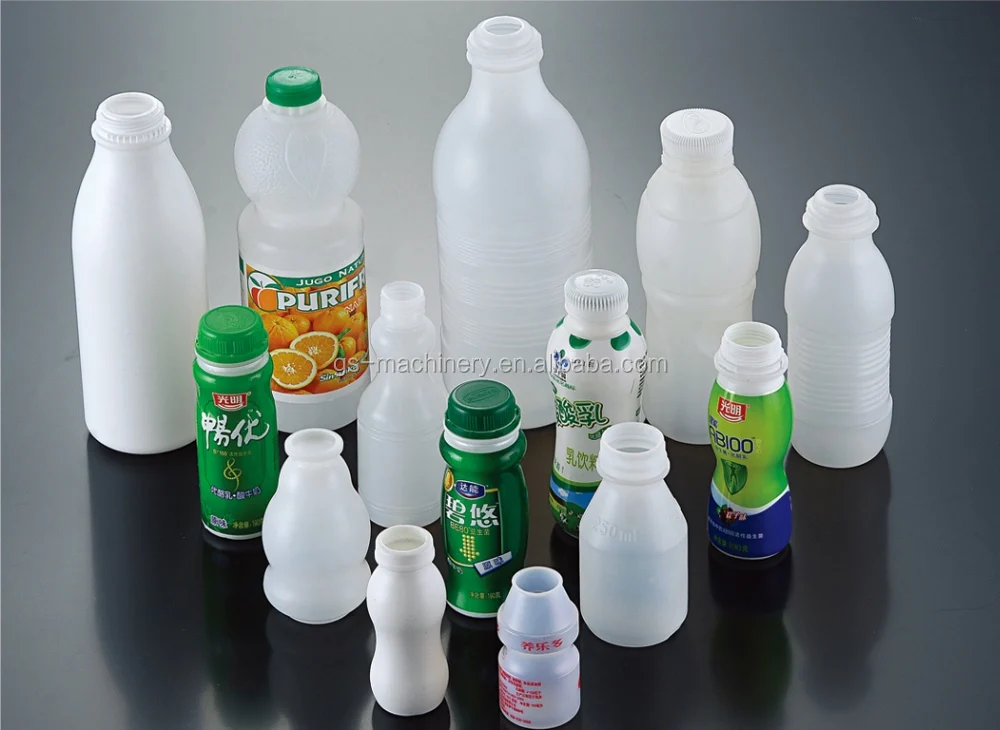

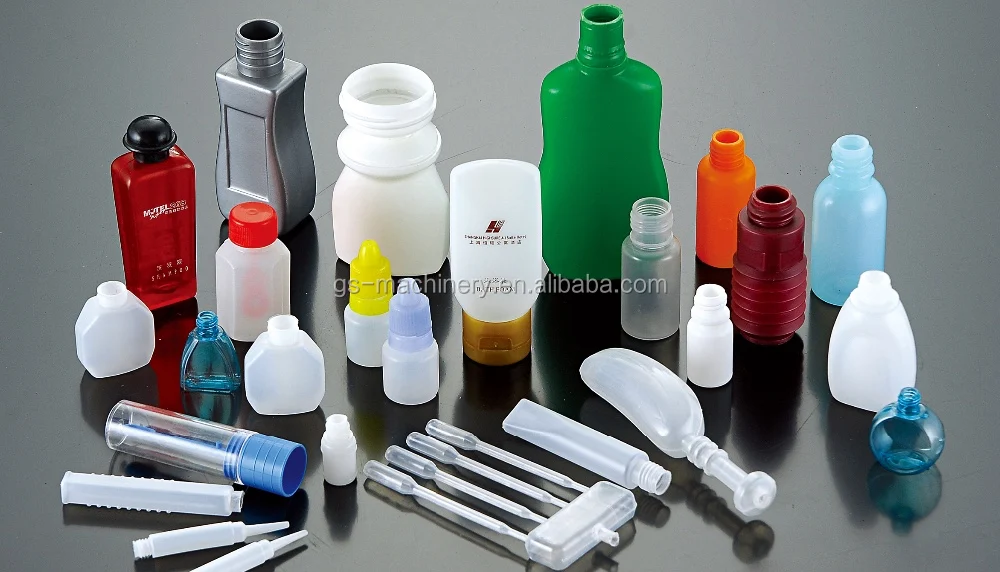

1. high speed type, max four head, specially for small bottle in multi-cavity,like eye drop bottle, 2000-2200bph;
2. Can be achieved 16 blow pins at the same time perpendicular to the mold pin blow hole; patented die head, easy for changing color.
3. Computer intelligent control system, operation, set and modify the production process conveniently
4. Deep mirror treatment is used inside the die head, curve flow channels are smooth, no dead ends, no carbon left;
5. Strengthened and hardened cold treated screws, screw and barrel are with wear resistance; parts of tube wall thickness are very uniform
6. Various components are produced with Japan's CNC machine tools, use Mazak to process six-sided installation surfaces at the same time. Imported well-known brands Hydraulic, pneumatic and electrical parts are equipped to ensure that the rigorous process, stable and reliable quality.

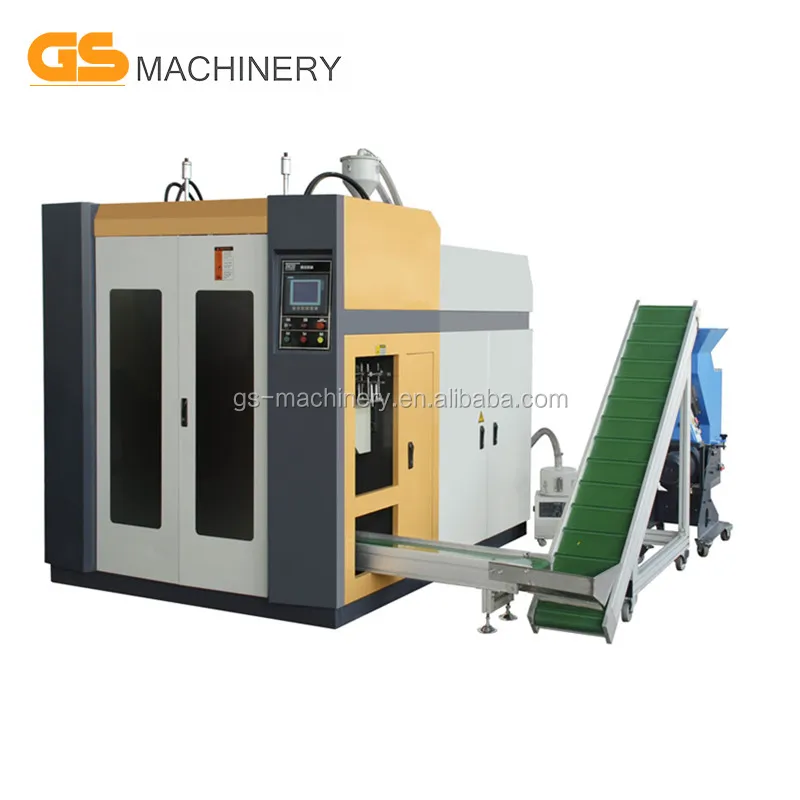

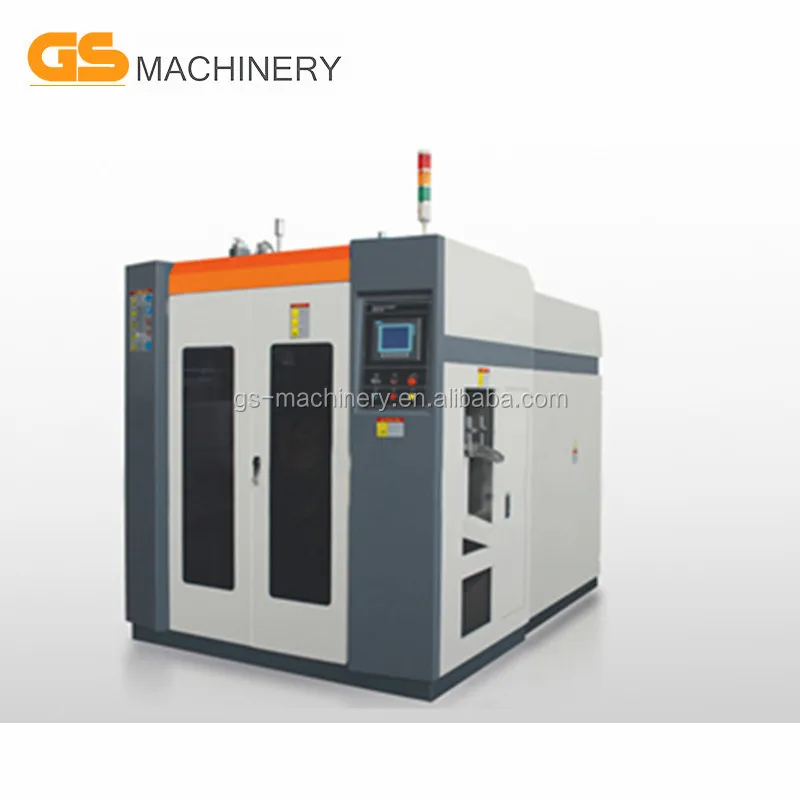

Machine Display
Detailed Images

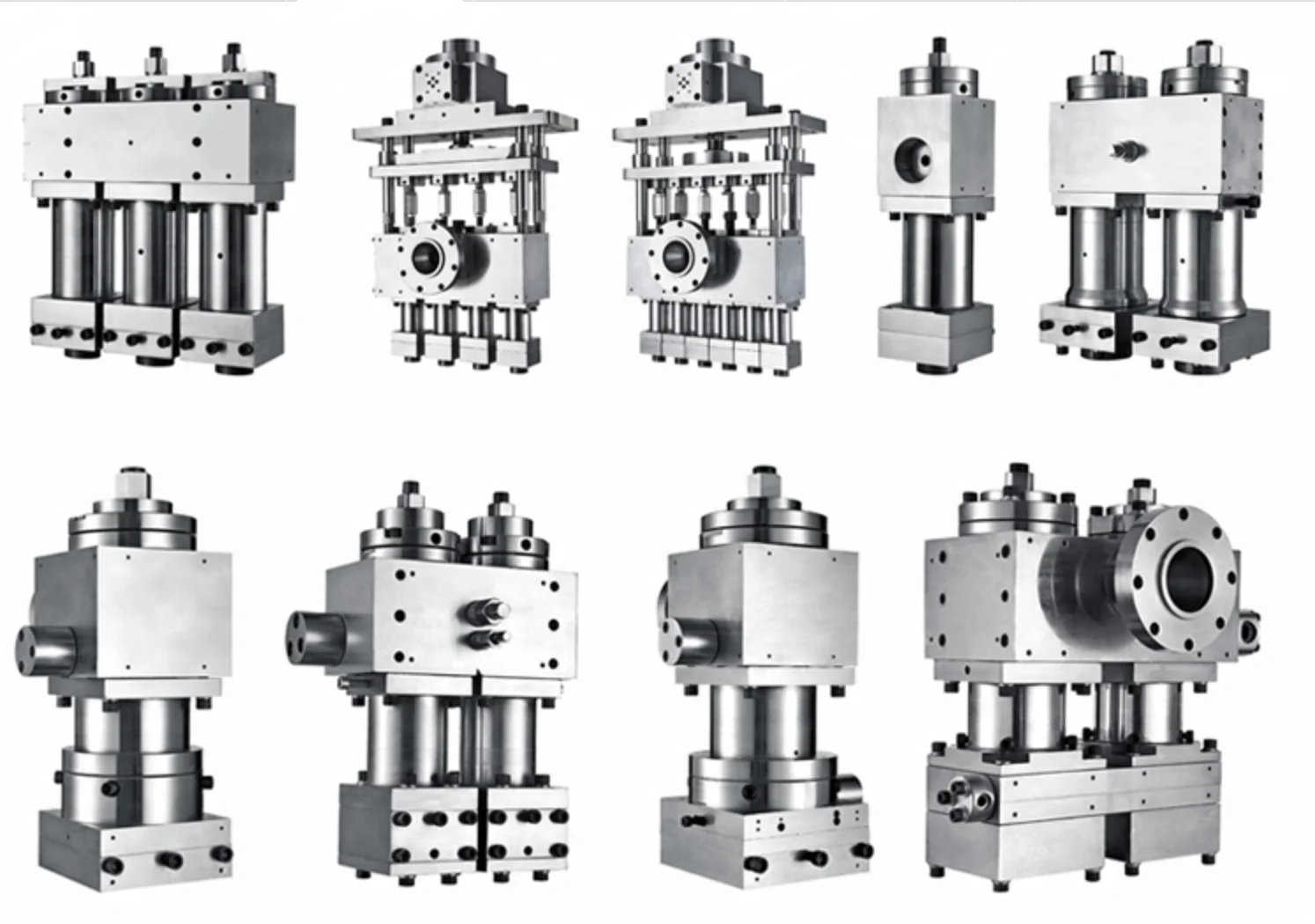

DIE HEAD

Head mode: the continuous extrusion head is designed with material center coming-in type and removing the plastic melting line on the product surface, easily for material or color change, saving the time & material cost with speedy operation.

EXTRUSION SYSTEM

Gradient mixing type with high-speed energy saving design, gradually changed screw with same distance and different deep. Material of screw: High quality nitriding steel 38CrMoAlA, with nitriding surface HV≥800,brittleness≤2. Material of barrel: High quality nitriding steel 38CrMoAlA,with nitriding surface HV≥900,brittleness≤2.

HYDRAULIC SYSTEM

The main hydraulic system is mainly composed of motor, pump, pressure regulating valve block, reversing valve blocks, cylinders and oil chillers. It controls platens open & close, carriage up & down, extrusion system up & down, blow pin actions, or even spinning cut and so on.

ELECTRICAL CONTROL

The electrical control system is composed of operation panel, temperature control module, PLC, input & output module, proportion board, contactors, voltage stabilized source, air switches, mid relays, proximity switches, inverter and motors. The operation panel contains power switch, touch screen, alarm, hot cutter knob, auto cycle button, emergency stop button, action reversion button, extruding speed button.

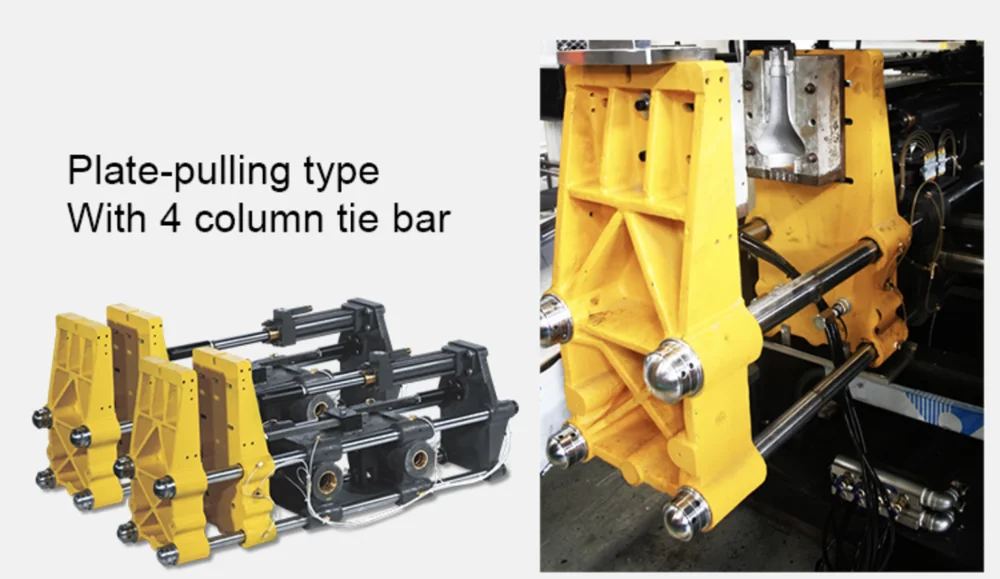

MECHANICAL STRUCTURE

Clamping unit is composed of front & back platens, clamping seat, carriage seat, mold stroking & clamping hydraulic cylinders, synchronizing mechanism, with the structure of toggle frame design. Platen movements open & close, carriage up & down is assisted with linear guide rails & ball bearing sliders to increase action smoothness and position precision. The end positions & slow speed positions are controlled by proximity switches or transducers

AIR SUPPLY

The pneumatic system contains air cylinder, air valves, air filters, air tubes, fast plugs and so on, for controlling the actions of head inner blowing, blow pin blowing, auto-deflashing, or pushing in & out for some special molds. The necessary air pressure is 0.6~0.8 Mpa, air consumption is 0.6~0.8 M3/min. The water system contains water distributing blocks, ball valves, tubes, connectors and so on, for chilling the screw & barrel, hard gear box, blowing units and molds

WATER SUPPLY

The necessary water pressure is 0.2~0.4 Mpa, water consumption is 3000L/hour.

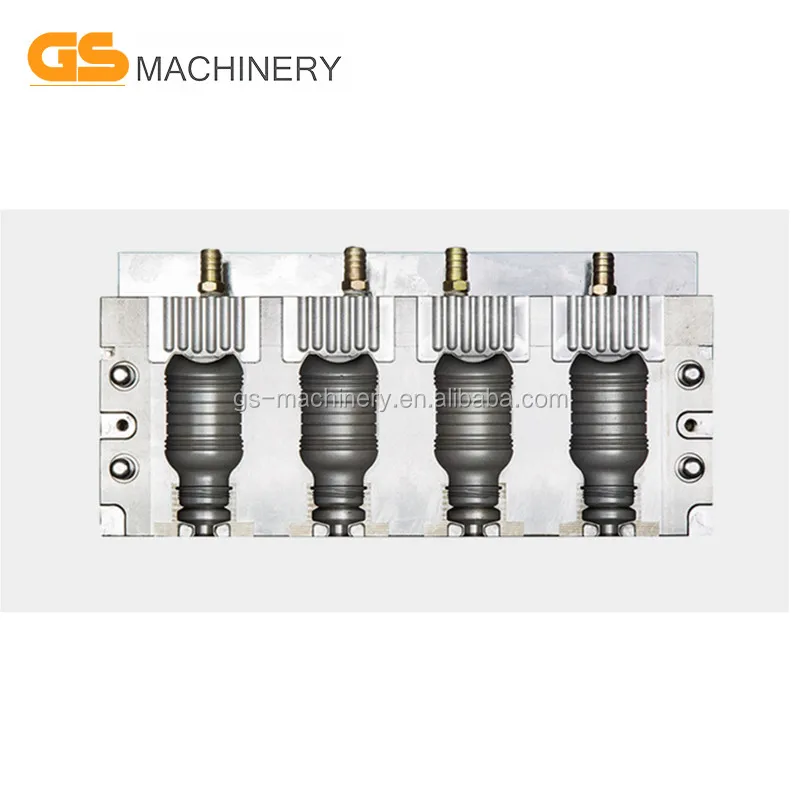

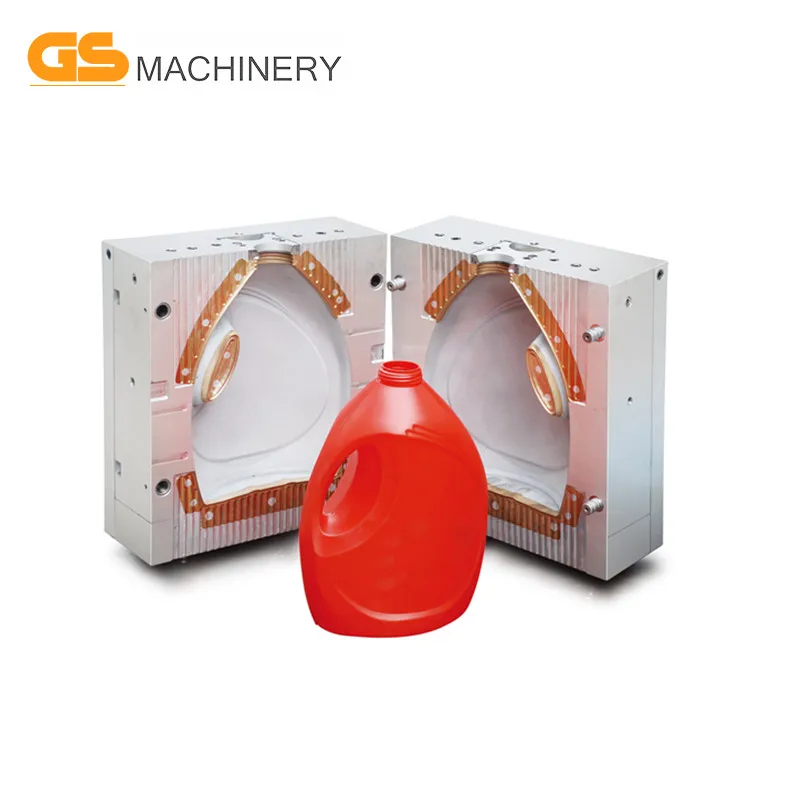

HIGH QUALITY BLOW MOLDS

High quality mold material used, guarantee mold  more durable.
2D dimensions and 3D design drawings are provided for client approval before mold proceed.
Reasonable- designed cold water channels increase cooling effect and shorten the cycle time.
High-precision CNC for mold & parts processing.
Professional in after-sales line and excellent credit assures stable operation of the molds

OUR COMPANY

ZHANGJIAGANG GREAT SUPREME COMPANY LIMITED

ZHAJIANGGANG GREAT SUPEREM COMPANY LIMITED is a professional manufacturer of Extrusion Blow Molding Machines, injection machine, and plastic molds, owning more than 10 years' experience in machine design, manufacturing, commissioning, service and turn-key project solutions.

Our Service

The advantage of GS sales consultant

1.We can provide comprehensive,professional equipment selection Suggestion;
2.And can provide production energy consumption calculation,return on investment benefit analysis;
3.To provide tailor-made workshop layout CAD blueprint;
4.Provide products optimization Suggestions;
5.Can provide the whole line optimization Suggestions;

The advantage of GS technical team
1.Each year 400 set customized requirements makes us have rich experience across multiple industry;
2.Customized equipment model According to industry products unique characteristics
3.The project responsibility system,closed loop team cooperation of design team and process team,and adjusting team,jointly create the equipment for user's satisfaction;
4.Engineers would study abroad or attend meeting of industry,keep up with the latest industry information and technology trend;
5.Undertake many key projects,and have a construction team formed by a number of senior technicians who can build cable tray,and install whole line equipent;

The advantage of GS after-sales team
1.free lifetime service for leshan machine;
2.24-hour rapid response;
3.Set up domestic services team and international services team;
4.Some technical personnel also master auxiliary equipment debugging and maintenance;
5.Every season,Leshan would provide customers with a free of charge training course for 2 days
6.Exclusive machining equipment for producing After-sales components,guarantee a quick response to users'requirement;

Packing & Delivery

PACKAGE DETAILS

Blow molding machines are packed with thick plastic film;
Auxiliary machines, molds, and spare parts are by wooden cases.
The loading to containers is done according to weight balance.
Every package is fixed tightly in containers by bolts or wooden blocks to avoid moving inside.
Loading photos will sent to client for reference.
