This beer bottling filling machine is my company's introduction of German technology, combined with the characteristics of beer production industry, designed to develop small-scale beer filling equipment. The machine has excellent mechanical operation reliability, improved rinsing, filling, cover screwing, disinfection sterilization and other functions.
Detailed Images
Technical parameters
Model
BGF
16-12-6
BGF
18-18-6
BGF
24-24-8
BGF
32-32-10
BGF
40-40-12
BGF
50-50-15
Number of rinsing head
16
18
24
32
40
50
Number of filling head
12
18
24
32
40
50
Number of capping head
6
6
8
10
12
15
Rated production capacity
(500ML)
2000BPH
4000BPH
6000BPH
10000BPH
15000BPH
18000BPH
Installed capacity
(KW)
3.5
4
4.8
7.6
8.3
9.6
Overall size
2200x1600x2300
2450x1900x2300
2750x2180x2400
4000x2300x2300
4550x2650x2300
5450x3210x2300

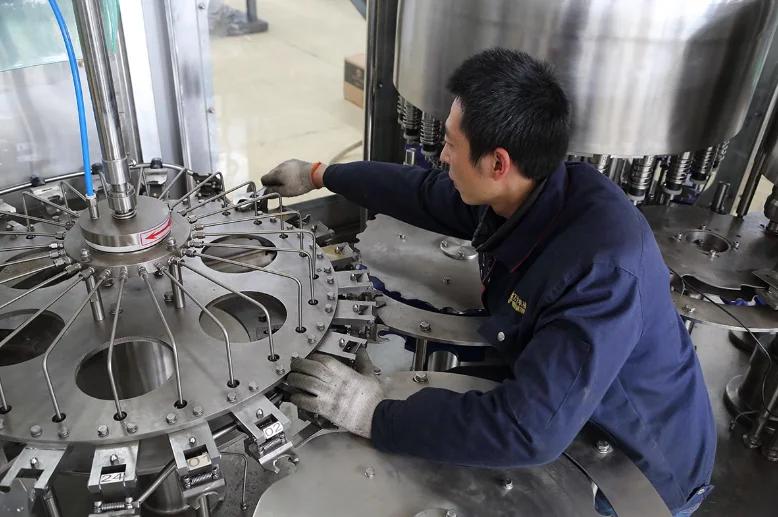

Washing part:

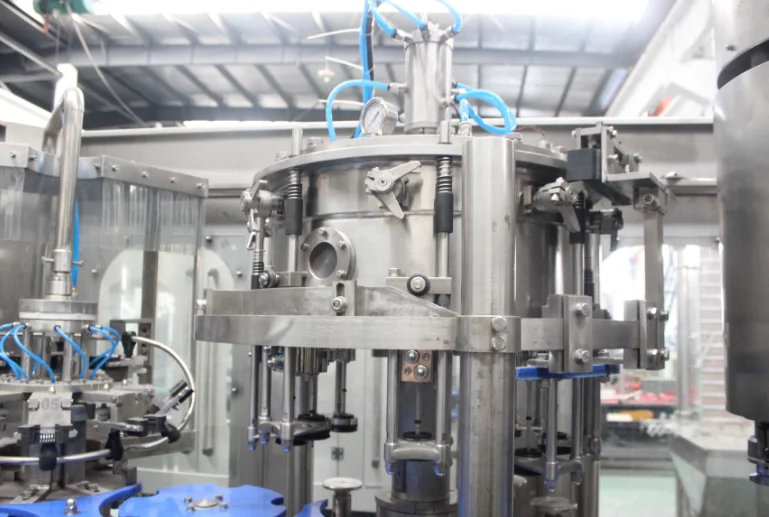

Filling part:

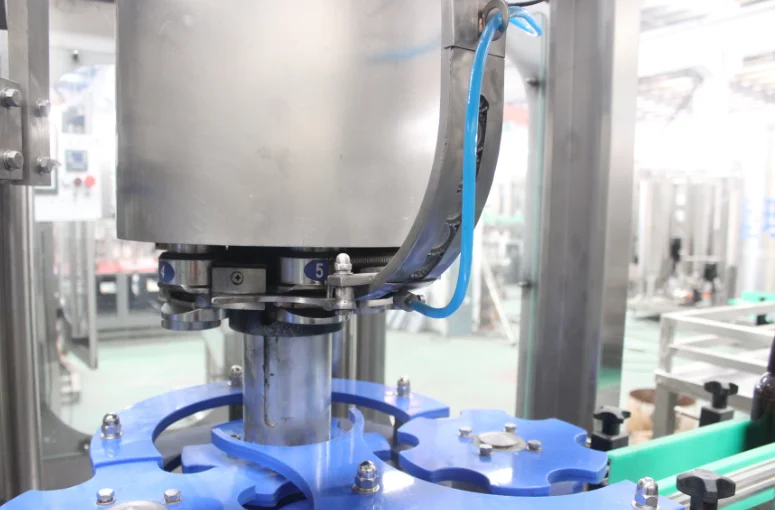

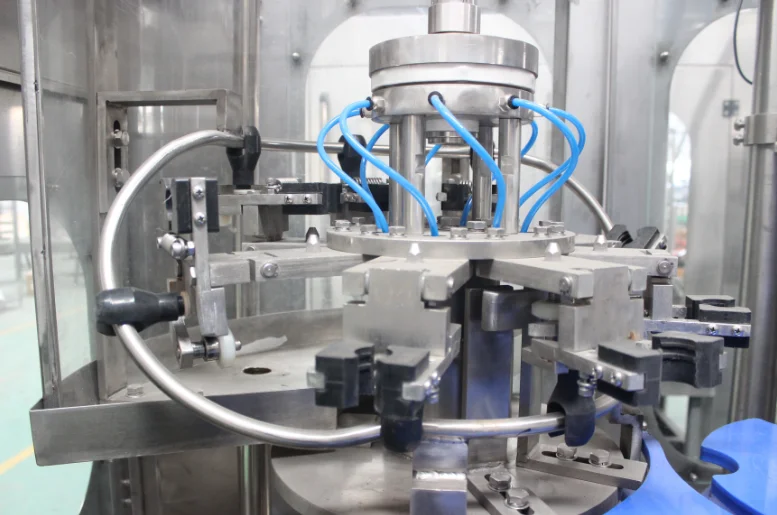

Capping part:
Structural Features:
1. The rinsing machine using high-strength stainless steel bottles of spring-loaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plum-like structure can wash every corner of the sidewall and bottom to make the bottle clean. 2. Filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features. 3. Using high-precision mechanical filling valve, with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time. 4. Stainless steel plunger and mechanical stirring gland-type magnetic reasonable cap to ensure that the gland is healthy and reliable. Hopper and the cap taking- cover, capping transmitted by magnetic. The capping is reliable and automatic unloading, reducing the rate of broken bottles. 5. Before the capping, use hot water bubble set to displace bottlenecks air, ensuring the oxygen content of less than 0.15mg / L. 6. Filling machines includes broken bottle automatically stopping valve, broken bottle washing, and foam automatically exhausting device. 7. With perfect CIP cleaning function, and capable of rinsing filling pipes with acid, lye liquid and hot water. 8. All the materials in contact with the valves, tanks, pipes are made of stainless steel 304 materials, inside and outside the wall of mirror-polished, ensuring it is healthy.
Our Customers
About Us
After-sale service If the machine have quality problem.the seller should solve the problem when the buyer face about the machine in 24hours.After one-year guarantee period.We assure you maintenance and offer the parts at reasonable price for life-long.The seller should offer the buyer solve all the problem lifelong. no matter on product technical or opration. wanjin machinety is sincerely hope to establish a long term business relations with your esteemed company.
