PC Computer Industrial Rack Mount Server Chassis Case 2U

Product Overview

Description

Product Description

Model	NP-F2400
Form Factor	2U  Rackmount Server case
Material	Metal material	SGCC
	Metal thickness	1.2mm
	Panel material	Metal
	Handle material	Metal
M/B support	Max. Motherboard 305mm x 191mm (12" x 7.5")
CPU support	DP Xeon(Intel)/DP Opteron(AMD)/Core(Intel)

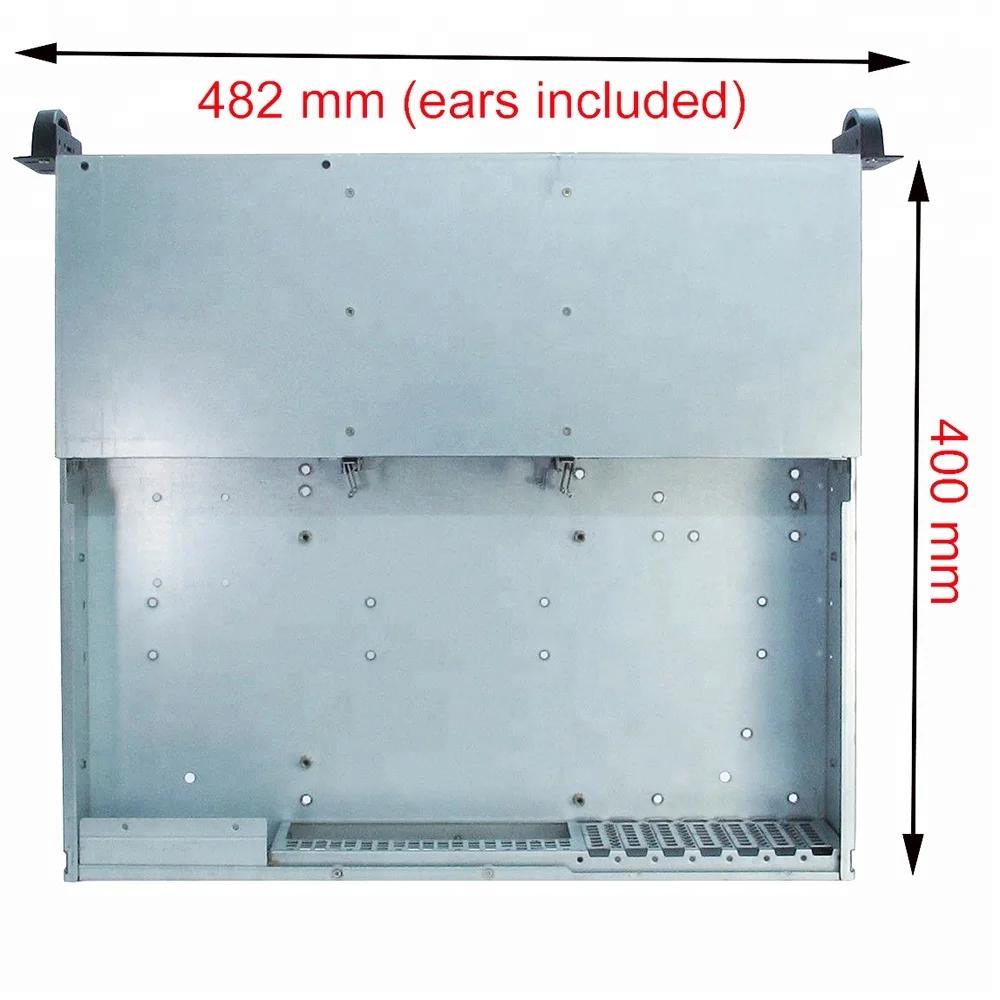

Size	D*W*H(mm)	400 x 482 x 88
	D*W*H(inch)	15.7 x 19 x 3.5

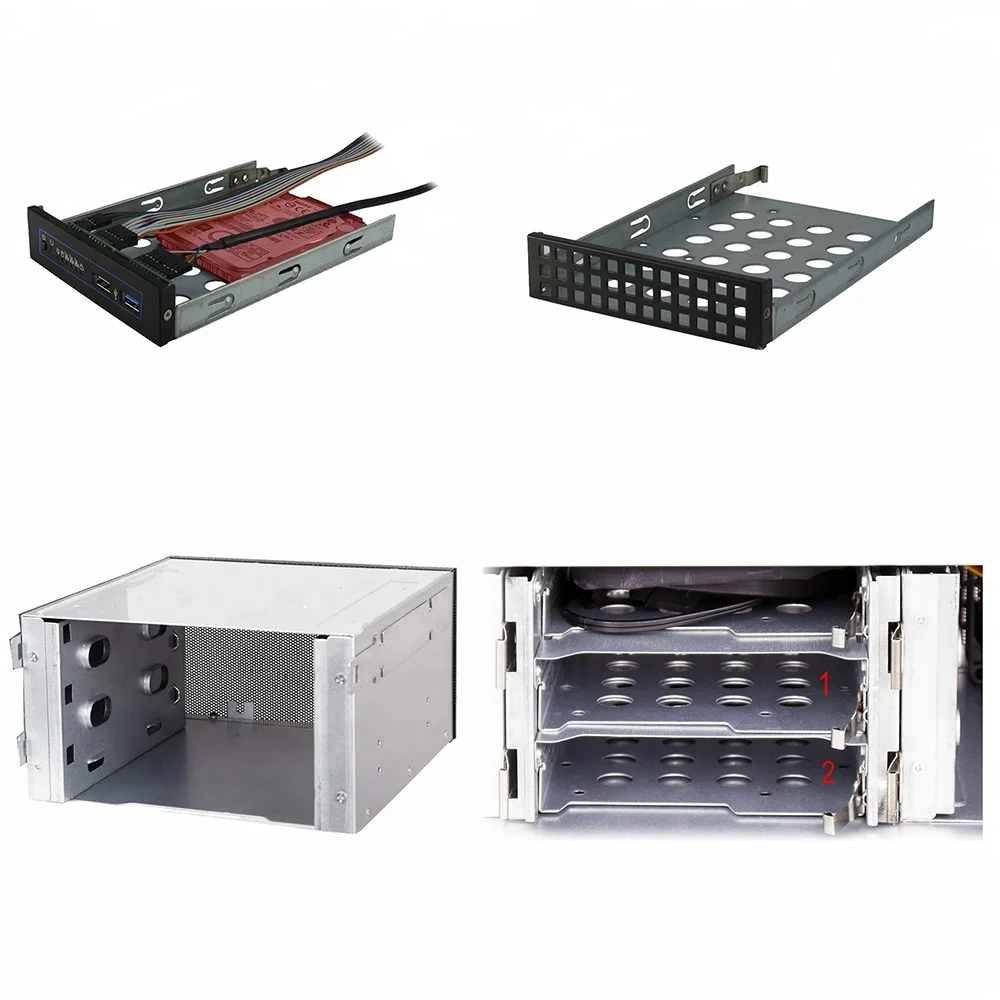

Drive Bay	External 5.25"  bays	4
	External 3.5" bays	2
	Internal 3.5"	8
	Internal 2.5"	1
Power Supply support	1U server power supply (maximum installation depth 191mm)
Front panel	Control button	Power ON/OFF x 1, system reset x 1
	Indicator	Power ON/OFF x 1, HDD x 1, NETWORK x 3, Alarm x 1
	Ports	USB 2.0 x 1 , USB3.0 x 1
Expansion	Riser Slot	7pc (low-profile)
Hot-swap Backplane	Mini SAS 6.0GB/s	NO
	SATA	NO
System cooling(optional)	Front	2 x 80 mm standard fans
	Middel	NO
	Rear	NO
Net weight	7.3kg
Gross weight	9kg
Packing size	D*W*H(mm)	540*555*155
	D*W*H(inch)	21.2*21.8*6.1
Packing Material	Polyfoam with carton box
Environment Temperature	0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
Relative Humidity	5% to 95%,non-condensing
Vibration ( 5-500 Hz )	1 Grms (Operating), 2 G (Non-Operating)
Shock	10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
