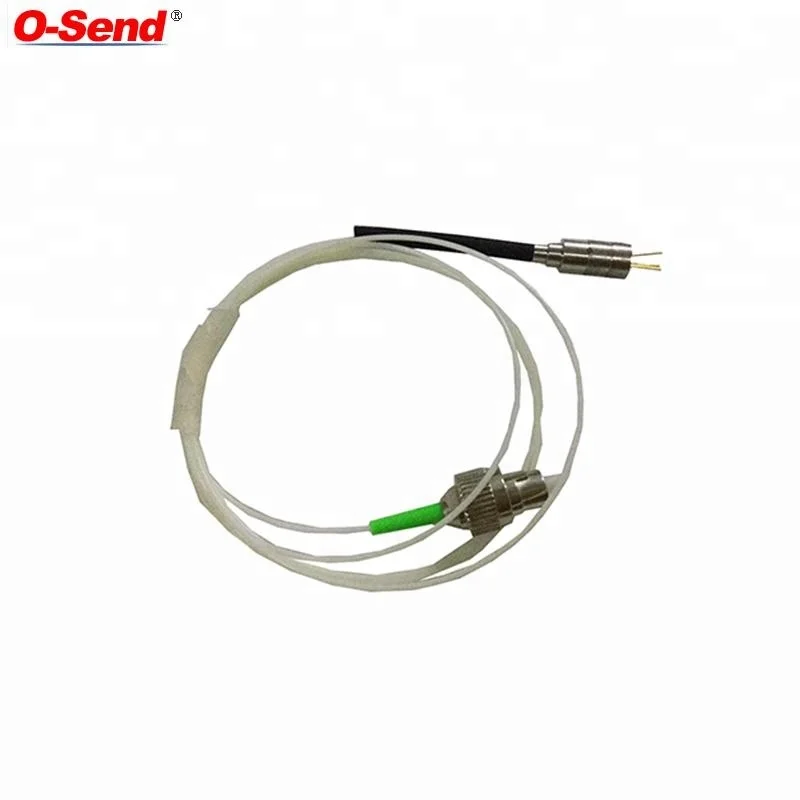

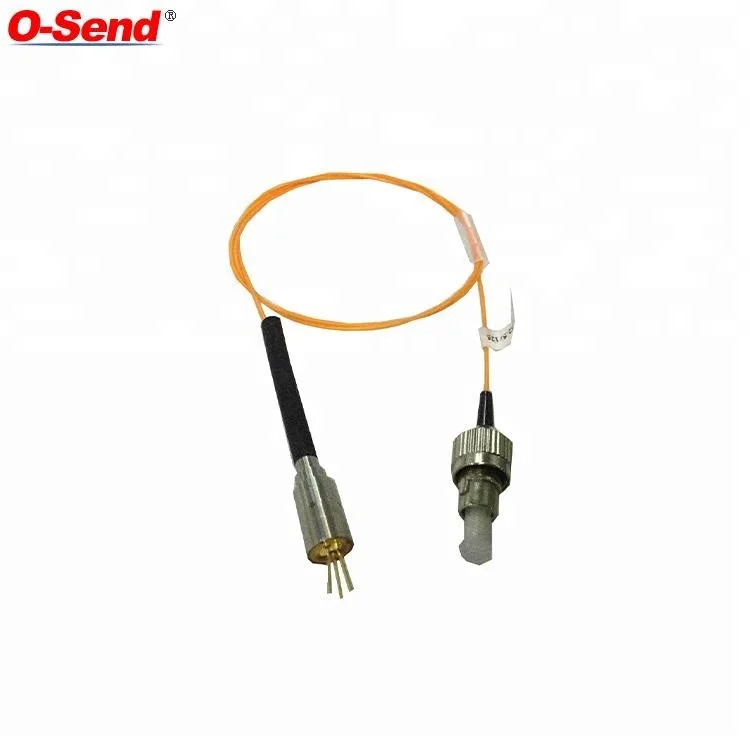

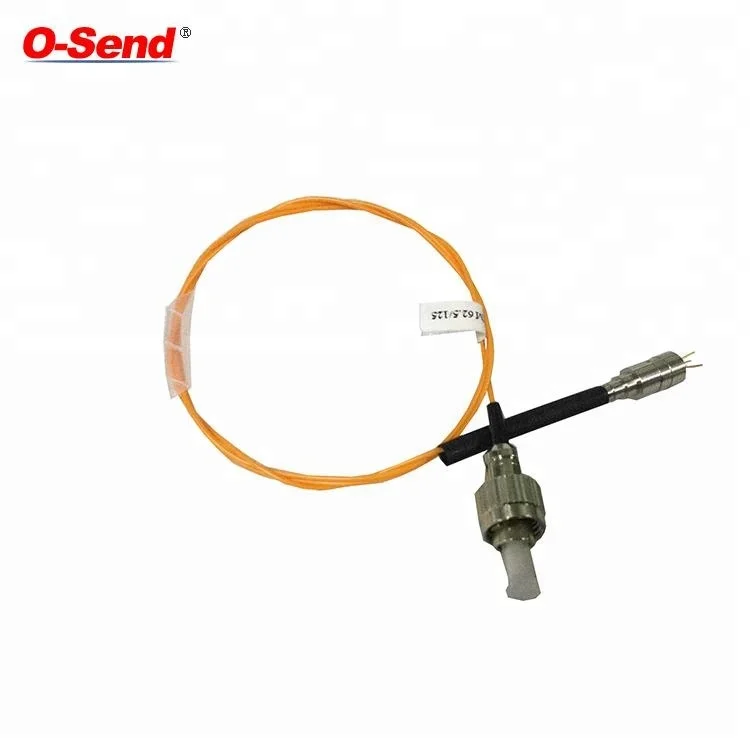

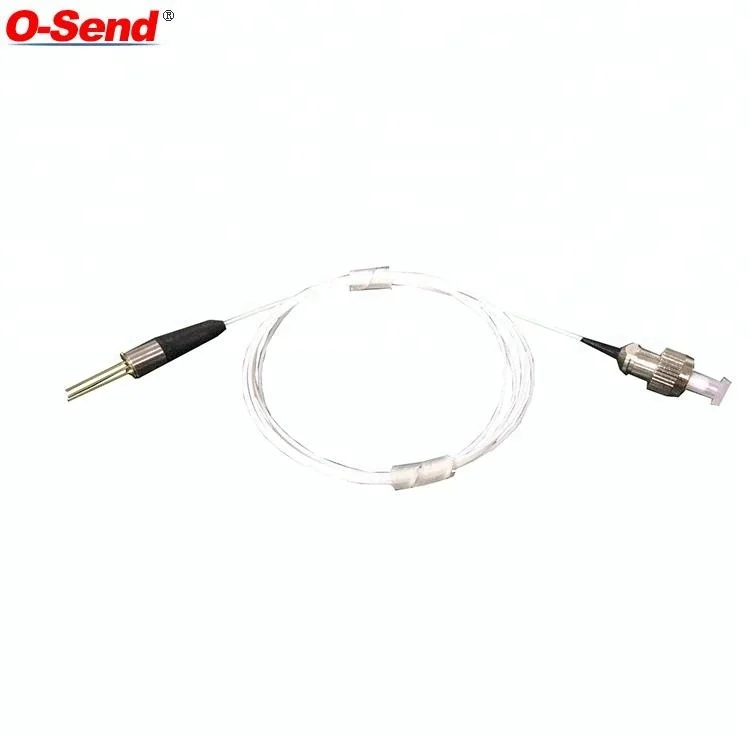

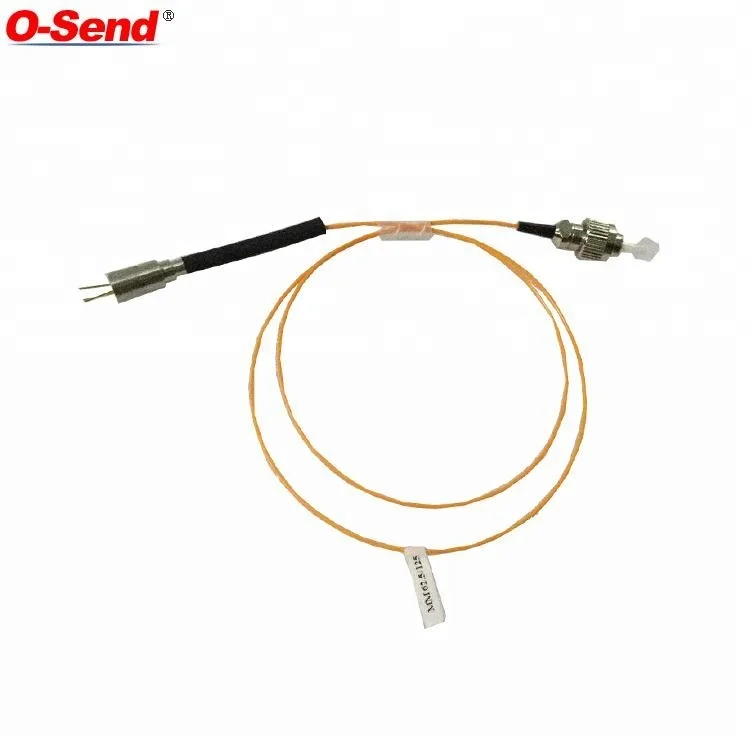

O Send 1310nm silicon photodiode with applifiber
- Category: Diodes, Transistors and Thyristors >>>
- Supplier: O-Send Opto-Electronics (Chongqing) Co. Ltd.
Share on (60804116809):
Product Overview
Description
Product Description
This detector module works in the spectral range1100-1650nm at frequencies up to 2GHz,it is pigtailed with an sm fiber.
Product Detail
Features
MQW 1550nm DFB LD
Low threshold current
High output power
BuIlt-IN monitor PD
Wide temperature range operation
Applications
CATV Reverse Transmitter
Absolute maximum ratings
| Parameter | Symbol | Min | Max | Unit | Test condition |
| Storage temperature | Tst | -40 | +100 | ℃ | - |
| Operating temperature | Top | -40 | +85 | ℃ | - |
| Reverse voltage | VR | 2 | V | CW | |
| Soldering temperature | 260/10 | ℃/S | - |
Oprical&electrical chaacteristics
| Parameter | Symbol | Min | Typ | Max | Unit | Test ondition |
| Detection range | λ | 1100 | - | 1650 | nm | - |
| Dark current | ld | 0.1 | 1 | 5 | nA | VR=5V,25℃ |
| Responsivity | R | 0.80 | - | - | A/W | VR=5V,λ=1310nm |
| Saturation power | P | 6 | - | - | dBm | VR=5v,25℃ |
| Bandwidth(3dB) | Bw | - | 1 | 4 | GHz | RL=50Ω |
| Reverse Voltage | VR | - | - | 15 | V | - |
| Capacitance | Ct | - | - | 0.75 | pF | VR=5V |
| Return Loss | RL | - | - | -45 | dB | - |
| CSO | CSO | 62 | - | - | dB | 45~860MHz, 2channel |
| CTB | CTB | 68 | - | - | dB | 45~860MHz, 2channel |
| C/N | CNR | 52 | - | - | dB | 45~860MHz,5 2channel |
