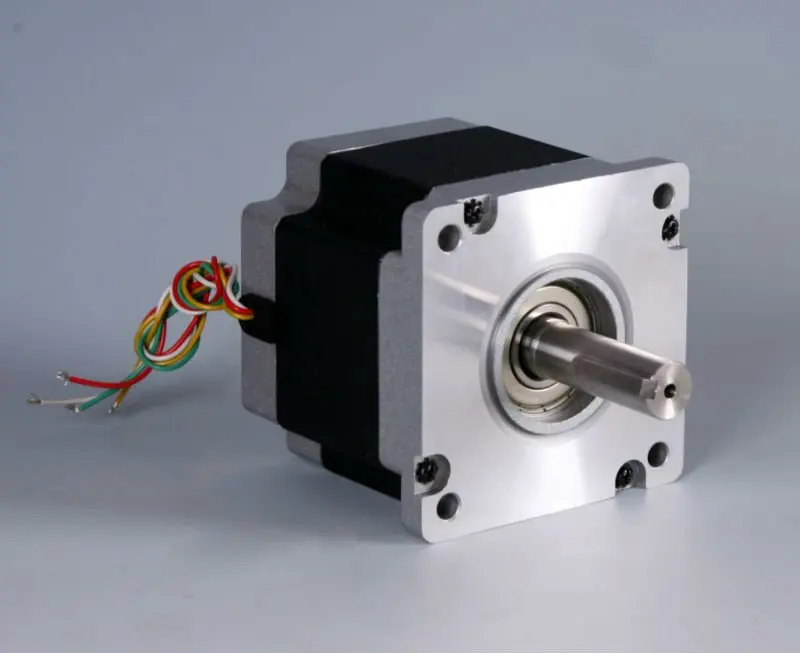

Hybrid nema 34 stepper Motor (0.9 Deg)
- Category: >>>
- Supplier: Changzhou Fulling Motor Company Limited
Share on (60804121886):
Product Overview
Description
Product Description

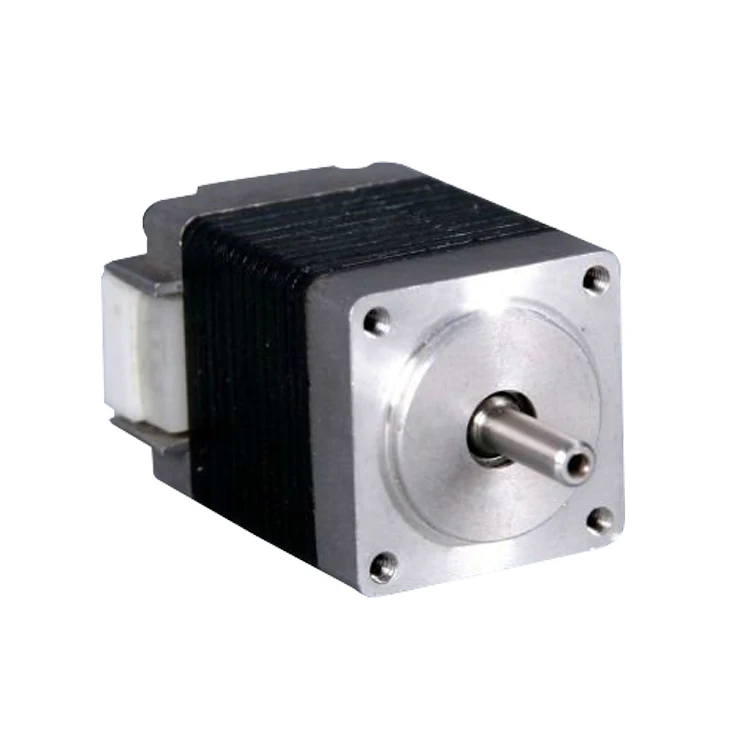

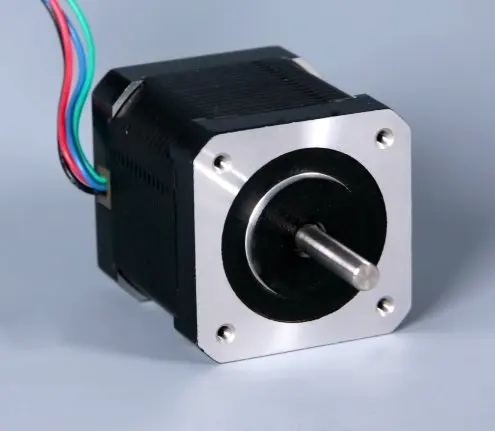

0.9. Size 42mm High Torque Hybrid Nema 17 Step Motor
Stepper motors,Stepping Motor
1) CE and RoHS approved
2) We can develop customer design version
3) TS16949
General Specification for High Torque Hybrid Stepping Motor
| Item | Specifications |
Step Angle | 0.9. |
Step Angle Accuracy | ±5% (full step, no load) |
Resistance Accuracy | ±10% |
Inductance Accuracy | ±20% |
Temperature Rise | 80.C Max.(rated current,2 phase on) |
Ambient Temperature | -20.C~+50.C |
Insulation Resistance | 100MΩMin. ,500VDC |
Dielectric Strength | 500VAC for one minute |
Shaft Radial Play | 0.02Max. (450 g-load) |
Shaft Axial Play | 0.08Max. (450 g-load) |
Max. radial force | 28N (20mm from the flange) |
Max. axial force | 10N |
Rotation | CW( See from Front Flange) |
Size 42mm Hybrid Stepping Motor Specifications
| Model No. | Rated | Current | Resistance | Inductance | Holding | # of Leads | Rotor | Weight | Detent | Length | |
| Voltage | /Phase | /Phase | /Phase | Torque | Inertia | Torque | |||||
| Single Shaft | Double Shaft | V | A | Ω | mH | Kg-cm | g-cm2 | kg | g-cm | mm | |
| FL42ST33-0956MA | FL42ST33-0596MB | 4 | 0.95 | 4.2 | 4 | 1.58 | 6 | 35 | 0.22 | 200 | 33 |
| FL42ST33-0606MA | FL42ST33-0606MB | 6 | 0.6 | 10 | 9.5 | 1.58 | 6 | ||||
| FL42ST33-0316MA | FL42ST33-0316MB | 12 | 0.31 | 38.5 | 33 | 1.58 | 6 | ||||
| FL42ST33-1334MA | FL42ST33-1334MB | 2.8 | 1.33 | 2.1 | 4.2 | 2.2 | 4 | ||||
| FL42ST38-1206MA | FL42ST38-1206MB | 4 | 1.2 | 3.3 | 3.4 | 2.59 | 6 | 54 | 0.28 | 220 | 40 |
| FL42ST38-0806MA | FL42ST38-0806MB | 6 | 0.8 | 7.5 | 6.7 | 2.59 | 6 | ||||
| FL42ST38-0406MA | FL42ST38-0406MB | 12 | 0.4 | 30 | 30 | 2.59 | 6 | ||||
| FL42ST38-0684MA | FL42ST38-0684MB | 2.8 | 1.68 | 1.65 | 3.2 | 3.3 | 4 | ||||
| FL42ST47-1206MA | FL42ST47-1206MB | 4 | 1.2 | 3.3 | 4 | 3.17 | 6 | 68 | 0.35 | 250 | 48 |
| FL42ST47-0806MA | FL42ST47-0806MB | 6 | 0.8 | 7.5 | 10 | 3.17 | 6 | ||||
| FL42ST47-0406MA | FL42ST47-0406MB | 12 | 0.4 | 30 | 38 | 3.17 | 6 | ||||
| FL42ST47-1684MA | FL42ST47-1684MB | 2.8 | 1.68 | 1.65 | 4.1 | 4.4 | 4 | ||||
We can make Customer Design Motors
