1"G 304 Stainless Steel water warm floor collector
Detailed specification
Model no:
HL011-7+1
Main tube size:
1" F G
No. of circuits:
2--13 circuits
Hole distance:
50mm
Flow meter rate:
0--5 L/m.
Connectors:
for 16*2.0mm or 20*2.0mm pipes
Brackets:
200mm or 210mm
Application for actuator:
M30*1.5mm
Working pressure:
145PSI (10bar)
Manifold made from special profile of stainless steel 1.4301 with delivery and return assembly. Nickel plated holders with rubber inserts.
Description:
The supply manifold comes preassembled with a 1" F main tube and hose bib/air vent. A valve provides fl ow balancing for each loop. The return module comes preassembled with a 1" F main tube and hose bib/air vent. A valve provides fl ow balancing and on/off manual control to allow isolation of individual loops for each loop. The valve accepts optional actuators for automated control. Two metal mounting brackets are included.

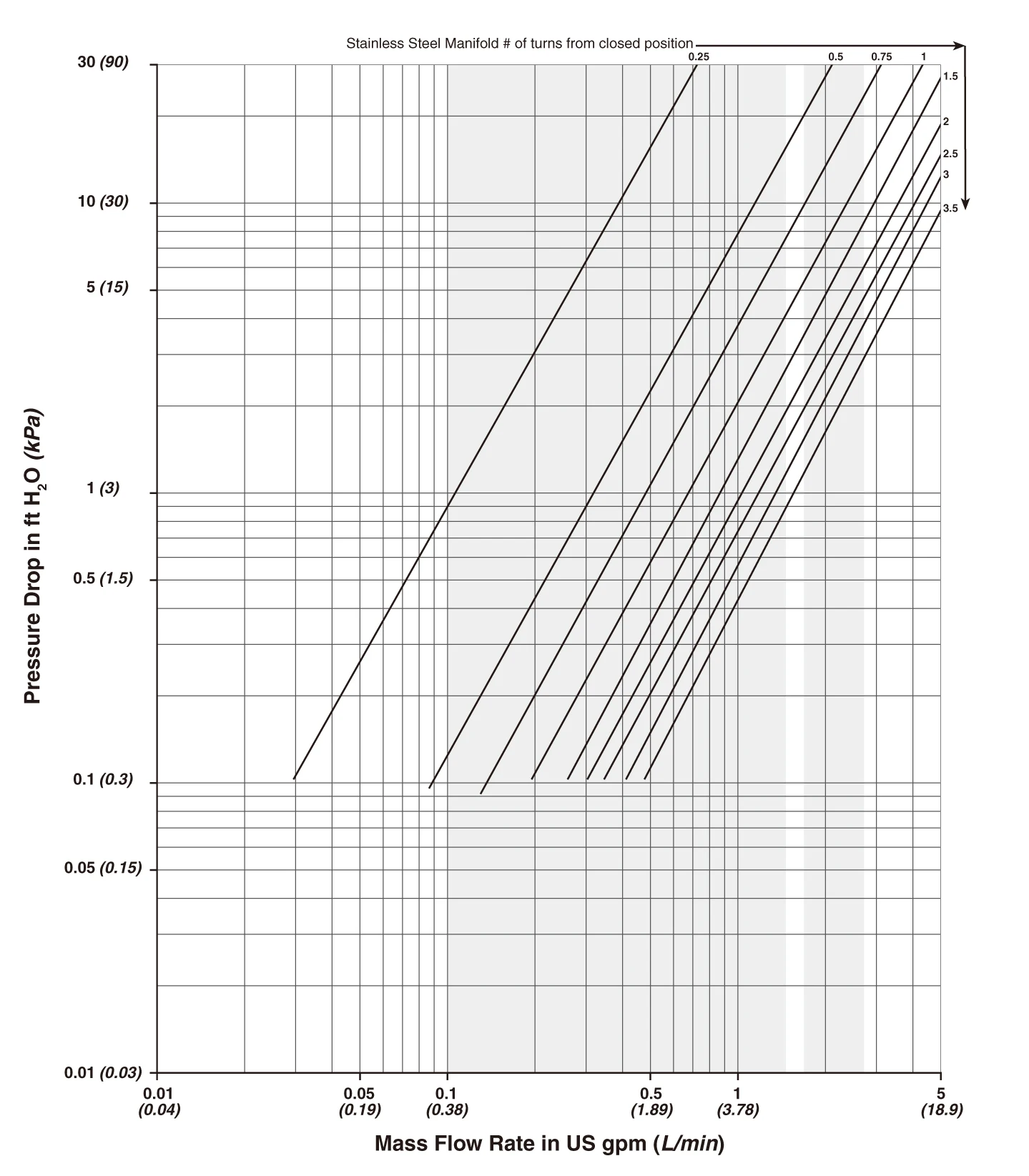

Technical Data Material: .................................................. Stainless Steel EN 1.4301 (X5CrNi18-10) which is equivalent to SAE 304 (V2A) Max Working Pressure ........................... 145 psi (10 bar) Tested Pressure ...................................... 145 psi @ 180°F (10 bar @ 82.2°C) Flow Rate of flow meter ..................... 0--5L /m. Supply & Return Piping .......................... 1" F Operating Temperature range ........................... 0--95°C
1 pair Mounting brackets: 210mm or 200mm centering according to customers’ request.
Pressure tested according to DIN 3230, packed in cardbox
