Product Overview

Description


Detailed Images
Series Name Code
Main Features

1. Thermal resistance or thermocouple input and measuring range both can be set freely.

2. Software adjust zero and full scale, temperature measuring of cold-end alone, amplifier constant-zero, display accuracy is better than 0.5%FS.
3. The method of fuzzy theory with the traditional PID make the temperature be controlled quickly and smoothly.
4. The method of advanced PID parameter self-tuning saves a third time as compared with ordinary instrument.
5.  Five Optional output type: Relay output, DC12V voltage output, 4-20mA current output, phase shift /zero-crossing output voltage regulator, analog output.
6. Alarm output: two circuit user-defined alarm output.

\t
Model
\t
XMTD-6581 /XMTD-6681 /XMTD-6181/XMTG-6081
\t
Dimensions
\t
72*72*76mm (install size: 68*68mm)
\t
Temperature sensor input
\t
thermocouple: K, J, E ; thermal resistance: Pt100 ;                                analog output: 1-5V(4-20mA),0-5V(0-20mA)                                                  all compatible in one meter
\t
Measuring Range
\t
K(-50-1300/999℃) , J(-50-999℃) , E(-50-800℃),                              Pt100(-50-650℃)
\t
Precision Class
\t
0.5 class(±0.5%F±1); 1.0 class(±1.0%F±1)
\t
Sampling Rate
\t
2 times/sec
\t
Adjustment  Method
\t
intelligent PID adjustment (P ,PI, PD ,PID)
\t
Main Control Output
\t
DC12V voltage output to control SSR/SSR3 to regulate the temperature
\t
Type differ by Alarm Function
\t
XMTD-6581 (one way upper limit  bias alarm default 10degree)
\t
XMTD-6681 ( one way lower limit absolute value default 100degree )
\t
XMTD-6181 ( 2way alarms, one way upper and one way lower limit alarm)
\t
\t
XMTD-6081 ( no alarm)
\t
Output Voltage
\t
DC 12V,  Max. Load Current: 60mA
\t
Working Power
\t
transformer : 220VAC±10% 50/60Hz; 100-240V (could be customized)
\t
Power Consumption
\t
< 3VA
\t
Ambient Temperature
\t
temperature -10°C~50°C; humidity <85% non-corrosive occasion
Panel Function Infos

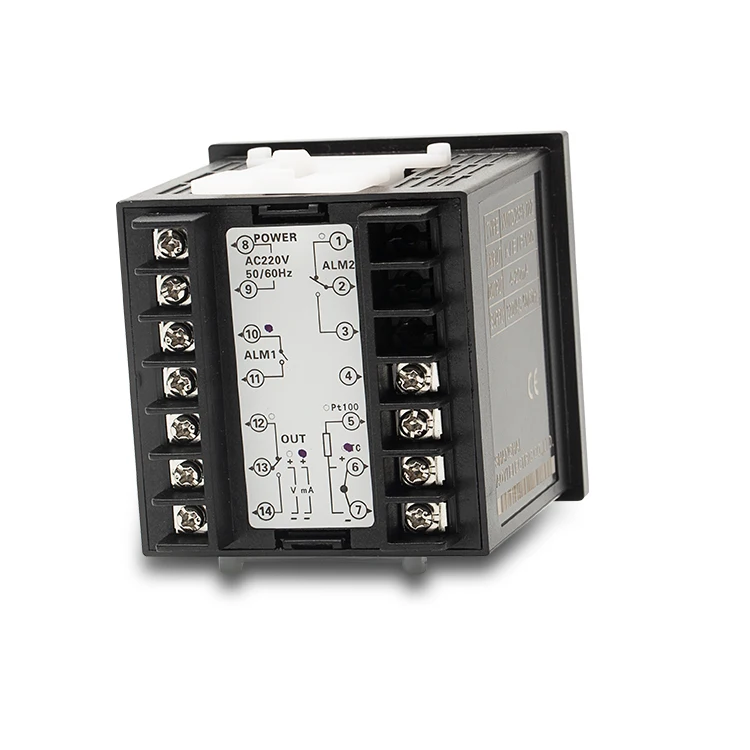

Wiring Diagrams
