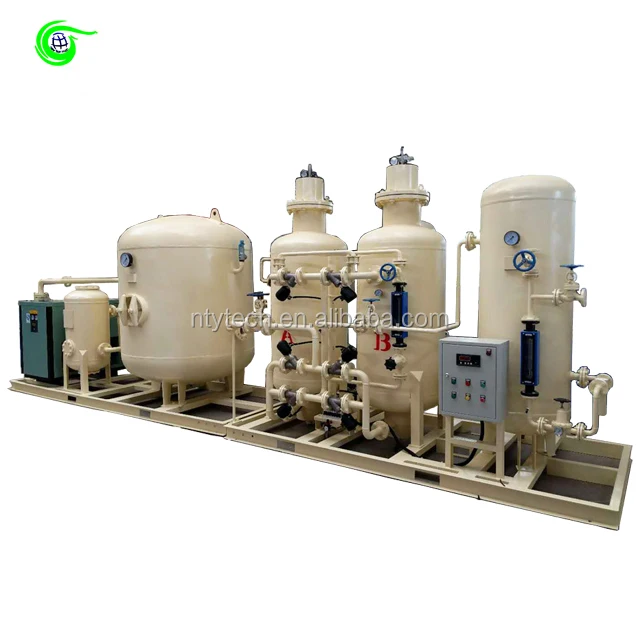

Made In China Cost Effective SPO Pressure Swing Adsorption O2 Gas Generation Unit

SPO Pressure Swing Adsorption O2 Gas Generation Unit

Specifications

Technical index:
Model No.: NTYT/SPO-150

Oxygen production rate: 150Nm3/h

Effective air consumption: 30Nm3/min
Oxygen purity: 90%-95%
Oxygen pressure: 0.1-0.4MPa (Adjustable)
Dew point: -40℃ or -60℃

Working Principle

After removing impurities such as oil, water and dust by air- purification system, the compressed air enters the adsorption tower containing zeolite molecular sieve. Nitrogen, carbon dioxide and water vapor in the air are absorbed by the molecular sieve in large quantity, while oxygen passes through the adsorbent due to the high diffusion rate, and the separation of oxygen and nitrogen is realized.When the nitrogen and other impurities adsorbed in the adsorption tower reaching saturation, the reduction of pressure enables the desorption and regeneration of zeolite molecular sieve, which can be reused.Two adsorption towers are used to circulate under the control of PLC to produce high quality oxygen continuously.

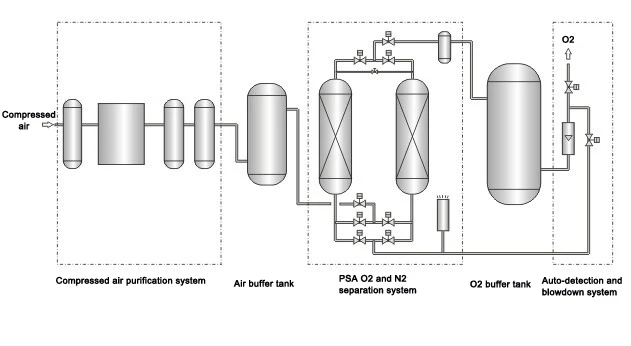

Flow Chart

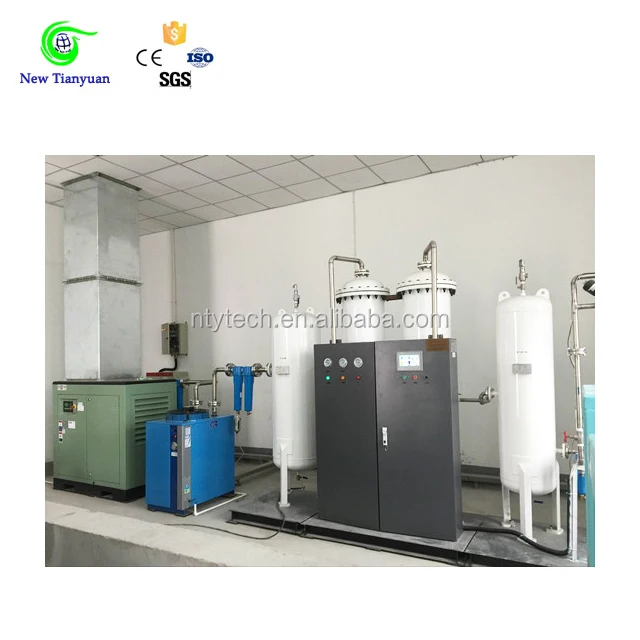

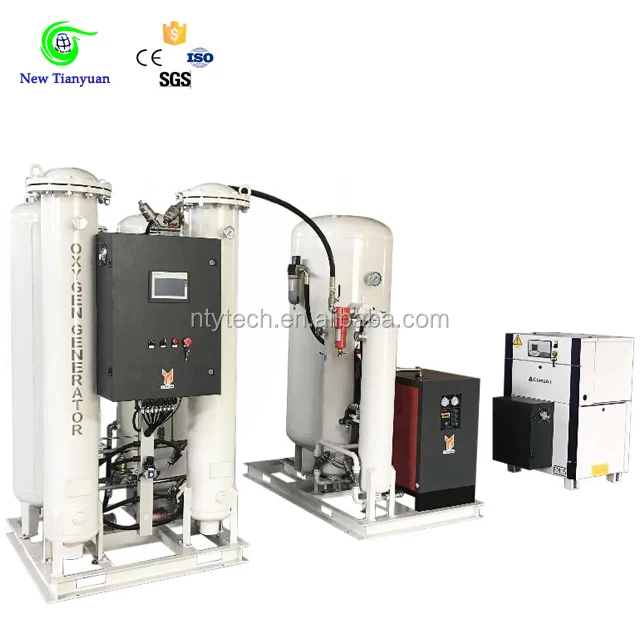

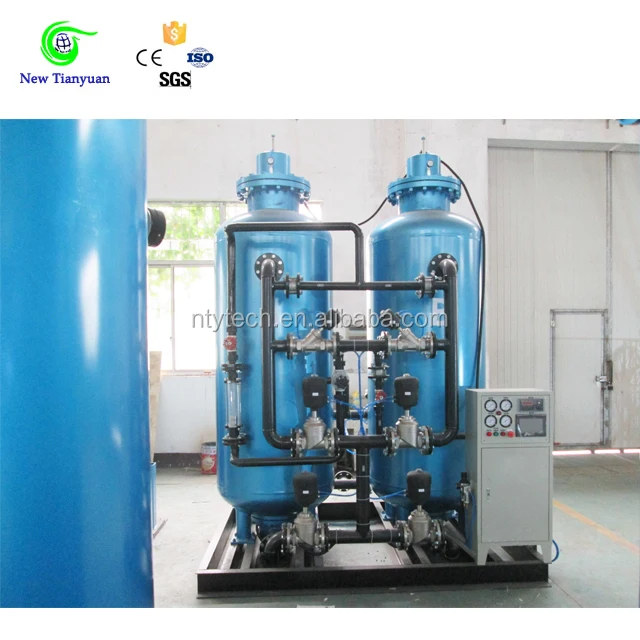

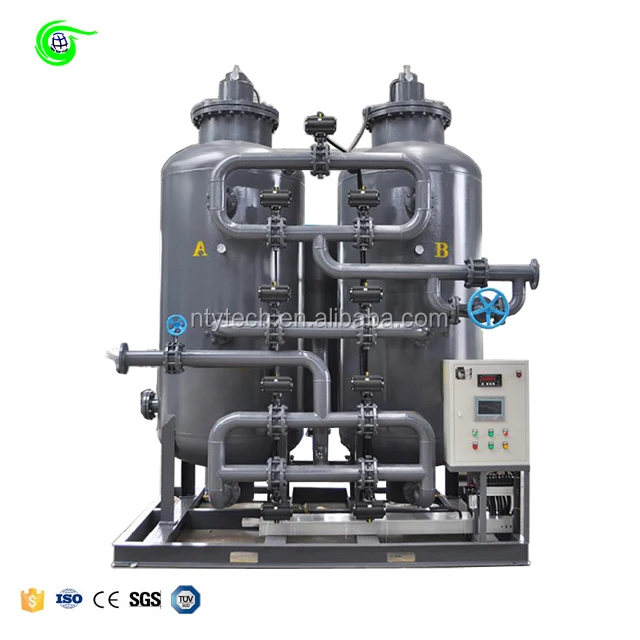

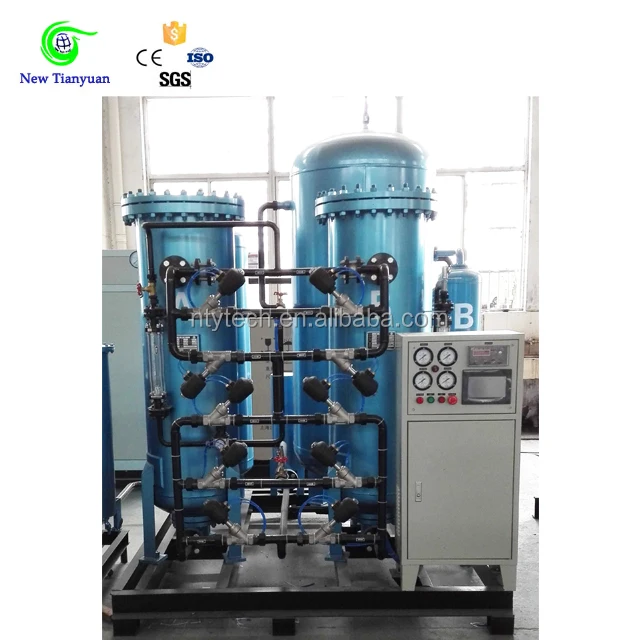

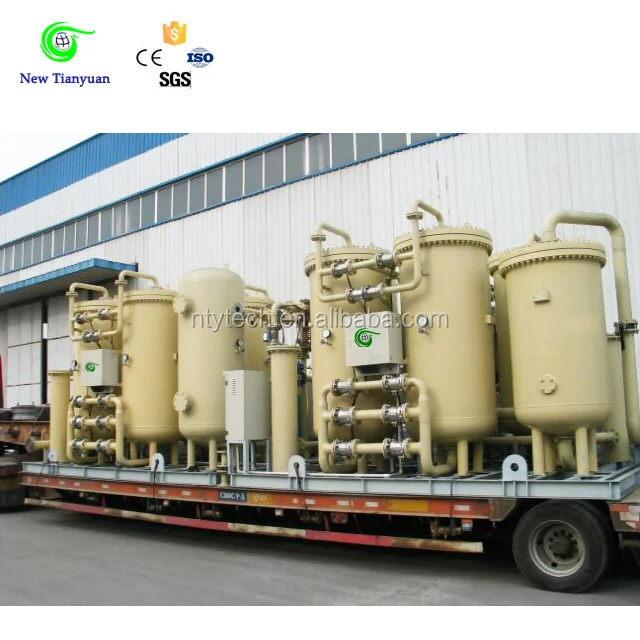

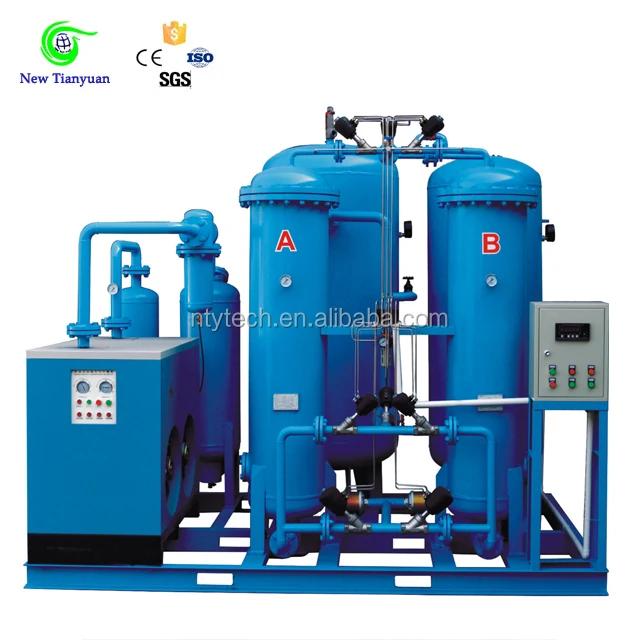

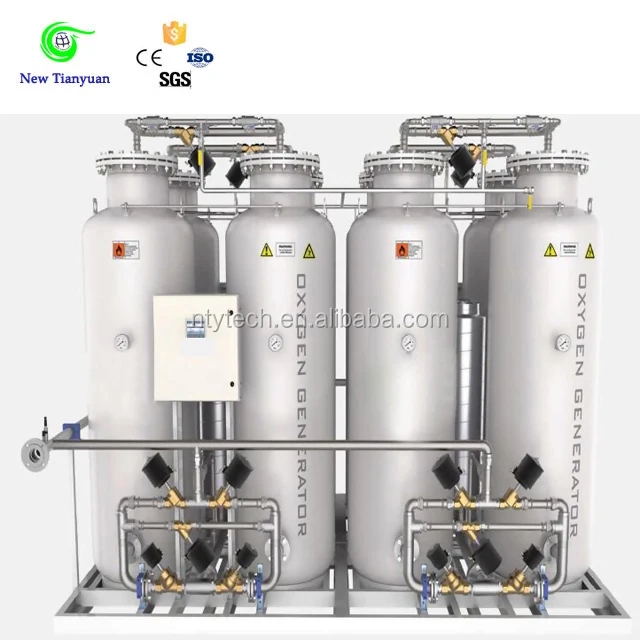

Figure Photos

Sichuan New Tianyuan Technologies Co., Ltd. (abbreviated as “New Tianyuan”) is commanding an international marketing and sales team composed of high-end professionals with over 20 years experience in import and export of foreign trade, joining hands in strength with several large-scale enterprises owned by Central Government and private group manufacturing companies for playing respective advantages to render customers at home and abroad with high quality and high-end technological products.

Through untiring efforts, the sales performance and marketing share of the company is made steady progress year by year, the compressors, high pressure gas tube bundle containers, integrated equipment, vessels, transport trailor for CNG, LNG and etc.and spare parts exported have already been sold far into the five continents, spreaded all over 30 countries and regions around the world.

There are many modes of transportation can choose from, such as sea transportation, air trasnportation and land transportation, we will choost the most suitable transportation mode to delivery your goods. If you have any other requests, please contact us and we will get back to you in the shortest possible time, our aim is to make you satisfied.

To have prompt and exact evaluation from factory, the following informations are essential to be provided by customer while inquiring:

1. Exact compression media: flammable, toxic, oxygen, inert gases. Preferably the gas composition can be provided;
2. Suction pressure, discharge pressure, flow capacity of compressor;
3. Control system: Requirement for manual start or full automatic control;
4. Electric parameters: Voltage, frequency, phase;
5. Any special requirement for compressed gas temperature, equipment package, configuration and etc..

We also can design piston reciprocating compressors according to clients' parameters to satisfy client's local environment and different needs. More detailed information can be provided with further communication.

If you are interested in our products,pls contact us with no hesitation.
