Big vacuum coating machine for SS plate / pipe

Share on:

Price:$160,000.00 - $180,000.00
Price in USD:Details


Product Overview

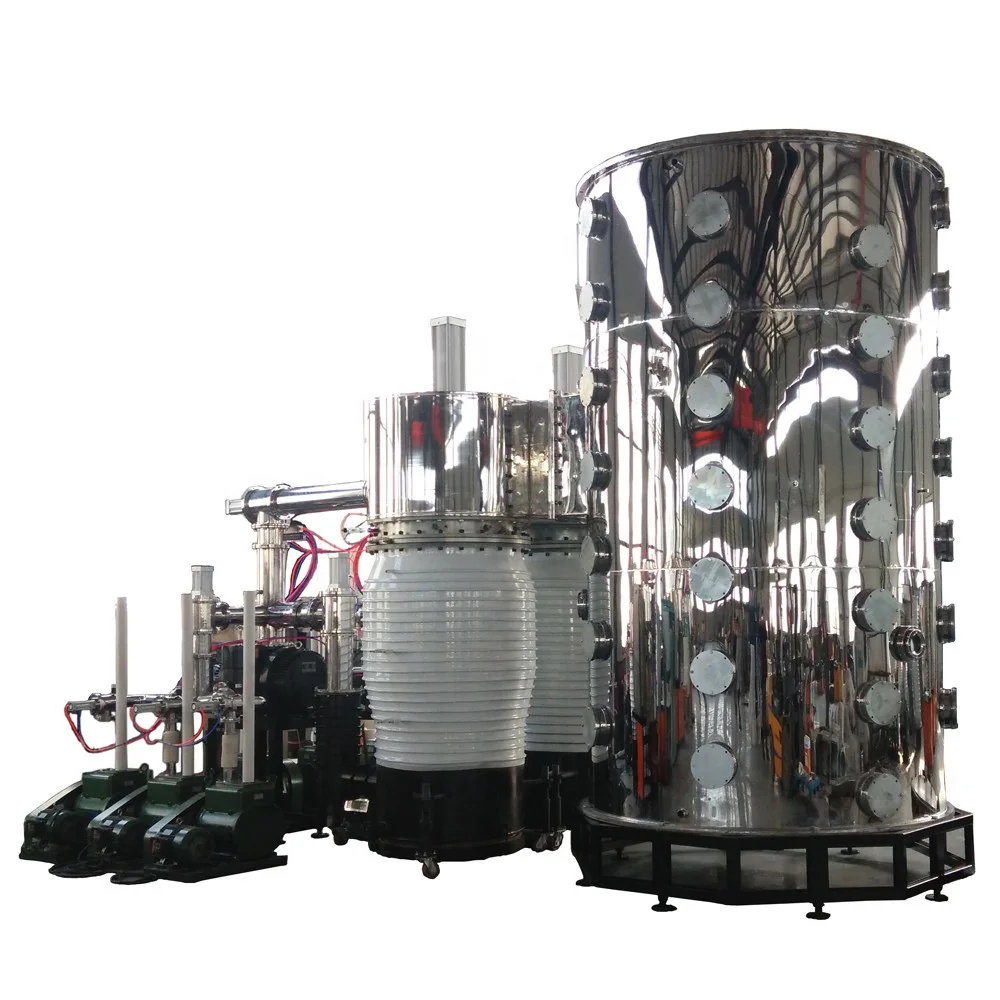

        Big vacuum coating machine for SS plate/pipe


    Big vacuum coating machine for SS plate/pipe  which is applied to coating metal glass,

jewellery and ceramic products, is mainly used for coating stainless steel or metal plates.

By using the PVD technology,the stainless steel plates can be much efficiently and stably.



Coating: TiN,CrN,ZrN,TiCN,TiCrN,TiNC,TiALN


Color: gold, rose gold, black gold, silver, champagne gold,sapphire blue, black, etc.


Product Description









 PVD coating technology


PVD coating is a plasma coating deposition technology which the materials are vaporized under vacuum conditions ,so as to avoid the reaction between the vaporized material and air.  PVD coating is used to add new features as improve the workpieces' hardness,wear resisitance,corrosion resisitance ect..


coating thickness            0.5-10μm


hardness                        1000-4000 HV


temperature resisitance    300-1150°c


deposition temperature     200-600°c


QQ20150204142428.jpgpsb (3).jpg

Application industry




Watch industry (strap, case, dial)



Automotive industry (piston, piston rings, alloy wheels)



Hardware industry (sanitary ware, door knobs, locks)



Glass ceramics industry (glass tableware, ceramic crafts)



Architecture industry (stainless steel plate, stair railings, columns)



Toolindustry (drill bits, carbide cutters, broaches, shaving heads)



Precision mold industry (standard punch mold, forming mold)



As well as pens and glasses etc..




Packaging & Shipping

1 common package : standard wooden case


2 under customer's request





Our Services


Warranty: 1 year


 Engineers available to service machinery overseas

Company Information





 3D pictures







In order to provide you suitable machine ,pls tell us some information ,thank you


1, What is your products ? size ? material ?

2, How many products do you need to coating per day ?

3, Do you have some color requirements ?



Diffusion pump, rotary vane pump, roots pump, holding pump, pulse magnetron sputtering

power, unipolar pulse power, frequency magnetron power, DC magnetron power, vacuum

gauge, flange.







SKYPE:  Michelle.y Qiu


QQ:      2728620437


TEL/WHATSAPP/WECHAT:   008618906391496
