SEA FQF 02 Plastic POM Float Ball Valve With Solid Magnet Ball Ball Valve For Water Tank Water Tower
- Category: Ball Valves >>>
- Supplier: Foshan Shunde Zhongjiang Energy Saving Electronics Co. Ltd.
Share on (60804183162):
Product Overview
Description
No Need Electricity I Water Saving
* Easy to install：small size, water pressure up to 0.02MPa(0.2KG).
* The new valve replaces the traditional float valve, no need electricity,
long life, low failure rate, and save water resources.

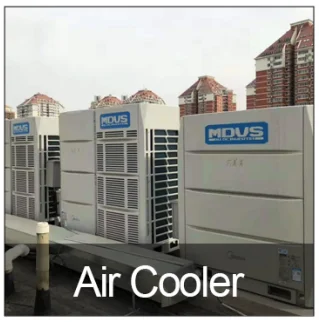

* Widely used in：water tanks, water towers, swimming pools, solar energy, toilets, hot water boilers, animal drinking water, air cooling, humidifiers, civil buildings, cooling towers, hot water boilers, steamers, water tanks.
Installation Guideline
A. Before installing and using this valve, be sure to flush the impurities in the pipeline, and place the gift filter in front of the float valve.

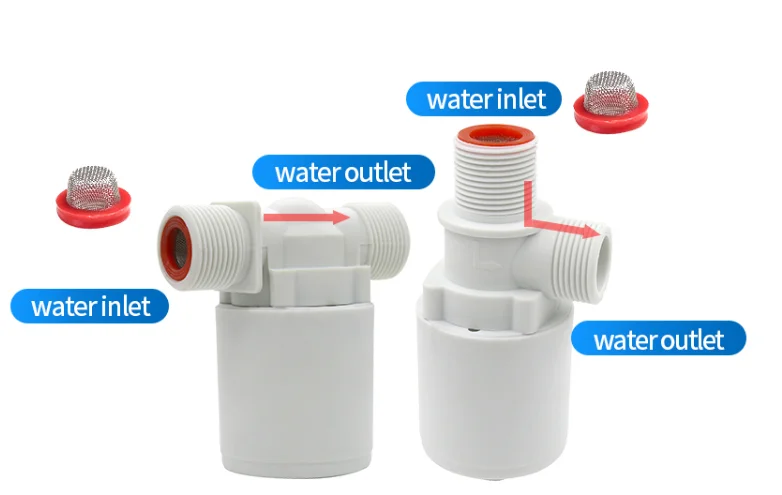

B. Install according to the arrow marked on the valve, the arrow pointed is the water outlet port.
Install Tip

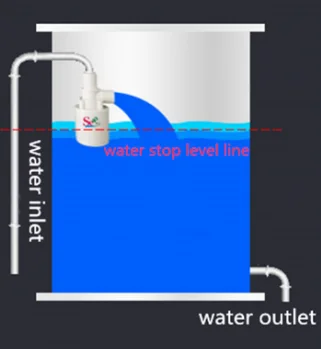

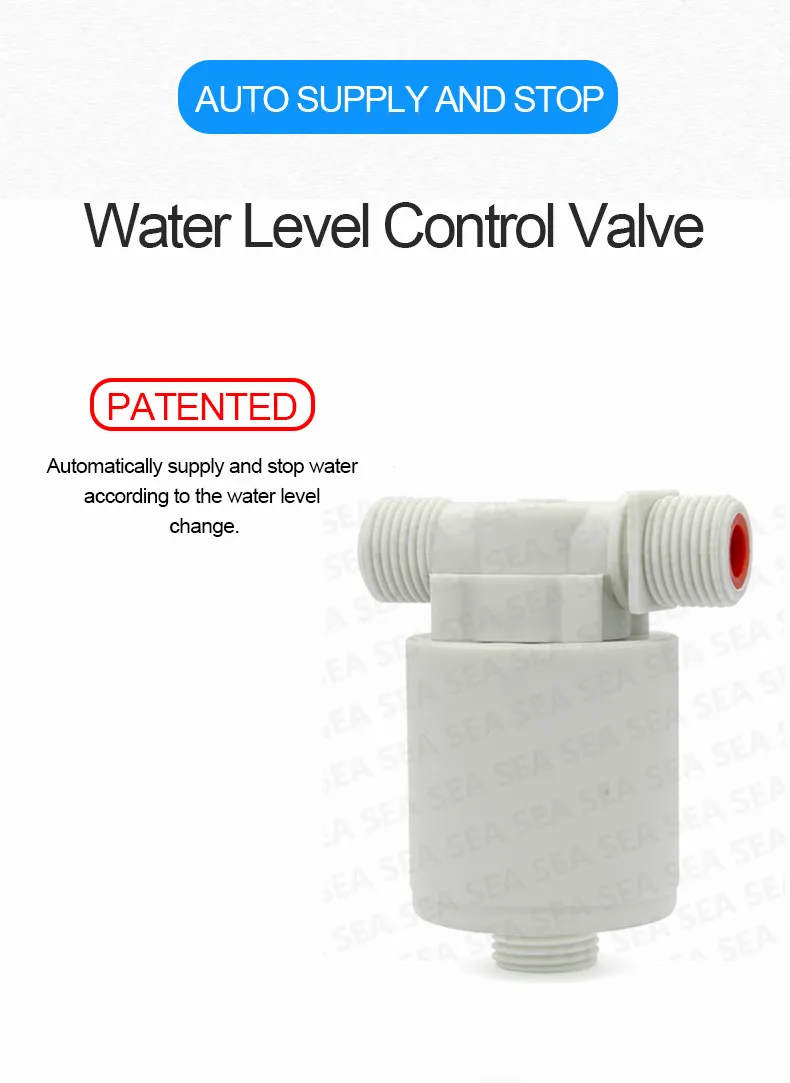

This product is a liquid level control valve.

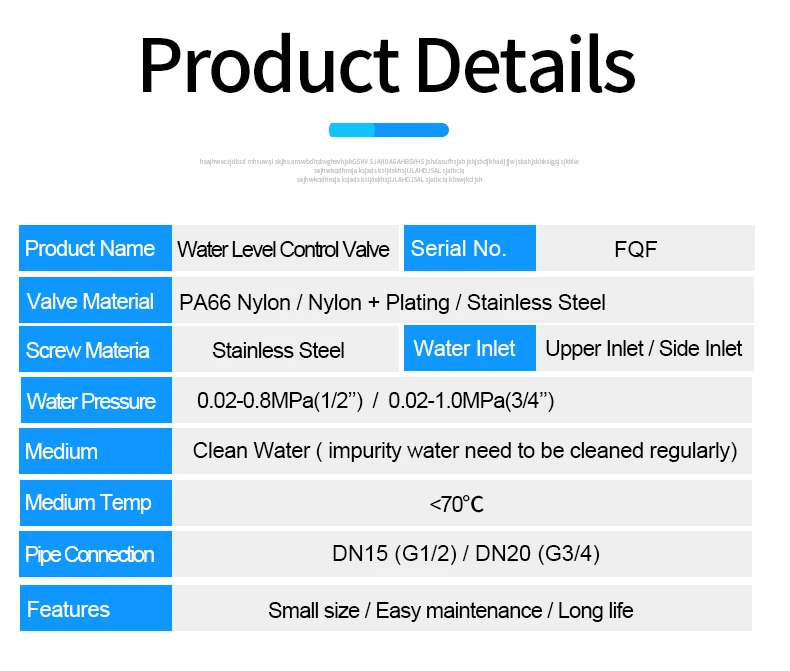

1. Water pressure range：02 ~ 1.0MPa (0.2 ~ 10 KG).(please use it within the applicable water pressure range).
2. The product must be installed vertically on a horizontal surface, and keep the float vertically downward.
3. Please fix the water pipe on a horizontal surface first, and then connect the valve to the water pipe.
4. When in use, the shut-off valves should be fully opened.
5. If two valves are installed in the same tank, they should be kept in the same level.
6. Before installation, please clear the impurities in the pipeline to prevent blockage.

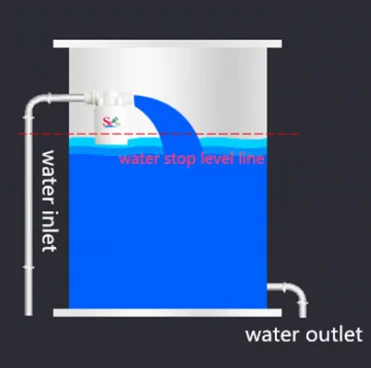

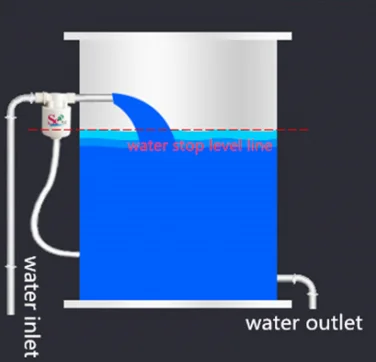

7. When using the internal installation valve, there will be water leakage at the bottom, which is normal.
Maintenance
If the water quality is poor、hard or impurity , the valve needs to be properly maintained..
If user find that the water filling time becomes longer or the water cannot be stopped, please remove the float valve and clean it.----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

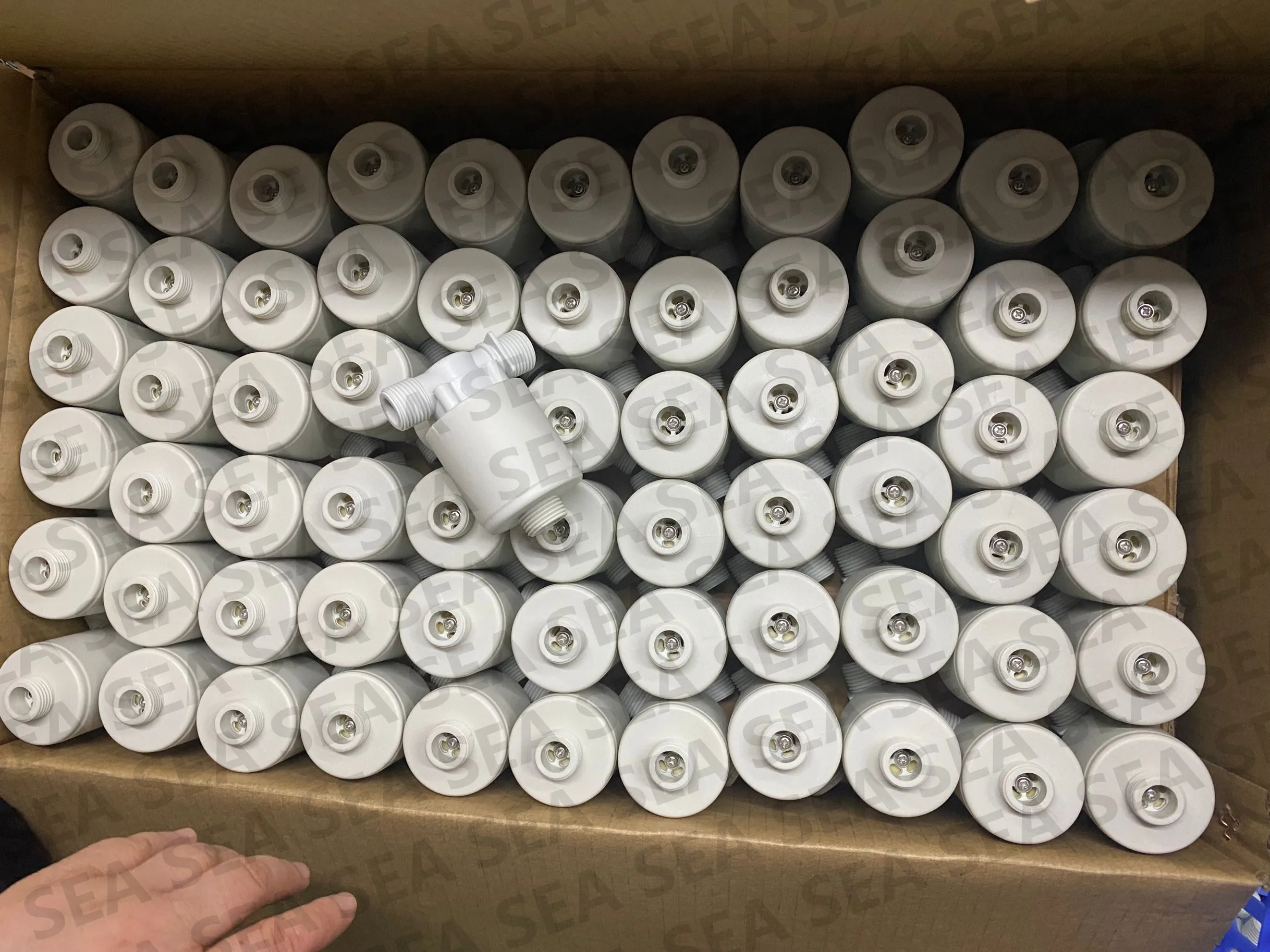

PACKING INFORMATION
Model No. FQF-02
Product size: 71mm x 87mm
Product Weight: 80g/PCS
PCS/Carton: 180pcs/CTN
Product Weight: 80g/PCS
PCS/Carton: 180pcs/CTN
CTN DIM: 59*35*29cm
Total Weight: 18KGs/CTN
Total Weight: 18KGs/CTN
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Model No. | Pipe Diameter | Inlet Direction | Installation Method |
FQF-01 | 1/2'' | Side Inlet | Internally Install |
FQF-02 | 1/2'' | Side Inlet | Internally / Externally Install |
FQF-03 | 1/2'' | Upper Inlet | Internally Install |
FQF-04 | 1/2'' | Upper Inlet | Internally / Externally Install |
FQF-05 | 1/2'' | Upper Inlet | Internally Install |
FQF-06 | 3/4'' | Side Inlet | Internally Install |
FQF-07 | 3/4'' | Side Inlet | Internally / Externally Install |
FQF-08 | 3/4'' | Upper Inlet | Internally Install |
FQF-09 | 3/4'' | Upper Inlet | Internally / Externally Install |
FQF-10 | 1/2'' | Upper Inlet | Internally Install |
FQF-11 | Coming Soon | Coming Soon | Coming Soon |
FQF-12 | Coming Soon | Coming Soon | Coming Soon |
FQF-13 | 1/2'' | Upper Inlet | Internally Install |
