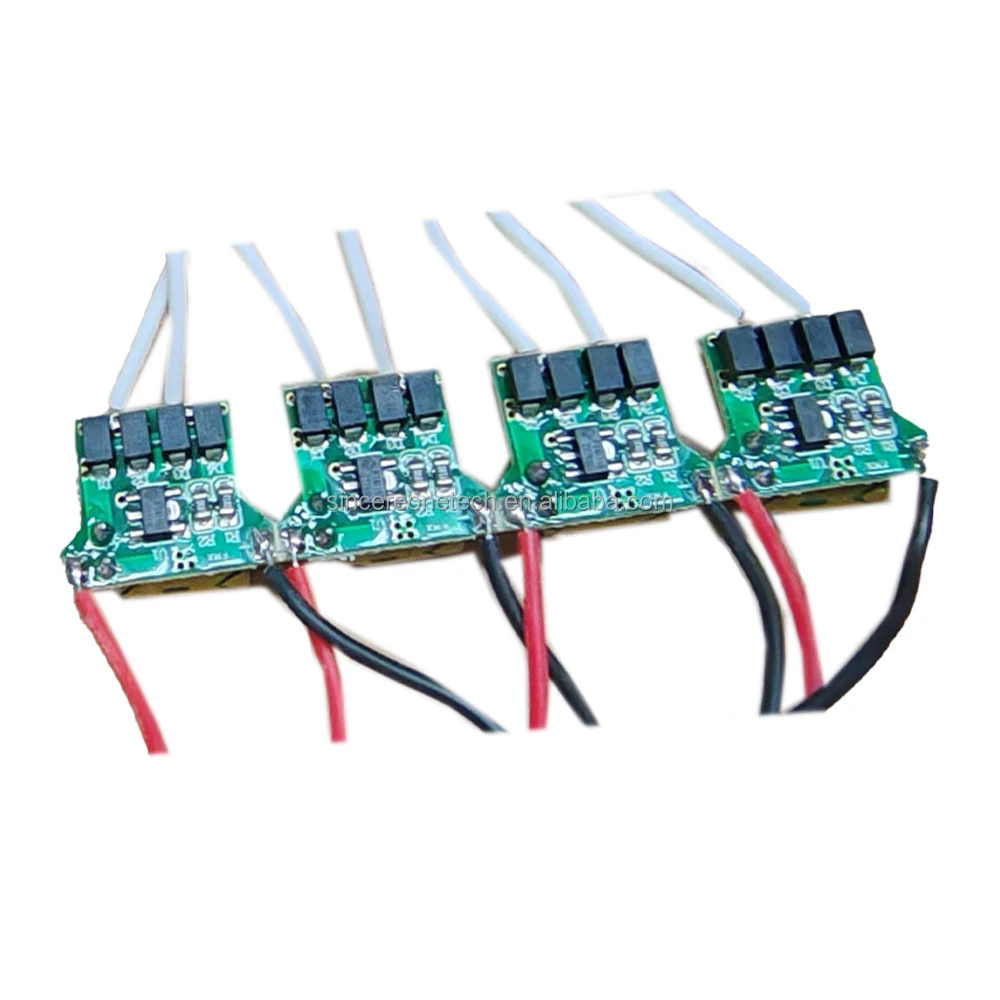

Built in Led drivers 3*2 Watts Constant current Led driver 420 MA/450MA / 600 MA for E27/GU10 Led bulb lights

Product Overview

Description

led driver 1-3 X2w constant current 420ma/450ma/600ma built-in power supply for led Gu10, E27 bulb, spotlight

Product  Parameters:

Product parameters
Typical power: 3*2W
Input voltage: 85-265V (wide voltage)
Output voltage: 6-10.5V
Output current: 420mA 450mA 600mA (various currents available)
Size specifications: 25*17*16mm
Product Application: Suitable for bulb lamps, spotlights, downlights, panel lights, etc.
Note: This driver uses a professional chip, the output voltage will be automatically adjusted according to the connected lamp beads, the circuit with over-current protection, short circuit protection, open circuit protection.
14-7W universal built-in power supply, suitable for led lamps such as bulb lights and candle lamps, can drive 4-7 string led lamps, crystal abundance IC Aihua electrolysis, isolation high efficiency.
Precautions: This product is an electronic product. The use of installation requires professional lighting manufacturers to install. The installation process must wear an electrostatic wristband to avoid electrostatic damage to the product.
Warranty:  The product is driven at an ambient temperature of 25°C for 8 hours per day. The temperature inside the luminaire is -30-75° and the warranty period is two years

.

More Input 12-24vdc  Built-in Led drivers Parameters:

Driver Power	Input Voltage	Output voltage	Output current	Effiency	Approximately Dimensions (mm) L*W*H)
3*2W	AC/DC12-15V	9-11V	450mA±5%	80%	14*17*10mm
3*3W	AC/DC12-15V	9-11V	600mA±5%	80%	13*17*10mm
4-6*1W	AC/DC12-15V	12-22V	300mA±5%	80%	13*17*11mm
3*2W	AC/DC12-24V	9-11V	450mA±5%	88%	14*18*12mm
3*3W	AC/DC12-24V	9-11V	600mA±5%	88%	14*18*12mm
1-7*1W	AC/DC24V	3-22V	300mA±5%	88%	14*18*12mm
1-3*1W	AC/DC12-24V	3-12V	300mA±3%	90%	26*17*12mm
1-7*1W	AC/DC24V	3-22V	300mA±3%	90%	26*17*12mm
6-9*2W	DC36V-48V	18-30V	600mA±3%	90%	30*25*26mm
6-9*3W	DC36V-48V	18-30V	900mA±3%	90%	47*23*14mm
1-3*3W	AC/DC12-80V	3-12V	900mA±3%	90%	41*19*13mm
1-10*1W	AC/DC12-80V	3-36V	300mA±3%	90%	41*19*13mm





Product Characters:
1, Use special chips, constant current, output voltage is adjustable according to voltage of the connected led doides. Over circuit protection, Short circuit protection, open circuit protection.
2, Small size design,low noise, safe.

3, Use high efficency, low consumption, steady imported chips, It's not only energy save, enviromental, but also constant output current, which ensure Leds safety, improve Led effiency, deduce Luminance decrease

 4, AC input, no need to distinguish  between positive and negative poles
 5, Output side red for positive, white for negative

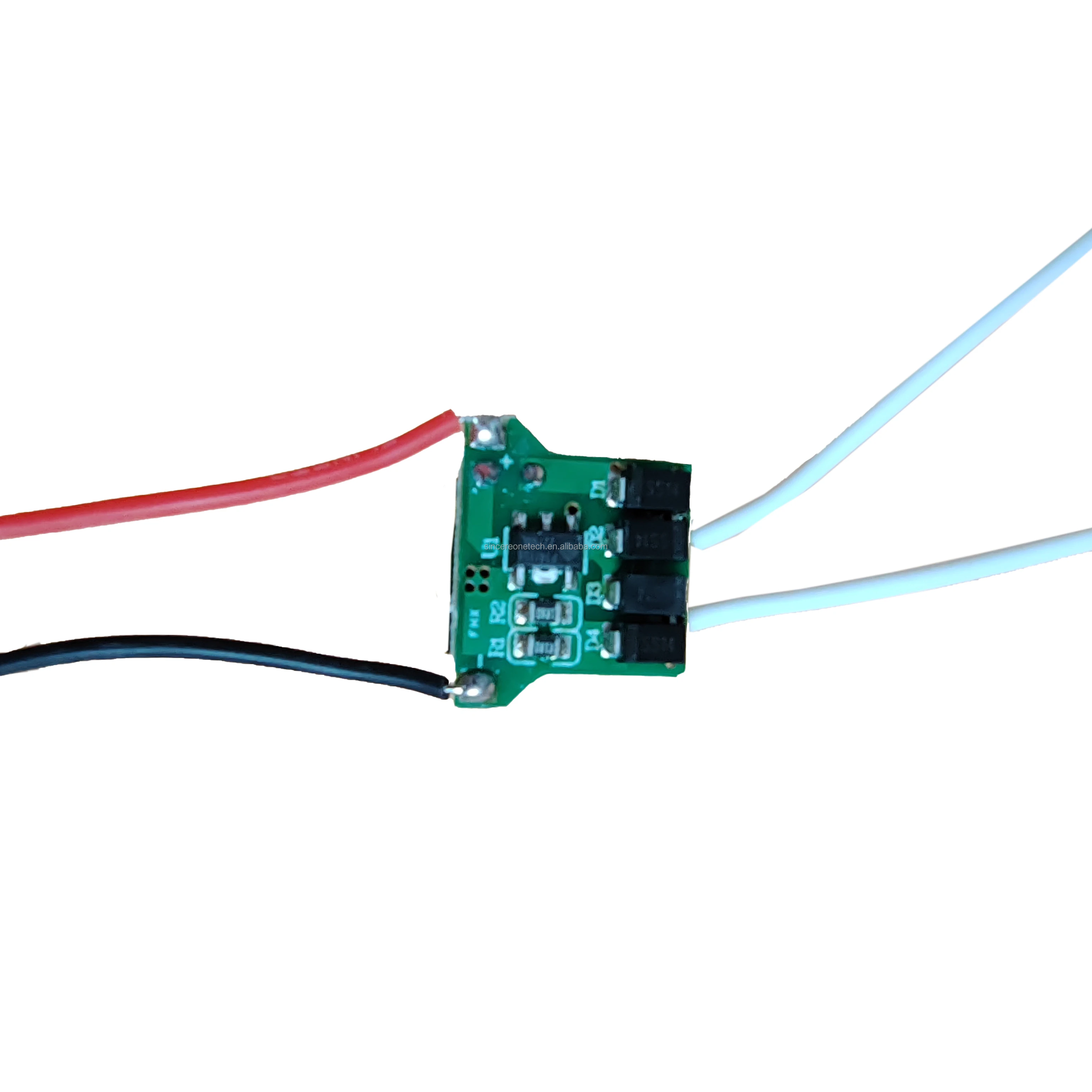

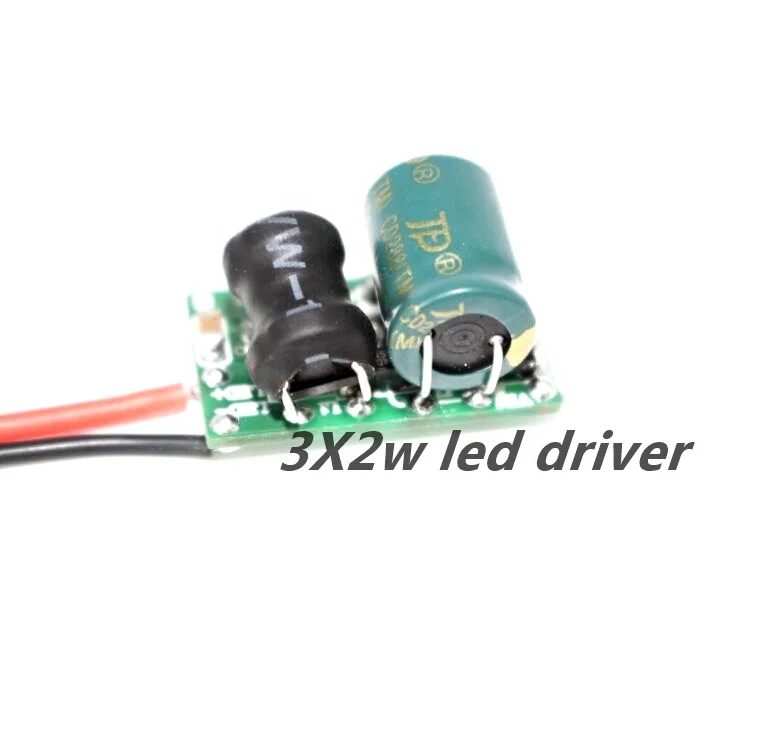

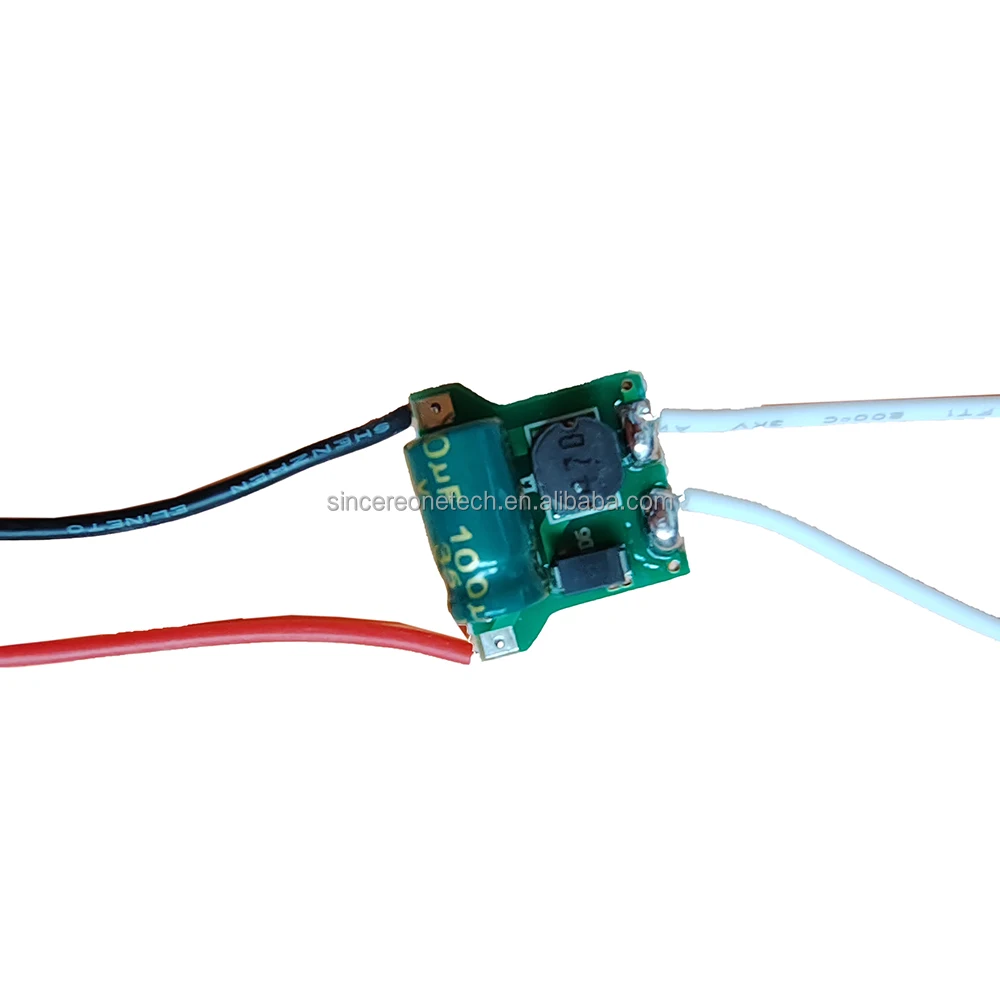

3*2w Led driver Product Show:
